SMAJ17CA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> SMAJ17CA

SMAJ17CA: Description400 W, BIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC; Categorysemiconductor Discrete semiconductor; File Size4MB，56 Pages; ManufacturerSOCAY; Websitehttp://www.socay.com

Download Datasheet Parametric View All

SMAJ17CA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SMAJ17CA	-	-	View	Buy Now

SMAJ17CA Overview

400 W, BIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC

SMAJ17CA Parametric

Parameter Name	Attribute value
Number of terminals	2
Number of components	1
Maximum breakdown voltage	20.9 V
Minimum breakdown voltage	18.9 V
Processing package description	GREEN, PLASTIC, SMA, 2 PIN
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
packaging shape	Rectangle
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	C BEND
terminal coating	PURE Tin
Terminal location	pair
Packaging Materials	Plastic/Epoxy
Craftsmanship	AVALANCHE
structure	single
Diode component materials	silicon
Maximum power consumption limit	1 W
polarity	Two-way
Diode type	TRANS voltage SUPPRESSOR diode
shutdown voltage	17 V
Maximum non-repetitive peak speed power	400 W

Preview

Download Datasheet

View All

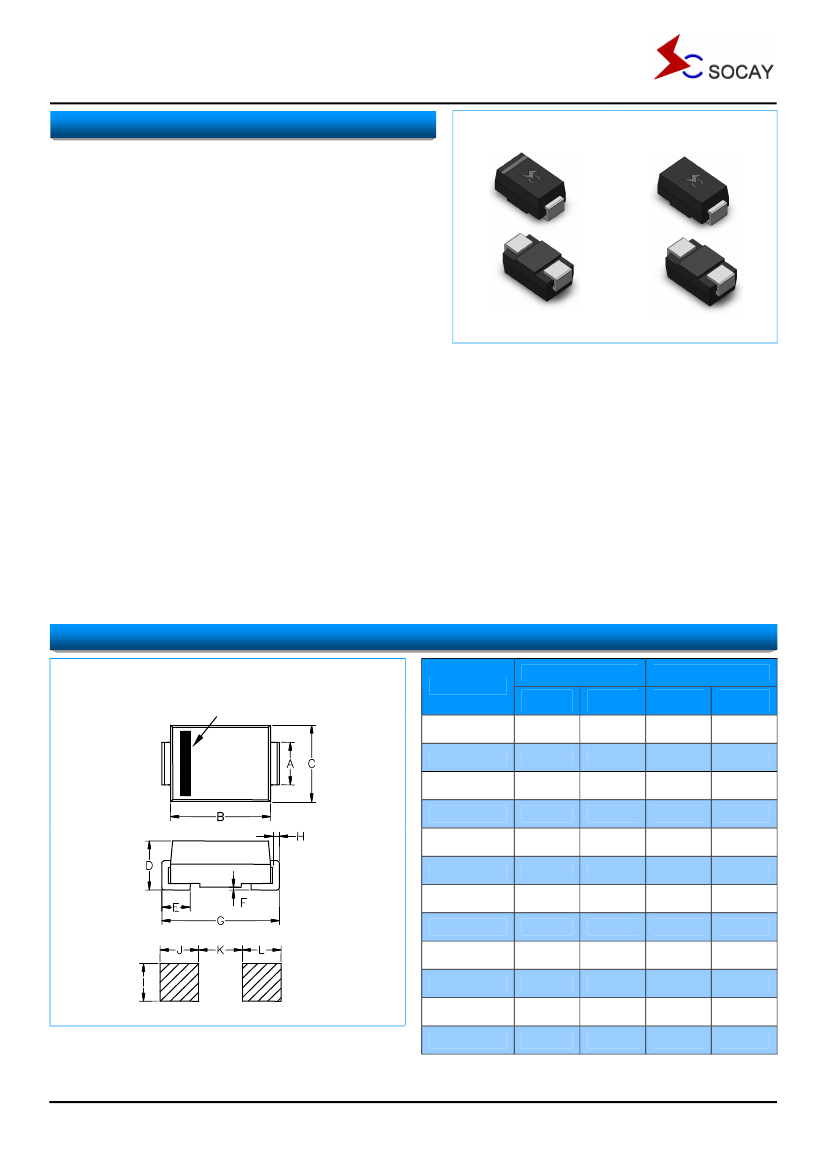

Surface Mount Transient Voltage Suppressors (TVS)

Features

SMF Series

Uni-directional

5.0 To 190 V

Bi-directional

200W

Compatible with industrial standard package SOD-123

For surface mounted applications in order to optimize board

space

Low leakage

Uni and Bidirectional unit

Glass passivated junction

Low inductance

Excellent clamping capability

200W Peak power capability at 10

1000µs waveform

Repetition rate (duty cycle):0.01%

Fast response time: typically less than 1.0ps from 0 Volts to

min

High Temperature soldering: 260°C/40 seconds at terminals

Typical maximum temperature coefficient

ΔV

= 0.1%

@25°C×

ΔT

Plastic package has Underwriters Laboratory Flammability

94V-0

Matte tin lead–free Plated

Halogen free and RoHS compliant

Typical failure mode is short from over-specified voltage or

current

Whisker test is conducted based on JEDEC JESD201A per its

table 4a and 4c

IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)

ESD protection of data lines in accordance with IEC 61000-4-2

(IEC801-2)

EFT protection of data lines in accordance with IEC 61000-4-4

(IEC801-4)

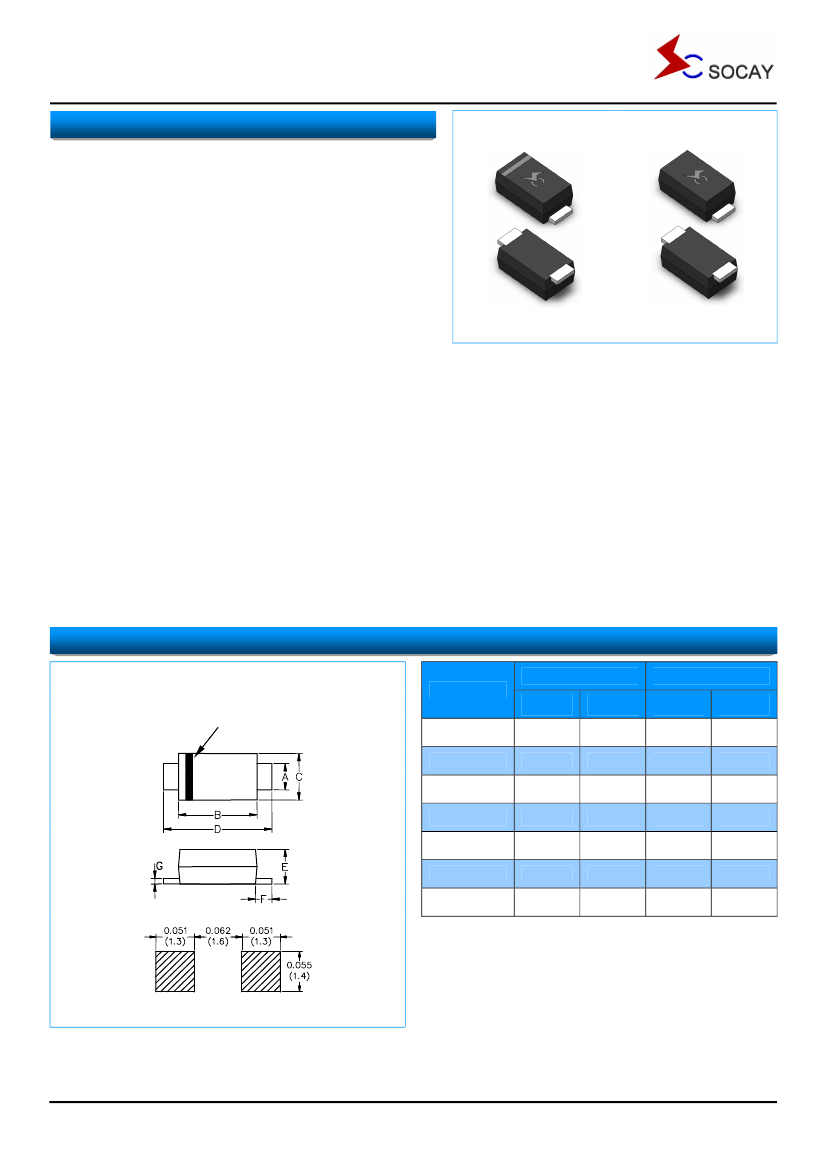

SOD-123

Dimensions

Inches

SOD-123

Cathode Band

Millimeters

Max

Min

0.77

2.51

1.38

3.51

0.93

0.25

Max

1.09

2.81

1.78

3.82

1.33

0.20

Dimensions

Min

0.031

0.1

0.055

0.140

0.037

0.01

0.044

0.112

0.071

0.152

0.053

0.008

www.socay.com
