NSFC47350TRC3F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> NSFC47350TRC3F

NSFC47350TRC3F: DescriptionFilm Capacitor, Polyester, 50V, 5% +Tol, 5% -Tol, 0.047uF, Surface Mount, 1210; CategoryPassive components capacitor; File Size145KB，3 Pages; ManufacturerNIC Components Corp

Download Datasheet Parametric Compare View All

NSFC47350TRC3F Overview

Film Capacitor, Polyester, 50V, 5% +Tol, 5% -Tol, 0.047uF, Surface Mount, 1210

NSFC47350TRC3F Parametric

Parameter Name	Attribute value
package instruction	, 1210
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	0.047 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYESTER
JESD-609 code	e1
Installation features	SURFACE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, 7 INCH
positive tolerance	5%
Rated (AC) voltage (URac)	40 V
Rated (DC) voltage (URdc)	50 V
size code	1210
surface mount	YES
Terminal surface	TIN SILVER COPPER
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

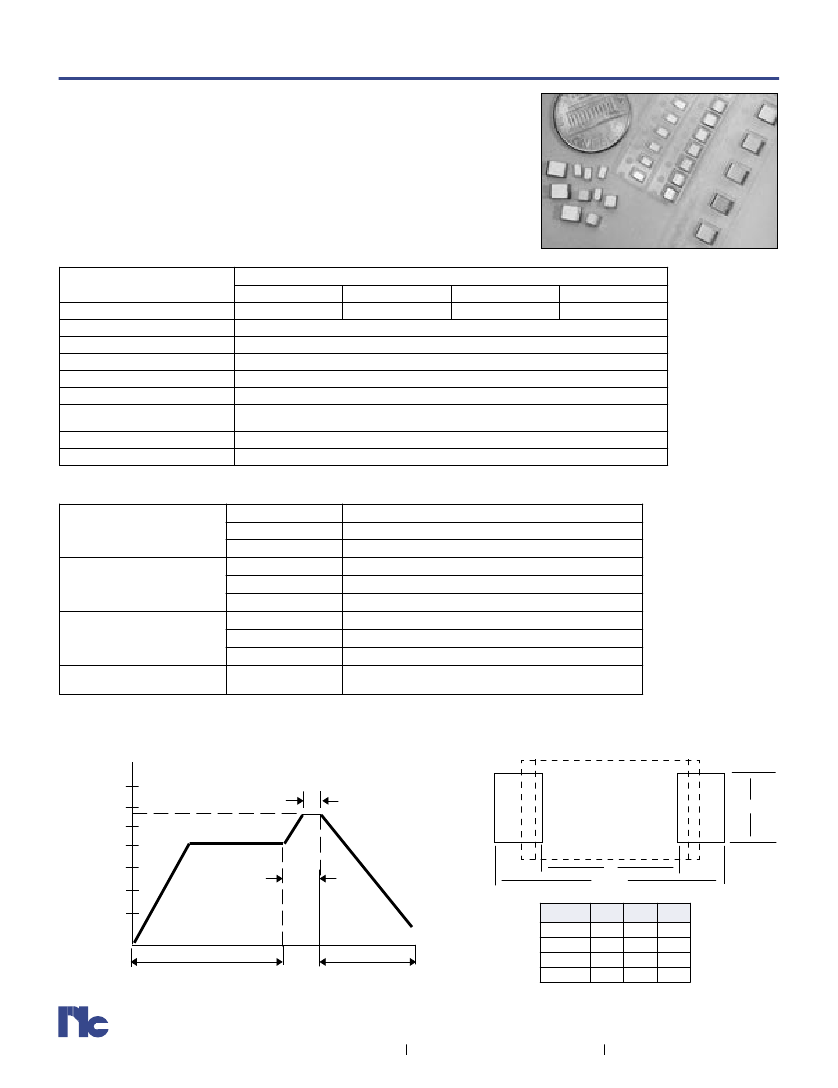

Stacked Film Capacitor Chips

FEATURES

•

STACKED METALLIZED POLYESTER FILM CONSTRUCTION

STANDARD EIA 1206, 1210, 1913 AND 2416 SIZES

EXCELLENT MOISTURE RESISTANCE

STABLE TEMPERATURE, FREQUENCY AND BIAS CHARACTERISTICS

REFLOW SOLDERING APPLICABLE

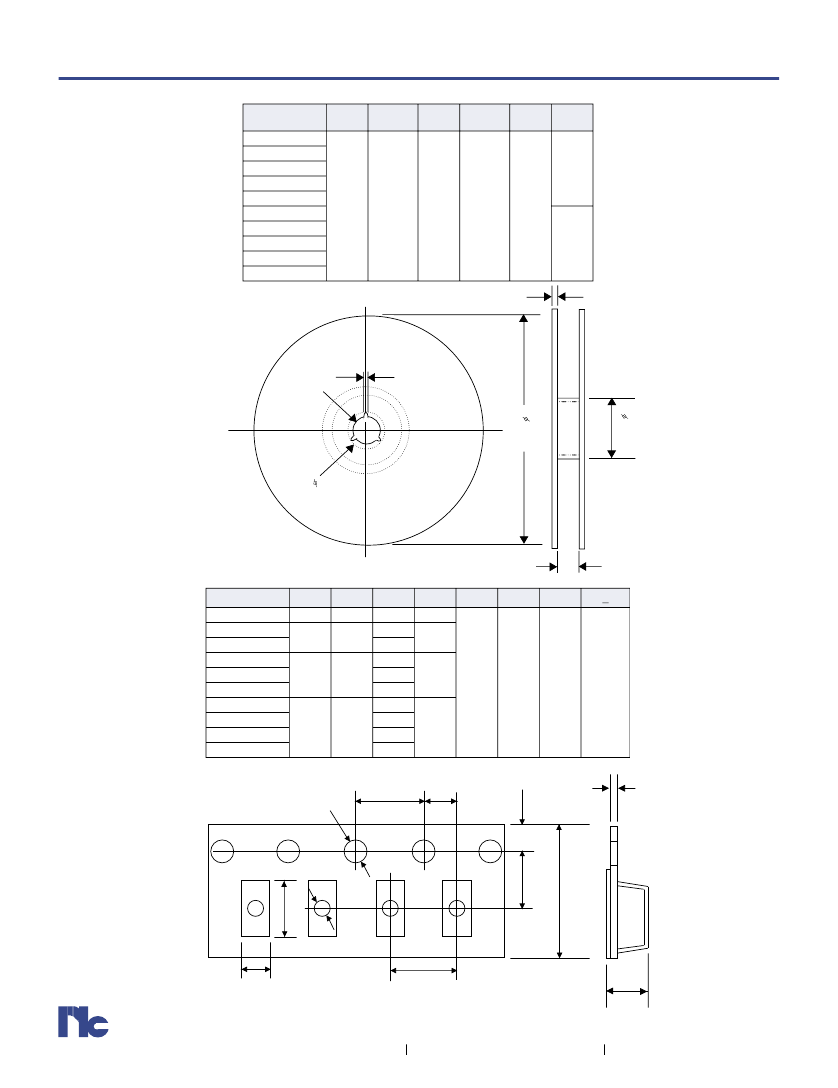

TAPE AND REEL PACKAGING

NSFC Series

SPECIFICATIONS

Capacitance Range

Voltage Ratings*

Capacitance Tolerance

Temperature Range

Dissipation Factor (20 C)

Case Sizes

1206

1000pF ~ .056

µF

1210

5600pF ~ .1

µF

1913

.015

F ~ .22

µF

2416

0.12

F ~ 0.47

µF

16Vdc(12Vrms), 50Vdc(40Vrms), 100Vdc(75Vrms)

±5% (J)

-55°C ~ +105°C

1.0% max @ 1 KHz

3 Gigohms Minimum

175% of Rated Voltage (5 Seconds)

150% of Rated Voltage (60 Seconds)

±4%

∆

C Maximum Over Temperature Range

0.20 ~ 0.30% Typical

Insulation Resistance (20

Dielectric Withstanding Voltage

Temperature Characteristic

Dielectric Absorption

* -AC Voltage Ratings (Vrms) From 60 hz to 10Khz. Contact NIC For Derating At Higher Frequencies.

ENVIRONMENTAL CHARACTERISTICS

L i fe Te s t At + 1 0 5

1000 Hour s at 125% of

Ra t e d Vo l t a g e

+ 2 6 0

C Pe a k fo r 5 Se c o n d s

Capaci t ance Change

Di s s i p a t i o n Fa c t o r

I nsul at i on Resi st ance

Di s s i p a t i o n Fa c t o r

Capaci t ance Change ( 1) +8/ - 5%

Di s s i p a t i o n Fa c t o r

(1) 1.5% Max.

Wi t h i n + 1 / - 6 % o f I n i t i a l Va l u e

1 . 1 % M a x i mu m

1 G i g o h m M i n i mu m

Wi t h i n ± 5 % o f I n i t i a l Va l u e

1 . 1 % M a x i mu m

1 G i g o h m M i n i mu m

( 2 ) ± 1 0 % o f I n i t i a l Va l u e

(2) 2.0% Max.

Resi st ance t o Sol der i ng Heat : Capaci t ance Change

Af t er 90 Seconds at +155 C I nsul at i on Resi st ance

H u m i d i t y L o a d L i fe * :

( 1 ) 1 0 0 0 H o u r s, + 4 0 C

(2) 500 Hours, +60

Solderability with

10% Wt Rosin-Methanol Flux

I n s u l a t i o n Re s i s t a n c e (1) 100 Megohm Minimum (2) 10 Megohm Minimum

9 0 % M i n i m u m C o ve r a g e A f t e r 5 S e c o n d D i p

i n t o 2 3 5 ° C So l d e r Po t

* At 90 ~ 95% Relative Humidity and Rated Voltage

RECOMMENDED REFLOW PROFILE

300

RECOMMENDED LAND PATTERN

Temperature - Deg. C

250

200

150

100

Less Than

15 Seconds

Cool Down



EIA Size

1206

1210

1913

2416



3.8

6.6

7.8

1.4

2.3

3.0

3.8



2.2

2.6

3.8

Pre-heat

150°C 120 seconds

2 Minutes Minimum

Time

NIC COMPONENTS

www.niccomp.com

www.lowESR.com

www.RFpassives.com

173



Peak Temperature

(230°C for 5 sec.)



NSFC47350TRC3F Related Products

	NSFC47350TRC3F	NSFC27416TRE1	NSFC27416TRE1F	NSFC27316TRB2F	NSFC27316TRB2
Description	Film Capacitor, Polyester, 50V, 5% +Tol, 5% -Tol, 0.047uF, Surface Mount, 1210	Film Capacitor, Polyester, 16V, 5% +Tol, 5% -Tol, 0.27uF, Surface Mount, 2416	Film Capacitor, Polyester, 16V, 5% +Tol, 5% -Tol, 0.27uF, Surface Mount, 2416	Film Capacitor, Polyester, 16V, 5% +Tol, 5% -Tol, 0.027uF, Surface Mount, 1206	Film Capacitor, Polyester, 16V, 5% +Tol, 5% -Tol, 0.027uF, Surface Mount, 1206
package instruction	, 1210	, 2416	, 2416	, 1206	, 1206
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	0.047 µF	0.27 µF	0.27 µF	0.027 µF	0.027 µF
Capacitor type	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR
dielectric materials	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
JESD-609 code	e1	e0	e1	e1	e0
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
negative tolerance	5%	5%	5%	5%	5%
Number of terminals	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TR, 7 INCH	TR, 13 INCH	TR, 13 INCH	TR, 7 INCH	TR, 7 INCH
positive tolerance	5%	5%	5%	5%	5%
Rated (AC) voltage (URac)	40 V	12 V	12 V	12 V	12 V
Rated (DC) voltage (URdc)	50 V	16 V	16 V	16 V	16 V
size code	1210	2416	2416	1206	1206
surface mount	YES	YES	YES	YES	YES
Terminal surface	TIN SILVER COPPER	TIN LEAD	TIN SILVER COPPER	TIN SILVER COPPER	TIN LEAD
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
