bias design and a simple external matching network
to obtain minimum noise figure.
The MAALSS0042 is ideally suited for use where
low noise figure, high gain, high dynamic range and
low power consumption are required.
Typical
applications include receiver front ends in the Global
Positioning System (GPS) market, as well as
standard gain blocks, buffer amps, driver amps, and
IF amps in both fixed and portable systems.
M/A-COM’S MAALSS0042 is fabricated using a
mature 0.5-micron gate length GaAs process. The
process features full passivation for increased
performance reliability.
GND
GND
Pin Configuration
3,4,5
Pin No.
1
2
3
4
5
6
7
8
Pin Name
GND
RF IN
GND
GND
GND
RF OUT
GND
GND
Description
Ground
RF Input
Ground
Ground
Ground
RF Output, V
DD
Ground
Ground
Ordering Information
1,2
Part Number
MAALSS0042
MAALSS0042TR-3000
MAALSS0042SMB
Package
Bulk Packaging
3000 piece reel
Sample Test Board
3. Pins 1, 3, 4, 5, 7, and 8 must be RF and DC grounded (see
Recommended PCB Configuration).
4. Pin 2 is the RF input and must be connected to the simple
matching network shown in the Application Schematic.
5. Pin 6 is the RF output. V
DD
is also applied on Pin 6.
Absolute Maximum Ratings
6,7
Parameter
V
DD
Input Power
Channel Temperature
8
Operating Temperature
Storage Temperature
Absolute Maximum
+10 VDC
17 dBm
+150 °C
-40 °C to +85 °C
-65 °C to +150 °C
1. Reference Application Note M513 for reel size information.
2. Die quantity varies.
6. Exceeding any one or combination of these limits may cause
permanent damage to this device.
7. M/A-COM does not recommend sustained operation near
these survivability limits.
8. Typical thermal resistance (θjc) = +165 °C/W
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAALSS0042
Low Noise Amplifier
1.575 GHz
Electrical Specifications: T
A
= +25°C, V
DD
= +5 V, Z
0
= 50
Ω
Parameter
Gain
Noise Figure
Input VSWR
Output VSWR
Output P1dB
Input IP
3
Reverse Isolation
Bias Current
Test Conditions
F = 1.575 GHz, P
IN
= -35 dBm
F = 1.575 GHz, P
IN
= -35 dBm
F = 1.575 GHz, P
IN
= -35 dBm
F = 1.575 GHz, P
IN
= -35 dBm
F = 1.575 GHz
F = 1.575 GHz, P
IN
= -35 dBm
F = 1.575 GHz, P
IN
= -35 dBm
—
Units
dB
dB
Ratio
Ratio
dBm
dBm
dB
mA
Min.
25
-
-
-
-
-
-
15
Typ.
27
1.15
2.0:1
1.5:1
1
-14
48
20
Max.
29
1.4
-
-
-
-
-
25
Rev. V1

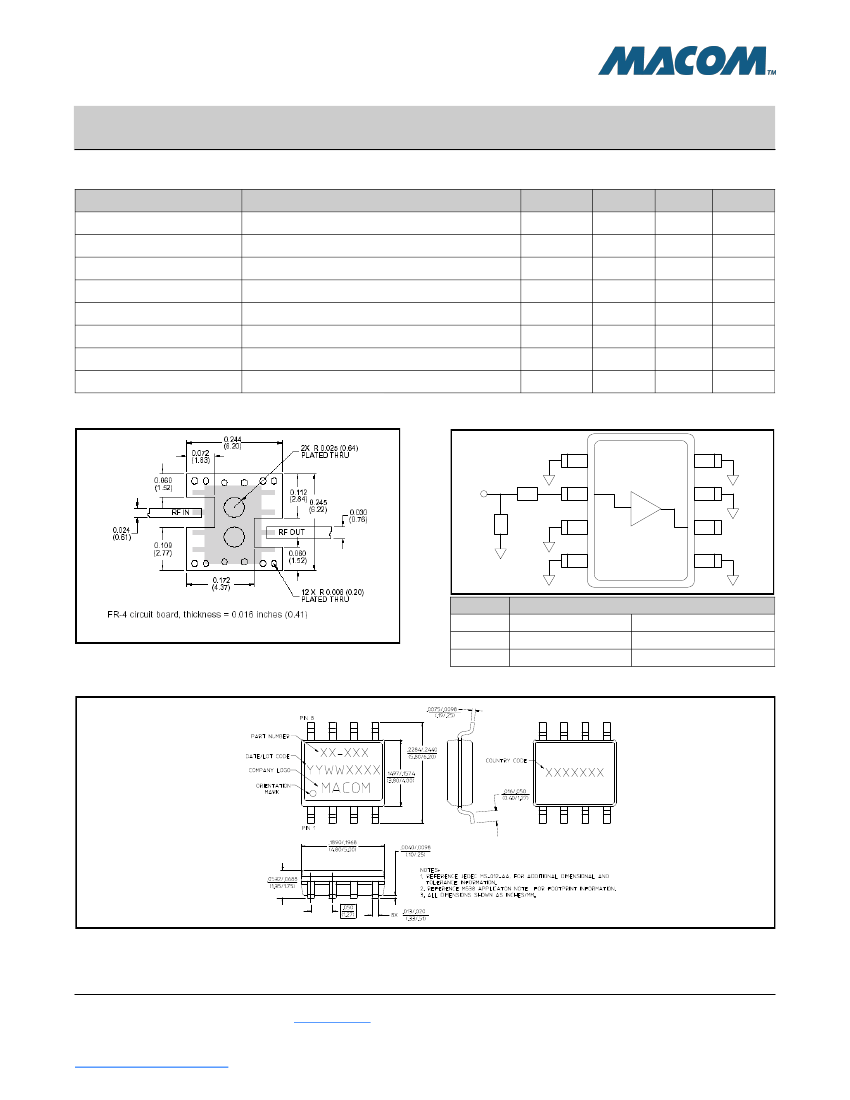

Recommended PCB Configuration
Application Schematic
GND
1
T1
RF IN
2
GND
T2
3
GND
4
6
GND
5
RF OUT, V
DD
GND
8
GND
7
Dimensions in inches (mm).
T1
T2
Frequency = 1.575 GHz
Impedance
Electrical Length
57.2
Ω
36.0°
82.7
Ω
16.2°
Lead-Free SOIC-8
†
† Reference Application Note M538 for lead-free solder reflow recommendations.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAALSS0042
Low Noise Amplifier
1.575 GHz

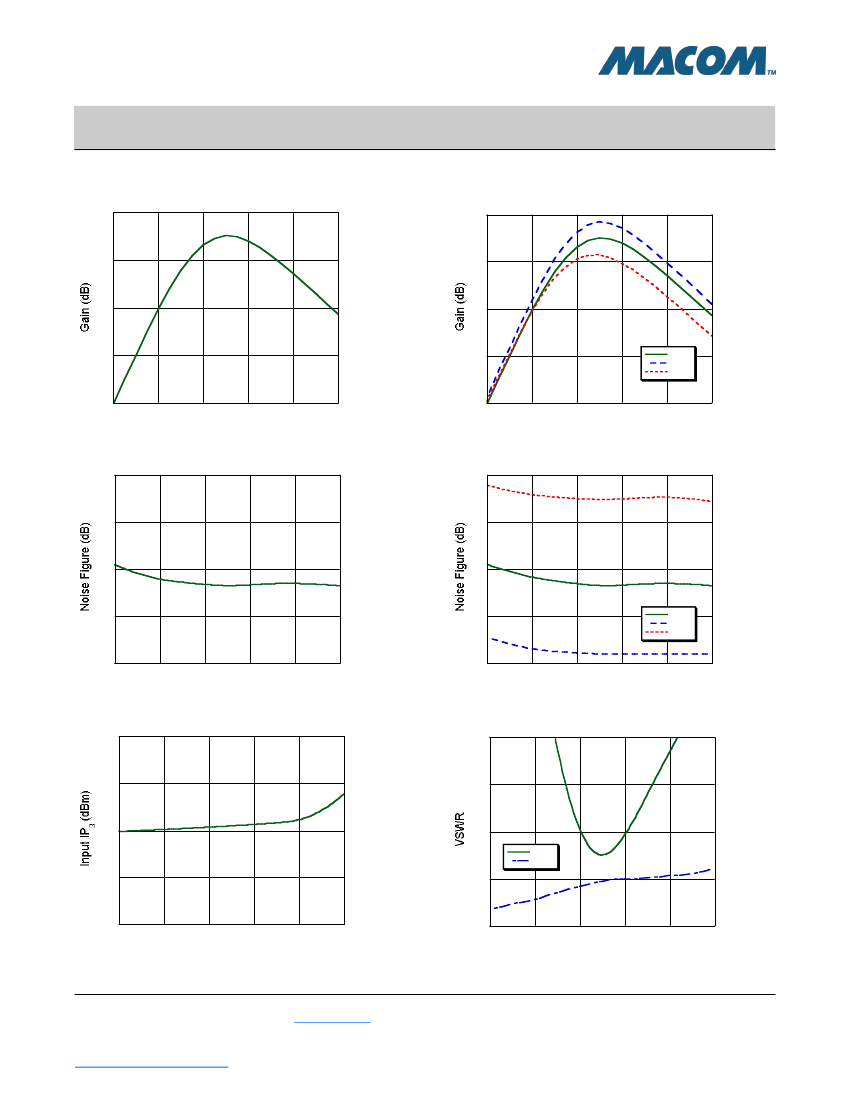

Typical Performance
