TF3C155K050F3200

Description
CAPACITOR, TANTALUM, SOLID, POLARIZED, 50 V, 1.5 uF, SURFACE MOUNT, 2312, CHIP
CategoryPassive components    capacitor
File Size128KB,12 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

TF3C155K050F3200 Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 50 V, 1.5 uF, SURFACE MOUNT, 2312, CHIP

TF3C155K050F3200 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
package instruction, 2312
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance1.5 µF
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
ESR3200 mΩ
high2.5 mm
JESD-609 codee0
leakage current0.0008 mA
length6 mm
Manufacturer's serial numberTF3
Installation featuresSURFACE MOUNT
negative tolerance10%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
Package formSMT
method of packingTR, 13 INCH
polarityPOLARIZED
positive tolerance10%
Rated (DC) voltage (URdc)50 V
ripple current190 mA
seriesTF3
size code2312
surface mountYES
Delta tangent0.06
Terminal surfaceTin/Lead (Sn/Pb)
Terminal shapeJ BEND
width3.2 mm

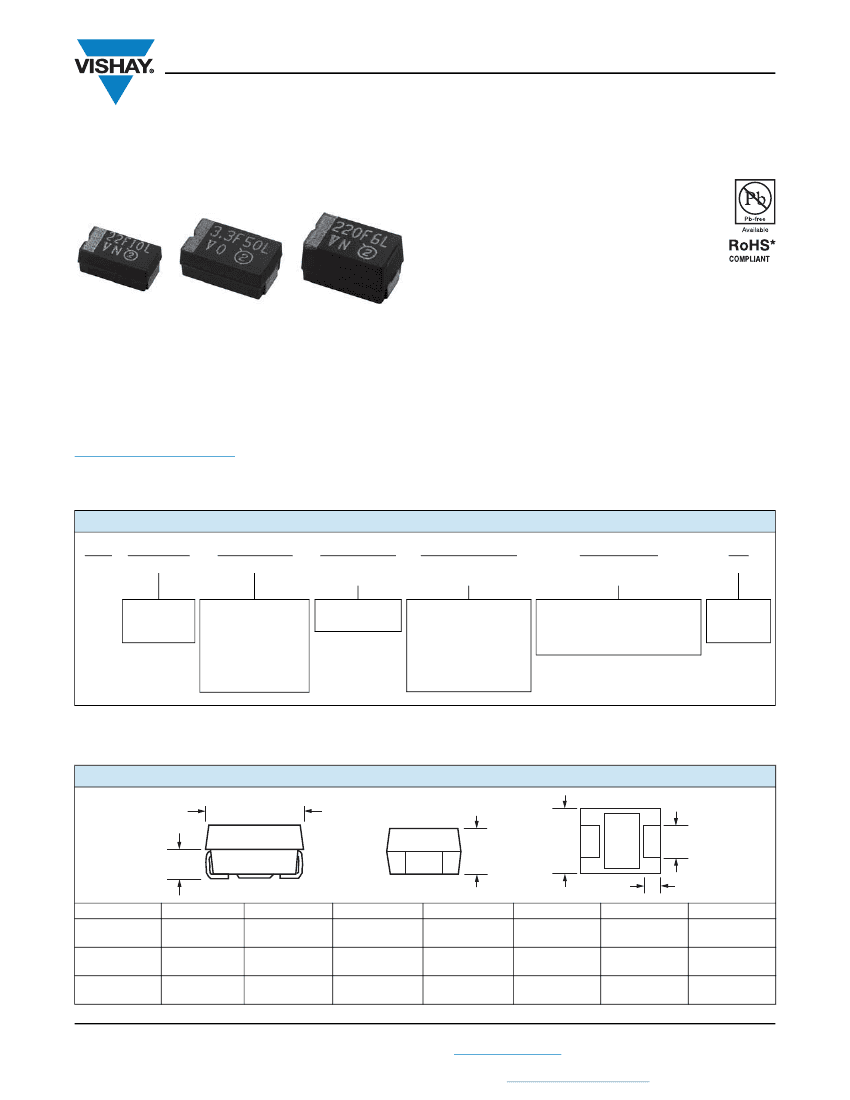

TF3
www.vishay.com
Vishay Sprague
Low ESR Solid Tantalum Chip Capacitors,
T
ANTAMOUNT®
Molded Case, Built-In-Fuse
FEATURES
• Terminations: 100 % matte tin, standard,
tin/lead available
• Molded case available in three case codes
• Compatible with “High Volume” automatic
pick and place equipment
• Mounting: Surface mount
• High ripple current carrying capability
• Low ESR
• Meets EIA 535BAAC
• 100 % surge current tested
• Compliant to RoHS Directive 2002/95/EC
• Moisture sensitivity level 1
Note
*
Pb containing terminations are not RoHS compliant, exemptions
may apply
PERFORMANCE/ELECTRICAL CHARACTERISTICS
www.vishay.com/doc?40088
Operating Temperature:
- 55 °C to + 85 °C
(To + 125 °C with voltage derating)
Capacitance Range:
0.47 μF to 470 μF
Capacitance Tolerance:
± 10 %, ± 20 %
Voltage Rating:
4 V
DC
to 50 V
DC
ORDERING INFORMATION
TF3
TYPE
E
CASE CODE
477
CAPACITANCE
M
CAPACITANCE
TOLERANCE
K = ± 10 %
M = ± 20 %
004
DC VOLTAGE
RATING AT + 85 °C
This is expressed in V.
To complete the
three-digit block, zeros
precede the voltage
rating. A decimal point
is indicated by an “R”
(6R3 = 6.3 V)
E
TERMINATION/
PACKAGING
C = Matte tin/7" (178 mm) reels
D = Matte tin/13" (330 mm)
E = Tin/lead/7" (178 mm) reels
F = Tin/lead/13" (330 mm)
0500
ESR
See Ratings
and Case
Codes table
This is expressed in
picofarads. The first
two digits are the
significant figures.
The third is the
number of zeros to
follow
Maximum
100 kHz
ESR in m
Note
• We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size.
Voltage substitutions will be marked with the higher voltage rating.
DIMENSIONS
in inches [millimeters]
L
W
H
T
H
(MIN.)
P
T
W
CASE CODE
C
D
E
EIA SIZE
6032-28
7343-31
7343-43
L
0.236 ± 0.012
[6.0 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
W
0.126 ± 0.012
[3.2 ± 0.30]
0.169 ± 0.012
[4.3 ± 0.30]
0.169 ± 0.012
[4.3 ± 0.30]
H
0.098 ± 0.012
[2.5 ± 0.30]
0.110 ± 0.012
[2.8 ± 0.30]
0.157 ± 0.012
[4.0 ± 0.30]
P
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
T
W
0.087 ± 0.004
[2.2 ± 0.10]
0.094 ± 0.004
[2.4 ± 0.10]
0.094 ± 0.004
[2.4 ± 0.10]
T
H
(MIN.)
0.039
[1.0]
0.039
[1.0]
0.039
[1.0]
Revision: 31-Aug-11
Document Number: 40113
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
