third order intercept point (OIP3) and 21 dBm output
P1dB provide excellent linearity for transmit lineups.
The packaged amplifier comes in an industry
standard lead free 4 mm QFN package. The device
includes on-chip ESD protection structures and DC
by-pass capacitors to ease the implementation and
volume assembly of the packaged part.
The device is specifically designed for use in 18 and
23 GHz point-to-point radios for cellular backhaul
applications.
3
10
4
9
5
6
7
8
N/C
N/C
N/C
N/C
Pin Configuration
3
Pin No.
1
2
3
4
Function
No Connection
Ground
RF Input
Ground
No Connection
No Connection
No Connection
No Connection
Pin No.
9
10
11
12
13
14
15
16
17
Function
No Connection
Ground
RF Output
Ground
V
D
2
V
G
2
V
D
1
V
G
1
Paddle
4
Ordering Information
1,2
Part Number
MAAM-011132-TR0500
MAAM-011132-TR1000
MAAM-011132-000SMB
Package
500 Piece Reel
1000 Piece Reel
Sample Board
5
6
7
8
1. Reference Application Note M513 for reel size information.
2. All sample boards include 5 loose parts.
3. For optimum RF performance, all N/C’s should be terminated
to ground.
4. The exposed pad centered on the package bottom must be
connected to RF and DC ground.
* Restrictions on Hazardous Substances, European Union Directive 2011/65/EU.
1
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAAM-011132
Driver Amplifier
17.7 - 23.6 GHz
Electrical Specifications
5
:
RF Freq: 17.7 - 23.6 GHz, V
D
= 4 V, I
D
1 = 90 mA, I
D
2 = 90 mA, T
A
= +25°C
Rev. V2
Frequency Range (LO)
Gain
Input Return Loss
Output Return Loss
Noise Figure
Output P1dB
Output IP3
GHz
dB
dB
dB
dB
dBm
dBm
17.7
20
—
—
—
—
—
—
23
12
12
2.8
21
33
23.6
—
—
—
—
—
—
5. Apply gate voltages prior to drain voltages. Adjust V
G
1 and V
G
2 between -1.0 and -0.1 V to achieve specified drain current. Typical
current,180 mA = 90 (I
D
1) + 90 (I
D
2)
Absolute Maximum Ratings
6,7,8
Handling Procedures
Please observe the following precautions to avoid
damage:
Drain Voltage
Gate Bias Voltage (V
G
1,2)
Input Power
Storage Temperature
Operating Temperature
Junction Temperature
+4.3 V
-1.5 V < V
G
< 0 V
+3 dBm
-55°C to +150°C
-40°C to +85°C
+150°C
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
HBM Class 1B devices.
6. Exceeding any one or combination of these limits may cause
permanent damage to this device.
7. MACOM does not recommend sustained operation near these
survivability limits.
8. Operating at nominal conditions with T
J
≤ +150°C will ensure
MTTF > 1 x 10
6
hours.
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAAM-011132
Driver Amplifier
17.7 - 23.6 GHz

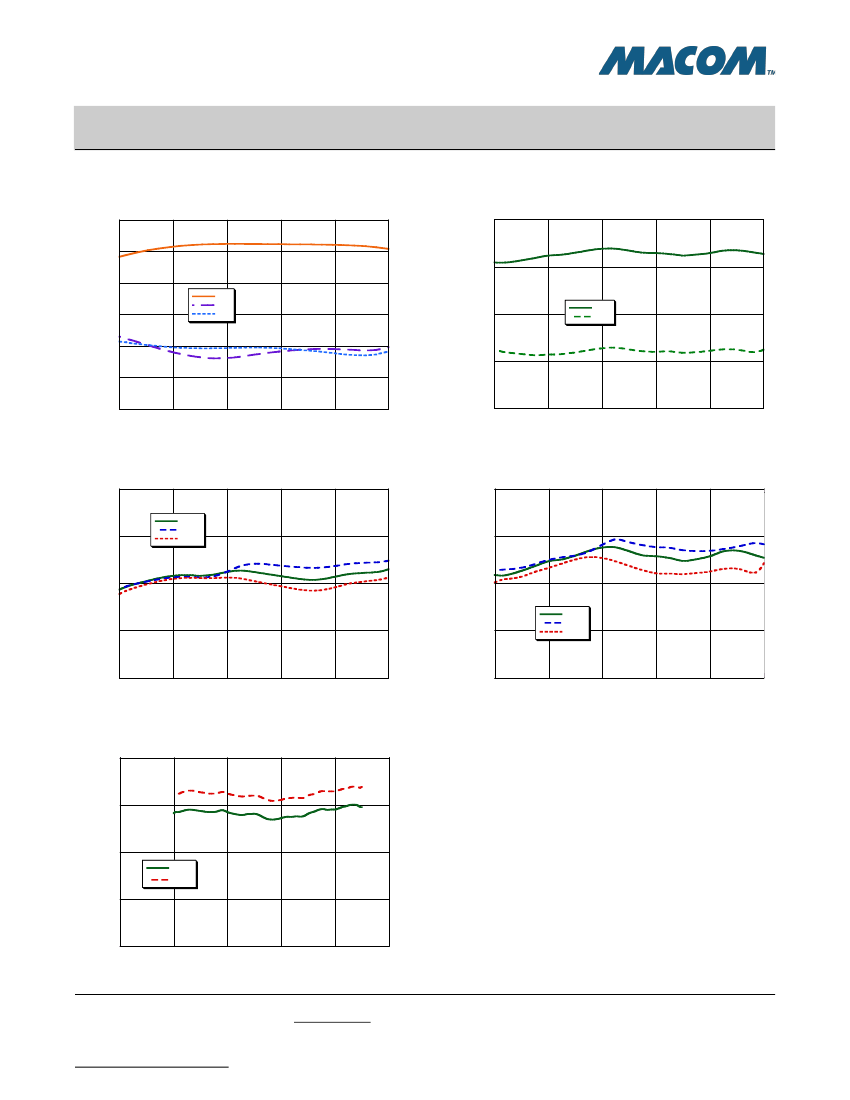

Typical Performance Curves: V
D
1,2 = 4 V, I
D
1 = I
D
2 = 90 mA
S-Parameters vs. Frequency
30
20
Rev. V2
Output / Input IP3 vs. Frequency
40
S-Parameters (dB)
10
0
-10
-20
-30
S21
S11
S22
OIP3 & IIP3 (dBm)
30
20
OIP3
IIP3
10
15
17
19
21
23
25
0
15
17
19
21
23
25
Frequency (GHz)
Frequency (GHz)
Output P1dB vs. Frequency
30
+25°C
-40°C
+85°C
Output IP3 vs. Frequency
40
25
35
P1dB (dBm)
20
OIP3 (dBm)
30
+25°C
-40°C
+85°C
15
25
10
15
17
19
21
23
25
20
15
17
19
21
23
25
Frequency (GHz)
Frequency (GHz)
Noise Figure vs. Frequency
4
Noise Figure (dB)
3
2
+25°C
+85°C
1
0
15
17
19
21
23
25
3
Frequency (GHz)
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAAM-011132
Driver Amplifier
17.7 - 23.6 GHz
Lead-Free

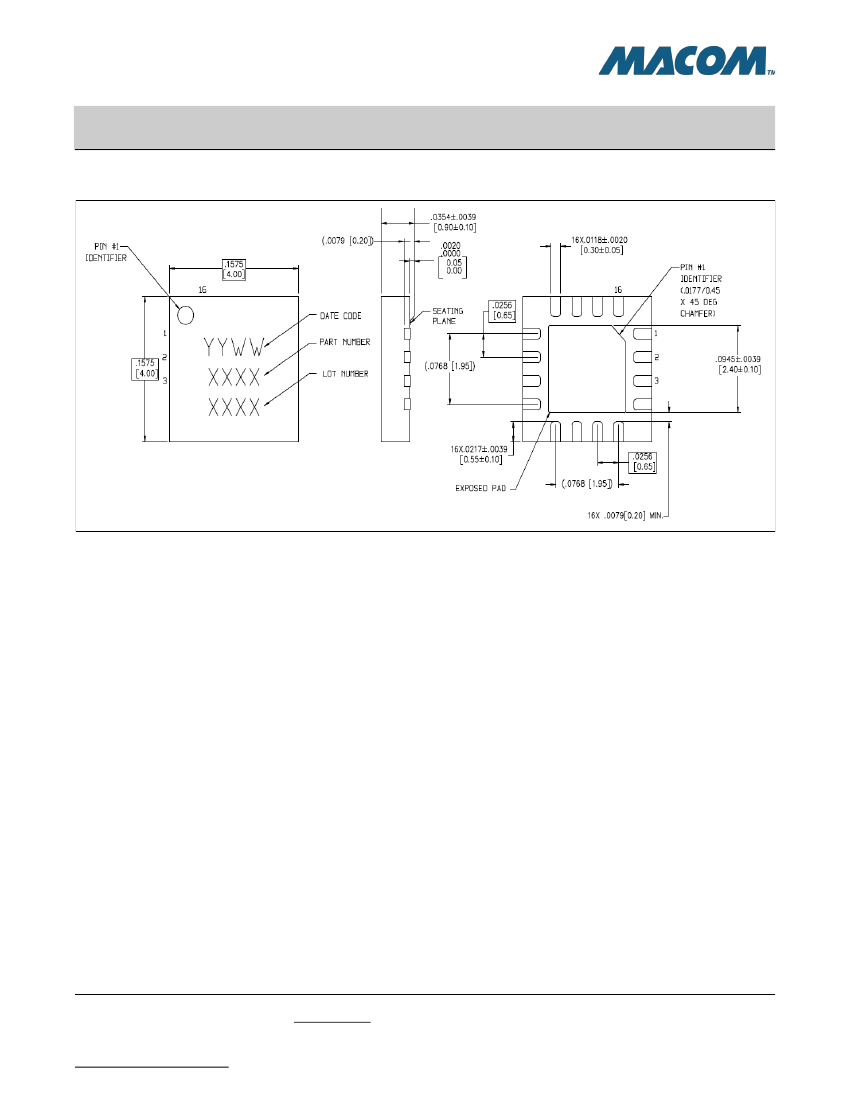

4 mm 16-Lead PQFN
†
Rev. V2
†
Reference Application Note S2083 for lead-free solder reflow recommendations and PCB footprint information.
Reference JEDEC MO-220,VAR,VGGC for additional dimensional and tolerance information.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAAM-011132
Driver Amplifier
17.7 - 23.6 GHz
Rev. V2
M/A-COM Technology Solutions Inc. All rights reserved.
Information in this document is provided in connection with M/A-COM Technology Solutions Inc ("MACOM")
products. These materials are provided by MACOM as a service to its customers and may be used for
informational purposes only. Except as provided in MACOM's Terms and Conditions of Sale for such products or
in any separate agreement related to this document, MACOM assumes no liability whatsoever. MACOM
assumes no responsibility for errors or omissions in these materials. MACOM may make changes to
spec-
ifications and product descriptions at any time, without notice. MACOM makes no commitment to update the in-
formation and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future chang-
es to its specifications and product descriptions. No license, express or implied, by estoppels or otherwise, to
any intellectual property rights is granted by this document.
THESE MATERIALS ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, RELATING TO SALE AND/OR USE OF MACOM PRODUCTS INCLUDING LIABILITY OR
WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, CONSEQUENTIAL OR
INCIDENTAL DAMAGES, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR
OTHER INTELLECTUAL PROPERTY RIGHT. MACOM FURTHER DOES NOT WARRANT THE ACCURACY
OR COMPLETENESS OF THE INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CONTAINED WITHIN
THESE MATERIALS. MACOM SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR LOST PROFITS,
WHICH MAY RESULT FROM THE USE OF THESE MATERIALS.
MACOM products are not intended for use in medical, lifesaving or life sustaining applications. MACOM
customers using or selling MACOM products for use in such applications do so at their own risk and agree to
fully indemnify MACOM for any damages resulting from such improper use or sale.
5
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
