1.75x4mm RECTANGULAR SOLID LAMPS
L-1773HD BRIGHT RED
L-1773ID HIGH EFFICIENCY RED
L-1773ND PURE ORANGE
L-1773GD GREEN
L-1773YD YELLOW
L-1773ED ORANGE
Features
POWER CONSUMPTION.
END RECTANGULAR SHAPE.
COMPATIBLE.
LIFE-SOLID STATE RELIABILITY.
Description
The Bright Red source color devices are made with
Gallium Phosphide Red Light Emitting Diode.
The High Efficiency Red and Orange source color devices
are made with Gallium Arsenide Phosphide on Gallium
Phosphide Orange Light Emitting Diode.
The Green source color devices are made with Gallium
Phosphide Green Light Emitting Diode.
The Yellow source color devices are made with Gallium
Arsenide Phosphide on Gallium Phosphide Yellow Light
Emitting Diode.
The Pure Orange source color devices are made with
Gallium Arsenide Phosphide on Gallium Phosphide Pure
Orange Light Emitting Diode.
!
LOW
!
I.C.
!
ROUNDED
!
LONG
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
SPEC NO: KDA0280
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: SEP/14/2001
DRAWN: J.X.FU
PAGE: 1 OF 6
Selection Guide
Par t No .
Dic e
L en s Ty p e
Iv (m c d )
@ 10 m A
Min .
L-1773HD
L-1773ID
L-1773ED
L-1773GD
L-1773YD
L-1773ND
BRIGHT RED (GaP)
HIGH EFFICIENCY RED (GaAsP/GaP)
ORANGE (GaAsP/GaP)
GREEN (GaP)
YELLOW (GaAsP/GaP)
PURE ORANGE (GaAsP/GaP)
RED DIFFUSED
RED DIFFUSED
ORANGE DIFFUSED
GREEN DIFFUSED
YELLOW DIFFUSED
ORANGE DIFFUSED
0.8
5
5
3
3
5
Ty p .
2
10
10
10
8
8
V i ew i n g
An g l e
2θ1/2
100°
100°
10 0 °
10 0 °
10 0 °
10 0 °
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
°
Electrical / Optical Characteristics at T
)
=25°C
Sy m b o l
Par am et er
D ev i c e
Bright Red
High Efficiency Red
Orange
Green
Yellow
Pure Orange
Bright Red
High Efficiency Red
Orange
Green
Yellow
Pure Orange
Ty p .
700
627
627
565
590
607
660
625
625
568
588
610
45
45
45
30
35
35
40
15
15
15
20
15
2.25
2.0
2.0
2.2
2.1
2.05
2.5
2.5
2.5
2.5
2.5
2.5
10
Max .
Un it s
Tes t Co n d it io n s
λ
peak
Peak Wavelength
nm
IF=20mA
λ
D
Dominate Wavelength
nm
IF=20mA
∆λ
1/2
Bright Red
High Efficiency Red
Orange
Spectral Line Halfwidth Green
Yellow
Pure Orange
Bright Red
High Efficiency Red
Orange
Green
Yellow
Pure Orange
Bright Red
High Efficiency Red
Orange
Green
Yellow
Pure Orange
All
nm
IF=20mA
C
Capacitance
pF
VF=0V;f=1MHz
V
F
Forward Voltage
V
IF=20mA
I
R
Reverse Current
uA
V R = 5V
SPEC NO: KDA0280
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: SEP/14/2001
DRAWN: J.X.FU
PAGE: 2 OF 6
Absolute Maximum Ratings at T
)
=25°C
°
Par am et er
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 4mm below package base.
B r ig h t
R ed
12 0
25
12 0
5
Hig h
E f f i c i en c y
R ed
105
30
16 0
5
Or an g e
105
30
16 0
5
Gr een
105
25
140
5
-40
°
C To +85
°C
Yello w
105
30
140
5
Pu r e
Or an g e
10 5
30
14 5
5
Un it s
mW
mA
mA
V
260
°
C For 5 Seconds

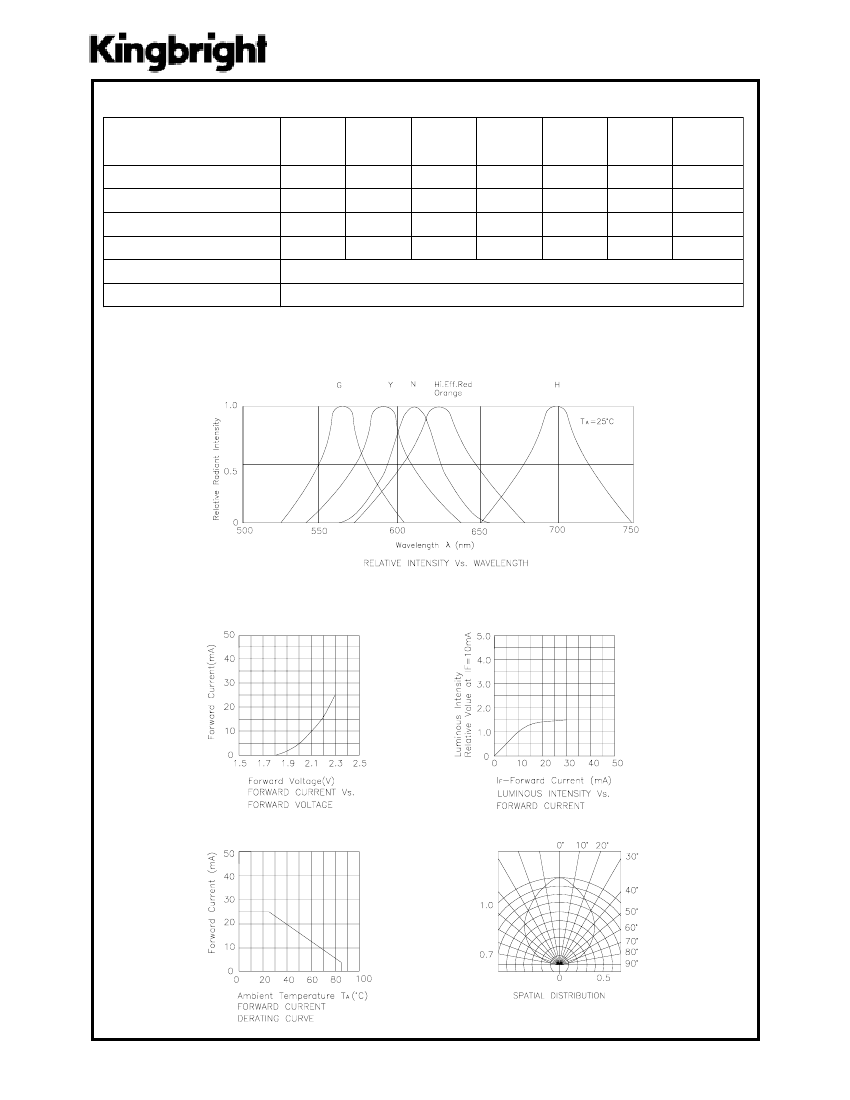

Bright Red L-1773HD
SPEC NO: KDA0280
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: SEP/14/2001
DRAWN: J.X.FU
PAGE: 3 OF 6
