CB76262M10R datasheet, PDF - EEWORLD Datasheet

CB76262M10R: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug,; CategoryThe connector The connector; File Size103KB，1 Pages; ManufacturerCvilux; Websitehttps://www.cvilux.com/; Environmental Compliance; Founded in 1990, CviLux specializes in the production and sale of connectors, FFCs, and wire harnesses. CviLux products are used in consumer electronics, computer and network, communications, industrial, automotive, and optical industries. CviLux is a listed company on the Taiwan Stock Exchange (code 8103). CviLux has ISO9001, ISO14001, IATF16949, and QC080000 certifications, as well as Apple MFi and USB certifications. They continue to develop new products for the ever-changing market. They have seven factories and global sales offices to support users' interconnect needs.

Download Datasheet Parametric View All

CB76262M10R Overview

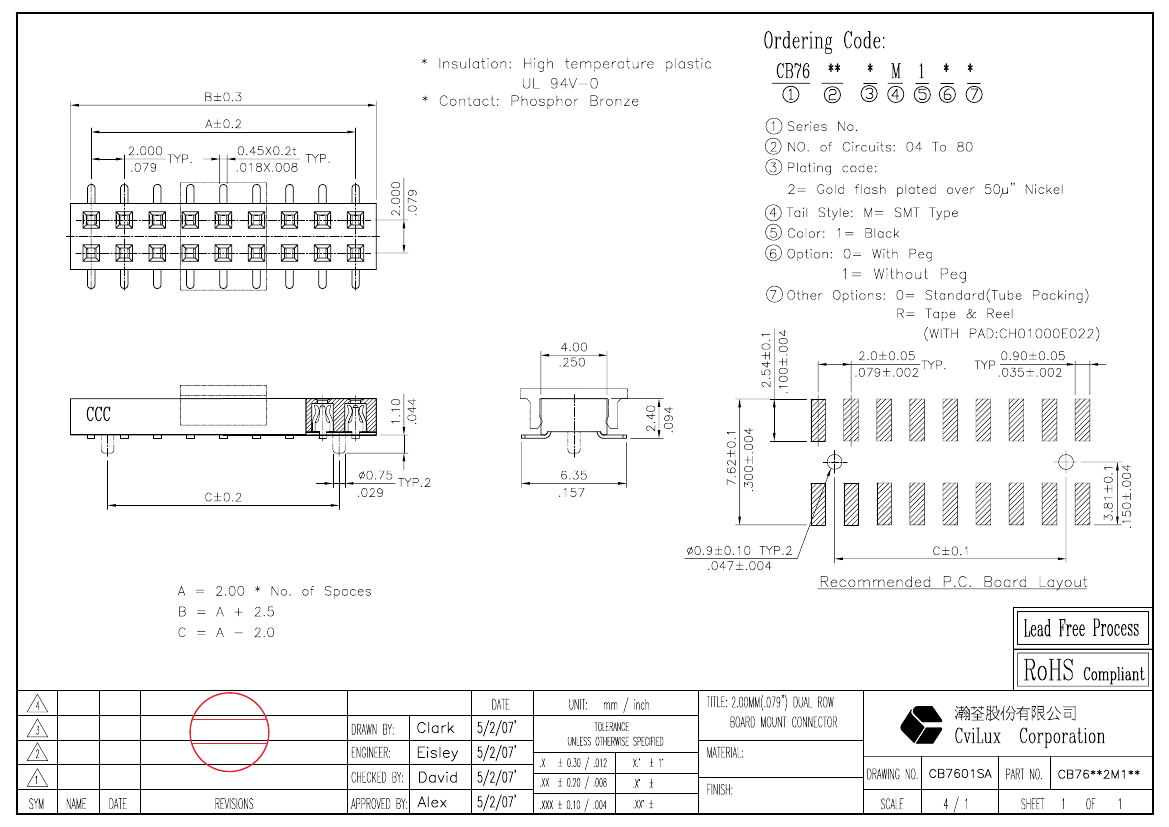

Board Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	PEG
body width	0.25 inch
subject depth	0.094 inch
body length	1.043 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
Manufacturer's serial number	CB76
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	26

CviLux

CVILUX CORP

2007.05.10

ISSUED
