DPI-102-LB00Z: DescriptionPiano Dip Switch, 2 Switches, SPST, Vertical, 0.025A, 24VDC, Solder Terminal, Through Hole-straight; CategoryMechanical and electronic products switch; File Size1MB，2 Pages; ManufacturerE-tec Interconnect Ltd.; Environmental Compliance

Download Datasheet Parametric View All

DPI-102-LB00Z Overview

Piano Dip Switch, 2 Switches, SPST, Vertical, 0.025A, 24VDC, Solder Terminal, Through Hole-straight

DPI-102-LB00Z Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator type	PIANO
Other features	ROHS COMPLIANT
body width	7.3914 mm
body height	5.0038 mm
Body length or diameter	7.366 mm
Center contact plating	GOLD
Maximum contact current (DC)	0.025 A
Contact (DC) maximum rated R load	0.025A@24VDC
Contact resistance	0.1 mΩ
Maximum contact voltage (DC)	24 V
Dielectric withstand voltage	300VAC V
End contact plating	GOLD
Insulation resistance	100000000 Ω
JESD-609 code	e3
Manufacturer's serial number	DPI
Installation features	THROUGH HOLE-STRAIGHT
Number of switching segments	2
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
seal	MOLDED
surface mount	NO
Switch action	VERTICAL
switch function	SPST
Switch type	PIANO DIP SWITCH
Terminal surface	Tin (Sn)
Terminal length	0.122 inch
Termination type	SOLDER

Preview

Download Datasheet

View All

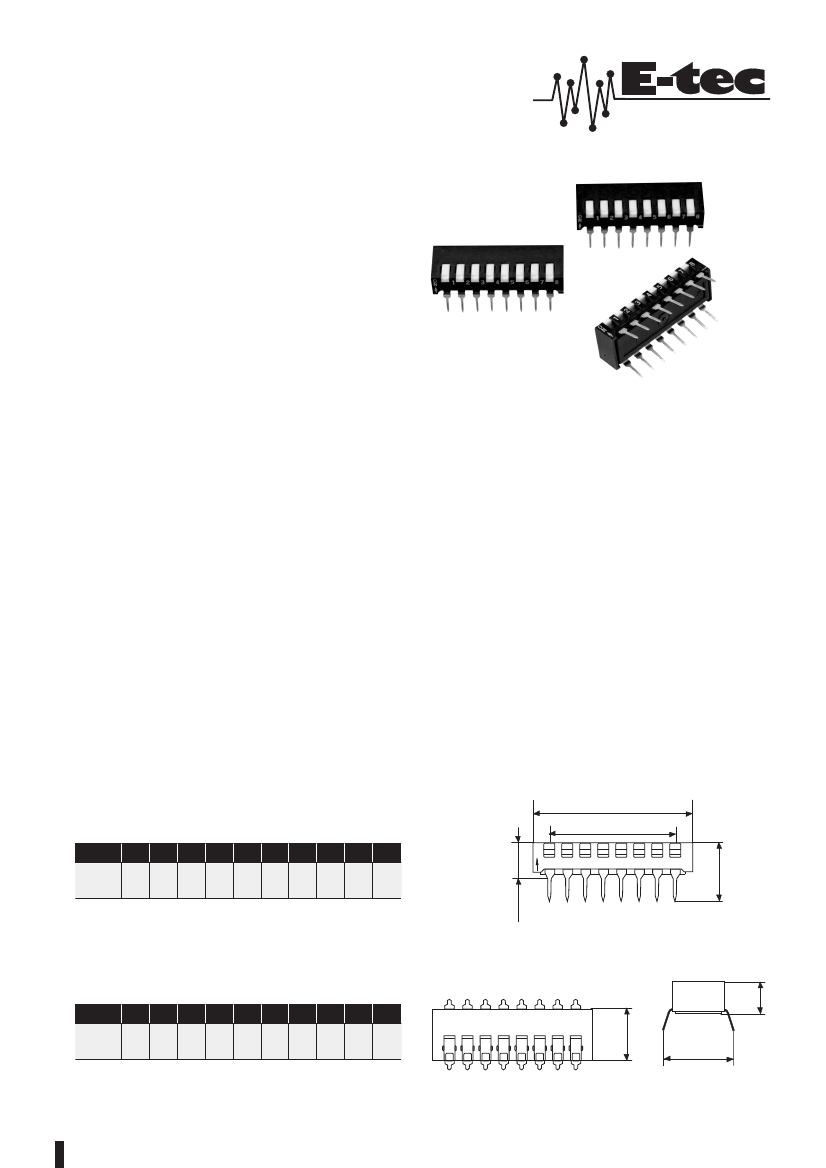

DPI SERIES

LOW PROFILE PIANO “IC” TYPE

Interconnect

x

Features

• Double contact system for high reliability.

• Vapor phase and IR-reflow solderable.

• Washable type is fully sealed.

• Top tape sealing for permeability during washing.

• Insert molding of terminals improves flux proofness.

• Gold plated in contact area and tin plated in solder area (

tin/gold

).

x

Specifications

1

. ELECTRICAL

1-1 Contact Rating

- switching

- non-switching

1-2 Contact Resistance

- initial

- after life test

1-3 Insulation Resistance

1-4 Dielectric Strength

1-5 Capacitance between

adjacent switches

: 25 mA, 24 VDC

: 100 mA

: 50 mΩ max.

: 100 mΩ max.

: 100 MΩ min. at 500 VDC

: 300 VAC for 1 min.

: 5pF max.

2

. MECHANICAL and ENVIRONMENTAL

2-1 Temperature rating

- operating

- storage

2-2 Operating force

2-3 Mechanical life

2-4 Vibration

2-5 Solderability

: -20°C to +70°C

: -40°C to +85°C

: 800 g max.

: 200 operations

: 10 Hz – 50 Hz – 10 Hz for 2 hours

: 95% coverage after

230°C +/- 5 for 5 sec.

2-6 Soldering temperature : 260°C max. for 5 sec.

x

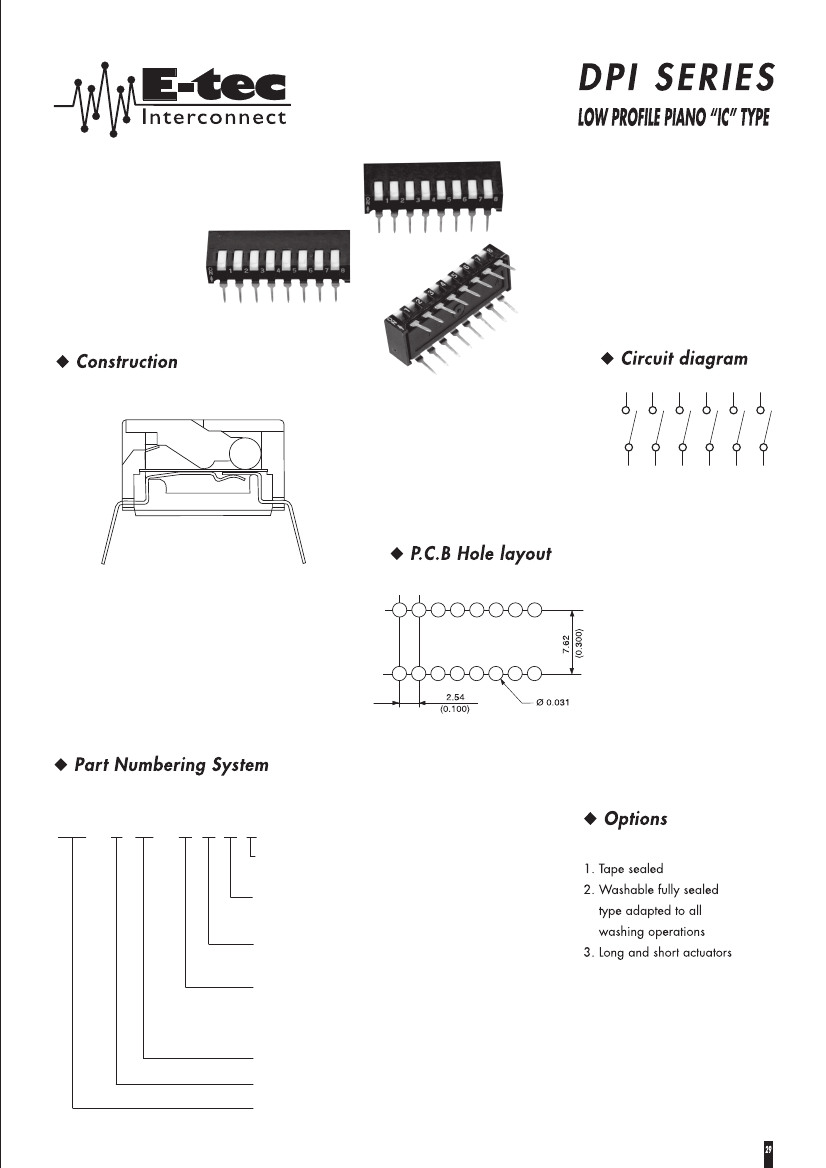

Dimensions and circuitry

A

DIMENSION A

Position

A

2

7.37

B

9.91

12.45

14.99

17.53

20.07

22.61

25.15

27.69

32.77

±

0.30

Unit: mm (inch)

B

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

27.94

(0.100) (0.200) (0.300) (0.400) (0.500) (0.600) (0.700) (0.800) (0.900) (1.100)

(0.291)

Position

2

3

4

5

6

7

8

9

10

12

7.40

9.80

±

0.50

Unit: mm (inch)

(0.386)

28

(0.175)

4.45

DIMENSION B

5.00

(0.197)

(0.290) (0.390) (0.490) (0.590) (0.690) (0.790) (0.890) (0.990) (1.090) (1.290)

(0.319)

3

4

5

6

7

8

9

10

12

O

N

1

2

3

4

5

6

7

8

8.10
