3961SB-02TW-L datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 3961SB-02TW-L

Preview

3961SB-02TW-L: DescriptionBoard Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size236KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

3961SB-02TW-L Overview

Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Receptacle

3961SB-02TW-L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.25 inch
subject depth	0.126 inch
body length	0.312 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	3961
Plug contact pitch	0.156 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	7 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.142 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	2

Preview

Download Datasheet

View All

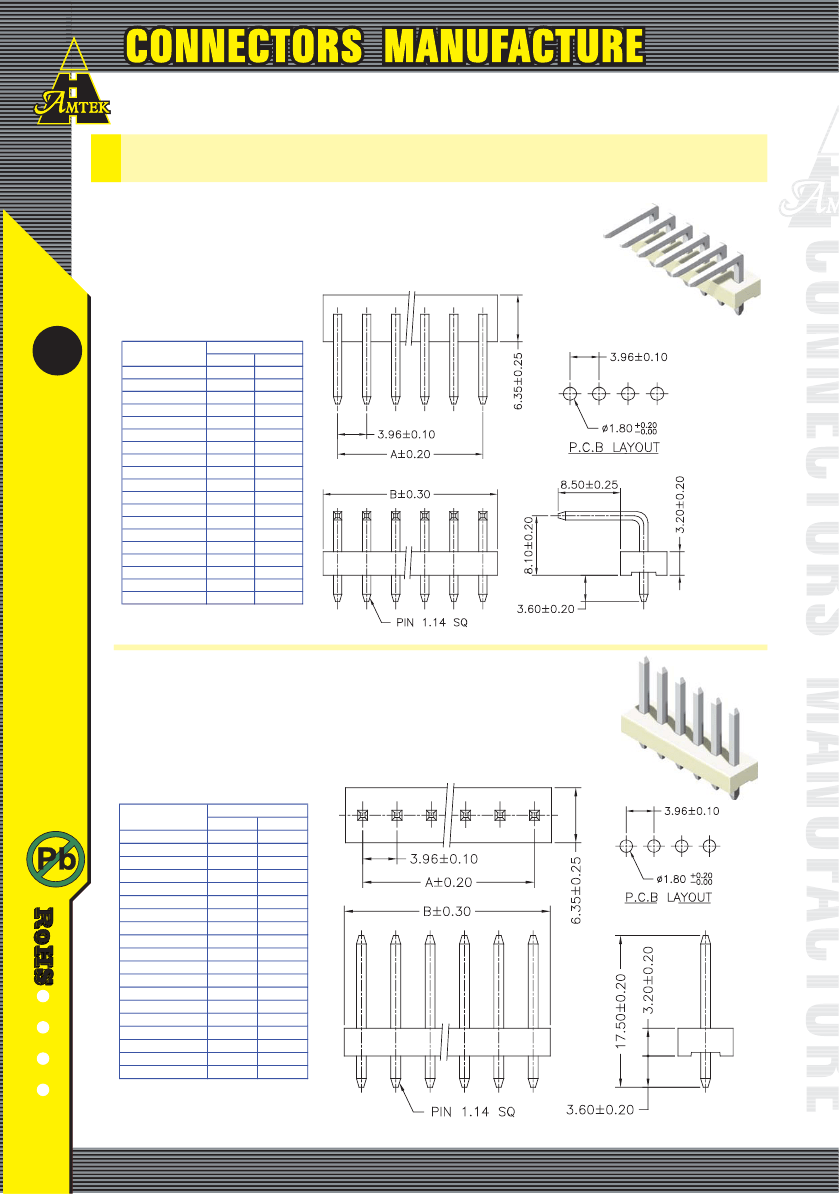

3.96mm Wafer W/O Ramp Right Angle / Straight Type

Specifications

Current Rating: 7A AC,DC

Voltage Rating: 250V AC,DC

Temperature Range: -25°C to +85°C

Contact Resistance: 10m

Ω

Max

Insulation Resistance: 1000M

Ω

Min

Withstanding Voltage: 1500V AC/minute

Terminal: Brass / Tin Plated

Material: Nylon 66,UL94V-2

H

ousing wafer Terminal

Part No.

3961RB-02TW-L

3961RB-03TW-L

3961RB-04TW-L

3961RB-05TW-L

3961RB-06TW-L

3961RB-07TW-L

3961RB-08TW-L

3961RB-09TW-L

3961RB-10TW-L

3961RB-11TW-L

3961RB-12TW-L

3961RB-13TW-L

3961RB-14TW-L

3961RB-15TW-L

3961RB-16TW-L

3961RB-17TW-L

3961RB-18TW-L

3961RB-19TW-L

3961RB-20TW-L

Dimensions

A

B

3.96

7.92

11.88

15.84

19.80

23.76

27.72

31.68

35.64

39.60

43.56

47.52

51.48

55.44

59.40

63.36

67.32

71.28

75.24

79.20

Part No.:3961RB-XXTW-L

Specifications

Current Rating: 7A AC,DC

Voltage Rating: 250V AC,DC

Temperature Range: -25°C to +85°C

Contact Resistance: 10mΩ Max

Insulation Resistance: 1000M

Ω

Min

Withstanding Voltage: 1500V AC/minute

Terminal: Brass / Tin Plated

Material: Nylon 66,UL94V-2

Part No.

3961SB-02TW-L

3961SB-03TW-L

3961SB-04TW-L

3961SB-05TW-L

3961SB-06TW-L

3961SB-07TW-L

3961SB-08TW-L

3961SB-09TW-L

3961SB-10TW-L

3961SB-11TW-L

3961SB-12TW-L

3961SB-13TW-L

3961SB-14TW-L

3961SB-15TW-L

3961SB-16TW-L

3961SB-17TW-L

3961SB-18TW-L

3961SB-19TW-L

3961SB-20TW-L

Dimensions

A

B

3.96

7.92

11.88

15.84

19.80

23.76

27.72

31.68

35.64

39.60

43.56

47.52

51.48

55.44

59.40

63.36

67.32

71.28

75.24

79.20

Part No.:3961SB-XXTW-L

3-113

www.amtek-co.com.tw
