1SS400RK: Description0.1 A, 90 V, SILICON, SIGNAL DIODE; CategoryDiscrete semiconductor diode; File Size329KB，3 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/

Download Datasheet Parametric Compare View All

1SS400RK Overview

0.1 A, 90 V, SILICON, SIGNAL DIODE

1SS400RK Parametric

Parameter Name	Attribute value
Maker	Taiwan Semiconductor
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	compli
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-F2
JESD-609 code	e3
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	0.2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.2 W
Maximum repetitive peak reverse voltage	100 V
Maximum reverse recovery time	0.004 µs
surface mount	YES
Terminal surface	MATTE TIN
Terminal form	FLAT
Terminal location	DUAL

Preview

Download Datasheet

View All

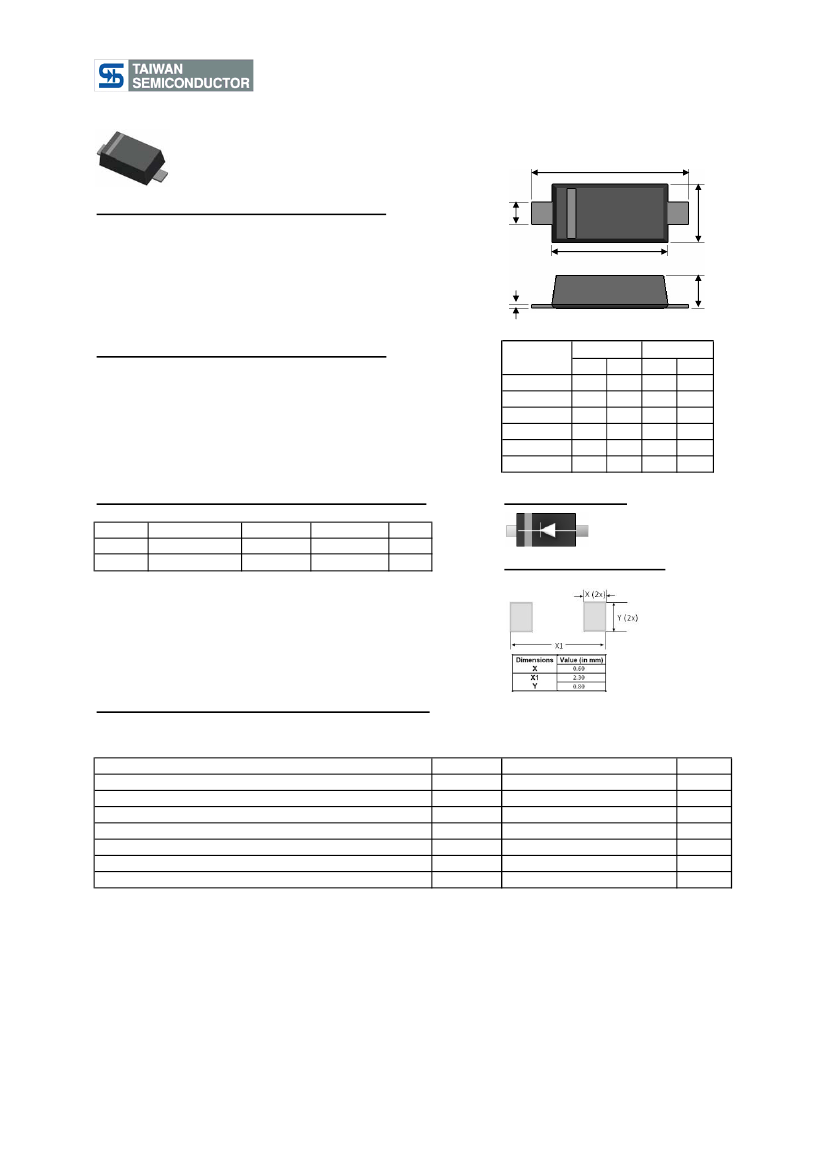

1SS400

200mW, SMD High Speed Switching Diode

Small Signal Diode

SOD-523F

B

Features

Fast switching device(T

rr

<4.0nS)

Surface device type mounting

Moisture sensitivity level 1

Matte Tin(Sn) lead finish

Pb free version,RoHS compliant

Green compound (Halogen free) with suffix "G" on

packing code and prefix "G" on date code

C

A

D

E

F

Mechanical Data

Case : Flat lead SOD-523F small outline plastic package

Terminal: Matte tin plated, lead free., solderable

per MIL-STD-202, Method 208 guaranteed

High temperature soldering guaranteed: 260 °C/10s

Polarity : Indicated by cathode band

Weight : 1.68±0.5 mg

Marking Code : A

Dimensions

A

B

C

D

E

F

Unit (mm)

Min

0.70

1.50

0.25

1.10

0.60

0.10

Max

0.90

1.70

0.40

1.30

0.70

0.14

Unit (inch)

Min

Max

0.028 0.035

0.059 0.067

0.010 0.016

0.043 0.051

0.024 0.028

0.004 0.006

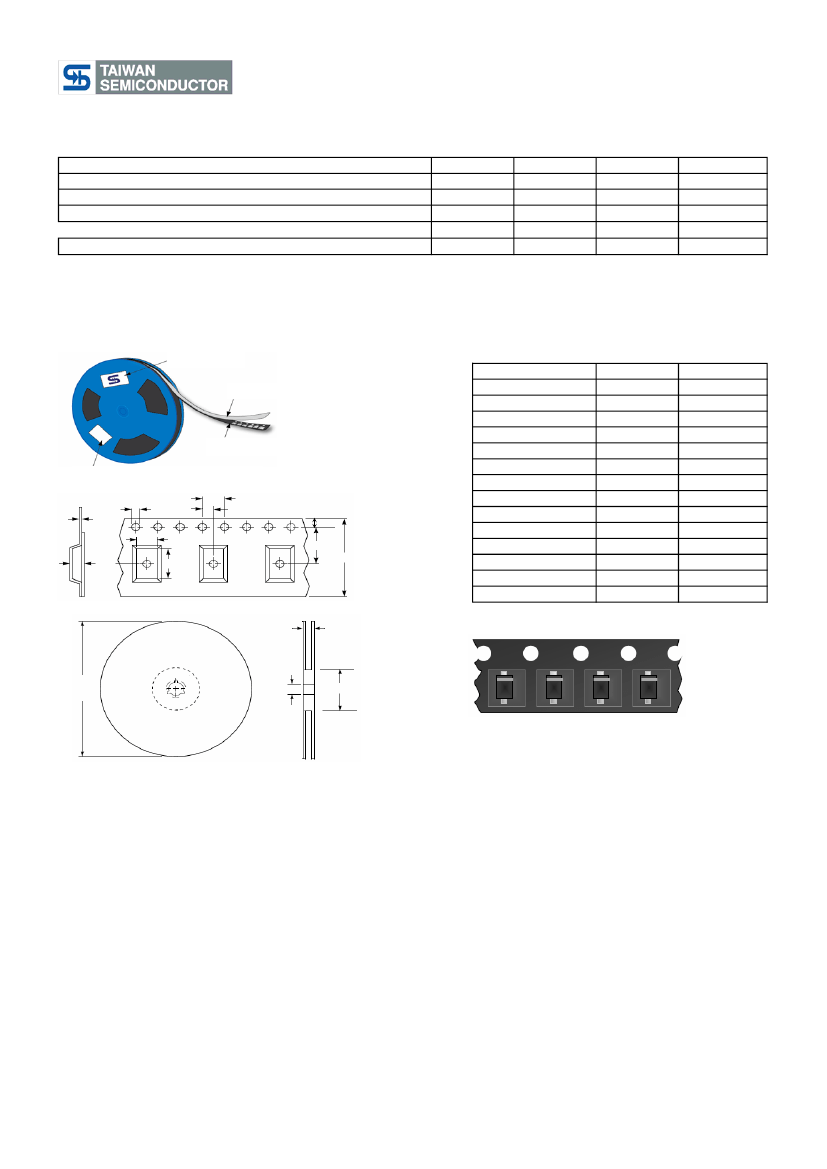

Ordering Information

Part No.

1SS400

Packing Code

RK

RKG

Package

SOD-523F

Packing

3K / 7" Reel

Marking

A

Pin Configuration

Suggested PAD Layout

Maximum Ratings and Electrical Characteristics

Rating at 25°C ambient temperature unless otherwise specified.

Maximum Ratings

Type Number

Power Dissipation

Repetitive Peak Reverse Voltage

Reverse Voltage

Mean Forward Current

Peak Forward Surge Current

Thermal Resistance (Junction to Ambient)

Storage Temperature Range

Symbol

P

D

V

RRM

V

R

I

O

I

FSM

RθJA

T

J

,T

STG

Value

200

100

200

500

625

-55 to + 150

Units

mW

V

mA

°C/W

°C

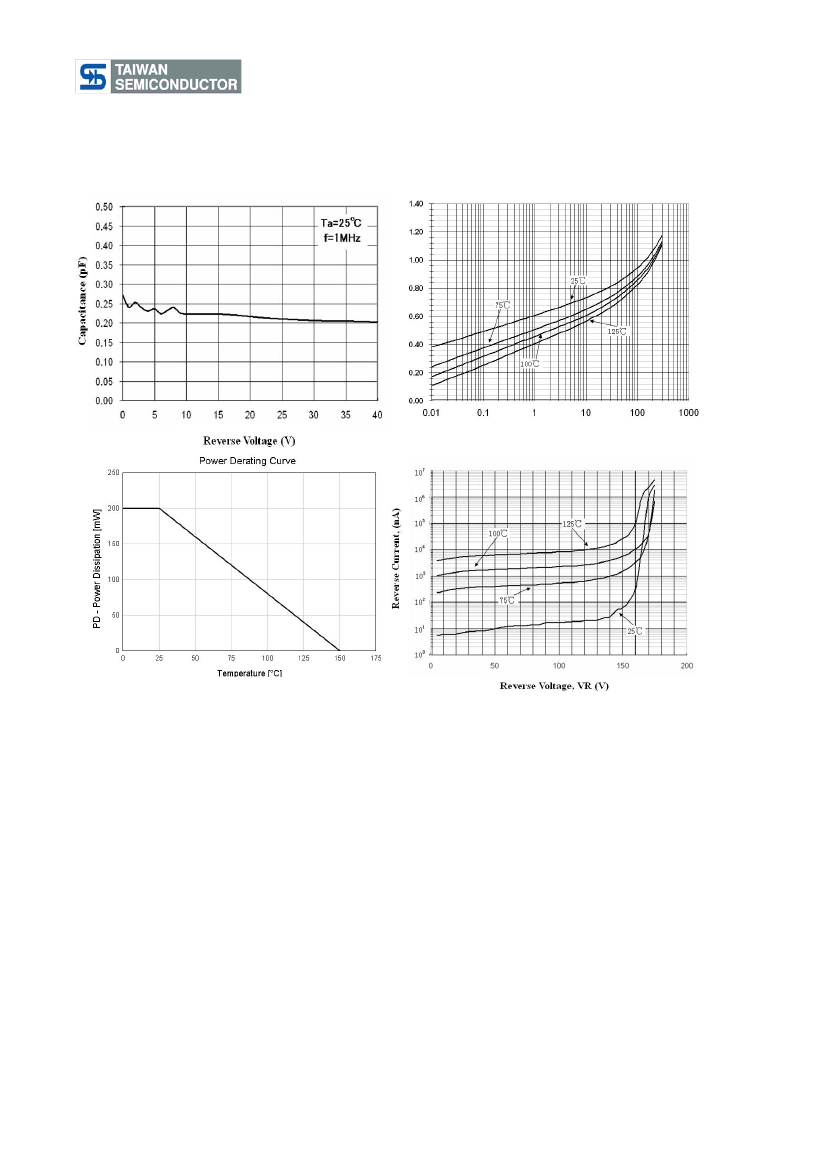

Version :A11
