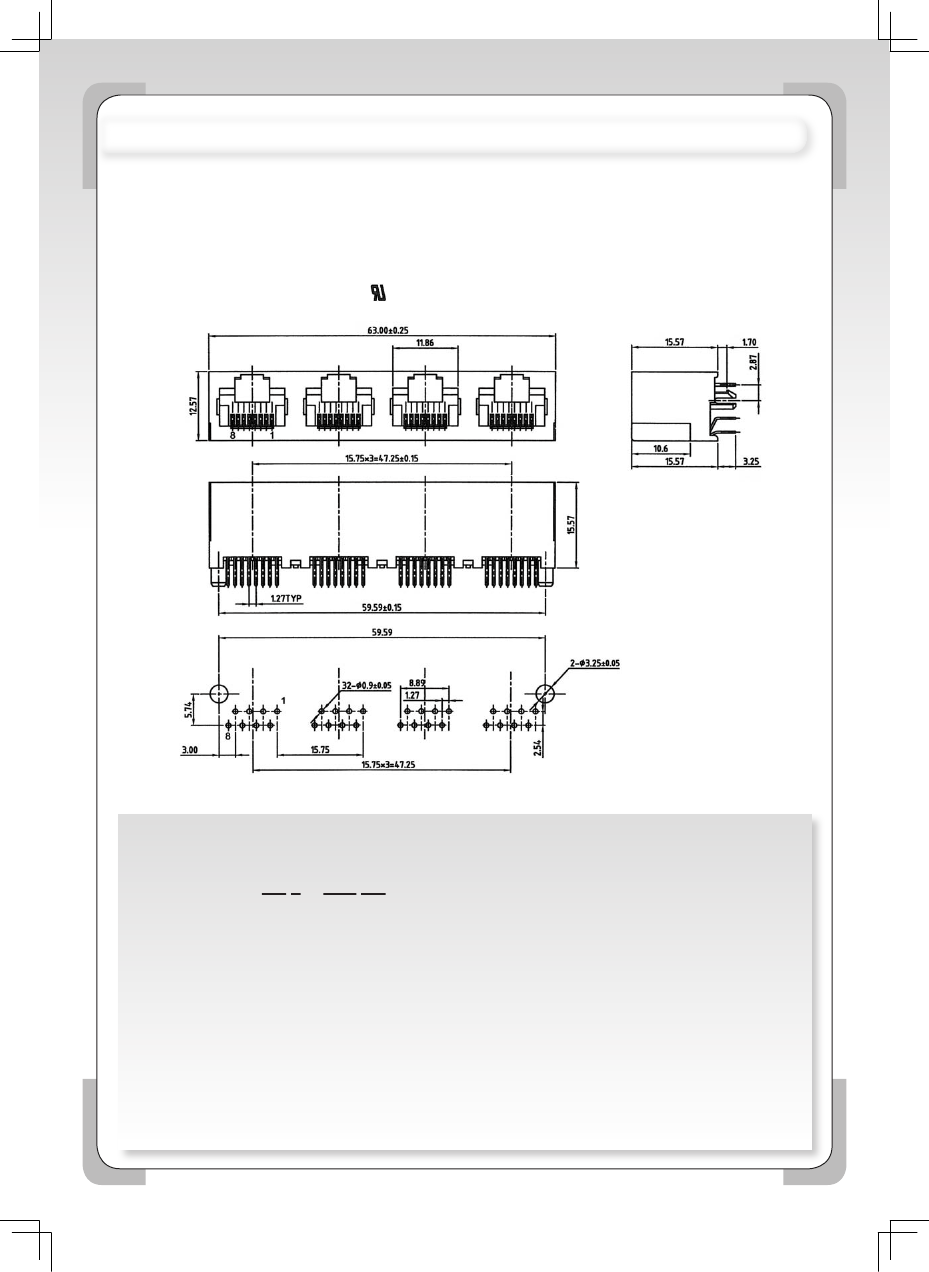

TOP ENTRY 4-PORT MODULAR PCB JACK 8P PROFILE=15.57MM (UNSHIELDED)
SPECIFICATIONS
MATERIALS
Insulation Resistance:
500MΩ
Min.
Contact Resistance:
20mΩ
Max.
Rating Current:
1.5A Max.
Rating Voltage:
120V AC.
Dielectric Voltage:
1000 Vrms 60 Sec. Min.
Temperature Range:
-40ºc / +85ºc
Durability:
500 Mating cycles Min.
Housing:
PBT Glass Filled (UL 94V-0)
Soldering Temperature:
235ºc
Color:
Black
Spring Wire:
Phosphor Bronze
Gold plating Over Nickel
All materials must be RoHS compliant.
Recommended P.C.Board Layout
(TOP VIEW)
ORDERING INFORMATION:
P/N M J A 8 - x x x B X X 0 4
1 2
3 4
1. NO. OF POSITIONS & CONTACTS:
"88" 8P8C
"84" 8P4C
2. CONTACT FINISH:
"A" 6 MICROINCH GOLD
"B" 15 MICROINCH GOLD
"C" 30 MICROINCH GOLD
"D" 50 MICROINCH GOLD
3. LED OPTION:
"XX" W/O LED
4. NO. OF PORTS:
04

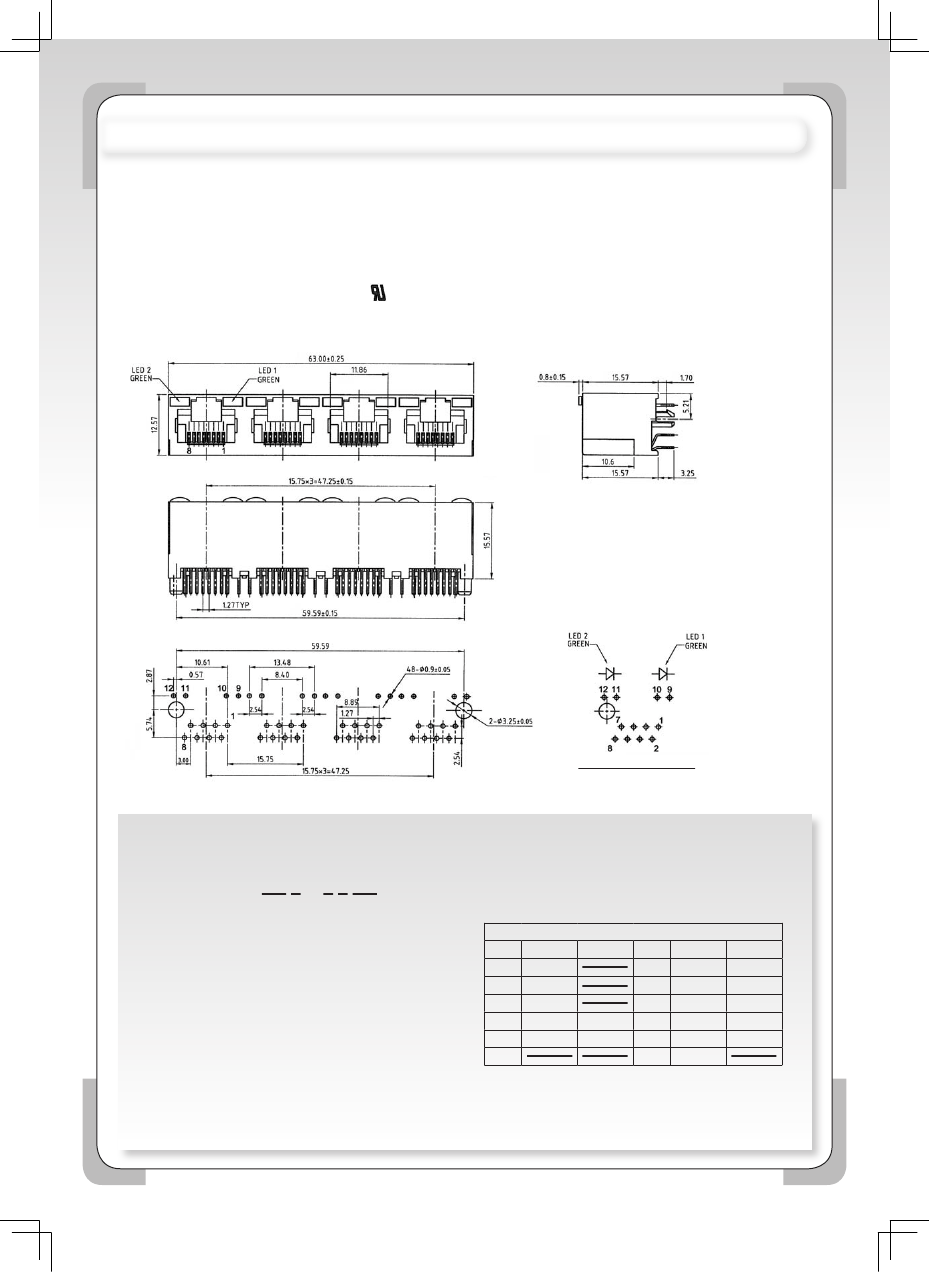

J420
TOP ENTRY 4-PORT MODULAR PCB JACK WITH LED 8P PROFILE=15.57MM
(UNSHIELDED)
SPECIFICATIONS
Insulation Resistance:
500MΩ
Min.
Contact Resistance:
20mΩ
Max.
Rating Current:
1.5A Max.
Rating Voltage:
120V AC.
Dielectric Voltage:
1000 Vrms 60 Sec. Min.
Temperature Range:
-40ºc / +85ºc
Durability:
500 Mating cycles Min.
MATERIALS
Housing:
PBT Glass Filled (UL 94V-0)
Soldering Temperature:
235ºc
Color:
Black
Spring Wire:
Phosphor Bronze
Gold plating Over Nickel
All materials must be RoHS compliant.
LED SCHEMATIC
Recommended P.C.Board Layout
(TOP VIEW)
ORDERING INFORMATION:
P/N M J A 8 - x x x B x x 0 4
1 2 34 5
1. NO. OF POSITIONS & CONTACTS:
"88" 8P8C
2. CONTACT FINISH:
"A" 6 MICROINCH GOLD
"B" 15 MICROINCH GOLD
"C" 30 MICROINCH GOLD
"D" 50 MICROINCH GOLD
3. CODE OF LED1 DESIGNATION:
N, Y, R, X, 3, 4, 5, 6, 9, 0
4. CODE OF LED2 DESIGNATION:
N, Y, R, X, 3, 4, 5, 6, 9, 0
5. NO. OF PORTS:
04
LED Designation:
Code Forward Reverse Code Forward
N
Green
4
Yellow
Y
Yellow
5
Green
R
Red
6
Yellow
1
Green Orange
9
Red
3
Green
Red
0
Red
X
8
Orange
Reverse
Red
Yellow
Green
Green
Yellow

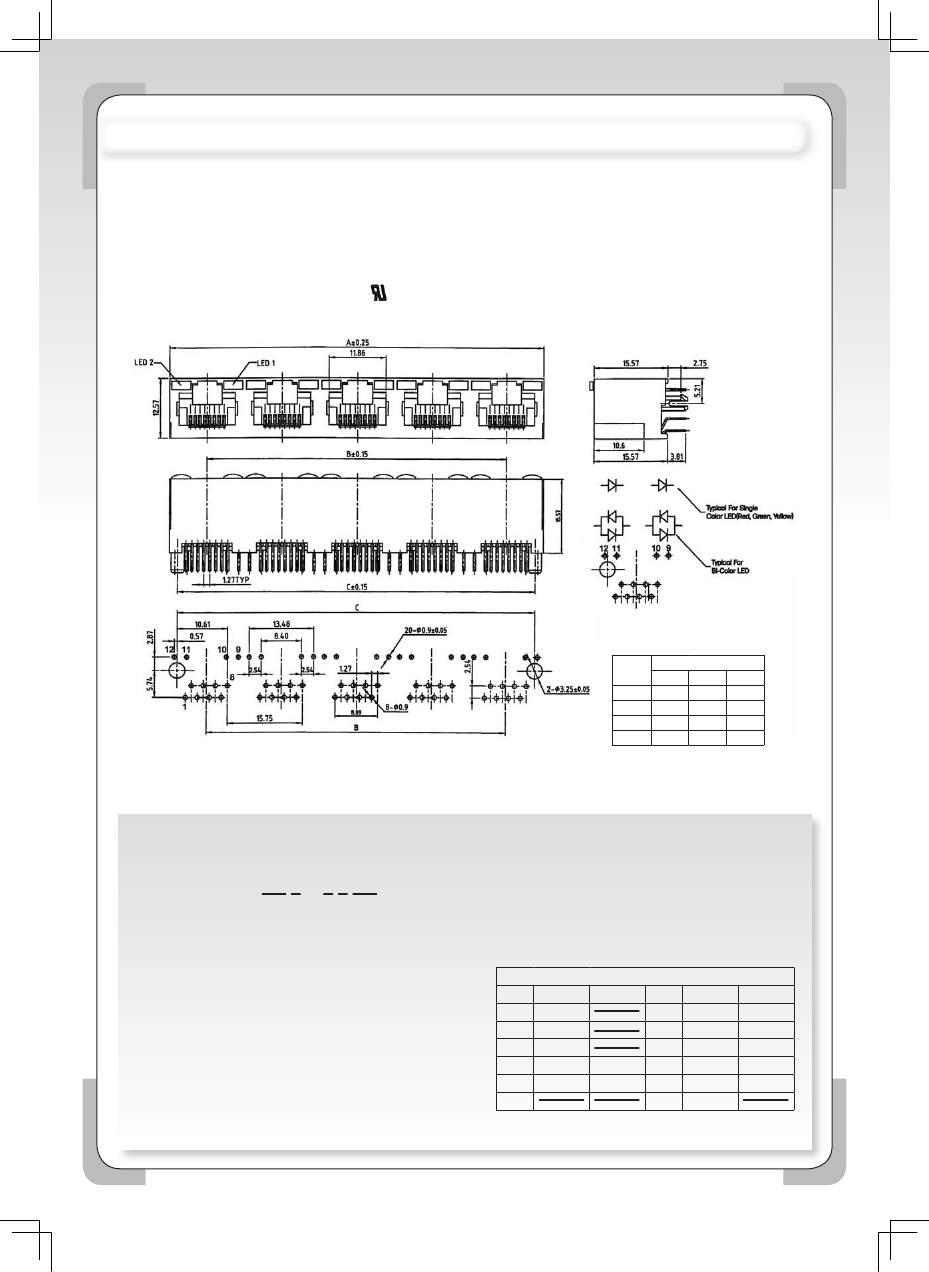

J421
TOP ENTRY MULTI-PORT MODULAR PCB JACK WITH LED 8P PROFILE=15.57MM
(UNSHIELDED)
SPECIFICATIONS
Insulation Resistance:
500MΩ
Min.
Contact Resistance:
20mΩ
Max.
Rating Current:
1.5A Max.
Rating Voltage:
120V AC.
Dielectric Voltage:
1000 Vrms 60 Sec. Min.
Temperature Range:
-40ºc / +85ºc
Durability:
500 Mating cycles Min.
MATERIALS
Housing:
PBT Glass Filled (UL 94V-0)
Soldering Temperature:
235ºc
Color:
Black
Spring Wire:
Phosphor Bronze
Gold plating Over Nickel
All materials must be RoHS compliant.
LED SCHEMATIC
No. of
Ports
04
05
06
08
Dimensions
A
B
C
63.00 47.25 59.59
78.75 63.00 75.34
94.50 78.75 91.10
126.00 110.25 122.60
Recommended P.C.Board Layout
ORDERING INFORMATION:
P/N M J A 8 - 8 8 x B x x x x
1 2 34 5
1. NO. OF POSITIONS & CONTACTS:
"88" 8P8C
2. CONTACT FINISH:
"A" 6 MICROINCH GOLD
"B" 15 MICROINCH GOLD
"C" 30 MICROINCH GOLD
"D" 50 MICROINCH GOLD
3. CODE OF LED1 DESIGNATION:
N, Y, R, X, 3, 4, 5, 6, 9, 0
4. CODE OF LED2 DESIGNATION:
N, Y, R, X, 3, 4, 5, 6, 9, 0
5. NO. OF PORTS:
04, 05, 06, 08
LED Designation:
Code Forward Reverse Code Forward
N
Green
4
Yellow
Y
Yellow
5
Green
R
Red
6
Yellow
1
Green Orange
9
Red
3
Green
Red
0
Red
X
8
Orange
Reverse
Red
Yellow
Green
Green
Yellow
J422
