8618-202-80: DescriptionInterconnection Device; CategoryThe connector The connector; File Size172KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

8618-202-80 Overview

Interconnection Device

8618-202-80 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	94V-0
body width	0.11 inch
subject depth	0.138 inch
body length	0.165 inch
Body/casing type	PLUG
Connector type	INTERCONNECTION DEVICE
Contact to complete cooperation	AU
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	250VAC V
maximum insertion force	13.344 N
Insulation resistance	500000000 Ω
Insulator color	BLACK
Plug contact pitch	0.079 inch
Installation method	STRAIGHT
Number of connectors	ONE
Number of rows loaded	1
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	2
Evacuation force-minimum value	4.448 N
Base Number Matches	1

Preview

Download Datasheet

View All

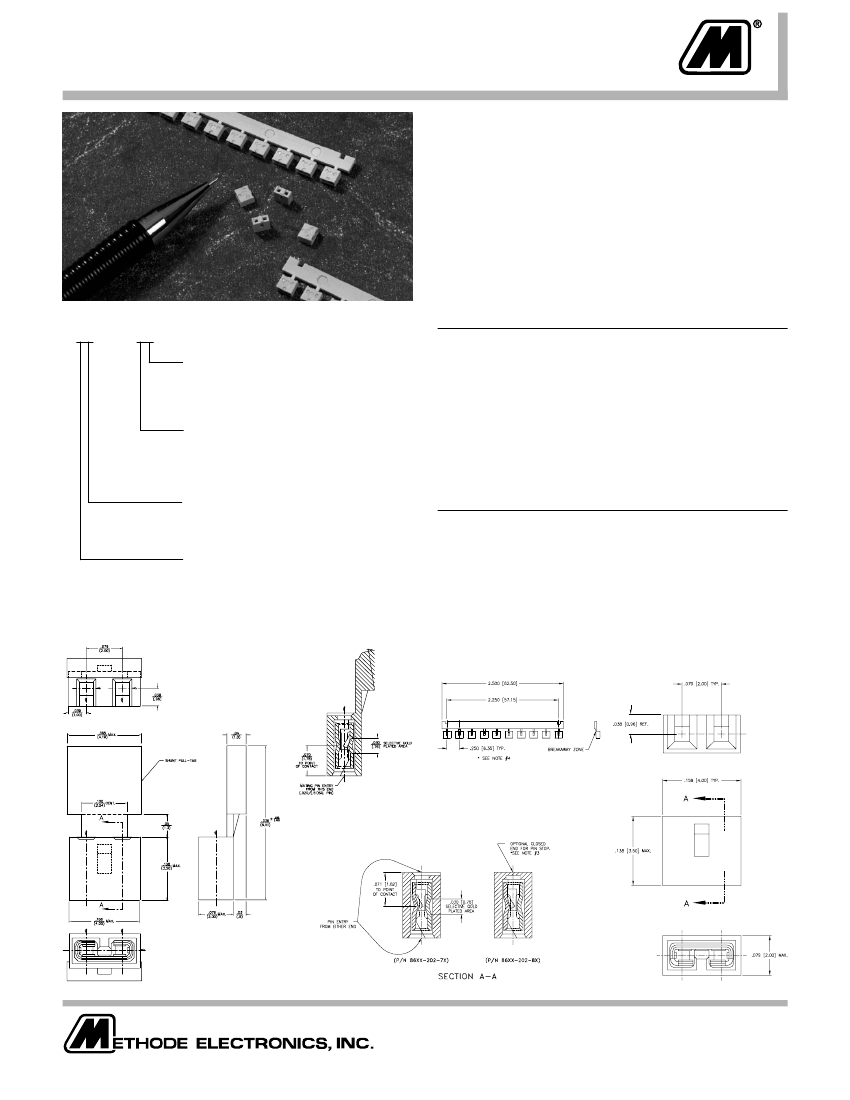

2mm (.079”)

Insulated Programmable Shunt

The Methode 2mm shunt is an economical solution for

jumpering circuit paris of 0.51 mm (.020”) square or

round posts on 2 mm (.079”) centers. This ideal product

for bussing, programming and switch replacement

provides superior reliability after repeated cycling.

PART NUMBER CODING

Features

s

86XX - 202 - XX

PACKAGING

0 = LOOSE PARTS

1 = STRIPS OF 10

2 = WITH REMOVABLE PULL TABS

3 = WITH “NON-REMOVABLE” PULL TABS

CONTACT TYPE

3 = OPEN END/LOW FORCE

4 = CLOSED END/LOW FORCE

7 = OPEN END/HIGH FORCE

8 = CLOSED END/HIGH FORCE

CONTACT FINISH

0 = TIN

8 = .000030 SELECTIVE GOLD

F = .000015 SELECTIVE GOLD

INSULATOR COLOR

0 = WHITE

1 = BLACK

Open end is mateable from either end

Packaged loose or in strips of 10

Various contact platings

Insulator color options

UL 94V-0 rated material

Low retention force

High retention force

Two point contact

Specifications

Current Rating:

1 Amp

Voltage Rating:

250 VAC

Contact Resistance:

10 Milliohms max.

Insulation Force:

500 megohms

Insertion Force:

20 oz. max. (low force)

3.0 lbs. max. (high force)

Withdrawal Force:

3 oz. min. (low force)

1.0 lb. min. (high force)

PACKAGING OPTION 1

CONTACT TYPES 4 & 8

CONTACT TYPES 3 & 7

PACKAGING OPTION 2 & 3

Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

Telephone: 847.392.3500 • Fax: 847.392.9404

email: mcpsales@methode.com • Web Page: www.methode.com
