LSL36
Surface Mount Schottky Rectifier
Reverse Voltage 60V Forward Current 3A
Features
•
•
•
•
•
•
•
Schottky barrier diodes
Low forward voltage drop
Low leakage current
Moisture sensitivity: level 1, per J-STD-020
Solder dip 260 °C, 10 s
Low profile， typical thickness 1.0mm
AEC-Q101 qualified
eSGB (SMAF)
Typical Applications
For use in low voltage,high freqency inverters,free wheeling, and polarity
protection application
Maximum Ratings
Parameter
(TA = 25 °C unless otherwise noted)
Symbol
LSL36
60
42
60
3.0
100
- 55 to + 125
Unit
V
V
V
A
A
°C
Maximum repetitive peak reverse voltage
VRRM
Maximum RMS voltage
VRMS
Maximum DC blocking voltage
VDC
Maximum average forward rectified current at TL
IF(AV)
(See Fi 1)
(S Fig.1)
Peak forward surge current 8.3 ms single half
IFSM
sine-wave superimposed on rated load
Operating junction and storage temperature
TJ, TSTG
range
Electrical Characteristics
Parameter
Test Conditions
IF=1A, TA=25℃
IF=2A, TA=25℃
Instantaneous forward voltage
IF=3A, TA=25℃
IF=3A, TA=100℃
Maximum DC reverse current
TA=25℃
at rated DC blocking voltage
TA=100℃
Typical junction capacitance
4.0 V, 1 MHz
Typical thermal resistance
1)
juntion to lead
(TA = 25 °C unless otherwise noted)
C
Symbol
Min
-
-
-
-
Typ
0.42
0.47
0.51
0.46
5
100
1320
30
Max
0.45
0.50
0.55
-
Unit
VF
Volts
IR
C
J
R
θJL
mA
pF
℃/W
Note1:Thermal resistance from junction to lead,mounted on PCB with 8.0×8.0mm copper pads
www.goodark.com
1/4
2014.05-Rev.A
LSL36
Surface Mount Schottky Rectifier
Reverse Voltage 60V Forward Current 3A

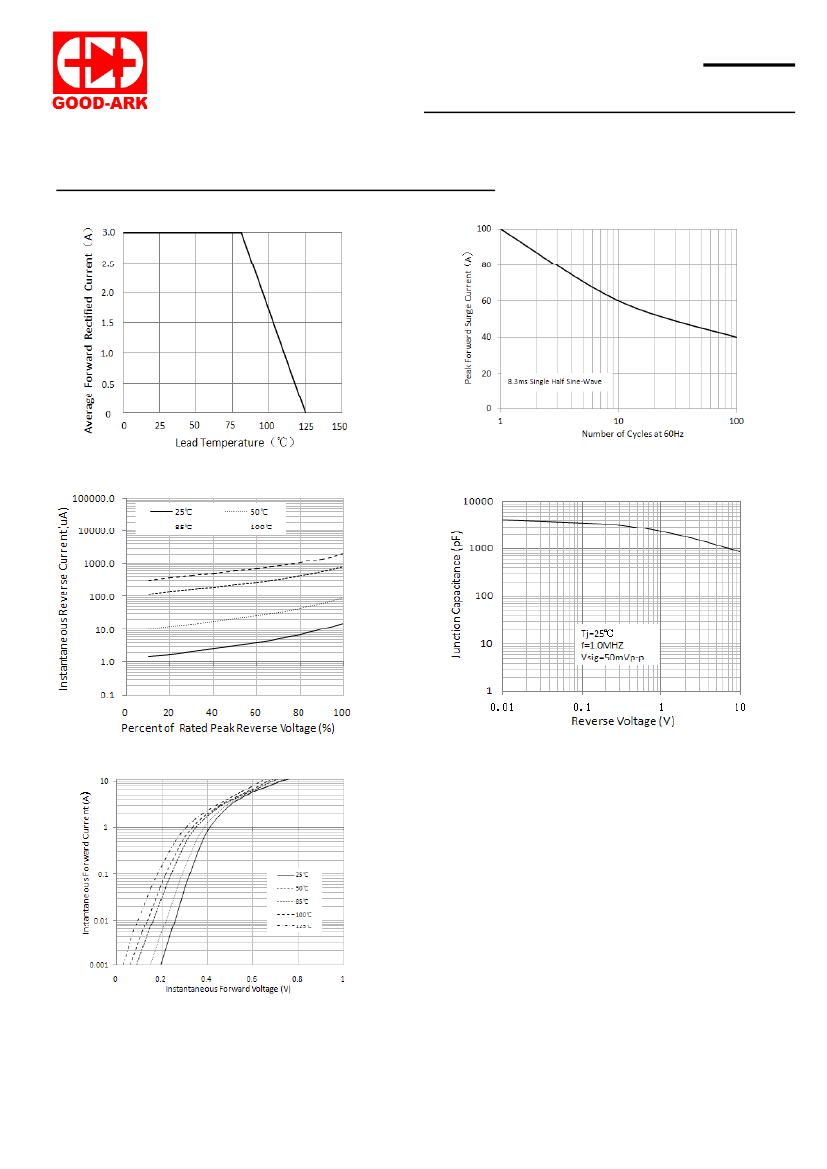

Ratings and Characteristics Curves
(TA = 25℃ unless otherwise noted)
Figure 1.Forward Current Derating Curve
Figure 2.Maximum Non‐Repetitive
Peak Forward Surge Current
Figure 3. Typical Reverse Characteristics
Figure 4. Typical Junction Capacitance
Figure 5. Typical Instantaneous Forward Characteristics
www.goodark.com
2/4
2014.05-Rev.A
LSL36
Surface Mount Schottky Rectifier
Reverse Voltage 60V Forward Current 3A
