TMPN3120FE3M/U
TOSHIBA CMOS DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC
TMPN3120FE3M,TMPN3120FE3U
Neuron
®
Chip
For Distributed Intelligent Control Networks (L
ON
W
ORKS
®
)
The Neuron Chip (TMPN3120FE3M and TMPN3120FE3U)
provides double the performance of previous Neuron Chips. It
supports a response time of 3 to 4 ms across a LONWORKs
Network and has double the input / output (I / O) performance of
the previous Neuron Chip in terms of both response time and
data transmission speed.
The Neuron Chip (TMPN3120FE3M and TMPN3120FE3U)
features an extra single-chip memory in the form of 2 Kbytes
EEPROM, 2 Kbytes SRAM and 16 Kbytes ROM. It is therefore
suitable for applications which require complex operations and
high speed communication control.
Neuron Chips have all the built-in communications and control
functions required to implement L
ON
W
ORKS
nodes. These nodes
may then be easily integrated into highly-reliable distributed
intelligent control networks.

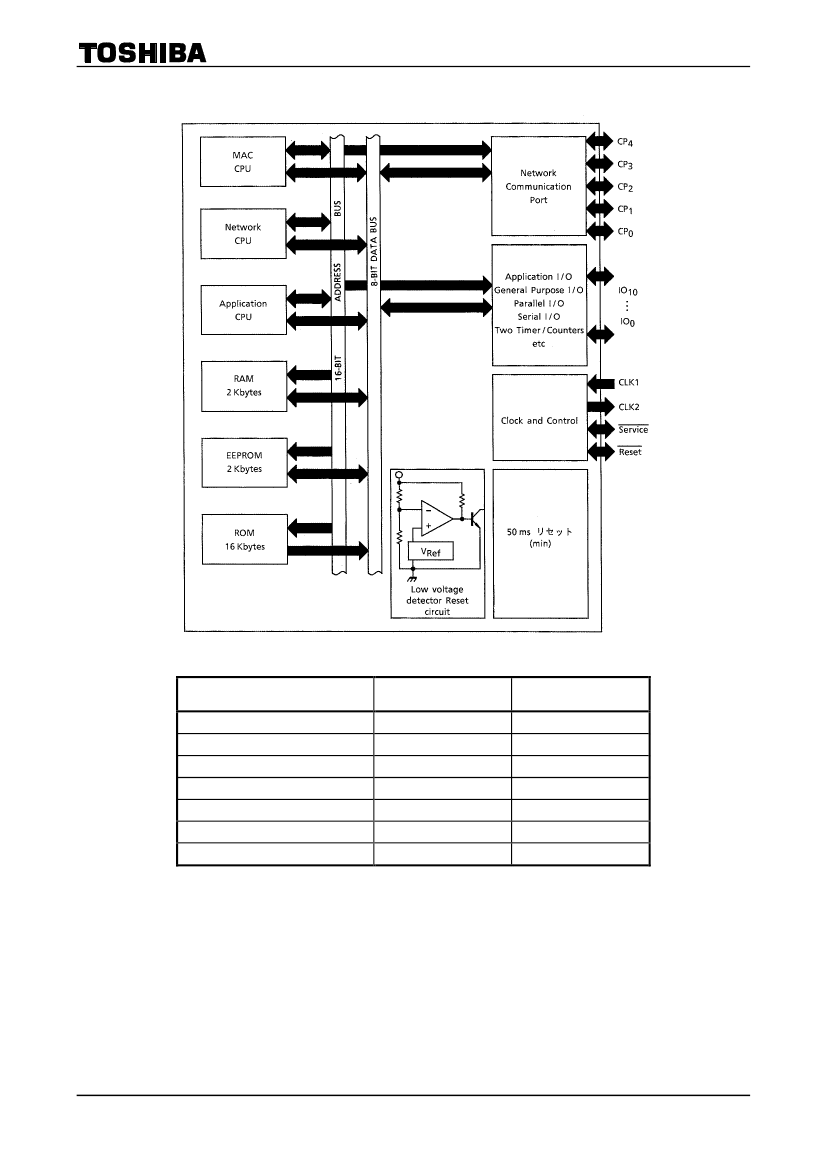

The typical functions for this chip are explained below.
FEATURES
l
Main features of the 20 MHz Neuron Chip
( In comparison with the TMPN3120E1M and
TMPN3120FE3M / U )
·
Increased communication speed
The maximum transmission speed has been increased
two-fold.
1.25 Mbps
→
2.5 Mbps
Weight : 1.1g (Typ.)
Weight : 0.6g (Typ.)
·
Shortened response time
The amount of time required from I / O input to I / O output hasbeen greatly reduced.
Maximum speed 7 ms
→
3~4 ms
·
Increased IO object speed
The execution time for all objects has been halved.
Example ) Serial I / O 9600 bps
Parallel I / O 1.2 µs / byte
000707EBA1
·
TOSHIBA is continually working to improve the quality and reliability of its products. Nevertheless, semiconductor devices in general
can malfunction or fail due to their inherent electrical sensitivity and vulnerability to physical stress. It is the responsibility of the
buyer, when utilizing TOSHIBA products, to comply with the standards of safety in making a safe design for the entire system, and
to avoid situations in which a malfunction or failure of such TOSHIBA products could cause loss of human life, bodily injury or
damage to property.
In developing your designs, please ensure that TOSHIBA products are used within specified operating ranges as set forth in the
most recent TOSHIBA products specifications. Also, please keep in mind the precautions and conditions set forth in the “Handling
Guide for Semiconductor Devices,” or “TOSHIBA Semiconductor Reliability Handbook” etc..
·
The TOSHIBA products listed in this document are intended for usage in general electronics applications (computer, personal
equipment, office equipment, measuring equipment, industrial robotics, domestic appliances, etc.). These TOSHIBA products are
neither intended nor warranted for usage in equipment that requires extraordinarily high quality and/or reliability or a malfunction or
failure of which may cause loss of human life or bodily injury (“Unintended Usage”). Unintended Usage include atomic energy
control instruments, airplane or spaceship instruments, transportation instruments, traffic signal instruments, combustion control
instruments, medical instruments, all types of safety devices, etc.. Unintended Usage of TOSHIBA products listed in this document
shall be made at the customer’s own risk.
·
The products described in this document are subject to the foreign exchange and foreign trade laws.
·
The information contained herein is presented only as a guide for the applications of our products. No responsibility is assumed by
TOSHIBA CORPORATION for any infringements of intellectual property or other rights of the third parties which may result from its
use. No license is granted by implication or otherwise under any intellectual property or other rights of TOSHIBA CORPORATION or
others.
·
The information contained herein is subject to change without notice.
2001-02-21
1/12
TMPN3120FE3M/U
·
Development tool support
The current LonBuilder
®
and NodeBuilder
®
development tools can be used to develop applications for the
TMPN3120FE3M and TMPN3120FE3U (L.B ver 3.0 or 3.01 is needed). Updated symbol table files for the
Neuron Chip firmware areavailable from Echelon. If your application requires a 20 MHz input clock, a utility
program available fromEchelon may be used to convert the programmer files.
*
The conversion utilities can be obtained from the Echelon Web Site at http://www.echelon.com.
l
I / O Functions
·
Eleven programmable I / O pins.
·
Two programmable 16-bit timers and counters built in.
·
34 different types of I / O functions to handle a wide range of input and output.
·
ROM firmware image containing pre-programmed I / O drivers, greatly simplifying application programs.
l
Network functions
·
Two CPUs for communication protocol processing built in.
The communications and application CPUs execute in parallel.
·
Equipped with a built-in LonTalk protocol which supports all seven levels of the OSI reference model with
ISO.
·
The ROM firmware image contains a complete network operating system, greatly simplifying application
programs.
·
Built-in twisted-pair wire transceiver
·
Equipped with communications modes and communication speeds which support various types of external
transceivers.
Supports twisted-pair wire, power line, radio ( RF ), infrared, coaxial cables and fiber optics.
·
Communication port transceiver modes and logical addresses stored within the EEPROM.
Can be amended via the network.
l
Other functions
·
Application programs are also stored within the EEPROM.
Can be updated by downloading over the network.
·
Built-in watch-dog timer.
·
Each chip has a unique ID number.
Effective during the logical installation of networks.
·
Low electrical consumption mode supported with a sleep mode.
·
Reset time
Prolongs the power-ON reset time for at least 50 ms and keeps the operation stable during that time.
·
High-impedance communication port ( CP0 to CP3 ) when powered down.
The Communication port pins ( CP0 to CP3 ) attain high impedance when the Neuron Chip is powered down.
It eliminates the need for an external relay.
·
Built-in low-voltage detection circuit.
Prevents incorrect operations and writing errors in the EEPROM during drops in power voltage.
An external LVD must be used to assert reset at power supply voltage below 4.5 V if Neuron Chip is operated
at 20 MHz.
·

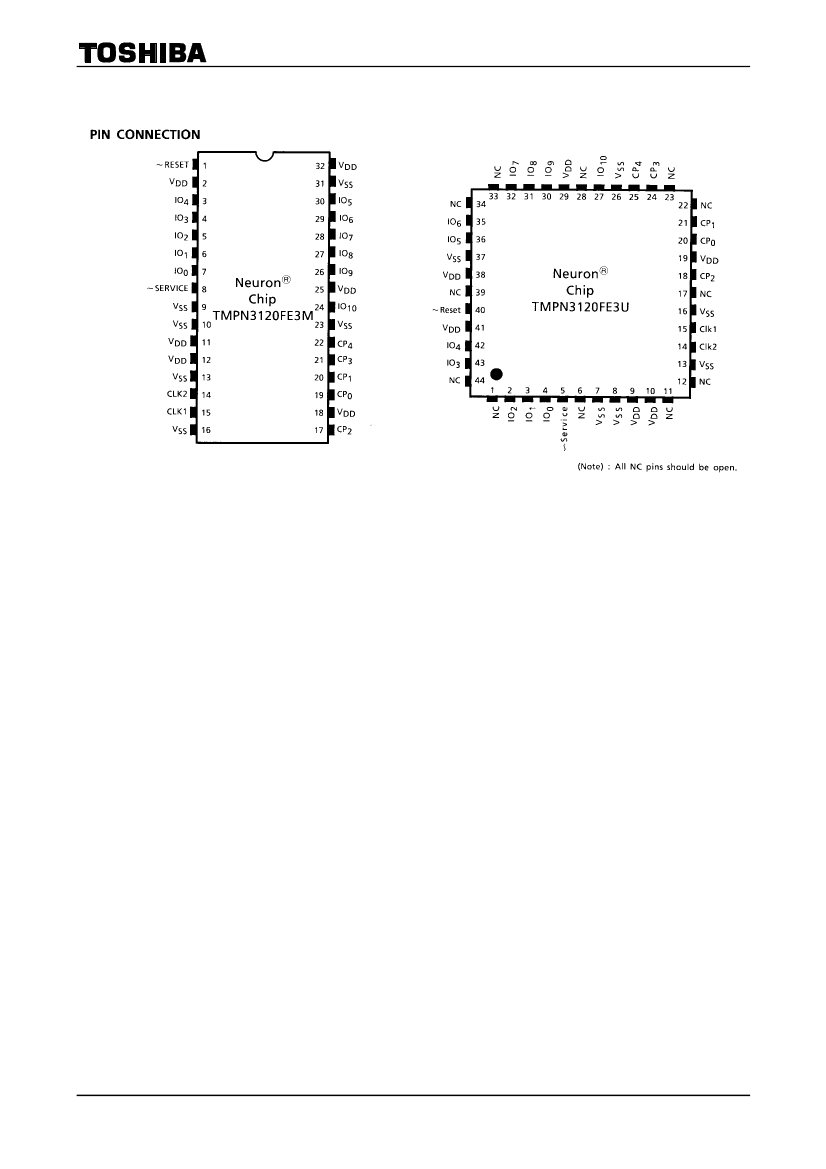

The package is SOP32-P-525-1.27 and LQFP44-P-1010-0.80.
2001-02-21
2/12
