Series AM1/4L-NZ
1/4 Watt | DC-DC Converter
Pin Out Specifications
Single and Dual 1000VDC
Pin
1
2
3
4
5
6
7
8
Pin Out Specifications
Single and Dual 3000VDC
Dual
- V Input
+ V Input
N.C.
Common
- V Output
N.C.
+ V Output
N.C.
N.C.
N.C.
Front View
6.70
(0.26)
Single
- V Input
+ V Input
N.C.
- V Output
+ V Output
N.C.
N.C.
N.C.
Pin
1
2
3
4
5
6
7
8
9
10
Pin
1
2
3
5
6
7
8
10
11
12
Single
- V Input
+ V Input
N.C.
-V Output
N.C.
N.C.
+V Output
N.C.
N.C.
N.C.
Dual
- V Input
+ V Input
N.C.
Common
-V Output
N.C.
+V Output
N.C.
N.C.
N.C.

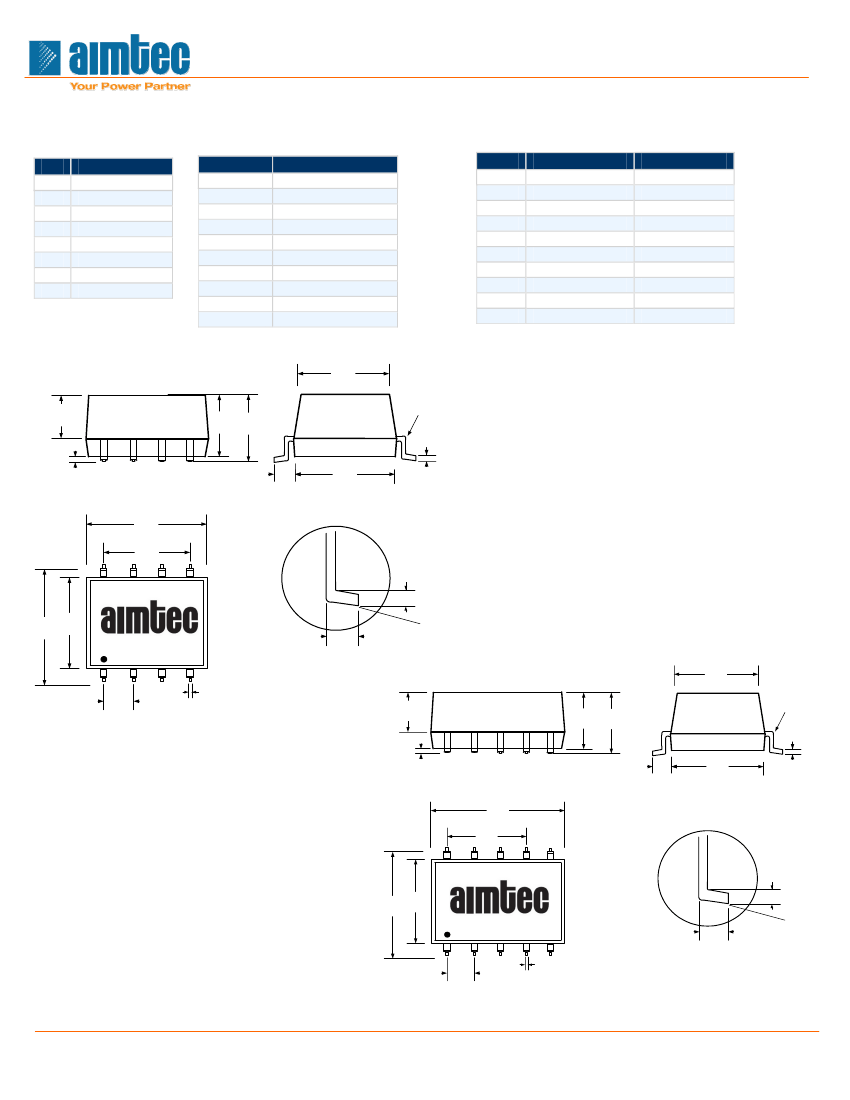

Dimensions Single 1000VDC
Side View
4.13
(0.16)
0.25
(0.01)
1.85
(0.07)
6.00 6.25
(0.24) (0.25)
A
0.30
(0.01)
7.00
(0.28)
Top View
12.70
(0.50)
7.62
(0.30)
A
0.50
(0.02)
11.20 7.50
(0.44) (0.30)
1
5.00º angle
1.50
(0.06)
0.50
(0.02)
Dimensions Dual 1000VDC
Side View
4.13
(0.16)
0.25
(0.01)
1.85
(0.07)
6.00
(0.24)
6.25
(0.25)
Front View
6.70
(0.26)
2.54
(0.10)
A
0.30
(0.01)
7.00
(0.28)
All dimensions are in mm (inch)
All Pins are on a 2.54mm (0.10inch) pitch
with tolerance of ±0.25mm (0.01inch)
Top View
15.24
(0.60)
7.62
(0.30)
A
0.50
(0.02)
11.20 7.50
(0.44) (0.30)
1
5.00º angle
1.50
(0.06)
2.54
(0.10)
0.50
(0.02)
All dimensions are in mm (inch)
All Pins are on a 2.54mm (0.10inch) pitch
with tolerance of ±0.25mm (0.01inch)
www.aimtec.com
F 051e R8.F
Tel: +1 514 620 2722
3 of 4
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM1/4L-NZ
1/4 Watt | DC-DC Converter
Dimensions single and dual 3000VDC
Front View
Side View
4.13
(0.16)
0.25
(0.01)
7.00
(0.28)
6.00
(0.24)
6.25
(0.25)
6.70
(0.26)
A
0.30
(0.01)
1.85
(0.07)
Top View
15.24
(0.60)
A
0.50
(0.02)
11.20 7.50
(0.44) (0.30)
1
5.00º angle
1.50
(0.06)
2.54
(0.10)
0.50
(0.02)
All dimensions are in mm (inch)
All Pins are on a 2.54mm (0.10inch) pitch
with tolerance of ±0.25mm (0.01inch)
Typical characteristics
Tolerance Envelope Graph
+10 %
+ 5%
Nominal
Voltage
+2.5%
Output Voltage
-2.5%
-7.5%
Typical Load Line
10%
50%
Output Current (%)
100%
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
