>1 100 000 hrs (MIL-HDBK -217F, Ground Benign, t=+25 C)
NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at
rated output load unless otherwise specified
-40 to +85
-55 to +125
Not-Required
Free air convection
Safety Specifications
Parameters
Standards
IEC 60950-1: 2001
cULus (for 1000, 3000 & some 6000VDC Isolated models);
CE (for 3000VDC Isolation models and single 1000VDC Isolation models)
NOTE: all other models not referenced above are designed to meet standard IEC 60950-1:2001
Agency approvals
Pin Out Specifications
Pin
1
2
4
5
6
7
+ V Input
- V Input
- V Output
No pin
+ V Output
No pin
1000 VDC
Single
Dual
+ V Input
- V Input
- V Output
Common
+ V Output
No pin
+ V Input
- V Input
No pin
- V Output
No pin
+ V Output
3000 , 6000 VDC
Single
Dual
+ V Input
- V Input
No pin
- V Output
Common
+ V Output
External capacitor – Single output
Vin
(VDC)
5
12
24
-
External
capacitor
(μF)
4.7
2.2
1
-
Vout
(VDC)
5
9
12
15
External
capacitor
(μF)
10
4.7
2.2
1
External capacitor – Dual output
Vin
(VDC)
5
12
24
-
External
capacitor
(μF)
4.7
2.2
1
-
Vout
(VDC)
5
9
12
15
External
capacitor
(μF)
10
4.7
2.2
1
www.aimtec.com
F 051e R6.H
Tel: +1 514 620 2722
3 of 4
Toll free: + 1 888 9 AIMTEC
(926 6832)
North America only
1 Watt | DC-DC Converter

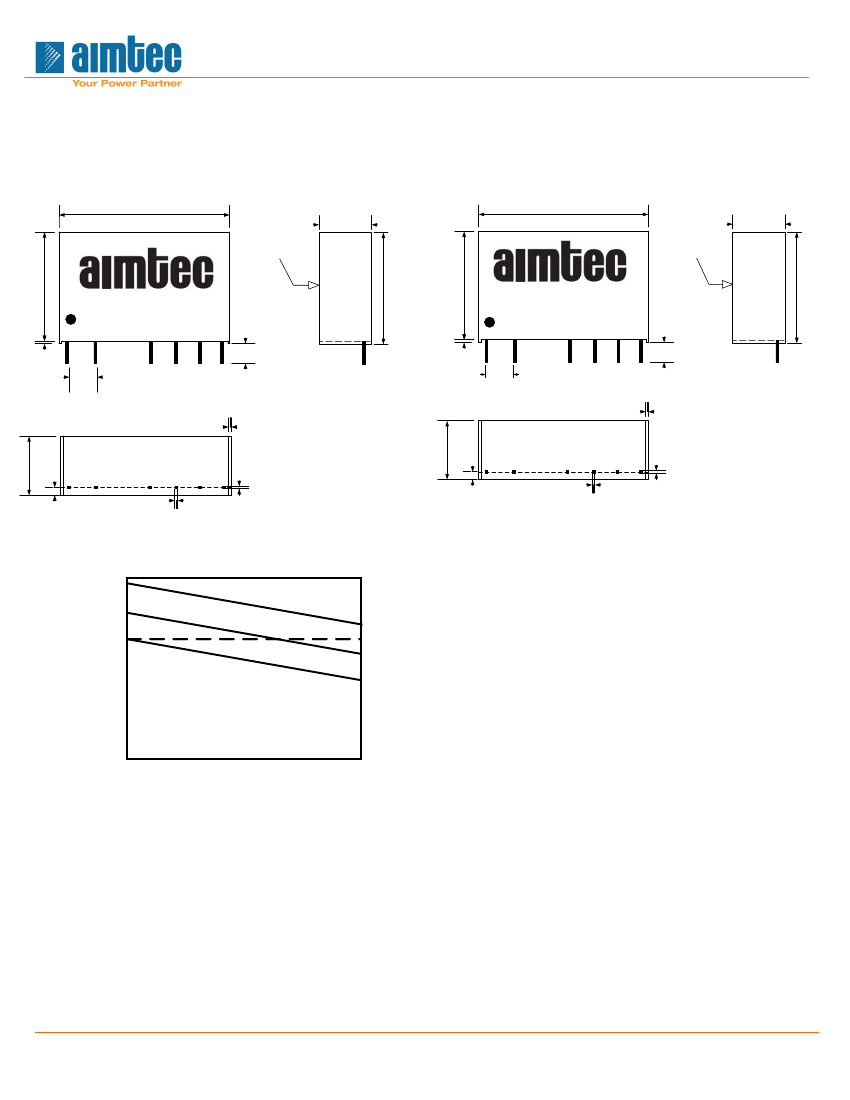

Dimensions
1000 and 3000VDC
19.50
(0.76)
6.00
(0.24)
PRINTED
FACE
9.50
(0.37)
10.00
(0.39)
12.00
(0.47)
Series AM1D-NZ
Dimensions
6000VDC
19.50
(0.76)
9.80
(0.39)
PRINTED
FACE
12.50
(0.49)
0.50
(0.02)
2.54
(0.10)
0.50
(0.02)
4.10
(0.16)
0.50
(0.02)
2.54
(0.10)
0.50
(0.02)
4.10
(0.16)
6.00
(0.24)
9.8
(0.39)
=
1.25
(0.05)
0.50
(0.02)
0.25
(0.01)
1.25
(0.05)
0.50
(0.02)
0.25
(0.01)
Tolerance Envelope Graph
+10%
+5%
Typic
a
l load
line
+2.5%
-2.5%
-7.5%
Nominal
Voltage
Output Voltage (%)
10%
50%
Output Current (%)
100%
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
