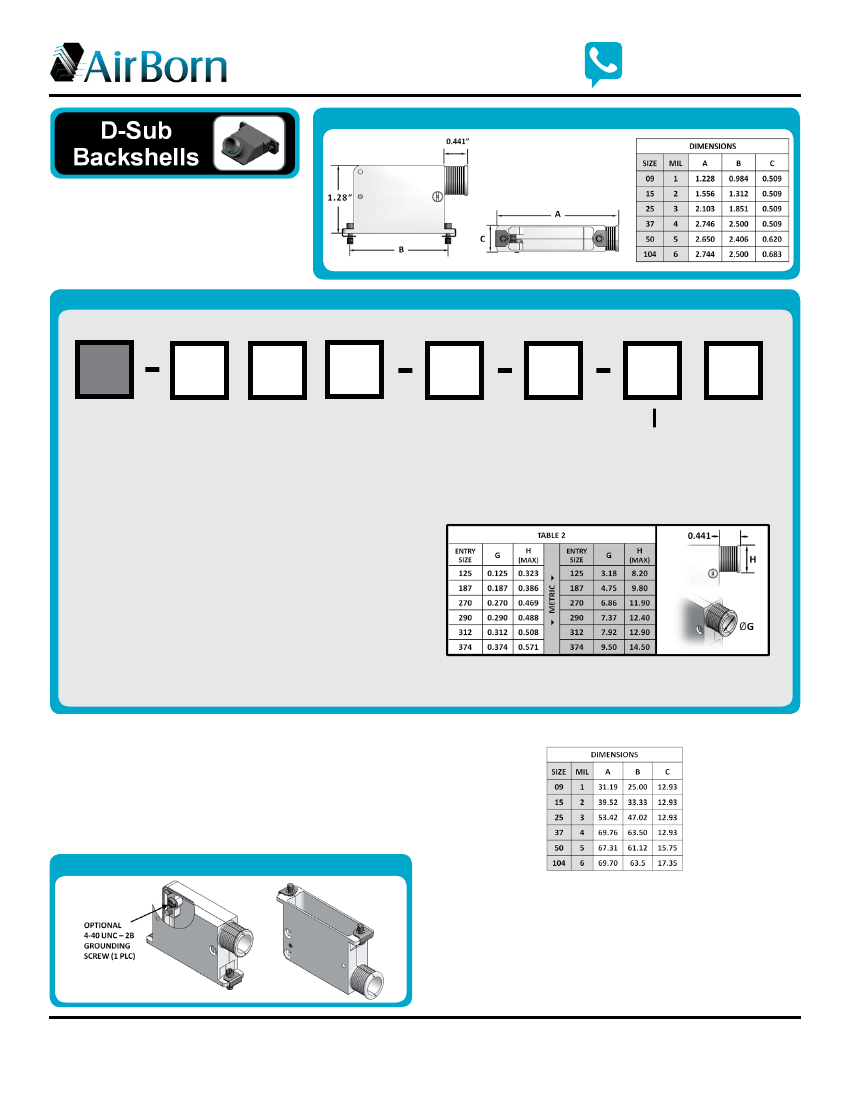

DA 6 – Banding Backshell with
90° Circular Entry and Split Shell
Flange Mount
For use with D-Subminiature and
MIL-DTL-24308 connectors.
ORDER FORM
ENTER
CODE
ENTER
CODE
ENTER
CODE
Sample Part Number Format: DA-16Z-050-XXX-AEGS
ENTER
CODE
ENTER
CODE
ENTER
CODE
ENTER
CODE
DA
SERIES
Banding Backshells
for D-Subminiature
Connectors
MATERIAL
1 – Aluminum
alloy
STYLE
6 – 90° circular
entry with
split shell
flange
mount
PLATING
2 – Nickel-plated
aluminum
3 – Cadmium-plated
aluminum ‡
D – Cadmium, olive
drab ‡
Z – Zinc cobalt over
nickel
SIZE
009 – 9 Contacts
015 – 15 Contacts
025 – 25 Contacts
037 – 37 Contacts
050 – 50 Contacts
104 – 104 Contacts
ENTRY SIZE
See Table 2 below
OPTIONS
00 – None
GS – Grounding screw
HARDWARE
00 – None
SH – Slot head screw with clip
AH – Allen head screw with clip
JP – Jackpost
TH – Threaded hole
‡ Option not RoHS-compliant
Stainless steel microband: CDG10026 (sold separately)
Band-It application tool: CDG10027
Reference PTB44 for Band-It termination installation
PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.
NOTES
MATERIALS and FINISHES
Backshells: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ Aluminum alloy
Shell Finishes: ½ ½ ½ ½ ½ ½ ½ ½ Electroless nickel per SAE AMS-C26074, Class 4, Grade B, 500 µ” min½
Electrodeposited cadmium per SAE AMS-QQ-P-416, Type II, Class 2
Cadmium, olive drab, SAE AMS-QQ-P-316, Type II, Class 3 over elelctroless nickel
Zinc cobalt over electroless nickel with olive drab chromate conversion
Jackscrews/posts: ½ ½ ½ ½ ½ ½ ½ 300-series steel per ASTM A582/A582M or SAE AMS-5640, Type 1 or
AISI-303 or EN 10088-3 1½4305, passivated per SAE AMS-2700, Method 2
Clips: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ Corrosion-resistant steel per ASTM A276 or ASTM A479/A479M
Passivated per SAE AMS-2700, Method 2
METRIC
(for reference, only)
DA-16Z-050-XXX-AEGS
