BRS-02-76-A-GD50 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BRS-02-76-A-GD50

Preview

BRS-02-76-A-GD50: DescriptionBoard Connector, 76 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size107KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

BRS-02-76-A-GD50 Overview

Board Connector, 76 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug

BRS-02-76-A-GD50 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.181 inch
subject depth	0.169 inch
body length	3.012 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	4000VAC V
Durability	500 Cycles
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	BRS-02
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	50u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	76

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

C

SPECIFICATIONS

Current Rating:

Operating voltage:

Contact material:

Contact plating:

Insulation material:

Insulation resistance:

Withstanding:

Life cycle:

B

3 amps

250VAC

Phosphor bronze

Gold over nickel, tin over copper, duplex

PBT, glass reinforced, UL94V-0

1,000 megohms min.

4,000VAC for 1 min.

500 cycles min.

C

D

E

F

RoHS compliant

Rev.

Description

Date

Approved

Series

Rows

Contacts

Tail length

Plating

Options

BRS

XX

X

XX

2mm receptacle 01=Single Single row 1-40 A=0.125” (std) GD=Gold

[blank]=None

strip

02=Dual Dual row 2-80 B=Custom tail TN=Tin

SM=Surface mount

GD15=15µ” gold

GD30=30µ” gold

GD50=50µ” gold

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

08/10/99

08/10/99 Part No.:

E

F

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

G

BRS-02-XX-X-XX

7

8

9

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

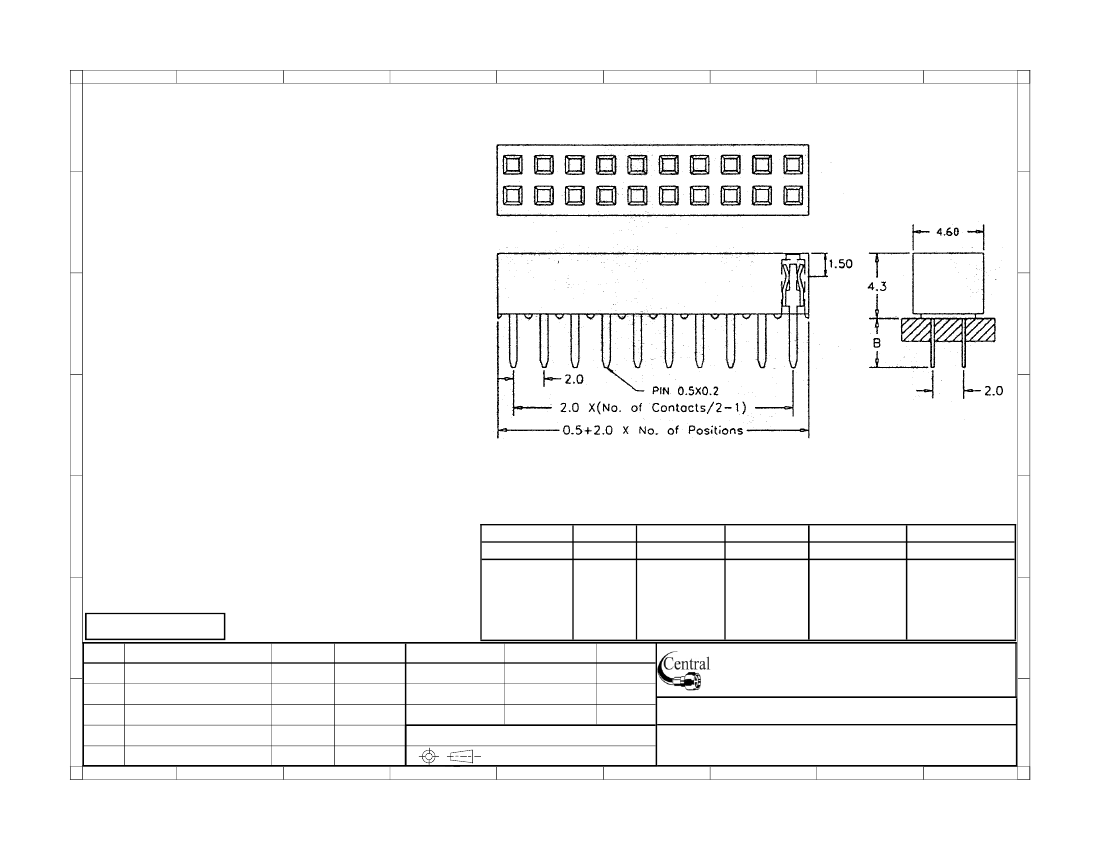

Description: Receptacle strip, double row, .079” (2.00mm) pitch, top
