8012-5151 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8012-5151

8012-5151: DescriptionD Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size207KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

8012-5151 Overview

D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

8012-5151 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.494 inch
subject depth	0.488 inch
body length	1.543 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact style	RND PIN-SKT
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	8012
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	SCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	15u inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.126 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	15

Preview

Download Datasheet

View All

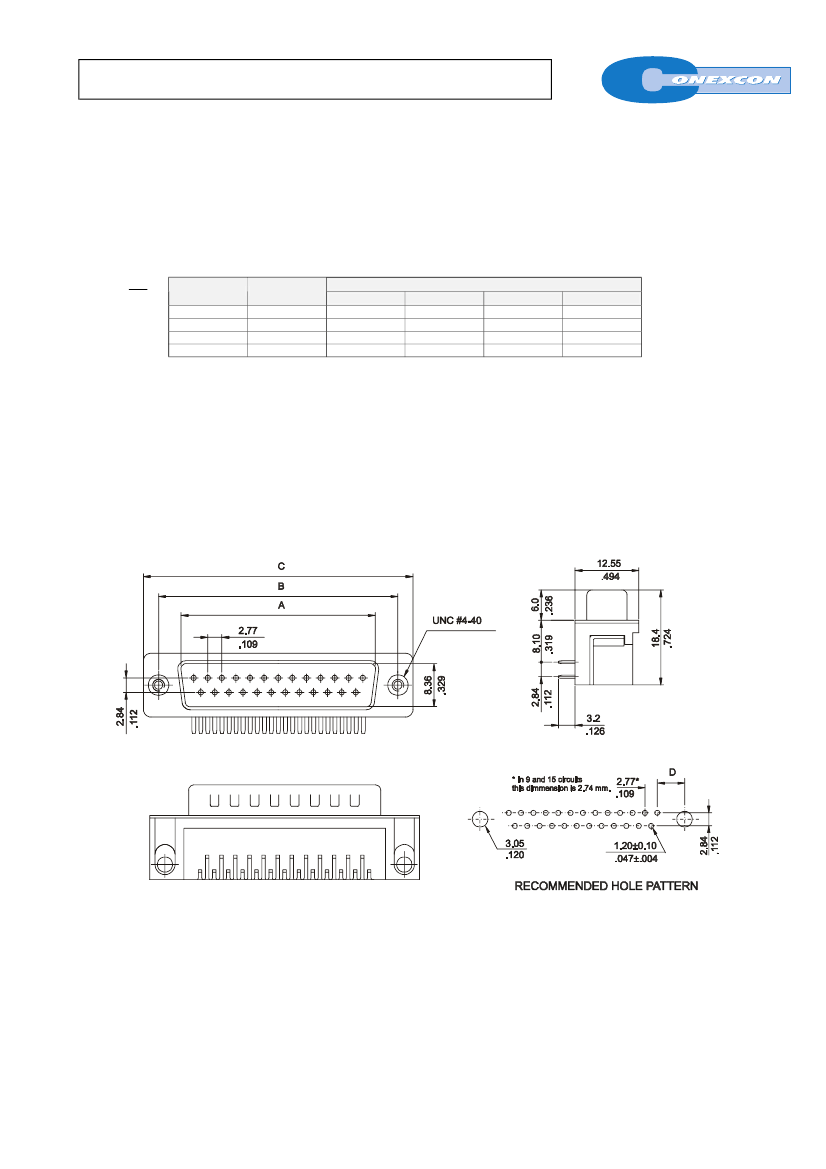

8.10mm FOOTPRINT R/ANGLE D-SUB PLUG

SERIES.

8012 SERIES

For PCB Solder. Right Angle D-Sub Plug

Features

Available in 9, 15, 25 and 37 circuits

Insulator Material: Glass filled polyester UL 94V-0

Contact Material: Brass with different plating

Shell: Steel, tin plated as standard

Standard connector C = 1 (Riveted ground hooks with

#4-40 UNC open

For other options consult the Sales Office

Ordering and Dimensional Information

Dimensional Information

Unit:

mm.

Inch.

Circuit Size

Part Number

8012 –

T09C

8012 –

T15C

8012 –

T25C

8012 –

T37C

Dimensions

16.92 (0.666)

25.25 (0.994)

38.96 (1.534)

55. 42 (2.182)

25.00 (0.984)

33.30 (1.311)

47.10 (1.854)

63.50 (2.500)

30.80 (1.213)

39.20 (1.543)

53.10 (2.091)

69.40 (2.732)

6.96 (0.274)

6.91 (0.272)

6.82 (0.269)

T = Contact Plating

C = Hardware Options

T =

Gold flash over 50µ” nickel

T =

10µ” gold over 50µ” nickel

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

C =

Riveted ground hooks pre-loaded #4.40 UNC

Hexagonal screws (standard)

C =

Riveted ground hooks with #4.40 UNC open

CONEXCON

Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation

8012-5151 Related Products

	8012-5151	8012-5251	8012-3151	8012-3251	8012-6251
Description	D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug	D Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug	D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug	D Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug	D Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug
Reach Compliance Code	unknown	unknow	unknow	unknow	unknown
body width	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch
subject depth	0.488 inch	0.488 inch	0.488 inch	0.488 inch	0.488 inch
body length	1.543 inch	2.091 inch	1.543 inch	2.091 inch	2.091 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Manufacturer's serial number	8012	8012	8012	8012	8012
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Installation option 1	#4-40	#4-40	#4-40	#4-40	#4-40
Installation option 2	SCREW	SCREW	SCREW	SCREW	SCREW
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2	2
Number of rows loaded	2	2	2	2	2
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm
Plating thickness	15u inch	15u inch	FLASH inch	FLASH inch	30u inch
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL
Terminal length	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch
Terminal pitch	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	25	15	25	25
ECCN code	EAR99	-	EAR99	EAR99	EAR99
Maker	-	Conexcon Group	Conexcon Group	Conexcon Group	-
