BZW03-Series
Vishay Semiconductors
Zener Diodes with Surge Current Specification
Features
•
•
•
•
Glass passivated junction
Hermetically sealed package
Clamping time in picoseconds
Lead (Pb)-free component
e2
949588
• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
Applications
Voltage regulators and transient suppression circuits
Mechanical Data
Case:
SOD-64 Sintered glass case
Weight:
approx. 858 mg
Packaging Codes/Options:
TAP / 2.5 k Ammopack (52 mm tape), 12.5 k/box
TR / 2.5 k 10 " reel
Absolute Maximum Ratings
T
amb
= 25 °C, unless otherwise specified
Parameter
Power dissipation
Repetitive peak reverse power
dissipation
Non repetitive peak surge power t
p
= 100
µs,
T
j
= 25 °C
dissipation
Junction temperature
Storage temperature range
Test condition
l = 10 mm, T
L
= 25 °C
T
amb
= 45 °C
Symbol
P
diss
P
diss
P
ZRM
P
ZSM
T
j
T
stg
Value
6.0
1.85
20
1000
175
- 65 to + 175
Unit
W
W
W
W
°C
°C
Thermal Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Junction ambient
Test condition
l = 25 mm, T
L
= constant
on PC board with spacing 37.5 mm
Symbol
R
thJA
R
thJA
Value
30
70
Unit
K/W
K/W
Electrical Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Forward voltage
I
F
= 1 A
Test condition
Symbol
V
F
Min
Typ.
Max
1.2
Unit
V
Document Number 85602
Rev. 1.4, 13-Apr-05
www.vishay.com
1
BZW03-Series
Vishay Semiconductors

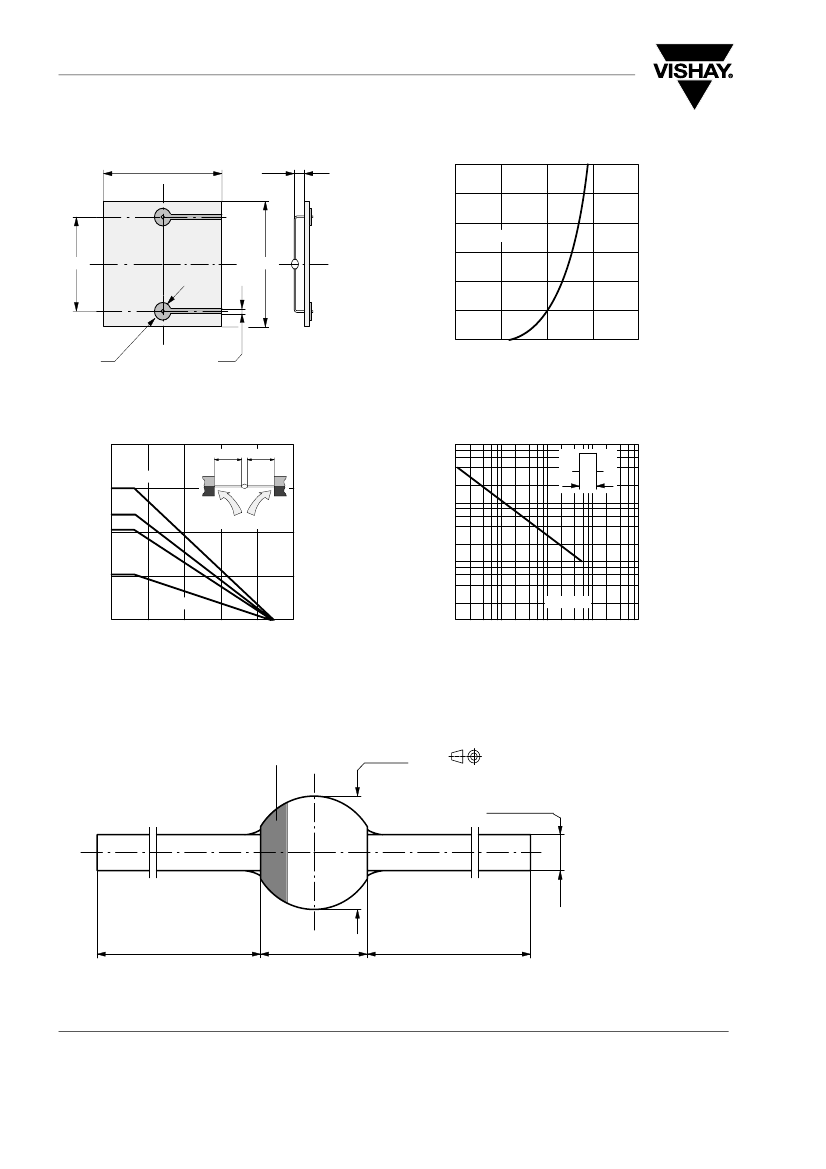

Typical Characteristics (Tamb = 25
°C
unless otherwise specified)
50
3
I
F
– Forward Current ( A )
6
5
4
T
j
=25°C
3
2
1
0
37.5
50
7
2
94 9087
95 9609
0
0.5
1.0
1.5
2.0
V
F
– Forward Voltage ( V )
Figure 1. Epoxy Glass Hard Tissue, Board Thickness 1.5 mm,
R
thJA
≤70
K/W
P
ZSM
– Non-Repetitive Surge Power
Dissipation (W )
Figure 3. Forward Current vs. Forward Voltage
8
P
tot
–Total Power Dissipation ( W )
10000
l
l=10mm
6
15mm
4
20mm
2
see Fig.1
0
0
40
80
120
l
t
p
1000
T
L
=constant
100
T
j
=25°C
10
0.01
0.1
1
10
100
160
200
95 9610
95 9608
T
amb
– Ambient Temperature ( °C )
t
p
– Pulse Length ( ms )
Figure 2. Total Power Dissipation vs. Ambient Temperature
Figure 4. Non Repetitive Surge Power Dissipation vs. Pulse
Length
Package Dimensions in mm (Inches)
Sintered Glass Case
SOD-64
Cathode Identification
4.3 (0.168) max.
ISO Method E
1.35 (0.053) max.
26(1.014) min.
4.0 (0.156) max.
26 (1.014) min.
94 9587
www.vishay.com
4
Document Number 85602
Rev. 1.4, 13-Apr-05
BZW03-Series
Vishay Semiconductors
