BZX384C13 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BZX384C13

BZX384C13: Description13 V, 0.2 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE; CategoryDiscrete semiconductor diode; File Size93KB，2 Pages; ManufacturerSynSemi; Websitehttp://www.synsemi.com/

Download Datasheet Parametric View All

BZX384C13 Overview

13 V, 0.2 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE

BZX384C13 Parametric

Parameter Name	Attribute value
Maker	SynSemi
Reach Compliance Code	unknow
ECCN code	EAR99

Preview

Download Datasheet

View All

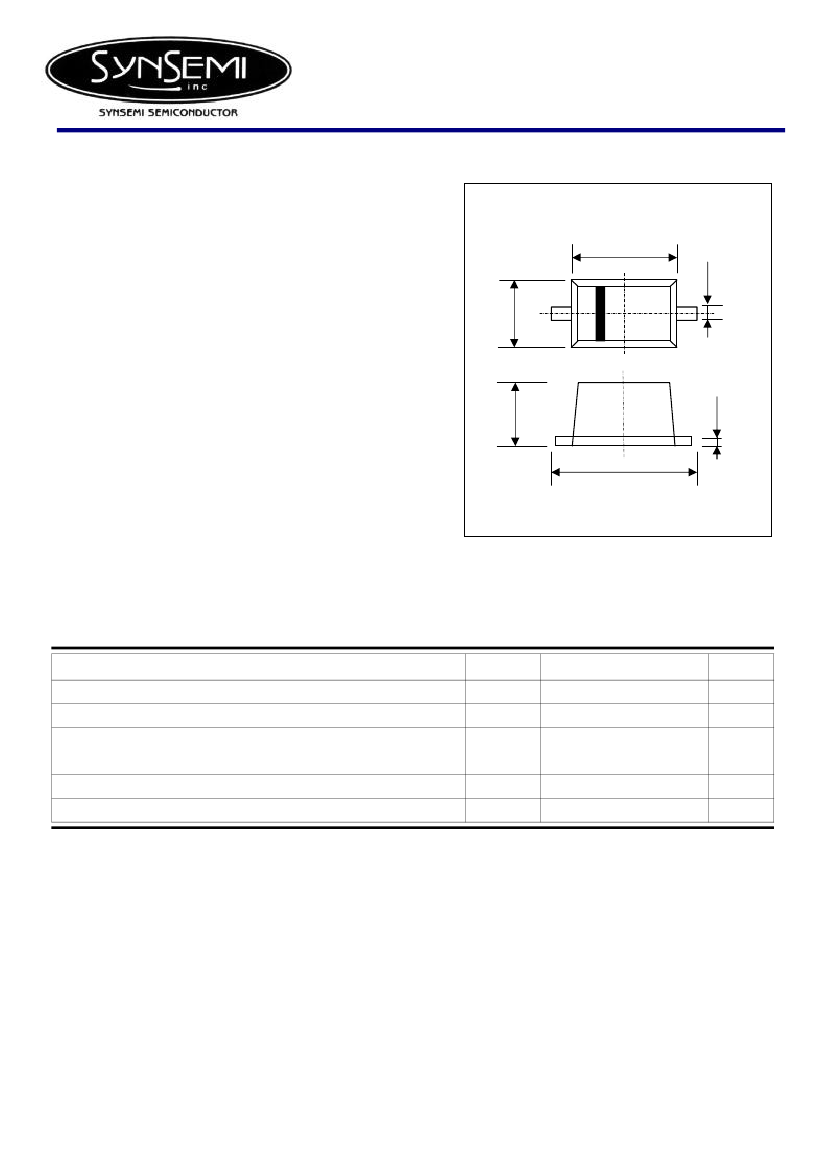

BZX384C Series

FEATURES :

* Silicon Planar Power Zener Diodes

* The Zener voltages are graded according

to the internation E 24 standard.

* Standard Zener voltage tolerance is ± 5 %.

Replace "C" with "B" for ± 2 % tolerance.

* Pb / RoHS Free

ZENER DIODES

SOD-323

1.80

1.60

1.35

1.15

MECHANICAL DATA

* Case : SOD-323 Plastic Package

* Weight : 0.004 gram

2.80

2.30

Dimensions in millimeters

Maximum Ratings and Thermal Characteristics

(Ta

Parameter

Zener Current

Power Dissipation at T

amp

= 25 °C

Thermal Resistance

Junction to Ambient Air

Junction Temperature

Storage Temperature Range

Notes:

(1) Device on fiberglass substrate

(2) Valid provided that electrodes are ambient temperature

C unless otherwise noted)

Symbol

tot

өJA

Value

250

200

(1)

650

(2)

0.15 (max)

1.10

0.80

0.40

0.25

Unit

°C/W

°C

150

-65 to + 150

Page 1 of 2

Rev. 02 : March 24, 2006
