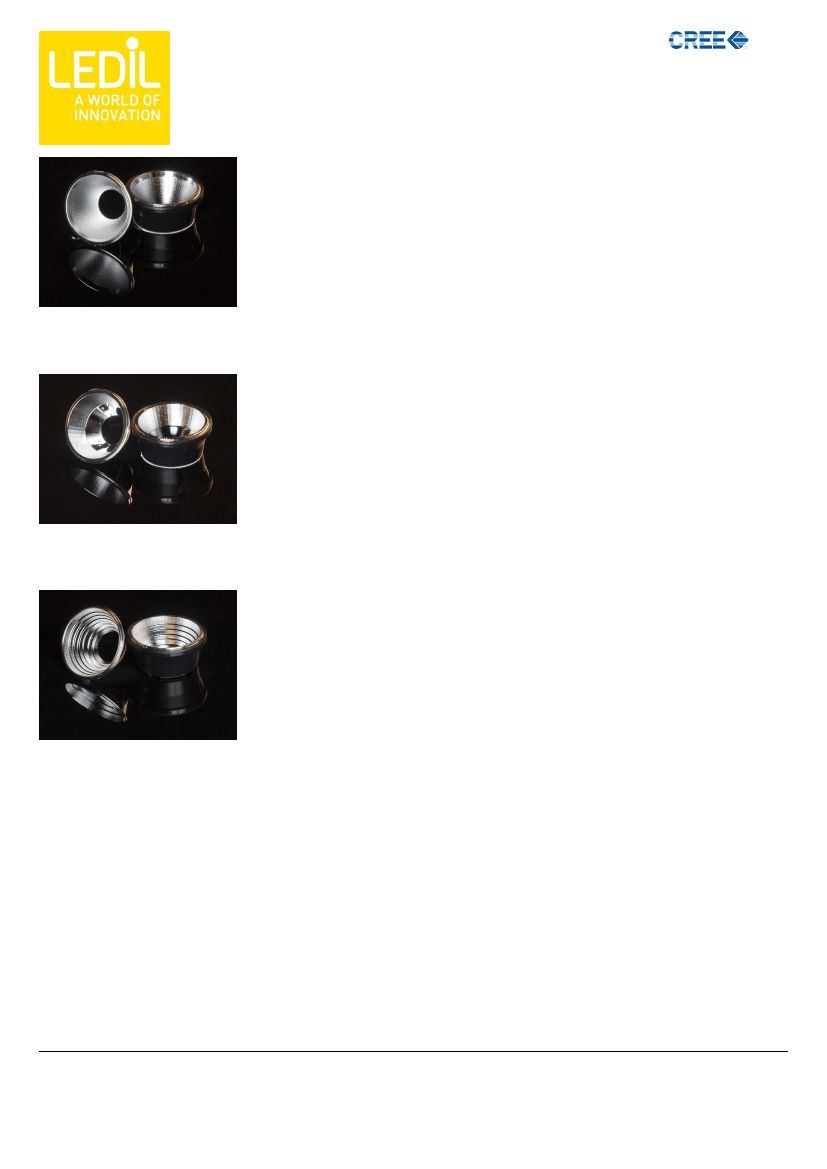

PRODUCT DATASHEET
Minnie-assembly series
Ordering number CA12239
Description
CA12239_Minnie-M-MTG
Family
Type
LED
Color
Diameter
Height
Style
Optic Material
Holder Material
Fastening
Status
Minnie
Reflector
MT-G
Black
35 mm
15.4 mm
Round
PC
PC
Tape
Ready
FWHM
Efficiency
cd/lm
Gerber File
26 degrees
-
-
Available
Ordering number CA12096
Description
CA12096_Minnie-W-MTG
Family
Type
LED
Color
Diameter
Height
Style
Optic Material
Holder Material
Fastening
Status
Minnie
Reflector
MT-G
Black
35 mm
15.4 mm
Round
PC
PC
Tape
Ready
FWHM
Efficiency
cd/lm
Gerber File
36 degrees
-
-
Available
Ordering number CA12240
Description
CA12240_Minnie-WWW-MTG
Family
Type
LED
Color
Diameter
Height
Style
Optic Material
Holder Material
Fastening
Status
Minnie
Reflector
MT-G
Black
35 mm
15.4 mm
Round
PC
PC
Tape
Ready
FWHM
Efficiency
cd/lm
Gerber File
74 degrees
-
-
Available

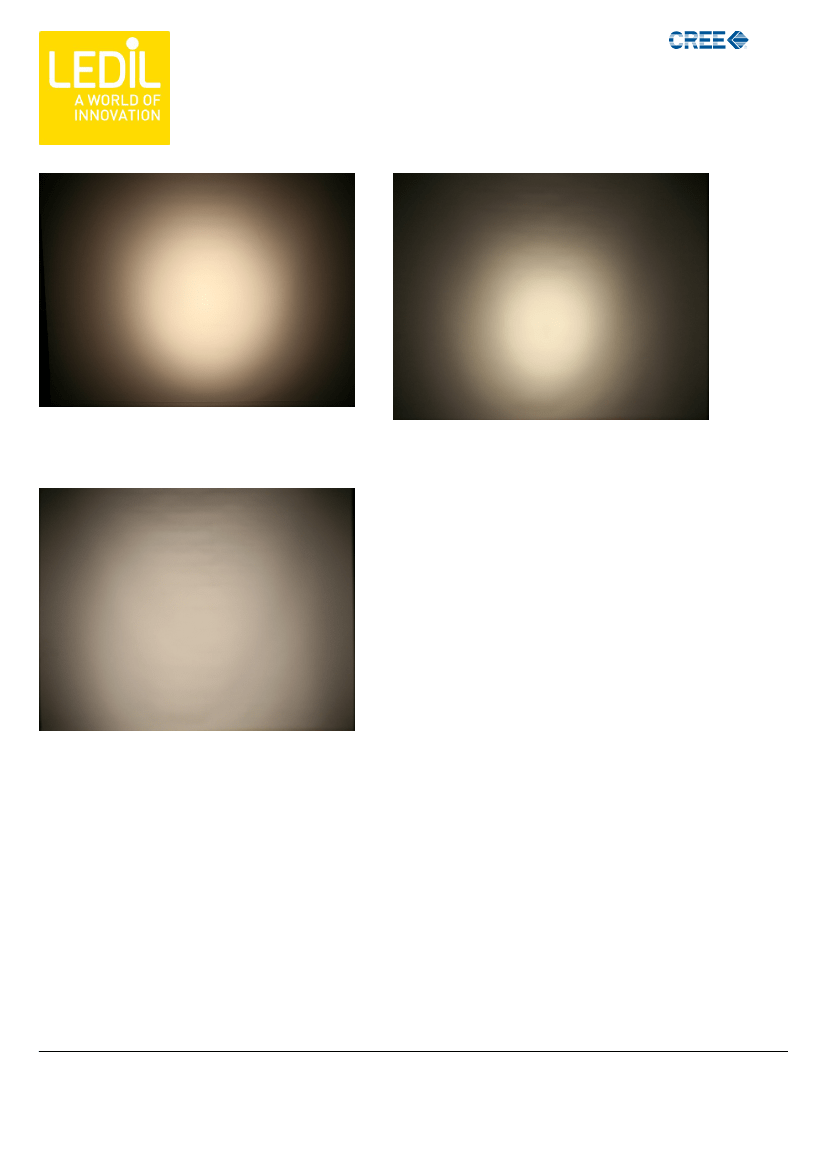

NOTE: The typical divergence will be changed by different color, chip size and chip position
tolerance. The typical total divergence is the full angle measured where the luminous intensity
is half of the peak value.
October 6th 2011 22:57 Copyright Ledil Oy - Subject to change without prior notice - Page 1/3
Ledil Oy
Salorankatu 10
24240 SALO
Finland
http://www.ledil.com
email: ledil@ledil.com
FAX: +358-2-733 8001
PRODUCT DATASHEET
Minnie-assembly series
GENERAL INFORMATION
- Product series especially designed & optimized for MT-G series of LEDs.
- Special care taken to make light distribution as uniform as possible.
- Reflector is made of aluminium coated PC (120 degrees of Celcius / 248 degrees of Fahrenheit) with
protective lacquer (110 degrees of Celcius / 230 degrees of Fahrenheit).
- Optic holder molded by high quality PC material (120 dergees of Celcius / 248 degrees of Fahrenheit).
- Fastening to heat sink with a PU foam adhesive tape of automotive grade. Please find fastening details by
clicking link: http://www.ledil.com/datasheets/DataSheet_TAPE.pdf
NOTE 1: We advise customer to ensure the suitability and sufficiency of the bond in the end
product. For example, mechanical stress, vibration and holes on the surface of the circuit boar
weaken the strength of the tape.
NOTE 2: Assembly to the surface must be made straight, so the tape bonds constant and
balanced with fastening surface. Slanted assembly might cause unbalanced bond to the
surface. All surfaces where tape is applied must be clean, dry and free from grease and dirt.
If cleaning of PCB surfaces is needed, please follow strictly the cleaning instructions of your
LED manufacturer - this is important as cleaning shall under no circumstances damage LEDs or
other electronics components on the PCB.
Further note that optical components shall not be cleaned with any chemicals - only micro fiber
cloth may be used to remove fingerprints or other traces from handling.
