MB85286-10PS: DescriptionMEMORY MODULE,DRAM,NIBBLE MODE,4MX(8+1),CMOS,SIM,30PIN,PLASTIC; Categorystorage storage; File Size318KB，5 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

MB85286-10PS Overview

MEMORY MODULE,DRAM,NIBBLE MODE,4MX(8+1),CMOS,SIM,30PIN,PLASTIC

MB85286-10PS Parametric

Parameter Name	Attribute value
package instruction	SIMM, SIM30
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	100 ns
I/O type	COMMON
JESD-30 code	R-PSMA-N30
memory density	37748736 bit
Memory IC Type	NIBBLE MODE DRAM
memory width	9
Number of terminals	30
word count	4194304 words
character code	4000000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4MX9
Package body material	PLASTIC/EPOXY
encapsulated code	SIMM
Encapsulate equivalent code	SIM30
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	5 V
Certification status	Not Qualified
refresh cycle	2048
Maximum seat height	20.32 mm
Maximum standby current	0.009 A
Maximum slew rate	0.585 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	2.54 mm
Terminal location	SINGLE

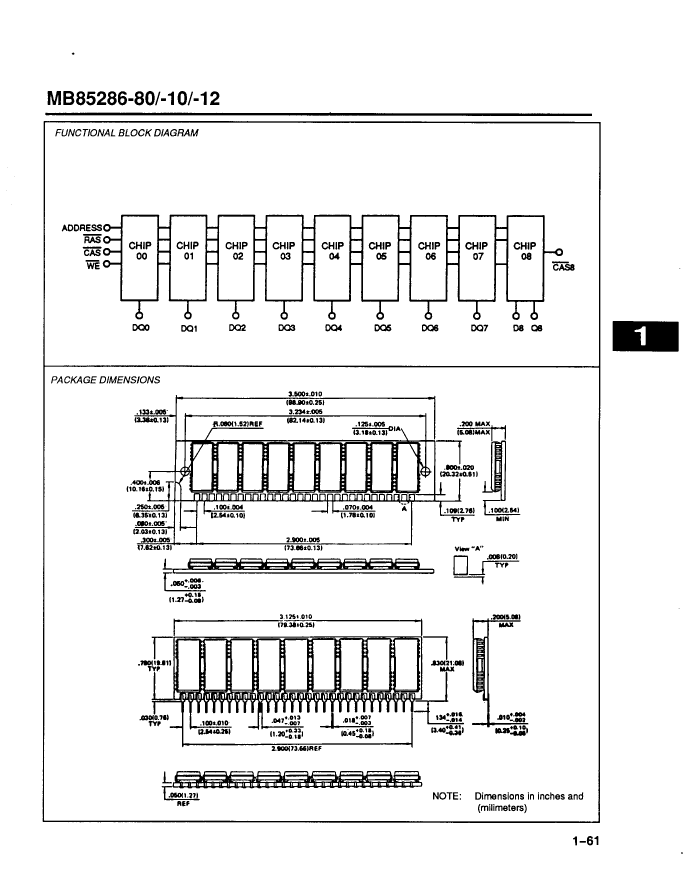

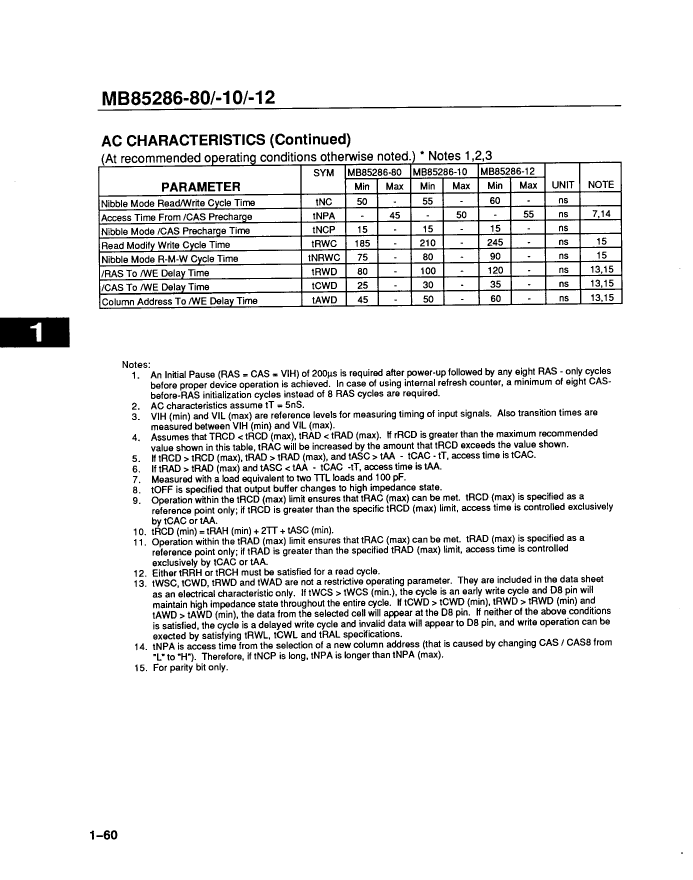

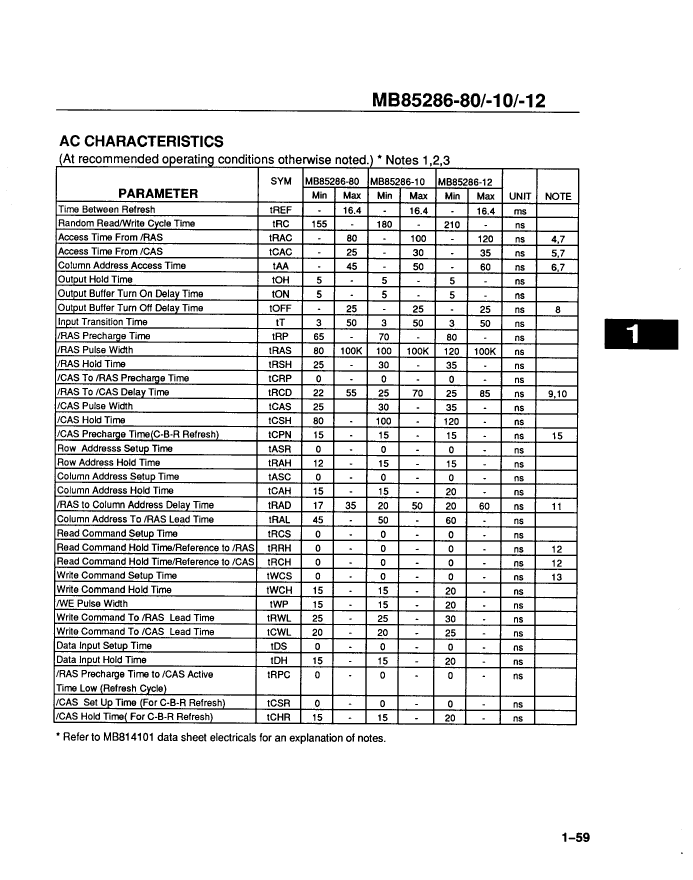

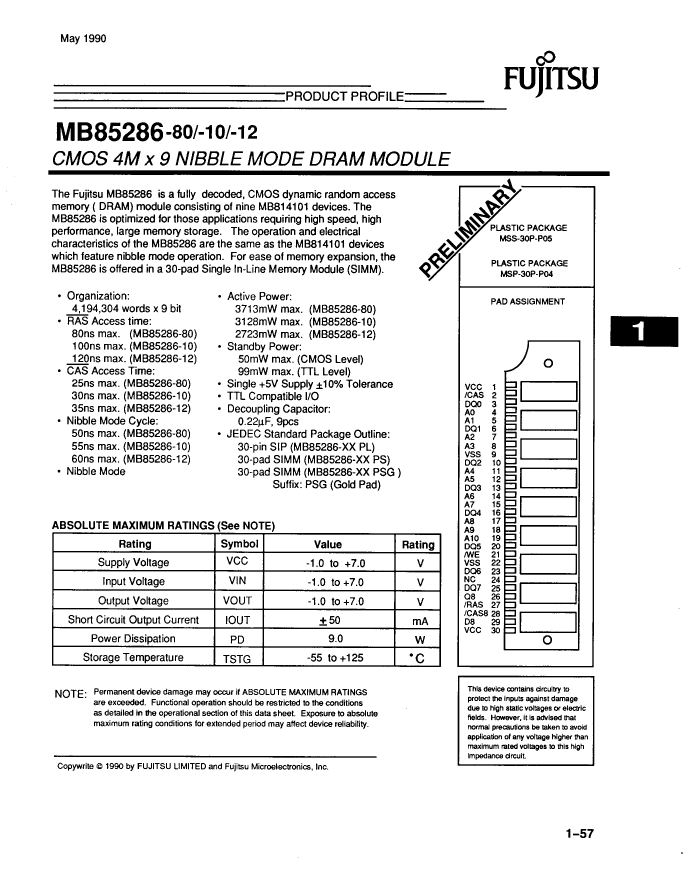

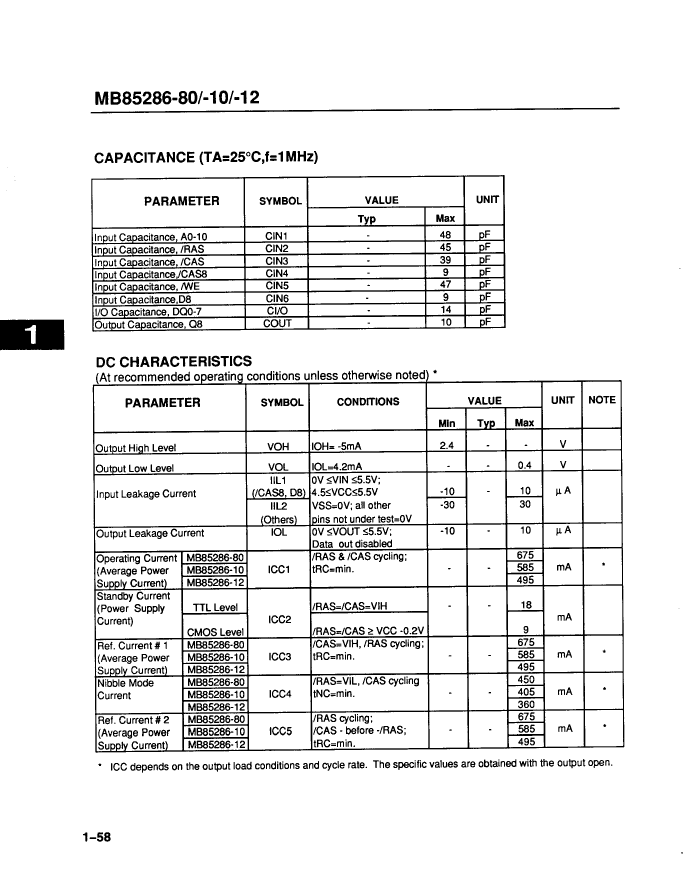

Preview

Download Datasheet

View All

MB85286-10PS Related Products

	MB85286-10PS	MB85286-12PL	MB85286-12PS	MB85286-12PSG	MB85286-10PL	MB85286-10PSG
Description	MEMORY MODULE,DRAM,NIBBLE MODE,4MX(8+1),CMOS,SIM,30PIN,PLASTIC	MEMORY MODULE,DRAM,NIBBLE MODE,4MX(8+1),CMOS,SIP,30PIN,PLASTIC	MEMORY MODULE,DRAM,NIBBLE MODE,4MX(8+1),CMOS,SIM,30PIN,PLASTIC	MEMORY MODULE,DRAM,NIBBLE MODE,4MX(8+1),CMOS,SIM,30PIN,PLASTIC	MEMORY MODULE,DRAM,NIBBLE MODE,4MX(8+1),CMOS,SIP,30PIN,PLASTIC	MEMORY MODULE,DRAM,NIBBLE MODE,4MX(8+1),CMOS,SIM,30PIN,PLASTIC
package instruction	SIMM, SIM30	, SIP30,.2	SIMM, SIM30	SIMM, SIM30	, SIP30,.2	SIMM, SIM30
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	100 ns	120 ns	120 ns	120 ns	100 ns	100 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
memory density	37748736 bit	37748736 bit	37748736 bit	37748736 bit	37748736 bit	37748736 bit
Memory IC Type	NIBBLE MODE DRAM	NIBBLE MODE DRAM	NIBBLE MODE DRAM	NIBBLE MODE DRAM	NIBBLE MODE DRAM	NIBBLE MODE DRAM
memory width	9	9	9	9	9	9
Number of terminals	30	30	30	30	30	30
word count	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words
character code	4000000	4000000	4000000	4000000	4000000	4000000
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	4MX9	4MX9	4MX9	4MX9	4MX9	4MX9
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	SIM30	SIP30,.2	SIM30	SIM30	SIP30,.2	SIM30
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	2048	2048	2048	2048	2048	2048
Maximum seat height	20.32 mm	21.082 mm	20.32 mm	20.32 mm	21.082 mm	20.32 mm
Maximum standby current	0.009 A	0.009 A	0.009 A	0.009 A	0.009 A	0.009 A
Maximum slew rate	0.585 mA	0.495 mA	0.495 mA	0.495 mA	0.585 mA	0.585 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
JESD-30 code	R-PSMA-N30	-	R-PSMA-N30	R-PSMA-N30	-	R-PSMA-N30
encapsulated code	SIMM	-	SIMM	SIMM	-	SIMM
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	-	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	-	MICROELECTRONIC ASSEMBLY
Terminal form	NO LEAD	-	NO LEAD	NO LEAD	-	NO LEAD
