5962-01-286-1337 datasheet, PDF

5962-01-286-1337: DescriptionIC,COUNTER,UP,21-BIT BINARY,CMOS,DIP,16PIN,CERAMIC; Categorylogic logic; File Size289KB，4 Pages; ManufacturerIntersil ( Renesas ); Websitehttp://www.intersil.com/cda/home/

Download Datasheet Parametric Compare View All

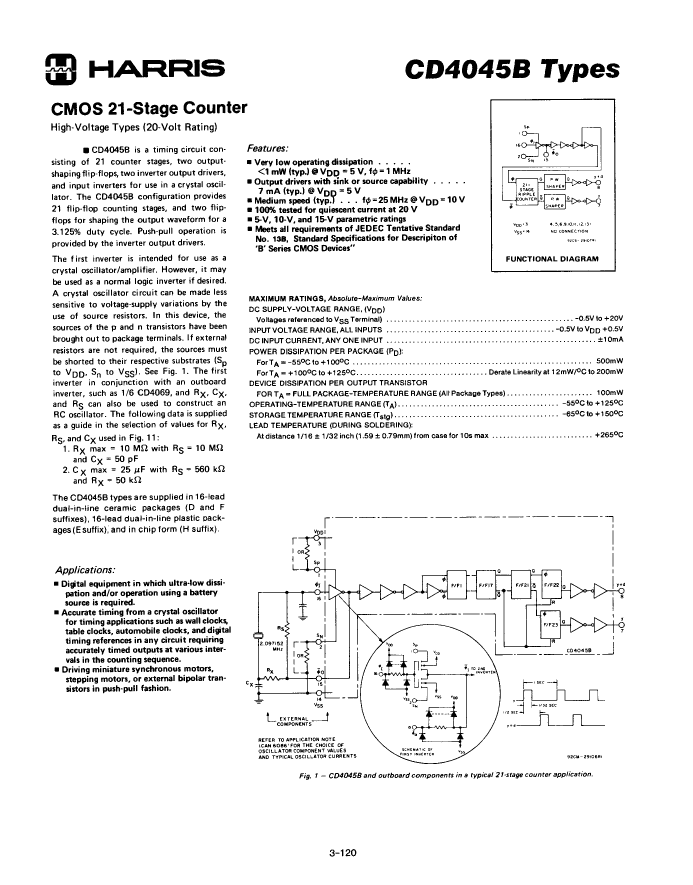

5962-01-286-1337 Overview

IC,COUNTER,UP,21-BIT BINARY,CMOS,DIP,16PIN,CERAMIC

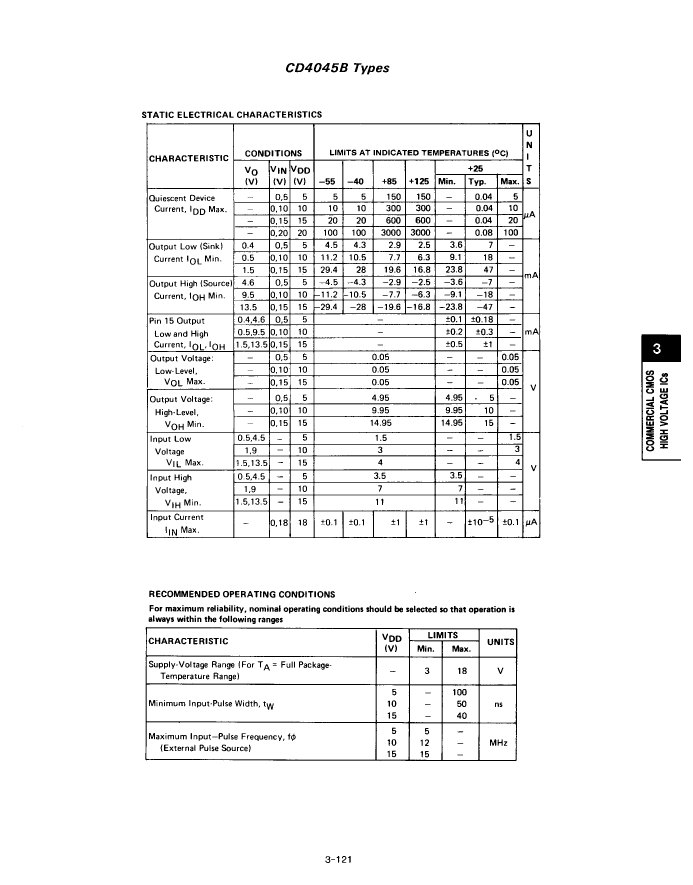

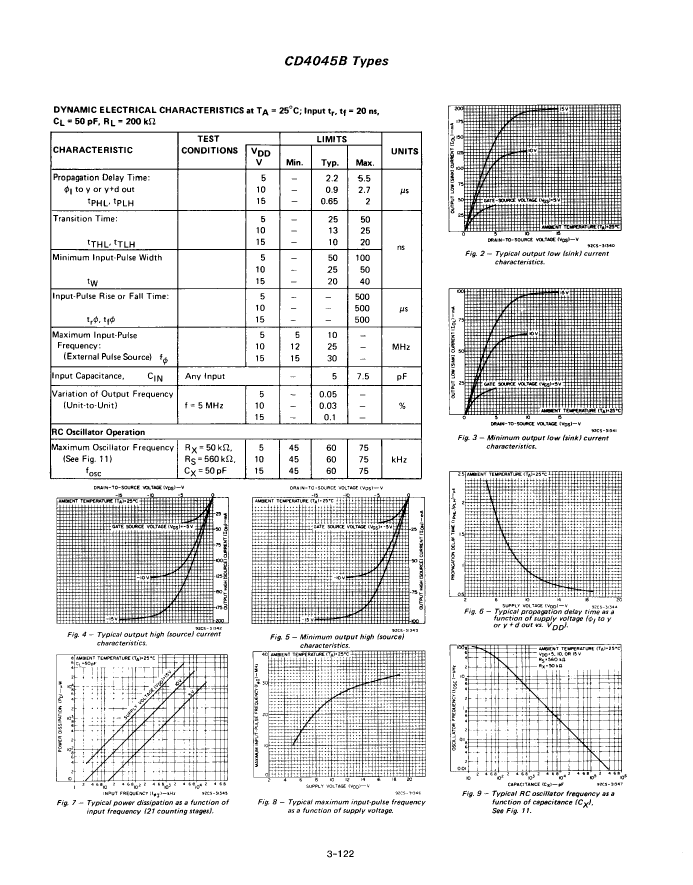

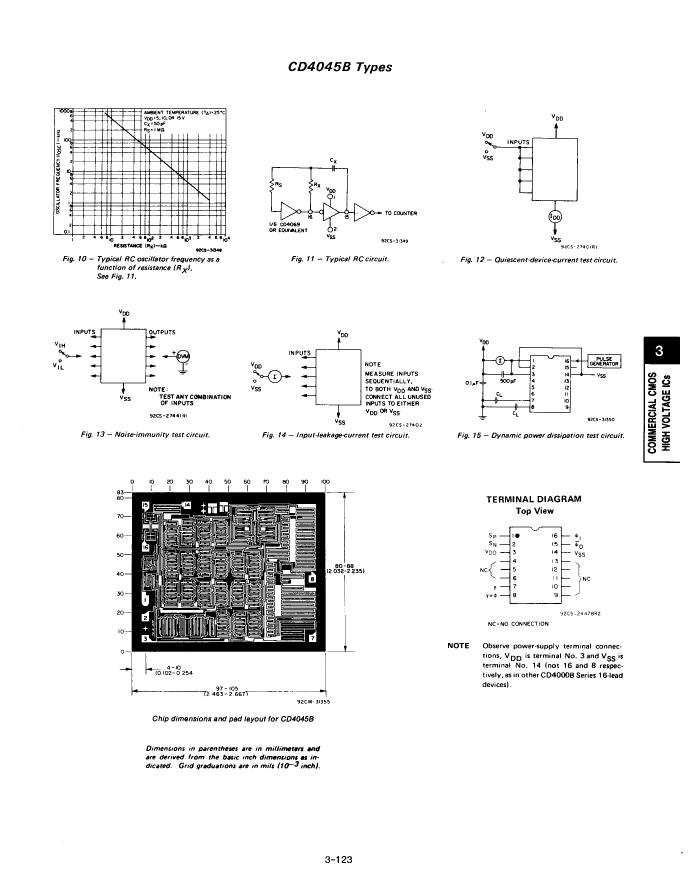

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP16,.3
Reach Compliance Code	not_compliant
Counting direction	UP
JESD-30 code	R-XDIP-T16
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Sup	5000000 Hz
MaximumI(ol)	0.0025 A
Operating mode	ASYNCHRONOUS
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/15 V
Certification status	Not Qualified
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	5962-01-286-1337
Description	IC,COUNTER,UP,21-BIT BINARY,CMOS,DIP,16PIN,CERAMIC
Is it Rohs certified?	incompatible
package instruction	DIP, DIP16,.3
Reach Compliance Code	not_compliant
Counting direction	UP
JESD-30 code	R-XDIP-T16
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Sup	5000000 Hz
MaximumI(ol)	0.0025 A
Operating mode	ASYNCHRONOUS
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/15 V
Certification status	Not Qualified
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
