127151FS010G100ZU: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size150KB，1 Pages; ManufacturerSUYIN-USA; Websitehttp://www.suyinusa.com

Download Datasheet Parametric View All

127151FS010G100ZU Overview

Board Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Plug

127151FS010G100ZU Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PACKAGING TUBE
body width	0.118 inch
subject depth	0.177 inch
body length	0.266 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulator color	BLACK
Manufacturer's serial number	127151FS
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	5u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.091 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	10

Preview

Download Datasheet

View All

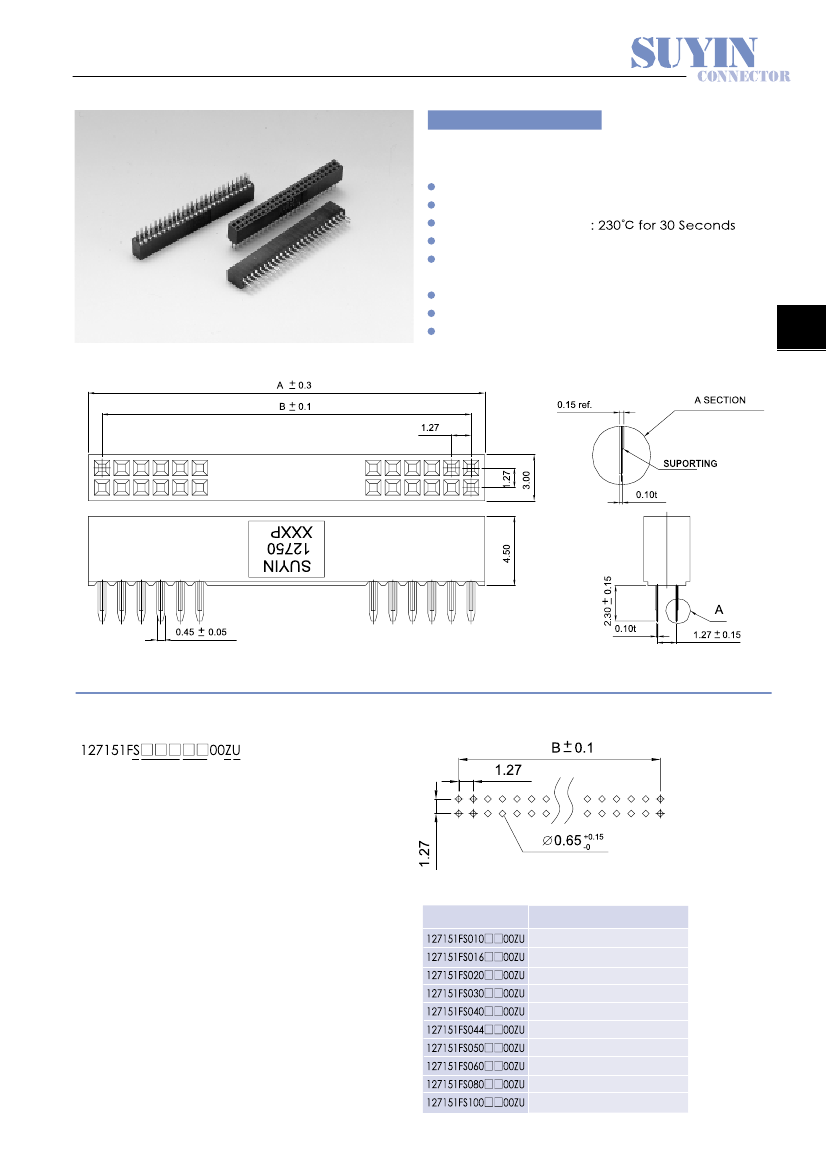

1.27X1.27mm DUAL ROW SOCKET DIP TYPE

(WITHOUT POLARIZATION KEY)

127151FS Series

Mates with SUYIN 127153,127154,127155,127156,127157,127196 Series

Specifications:

10-100 Circuits

Insulator material

: Black High Temp . Plastic

Max.Processing Temp.

Terminal Material

: Phosphor Bronze

Plating

: Selective Plated(Gold/Tin)

or Full Gold Plated

Max. Current Rating

: 1.0A

Voltage Rating

: 150V AC

1.27

Dielectric Strength

: 500V(Min. 60 seconds)

Order Information

Recommended P.C.B. Layout

1. 'S' : Straight DIP Type

2. No. of Pins

3. Plating

4. Color 'Z' : Black

5. Package

'U' : Tube Package Without CAP

Reference Page 11

Dimensional Information

SUYIN P/NO.

NO. PINS

100

DIM.A

6.75

10.56

13.10

19.45

25.80

28.34

32.15

38.50

51.20

63.90

DIM.B

5.08

8.89

11.43

17.78

24.13

26.67

30.48

36.83

49.53

62.23
