Y11198R25000D19W datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> Y11198R25000D19W

Y11198R25000D19W: DescriptionFixed Resistor, Metal Foil, 0.25W, 8.25ohm, 0.5% +/-Tol, 0.2ppm/Cel, Surface Mount, 1610, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size2MB，7 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

Y11198R25000D19W Overview

Fixed Resistor, Metal Foil, 0.25W, 8.25ohm, 0.5% +/-Tol, 0.2ppm/Cel, Surface Mount, 1610, CHIP, ROHS COMPLIANT

Y11198R25000D19W Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	NON-INDUCTIVE, HIGH PRECISION
structure	Chip
JESD-609 code	e4
Manufacturer's serial number	VCS1610Z
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package height	1.02 mm
Package length	4.06 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	2.54 mm
method of packing	WAFFLE PACK
Rated power dissipation(P)	0.25 W
Rated temperature	70 °C
resistance	8.25 Ω
Resistor type	FIXED RESISTOR
series	VCS1610Z
size code	1610
surface mount	YES
technology	METAL FOIL
Temperature Coefficient	.2 ppm/°C
Terminal surface	Gold (Au)
Terminal shape	WRAPAROUND
Tolerance	0.5%

Preview

Download Datasheet

View All

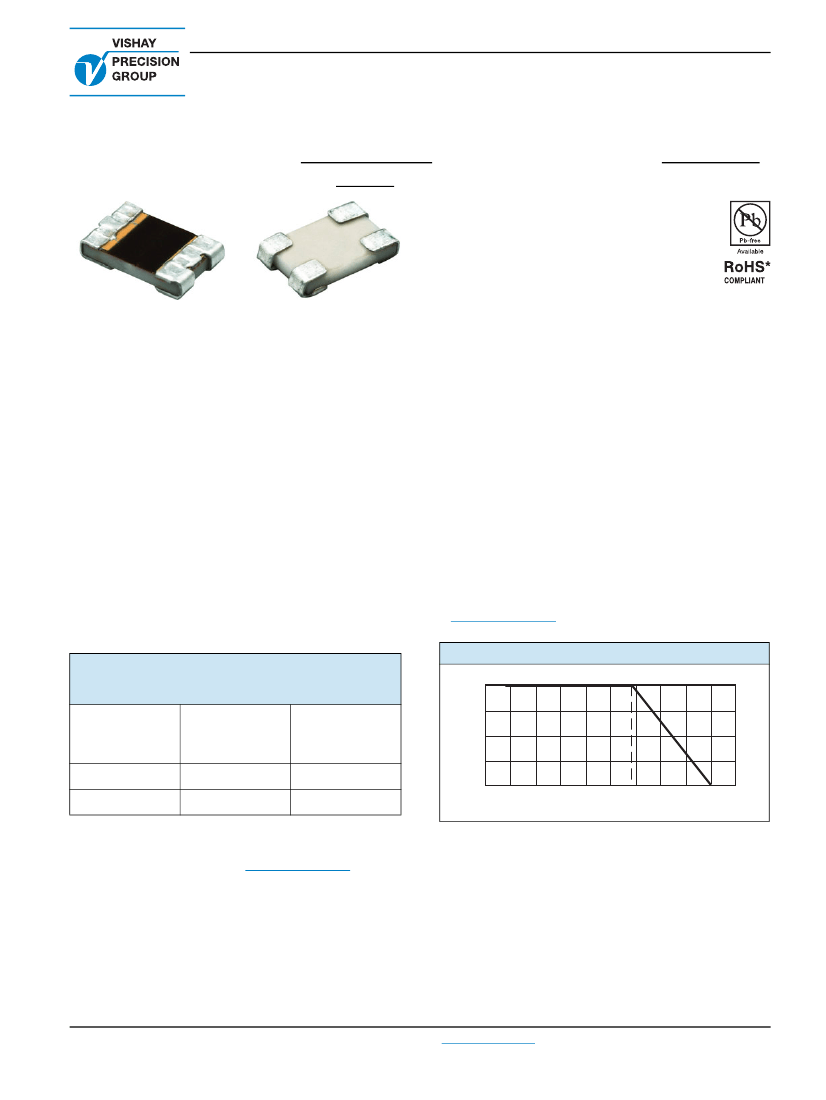

VCS1610Z (Kelvin Connection)

Vishay Foil Resistors

High Precision Foil Surface Mount Current Sensing Chip

Resistors with TCR of ± 0.2 ppm/°C, Load Life Stability of ± 0.015 %,

ESD Immunity up to 25 kV and Fast Thermal Stabilization

FEATURES



Temperature coefficient of resistance (TCR):

± 0.2 ppm/°C typical (- 55 °C to + 125 °C,

+ 25 °C ref.) (see table 1)



Resistance range: 0.3



to 10





Resistance tolerance: to ± 0.5 %



Load life stability:

± 0.015 % at 70 °C, 2000 h at rated power



Power rating: 0.25 W at + 70 °C



Vishay Foil resistors are not restricted to standard values;

specific “as required” values can be supplied at no extra

cost or delivery (e.g. 0.345



vs. 0.3

)



Electrostatic discharge (ESD) at least to 25 kV



Thermal stabilization time < 1 s (nominal value

achieved within 10 ppm of steady state value)



Short time overload < 0.005 %



Non-inductive, non-capacitive design



Thermal EMF: 0.05 µV/°C typical



Current noise: 0.010 µV

RMS

/V of applied voltage



(< - 40 dB)



Rise time: 1 ns effectively no ringing



Voltage coefficient: < 0.1 ppm/V



Non inductive: < 0.08 µH



Non hot spot design



Prototype quantities available in just 5 working days

or sooner. For more information, please contact

foil@vishaypg.com

INTRODUCTION

The Z-foil technology provides a significant reduction of the

resistive component’s sensitivity to ambient temperature

variations (TCR) and applied power changes (PCR).

Designers can now guarantee a high degree of stability and

accuracy in fixed-resistor applications using solutions based

on Vishay‘s Foil Resistors revolutionary Z-foil technology.

Model VCS1610Z is a surface mount chip resistor designed

with 4 pads for Kelvin connection. Utilizing Vishay’s Bulk

Metal® Z-foil as the resistance element, it provides

performance capabilities far greater than other resistor

technologies can supply in a product of comparable size.

± 0.2 ppm/°C typical TCR (- 55 °C to + 125 °C,+ 25 °C ref.)

removes errors due to temperature gradients.

This small device dissipates heat almost entirely through the

pads so surface mount users are encouraged to be generous

with the board’s pads and traces.

Our application engineering department is available to

advise and to make recommendations. For non-standard

technical requirements and special applications, please

Percent of Rated Power

TABLE 1 - TOLERANCE AND TCR VS.

RESISTANCE VALUE

(- 55 °C to + 125 °C, + 25° Ref.)

VALUE

()

0R5 to 10R

0R3 to 0R5

Note

TOLERANCE

TYPICAL TCR

AND

MAX. SPREAD

(ppm/°C)

± 0.2 ± 4.8

± 0.2 ± 9.8

FIGURE 1 - POWER DERATING CURVE

(1)

- 55 °C

100

- 75

+ 70 °C

0.5 %, 1 %

- 50

- 25

+ 25

+ 50

+ 75 + 100 + 125 + 150 + 175

Ambient Temperature (°C)

• Tighter tolerances and higher values are available. Please

contact application engineering

foil@vishaypg.com

Note

(1)

Power rating: 0.25 W at + 70 °C

* TERMINATIONS



Tin/lead plated



Two options of lead (Pb)-free leads available:

–

Gold plated

–

Tin plated

* Pb containing terminations are not RoHS compliant, exemptions may apply

Document Number: 63226

Revision: 6-Jul-12

For any questions, contact:

foil@vishaypg.com

www.vishayfoilresistors.com
