DTSMW-24K-Q-B datasheet, PDF - EEWORLD Datasheet

DTSMW-24K-Q-B: DescriptionSwitch, SPST, Vertical, 0.05A, 24VDC, Surface Mount-straight; CategoryMechanical and electronic products switch; File Size187KB，4 Pages; ManufacturerDIPTRONICS MANUFACTURING INC

Download Datasheet Parametric View All

DTSMW-24K-Q-B Overview

Switch, SPST, Vertical, 0.05A, 24VDC, Surface Mount-straight

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator color	BLACK
Actuator length	0.106 inch
Actuator material	THERMOPLASTIC
Actuator type	PUSHBUTTON
Other features	UL
body width	11.9888 mm
Body color	BLACK
body height	3.5052 mm
Body length or diameter	11.9888 mm
Nozzle length	0.043 inch
center contact material	STAINLESS STEEL
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	0.05A@24VDC
Contact resistance	0.1 mΩ
Maximum contact voltage (DC)	24 V
Dielectric withstand voltage	250VAC V
Electrical life	1000000 Cycle(s)
End contact material	STAINLESS STEEL
Shell material	STEEL
Insulation resistance	100000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	DTS
Installation features	SURFACE MOUNT-STRAIGHT
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
surface mount	NO
Switch action	VERTICAL
switch function	SPST
Terminal material	BRASS
Termination type	SOLDER

DTS□W-2 SERIES

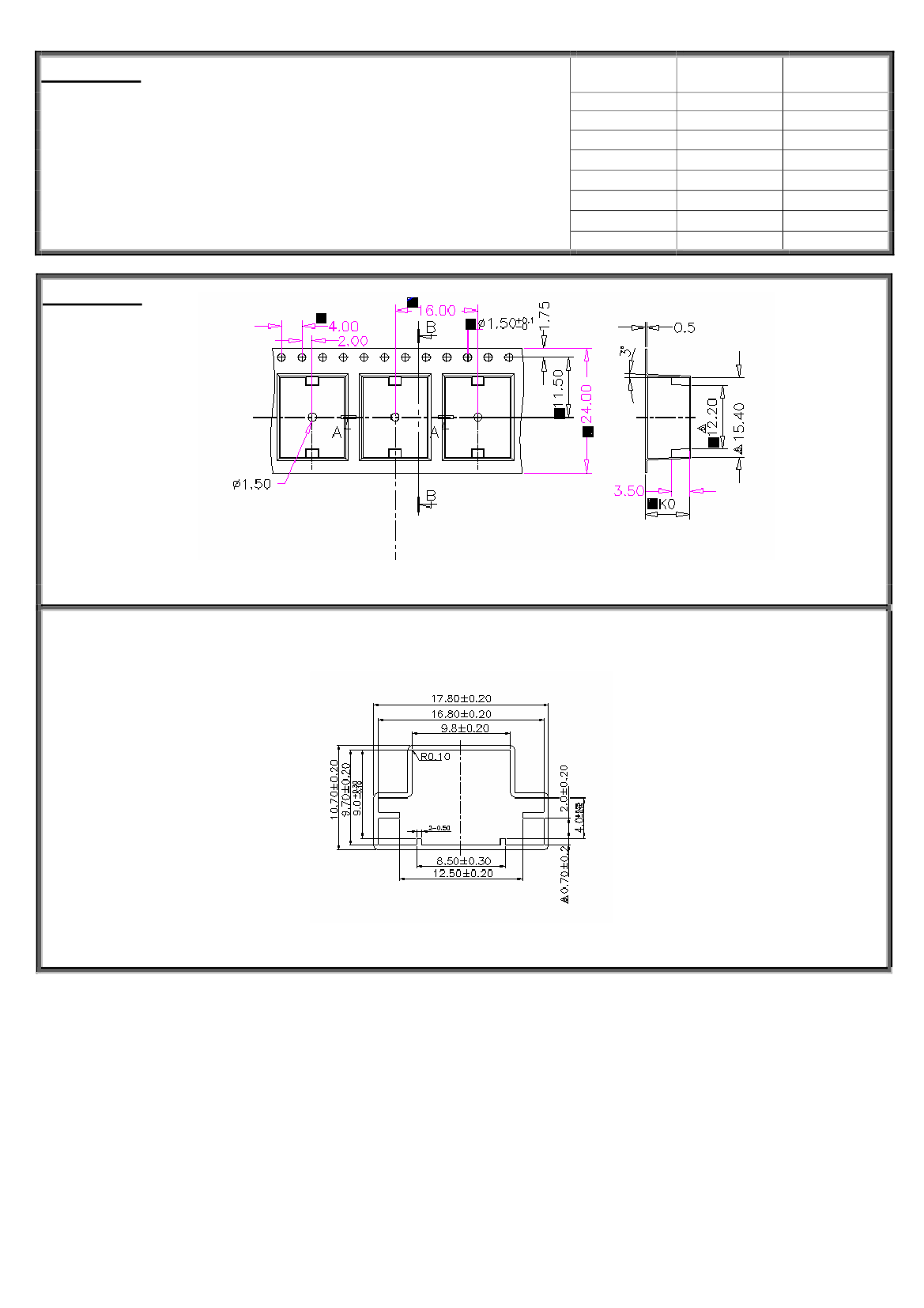

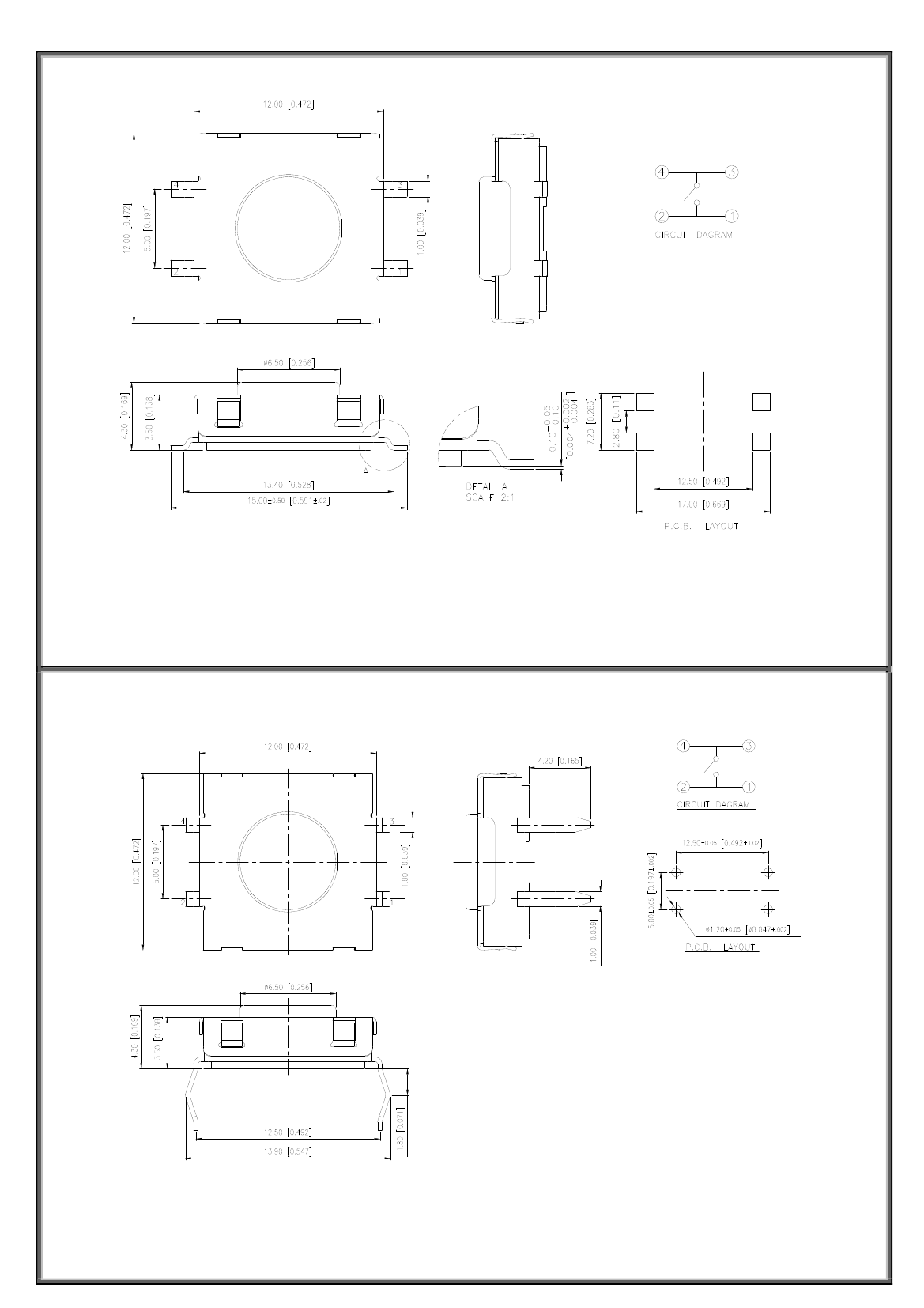

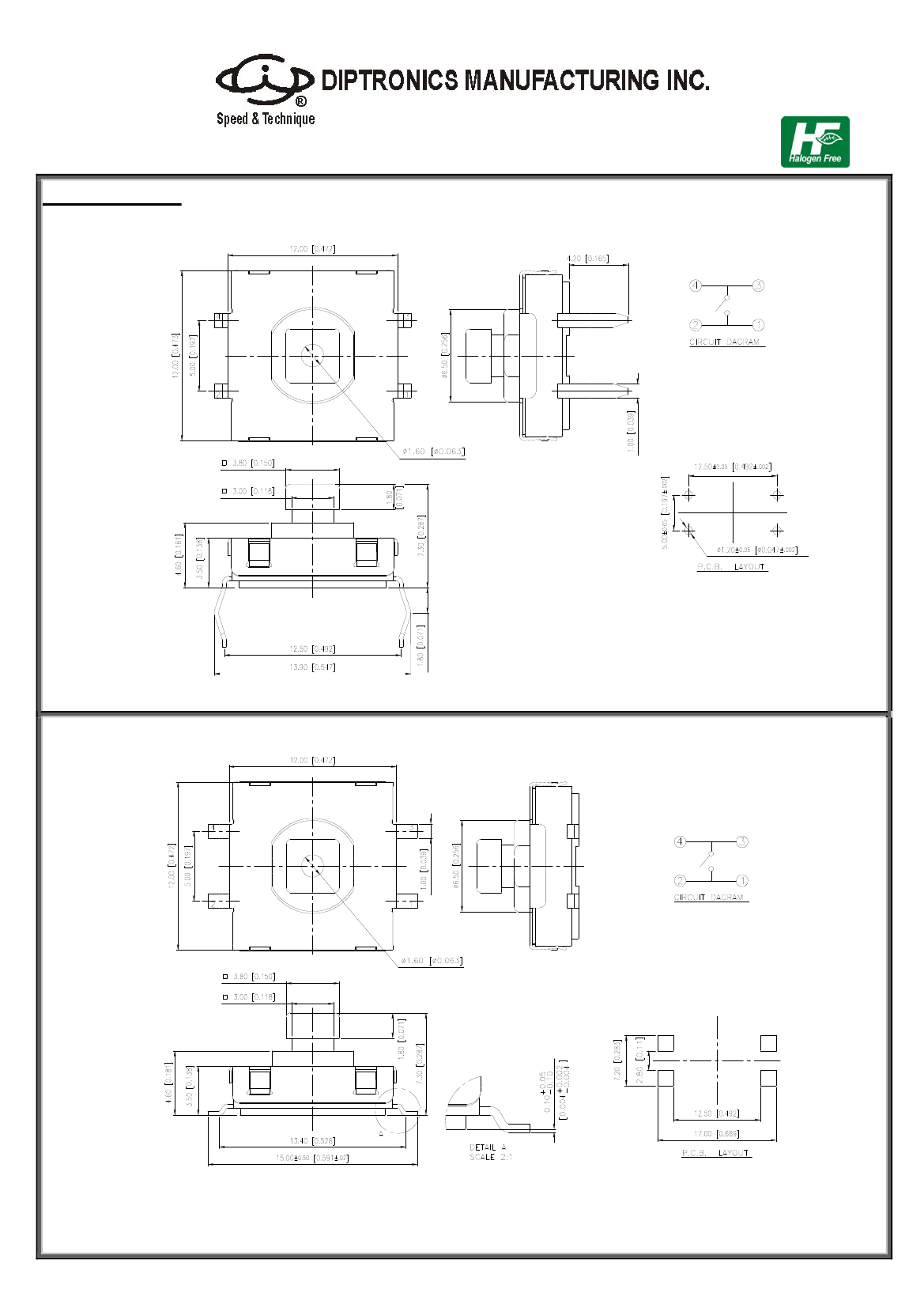

DIMENSIONS

DTSHW-24□-Q

General Tolerance：±0.2mm

DTSMW-24□-Q

General Tolerance：±0.2mm
