8427-3242: DescriptionIC Socket, DIP24, 24 Contact(s), 1.778mm Term Pitch, 0.6inch Row Spacing, Solder; CategoryThe connector socket; File Size80KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

8427-3242 Overview

IC Socket, DIP24, 24 Contact(s), 1.778mm Term Pitch, 0.6inch Row Spacing, Solder

8427-3242 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.694 inch
subject depth	0.146 inch
body length	0.854 inch
Contact to complete cooperation	AU ON NI
Contact material	BRASS
Contact style	RND PIN-SKT
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	DIP24
Dielectric withstand voltage	1000VAC V
Shell material	GLASS FILLED POLYPHENYLENE SULPHIDE
Insulation resistance	1000000000 Ω
Manufacturer's serial number	8427
Plug contact pitch	0.07 inch
Installation method	STRAIGHT
Number of contacts	24
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.6 mm
Terminal pitch	1.778 mm
Termination type	SOLDER

Preview

Download Datasheet

View All

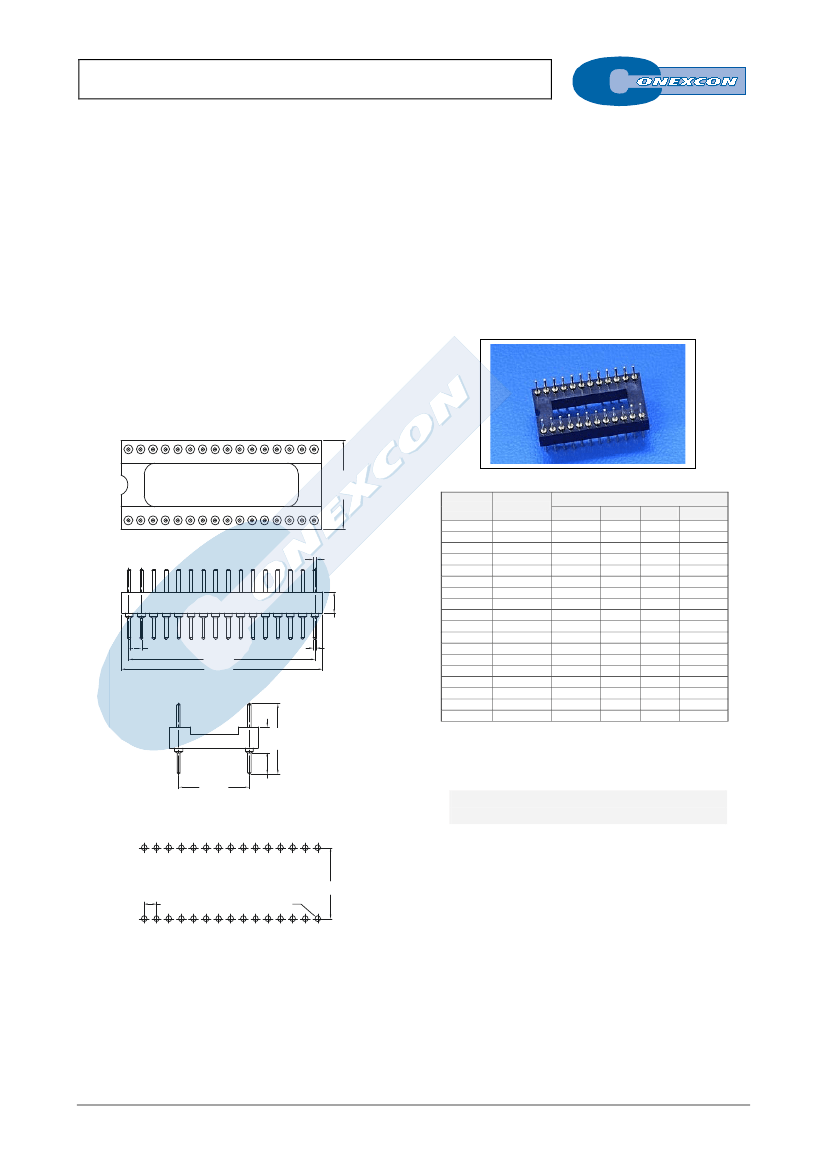

MACHINED CONTACT IC SOCKET

8427 SERIES.

1.78 mm. (0.070”) Pitch.

General Features

Electrical Features



Available in 20 through 68circuits.



Mates with IC sockets 1.78 mm. pitch 8426 series



0.50 mm. round pin in contact area and 0.47 mm.

round pin in solder Pcb area



Machined contact with different plating

Materials



Voltage rating: < 150 V

Current rating: < 1 A

Contact resistance: < 10 mΩ

Dielectric withstanding voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Mechanical Features



Insulator: PPS Black + 30% GF UL 94 V-0

Contact: Brass

Operating temperature. -40ºC to +105ºC

RoHS compliant



Durability: 500 cycles

Figuras y dimensiones

C±0.20

Circuits

24

28

30

32

48

20

24

28

40

42

48

52

56

64

68

64

Part Number

8427-T241

8427-T281

8427-T301

8427-T321

8427-T481

8427-T202

8427-T242

8427-T282

8427-T402

8427-T422

8427-T482

8427-T522

8427-T562

8427-T642

8427-T682

8427-T643

Dimensions

A

21.80

25.20

27.00

28.80

43.10

18.10

21.70

25.20

38.50

37.70

43.10

46.70

50.20

57.30

60.90

57.30

B

10.16

15.24

19.05

C

12.70

17.64

21.45

D

19.558

23.114

24.892

26.670

40.894

16.002

19.558

23.114

33.782

35.560

40.894

44.450

48.006

55.118

58.674

55.118

ø0.50

1.778±0.10

D±0.20

A±0.30

ø0.47

3.70

10.00

3.00±0.15

B±0.10

3.00

T = Contact Plating



T =

3.

Gold flash over 30-50µ" Ni overall

•

Recommended Finish

MECANIZADO RECOMENDADO

(Tolerancia ±0.05)



T =

15.

15µ" selec. gold over 30-50µ" Ni overall



T =

16.

30µ" selec. gold over 30-50µ" Ni overall

B

1.778

ø0.80

E-XX
