ILCX20-HG0F18-20.000 datasheet, PDF

Datasheet> All Categories > ILCX20-HG0F18-20.000

Preview

ILCX20-HG0F18-20.000: Description4 Pad Ceramic Package Quartz Crystal, 1.2 mm x 1.6 mm; File Size40KB，2 Pages; ManufacturerILSI; Websitehttp://www.ilsiamerica.com

Download Datasheet View All

ILCX20-HG0F18-20.000 Overview

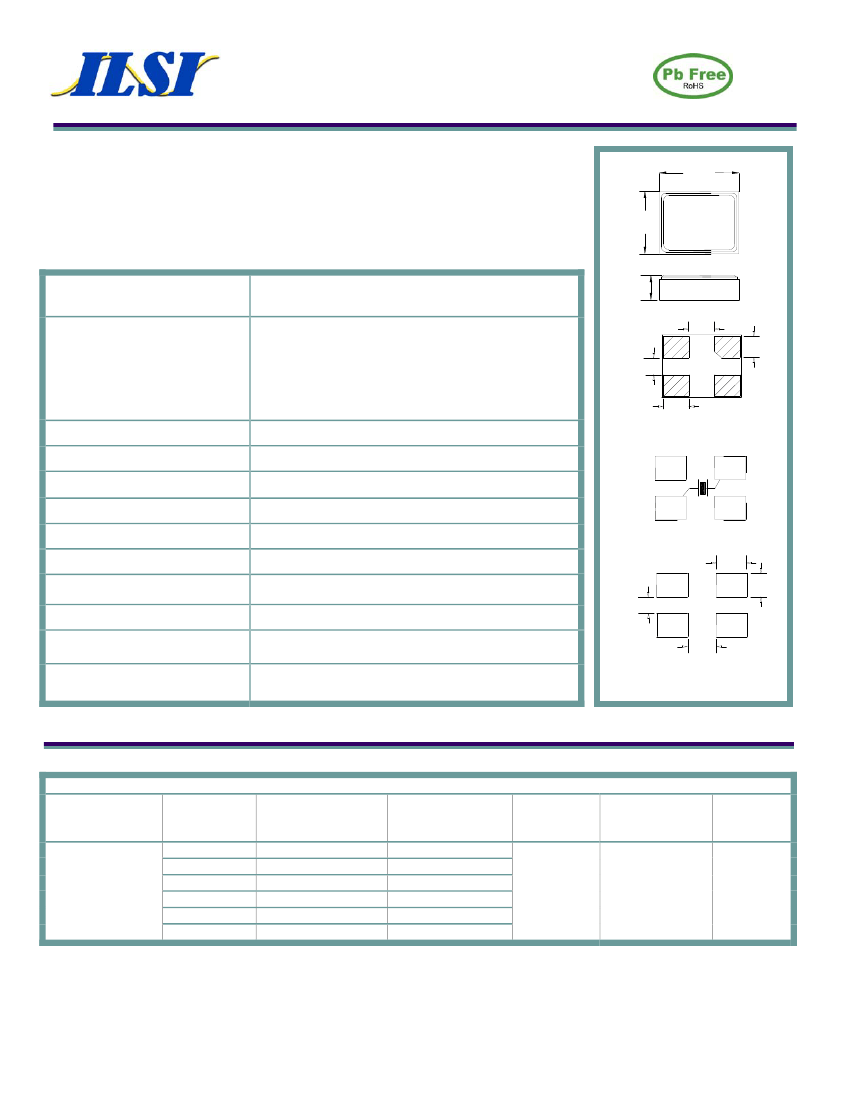

4 Pad Ceramic Package Quartz Crystal, 1.2 mm x 1.6 mm

Preview

Download Datasheet

View All

4 Pad Ceramic Package Quartz Crystal, 1.2 mm x 1.6 mm

Product Features:

Low Cost SMD Package

Ultra Miniature Package

Compatible with Leadfree Processing

ILCX20 Series

Applications:

Fibre Channel

Server & Storage

Sonet /SDH

802.11 / Wifi

T1/E1, T3/E3

1.6

+/-0.05

1.25

+/-0.05

Frequency

26 MHz to 60 MHz

0.40

+/-0.05

0.5

ESR (Equivalent Series Resistance)

26.0 MHz – 39.9 MHz

40.0 MHz – 60.0 MHz

150



Max.

100



Max.

0.3

0.4 +/-0.1

0.5 +/-0.1

Shunt Capacitance (C0)

Frequency Tolerance @ 25

Frequency Stability over

Temperature

Crystal Cut

Load Capacitance

Drive Level

Aging

Temperature

Operating

Storage

5.0 pF Max.

30

ppm Standard (see Part Number Guide for more options)

50

ppm Standard (see Part Number Guide for more options)

AT Cut

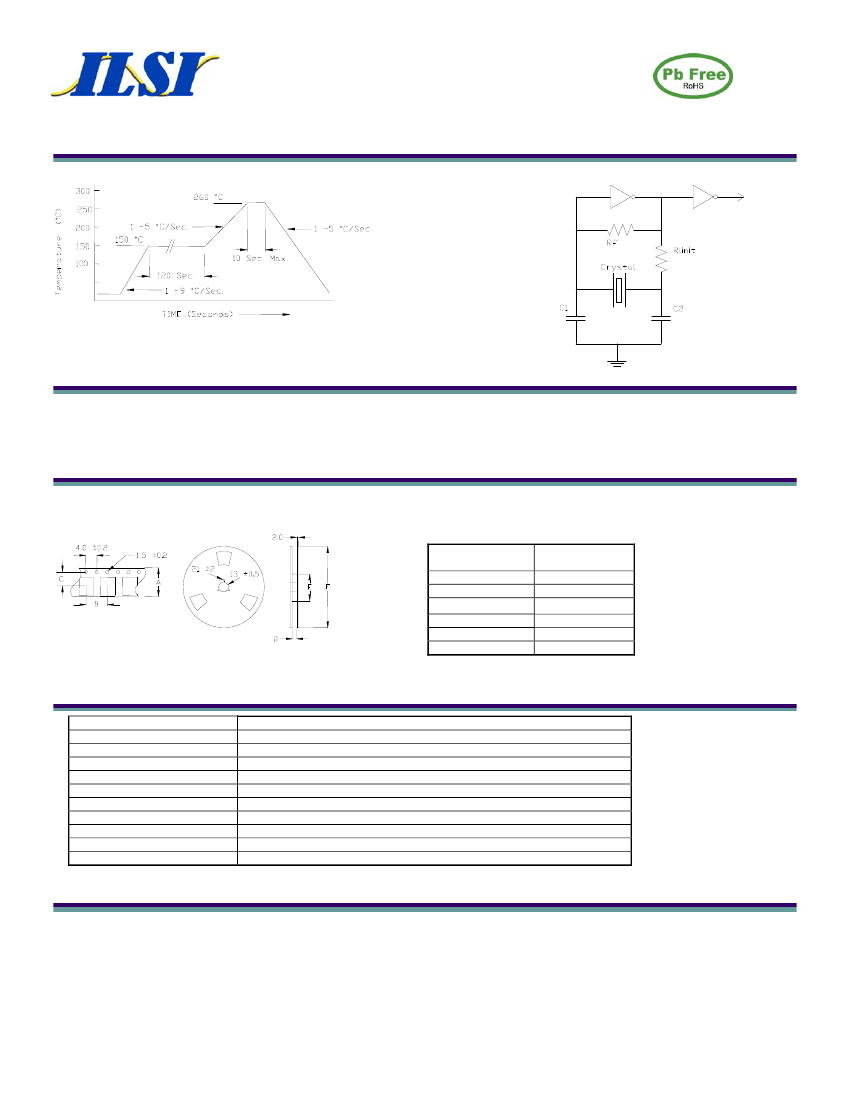

Connection diagram

GND

8 pF Standard

Recommended pad layout

100 µW Max.

5

ppm Max. / Year Standard

0.3

0.6

0.5

-10 C to +60 C (see Part Number Guide for more options)

-40 C to +85 C

Dimension Units: mm

Part Number Guide

Package

Tolerance

(ppm) at Room

Temperature

B = ±50 ppm

F = ±30 ppm

ILCX20 -

G = ±25 ppm

H = ±20 ppm

I = ±15 ppm

J = ±10 ppm*

Sample Part Number:

Stability

(ppm) over Operating

Temperature

B = ±50 ppm

F = ±30 ppm

G = ±25 ppm

H = ±20 ppm

I = ±15 ppm**

J = ±10 ppm**

ILCX20 - FB1F8 - 20.000

Operating

Temperature Range

0 = 0°C to +50°C

1 = 0°C to +70°C

2 = -10°C to +60°C

3 = -20°C to +70°C

5 = -40°C to +85°C

9 = -10°C to +50°C

F = Fundamental

18 pF Standard

Or Specify

- 20.000 MHz

Mode

(overtone)

Load Capacitance

(pF)

Frequency

* Not available at all frequencies. ** Not available for all temperature ranges.

ILSI

America

Phone: 775-851-8880 • Fax: 775-851-8882• e-mail: e-mail@ilsiamerica.com • www.ilsiamerica.com

05/24/12

Specifications subject to change without notice

Page 1
