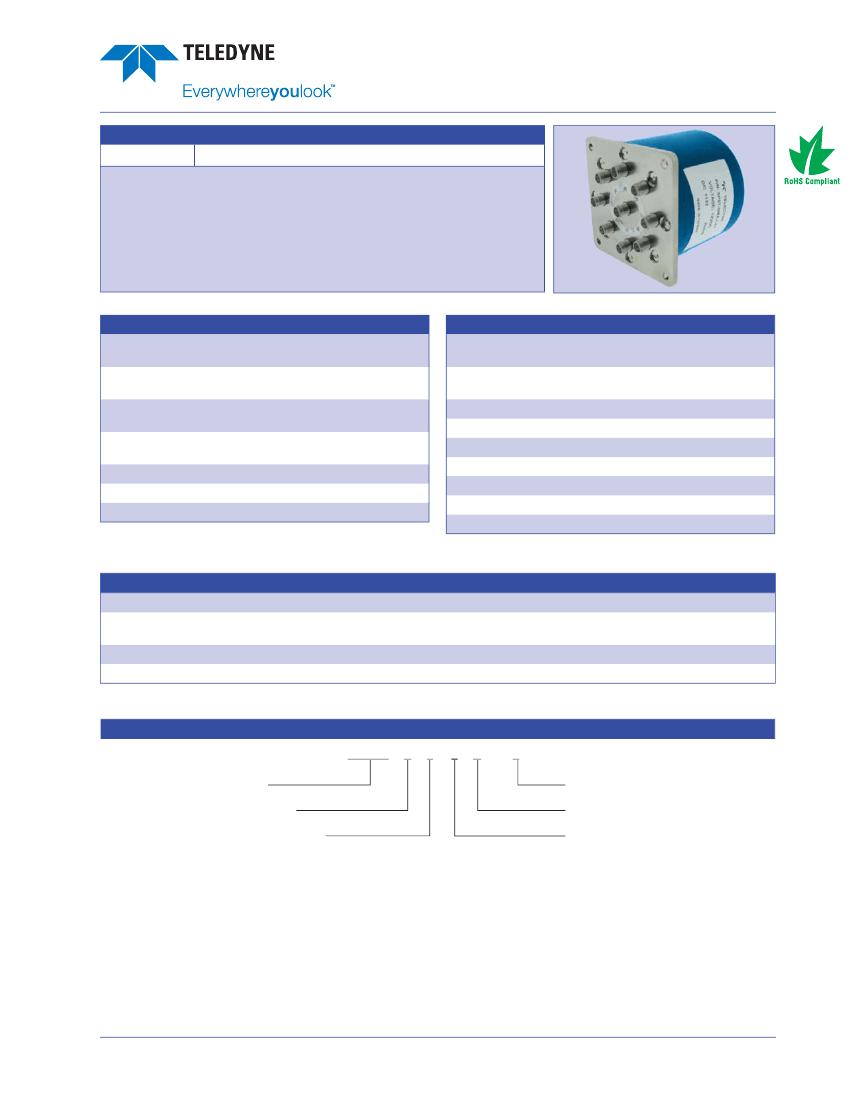

COAX SWITCHES
PART NUMBER
CCR-39S
DESCRIPTION
Commercial Latching Multi-throw, DC-18GHz
Series CCR-39S
Multi-Throw DC-18 GHz, SP7T & SP8T
Latching Coaxial Switch
The CCR-39S is a broadband, multi-throw, electromechanical coaxial switch designed to switch a
microwave signal from a common input to any of 7 or 8 outputs. The characteristic impedance is 50
Ohms. Each position has an individual actuator mechanism allowing random position selection. This also
minimizes switching time.
The CCR-39S comes with a latching actuator. The latching switch remains in the last position selected
when the switch is de-energized. STD dual command requires a reset pulse before a new selected
position. A separate reset circuit allows all positions to be set to an open position. User must provide both
reset (clear) and set (select new position) commands.
ENVIRONMENTAL AND PHYSICAL CHARACTERISTICS
Operating Temperature
Commercial Model, CCR-39S
Vibration (MIL-STD-202 Method 214,
Condition D, non-operating)
Shock (MIL-STD-202 Method 213,
Condition D, non-operating)
Standard Actuator Life
Actuator Life w/ Additional Features
Connector Type
Humidity (Moisture Seal)
Weight
–40°C to 65°C
10 g’s RMS
500 g’s
3,000,000 cycles
1,000,000 cycles
SMA
Available
9 oz. (255.2g) (max.)
ELECTRICAL CHARACTERISTICS
Form Factor
Frequency Range
CCR-39S
Characteristic Impedance
Operate Time
Actuation Voltage Available
Actuation Current
Reset Currents (# of positions)
(7)
(8)
770 735 630 735 mA
880 840 720 840 mA
Multi-Throw,
break before make
DC–18 GHz
50 Ohms
20 ms (max.)
12
15
24
90
28 V
105 mA
110 105
PERFORMANCE CHARACTERISTICS
Frequency
Insertion Loss, dB,
max.
Isolation, dB, min.
VSWR , max.
DC–6 GHz
0.20
70
1.30:1
6–12 GHz
0.40
60
1.40:1
12-18 GHz
0.60
60
1.70:1
PART NUMBERING SYSTEM
CCR-39
S
6
8
C
-
T
**
Series
Connectors
Actuator Voltage
CONNECTOR
S
:
SMA FEMALE
ACTUATOR VOLTAGE
NUMBER OF POSITIONS
ACTUATOR TYPE
Options
Actuator Type
Number of Positions
OPTIONS
T
:
TTL DRIVERS WITH DIODES
D
:
COIL TRANSIENT SUPPRESSION DIODES
R
:
POSITIVE
6: 28
VDC LATCHING
7: 15
VDC LATCHING
8: 12
VDC LATCHING
9: 24
VDC LATCHING
7:
SP
7
T
8:
SP
8
T
0
:
NO INDICATOR CONTACTS
C
:
INDICATOR CONTACTS
+
COMMON
TD
:
DECODERS AND TTL DRIVERS WITH
DIODES
**
SEE PART NUMBER ON PAGE
10
M
:
MOISTURE SEAL
S
:
D
-
SUB CONNECTOR
*
For additional options, please contact factory.
© 2014 TELEDYNE RELAYS
(800) 284-7007 • www.teledynecoax.com
* D-Sub Connector may be 15 or 26 pin depending on number of throws. (See
Connector Pinout page)
**
1
D-Sub Connectors is standard configuration on all models unless
otherwise specified
CCR-39S Page 1
CCR-39S/042014\Q2
Series CCR-39S
Multi-Throw DC-18 GHz, SP7T & SP8T
Latching Coaxial Switch

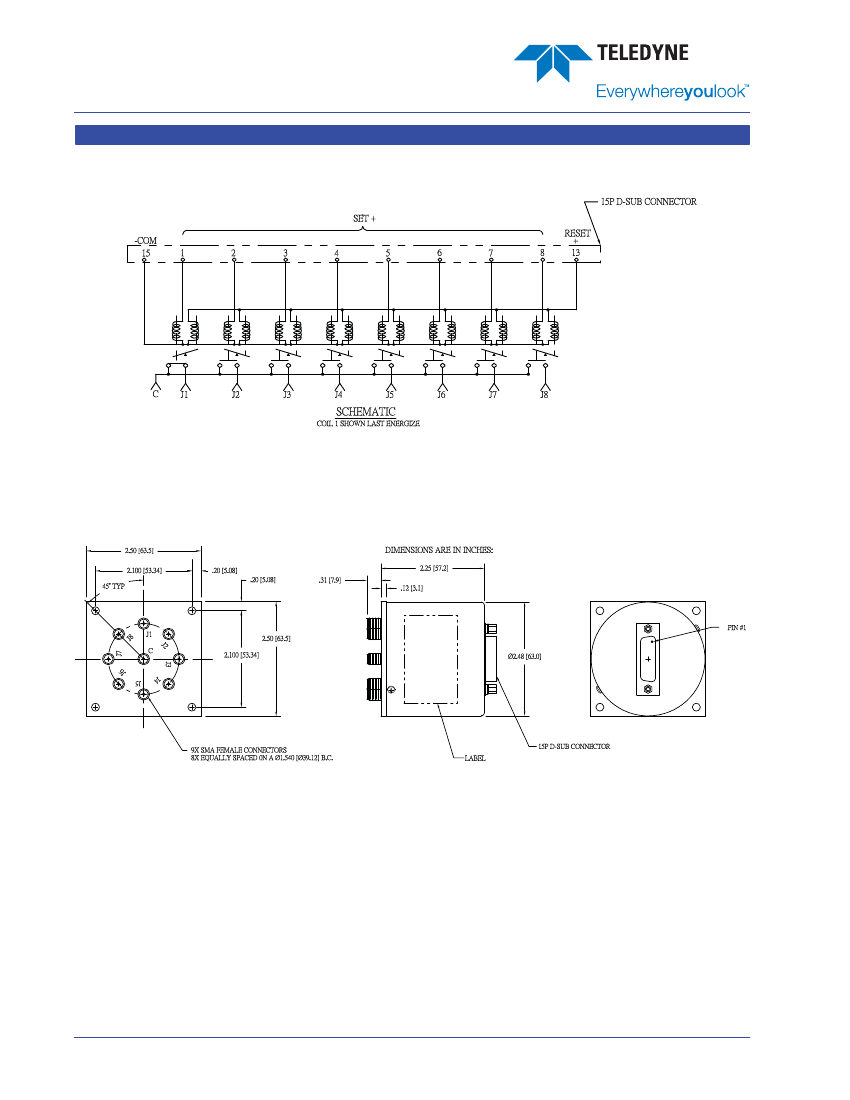

SCHEMATICS AND MECHANICAL OUTLINE
COAX SWITCHES
“-
S OPTION
”
15
-
PIN D
-
SUB OR
26
-
PIN D
-
MICRO CONNECTOR
(
EXAMPLE
:
CCR
-39
S
680-
S
)
CCR-39 Page 2
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
© 2014 TELEDYNE COAX SWITCHES
CCR-39S\042014\Q2
COAX SWITCHES
CONNECTOR PINOUT FOR LATCHING SP7T MULTI-THROW SWITCHES
EXAMPLE
INDICATOR
TTL
D
ECODERS
& TTL
PIN NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Reset
C
OMMMON
Reset
C
OMMMON
D Indicator (COM)
E Indicator
F Indicator
G Indicator
H Indicator
K Indicator
L Indicator
M Indicator
V
SW
Reset
C
OMMMON
V
SW
Reset
C
OMMMON
D Indicator (COM)
E Indicator
F Indicator
G Indicator
H Indicator
K Indicator
L Indicator
M Indicator
C
OMMMON
C
OMMMON
V
SW
V
SW
15-PIN
PORT 1
PORT 2
PORT 3
PORT 4
PORT 5
PORT 6
PORT 7
26-PIN
PORT 1
PORT 2
PORT 3
PORT 4
PORT 5
PORT 6
PORT 7
15-PIN
TTL 1
TTL 2
TTL 3
TTL 4
TTL 5
TTL 6
TTL 7
26-PIN
TTL 1
TTL 2
TTL 3
TTL 4
TTL 5
TTL 6
TTL 7
CCR-39S670-S
CCR-39S67C-S
Y
ES
Y
ES
CCR-39S670-TS
CCR-39S67C-TS
Y
ES
Y
ES
Y
ES
15-PIN
LOGIC 1
LOGIC 2
LOGIC 3
Y
ES
26-PIN
LOGIC 1
LOGIC 2
LOGIC 3
CCR-39S670-TDS
Series CCR-39S
Multi-Throw DC-18 GHz, SP7T & SP8T
Latching Coaxial Switch
CCR-39S67C-TDS
Y
ES
15-PIN D-SUB CONNECTOR
26-PIN D-SUB CONNECTOR
D Indicator (COM)
E Indicator
F Indicator
G Indicator
H Indicator
K Indicator
L Indicator
M Indicator
© 2014 TELEDYNE RELAYS
(800) 284-7007 • www.teledynecoax.com
CCR-39S Page 3
CCR-39S/042014\Q2
Series CCR-39S
Multi-Throw DC-18 GHz, SP7T & SP8T
Latching Coaxial Switch
SP7T TRUTH TABLE Latching
CCR-39SX7C-T
Logic Input
1
1
0
0
0
0
0
0
2
0
1
0
0
0
0
0
3
0
0
1
0
0
0
0
4
0
0
0
1
0
0
0
5
0
0
0
0
1
0
0
6
0
0
0
0
0
1
0
7
0
0
0
0
0
0
1
R
0
0
0
0
0
0
0
J1
On
Off
Off
Off
Off
Off
Off
J2
Off
On
Off
Off
Off
Off
Off
J3
Off
Off
On
Off
Off
Off
Off
RF Path
J4
Off
Off
Off
On
Off
Off
Off
J5
Off
Off
Off
Off
On
Off
Off
J6
Off
Off
Off
Off
Off
On
Off
J7
Off
Off
Off
Off
Off
Off
On
Reset
Off
Off
Off
Off
Off
Off
Off
COAX SWITCHES
Indicator Switches
E
C
0
0
0
0
0
0
F
0
C
0
0
0
0
0
G
0
0
C
0
0
0
0
H
0
0
0
C
0
0
0
K
0
0
0
0
C
0
0
L
0
0
0
0
0
C
0
M
0
0
0
0
0
0
C
TRUTH TABLE Latching
CCR-39SX7C-TD
Logic Input
1
0
1
0
1
0
1
0
2
0
0
1
1
0
0
1
3
0
0
0
0
1
1
1
4
0
0
0
0
0
0
0
J1
On
Off
Off
Off
Off
Off
Off
J2
Off
On
Off
Off
Off
Off
Off
J3
Off
Off
On
Off
Off
Off
Off
RF Path
J4
Off
Off
Off
On
Off
Off
Off
J5
Off
Off
Off
Off
On
Off
Off
J6
Off
Off
Off
Off
Off
On
Off
J7
Off
Off
Off
Off
Off
Off
On
Reset
Off
Off
Off
Off
Off
Off
Off
E
C
0
0
0
0
0
0
F
0
C
0
0
0
0
0
Indicator Switches
G
0
0
C
0
0
0
0
H
0
0
0
C
0
0
0
K
0
0
0
0
C
0
0
L
0
0
0
0
0
C
0
M
0
0
0
0
0
0
C
1
1
1
1
1
1
0
1
Off
Off
Off
Off
Off
Off
Off
Reset
0
0
0
0
0
0
0
0
0
0
0
0
0
0
COIL OFF
CCR-39 Page 4
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
© 2014 TELEDYNE COAX SWITCHES
CCR-39S\042014\Q2
COAX SWITCHES
CONNECTOR PINOUT FOR LATCHING SP8T MULTI-THROW SWITCHES
EXAMPLE
INDICATOR
TTL
D
ECODERS
& TTL
PIN NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Reset
Common
Reset
Common
D Indicator (COM)
E Indicator
F Indicator
G Indicator
H Indicator
K Indicator
L Indicator
M Indicator
N Indicator
Vsw
Reset
Common
Vsw
Reset
Common
D Indicator (COM)
E Indicator
F Indicator
G Indicator
H Indicator
K Indicator
L Indicator
M Indicator
N Indicator
Common
Vsw
Vsw
15-PIN
PORT 1
PORT 2
PORT 3
PORT 4
PORT 5
PORT 6
PORT 7
PORT 8
26-PIN
PORT 1
PORT 2
PORT 3
PORT 4
PORT 5
PORT 6
PORT 7
PORT 8
15-PIN
TTL 1
TTL 2
TTL 3
TTL 4
TTL 5
TTL 6
TTL 7
TTL 8
26-PIN
TTL 1
TTL 2
TTL 3
TTL 4
TTL 5
TTL 6
TTL 7
TTL 8
CCR-39S680-S
CCR-39S68C-S
Y
ES
Y
ES
CCR-39S680-TS
CCR-39S68C-TS
Y
ES
Y
ES
Y
ES
15-PIN
LOGIC 1
LOGIC 2
LOGIC 3
LOGIC 4
Y
ES
26-PIN
CCR-39S680-TDS
Series CCR-39S
Multi-Throw DC-18 GHz, SP7T & SP8T
Latching Coaxial Switch
CCR-39S68C-TDS
Y
ES
15-PIN D-SUB CONNECTOR
LOGIC 1
LOGIC 2
LOGIC 3
LOGIC 4
26-PIN D-SUB CONNECTOR
Common
D Indicator (COM)
E Indicator
F Indicator
G Indicator
H Indicator
K Indicator
L Indicator
M Indicator
N Indicator
RF NOTES
© 2014 TELEDYNE RELAYS
(800) 284-7007 • www.teledynecoax.com
CCR-39S Page 5
CCR-39S/042014\Q2
