KTD101B475M55A0T00 datasheet, PDF

Datasheet> All Categories > Passive components> KTD101B475M55A0T00

KTD101B475M55A0T00: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 100 V, X7R, 0.47 uF, THROUGH HOLE MOUNT; CategoryPassive components; File Size170KB，1 Pages; ManufacturerChemi-Con; Websitehttp://www.chemi-con.com/

Download Datasheet Parametric View All

KTD101B475M55A0T00 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KTD101B475M55A0T00	-	-	View	Buy Now

KTD101B475M55A0T00 Overview

CAPACITOR, CERAMIC, MULTILAYER, 100 V, X7R, 0.47 uF, THROUGH HOLE MOUNT

KTD101B475M55A0T00 Parametric

Parameter Name	Attribute value
Maximum operating temperature	125 Cel
Minimum operating temperature	-55 Cel
negative deviation	20 %
positive deviation	20 %
Rated DC voltage urdc	100 V
Processing package description	RADIAL LEADED, ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
terminal coating	NOT SPECIFIED
Installation features	THROUGH HOLE MOUNT
Manufacturer Series	NTD
capacitance	0.4700 uF
packaging shape	RECTANGULAR PACKAGE
Capacitor type	CERAMIC
Terminal shape	WIRE
Temperature Coefficient	15%
Temperature characteristic code	X7R
multi-layer	Yes

Preview

Download Datasheet

View All

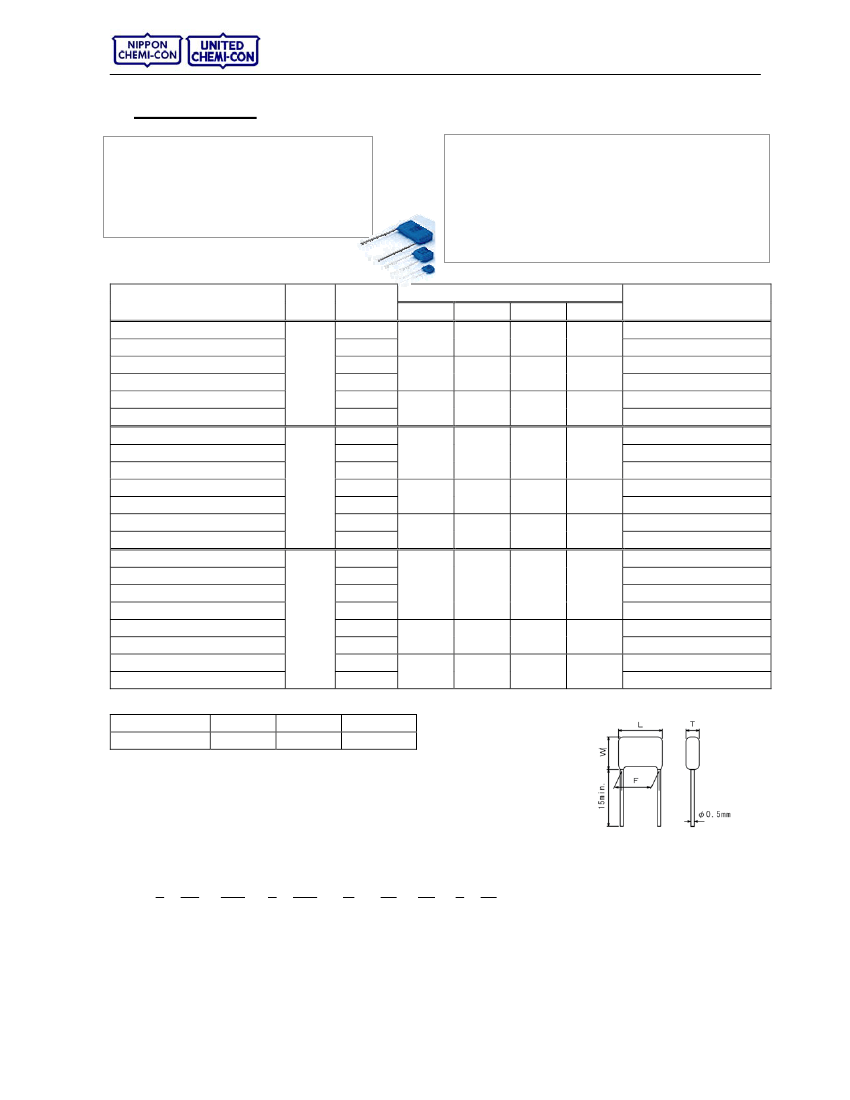

Engineering Bulletin

No. EBC041001 / July 2005, MKudo

NTD Series

X7R, Thru-Hole Type Multilayer Ceramic Capacitors

◆

SPECIFICATIONS

・

Operating temperature range: -55 to +125°C

・

Rated voltage range: 25Vdc, 50Vdc and 100Vdc

・

Rated capacitance range: 25Vdc; 3.3 to 22µF

50Vdc; 1.0 to 10µF

100Vdc; 0.33 to 4.7µF

・

Capacitance tolerance: M (±20%)

・

Temperature characteristics: X7R (EIA)

Dimensions (mm)

L max. W max. T max. F±0.8

5.0

6.5

7.5

5.0

6.5

7.5

6.0

6.5

9.0

6.0

6.5

9.0

3.5

4.0

4.5

3.5

4.0

4.5

5.0

Ref. old part No.

NTD21X7R1E335M

NTD21X7R1E475M

NTD30X7R1E685M

NTD30X7R1E106M

NTD31X7R1E156M

NTD31X7R1E226M

NTD21X7R1H105M

NTD21X7R1H155M

NTD21X7R1H225M

NTD30X7R1H335M

NTD30X7R1H475M

NTD31X7R1H685M

NTD31X7R1H106M

NTD21X7R2A334M

NTD21X7R2A474M

NTD21X7R2A684M

NTD21X7R2A105M

NTD30X7R2A155M

NTD30X7R2A225M

NTD31X7R2A335M

NTD31X7R2A475M

◆

FEATURES

・

Large capacitance by small size

・

Excellent noise absorption

・

High permissible ripple current capability

・

Lead-free dielectric and terminations

・

Resin (UL94 V-0) used for coating

◆

RATINGS and SIZES

New Part No.

KTD250B335M32A0T00

KTD250B475M32A0T00

KTD250B685M43A0T00

KTD250B106M43A0T00

KTD250B156M55A0T00

KTD250B226M55A0T00

KTD500B105M32A0T00

KTD500B155M32A0T00

KTD500B225M32A0T00

KTD500B335M43A0T00

KTD500B475M43A0T00

KTD500B685M55A0T00

KTD500B106M55A0T00

KTD101B334M32A0T00

KTD101B474M32A0T00

KTD101B684M32A0T00

KTD101B105M32A0T00

KTD101B155M43A0T00

KTD101B225M43A0T00

KTD101B335M55A0T00

KTD101B475M55A0T00

Voltage

(Vdc)

Cap.

(µF)

3.3

4.7

6.8

1.0

1.5

2.2

3.3

4.7

6.8

0.33

0.47

0.68

1.0

1.5

2.2

3.3

4.7

1.0Arms

5.0

6.0

3.5

5.0

100

6.5

7.5

6.5

9.0

4.0

4.5

5.0

◆

Rated Ripple Current

Size code:

Ripple current:

0.3Arms

0.8Arms

◆

APPLICATIONS

・

Smoothing circuits of DC-DC converters

・

On-board power supplies

・

Voltage regulators for computers

・

Noise suppressors for various kinds of equipments

・

High reliability equipment

◆

NEW PART NUMBERING SYSTEM

K TD

(1) (2)

101

(3)

B 225

(4)

(5)

(6)

(7)

(8)

T 00

(9) (10)

(6) Capacitance tolerance: M=±20%

(7) Size code: 43=L(6.5)×W(6.5)

(8) Terminal code: A0= Straight Leads

(9) Taping code: T= Taping, B= Bulk

(10) Supplement code: 00= Standards

Specifications are subject to change without notice.

(1) Category: K=Multilayer Ceramic Capacitors

(2) Series code: TD=NTD Series

(3) Rated voltage code: 101=100Vdc

(4) Temperature characteristics code: B=X7R

(5) Rated capacitance code: 225=2.2µF

NIPPON CHEMI-CON CORP./UNITED CHEMI-CON, INC.
