HC24227 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HC24227

HC24227: DescriptionBoard Connector, 44 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size243KB，3 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

HC24227 Overview

Board Connector, 44 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

HC24227 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.196 inch
subject depth	0.1 inch
body length	2.19 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	HC24
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-10 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	44

HC24227 Preview

Download Datasheet

View All

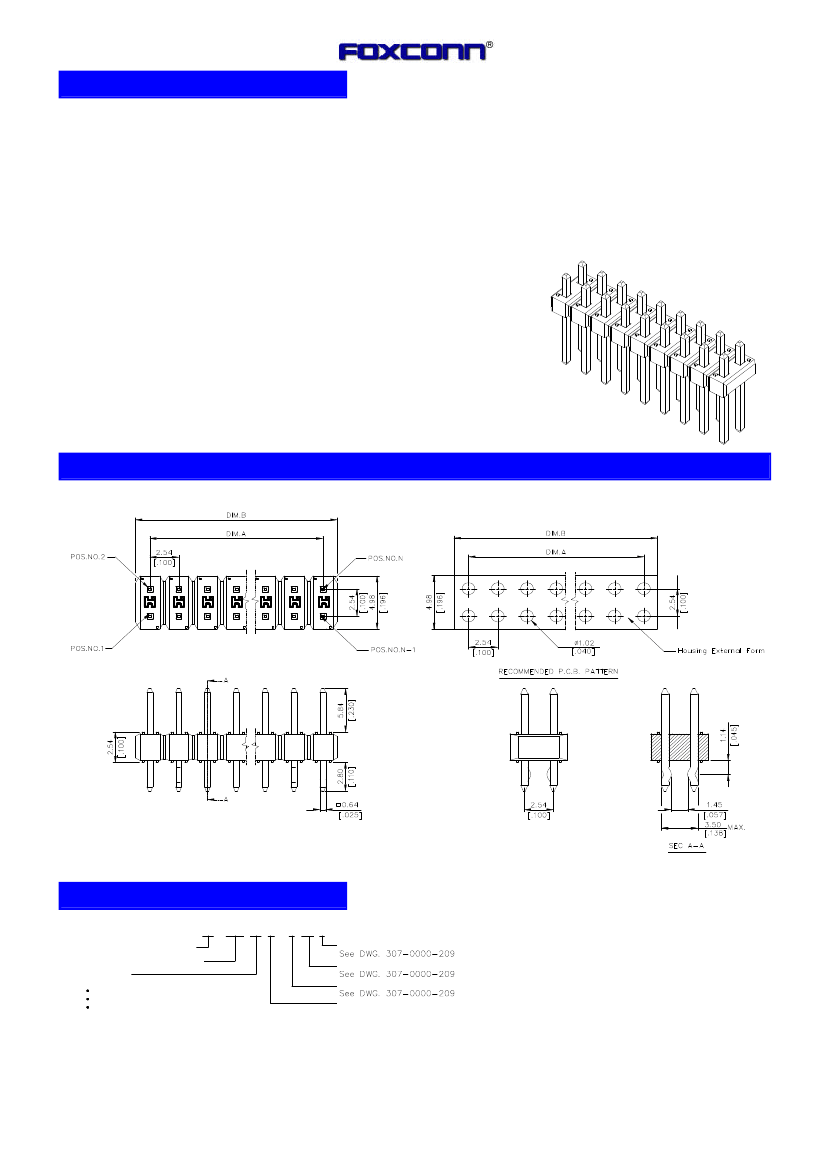

SPECIFICATIONS

BreakaWay Header

HC24 Series

T/H Type

2.54mm [.100"] Pitch

Mechanical

Contact Retention Force:

0.91Kg min.

Electrical

Current Rating:

3.0A per pin min.

Dielectric Withstanding Voltage:

500V AC

Insulation Resistance:

1000MΩ min

Physical

Housing:

PBT, Glass Filled, UL94V-0, Color Black

Contact:

Copper Alloy

Plating:

See “ORDERING INFORMATION”

Solder Pad:

Copper Alloy

Operating Temperature:

-10℃ to +85℃

DRAWING

ORDERING INFORMATION

PRODUCT NO.:

Breakaway Header Series

Termination & Contact Type

No. Of Pos

1=2 Pos

HC 2 4 * * * - * * * *

Optional For Housing Color

Position Omitted

Optional For Kinks

Optional For Plating

0=100u" Tin/Lead over All

1=Gold Flash over All

7=15u" Gold on Contact Area

G=Gold Flash on Contact Area

C=3u" Gold on Contact Area

U=Gold Flash on Contact Area

with Lead Free "RoHS COMPLAINCE"

E=100u" min. Tin with Lead Free

"RoHS COMPLAINCE"

V=15u" Gold on Contact Area with

Lead Free "RoHS COMPLAINCE"

40=80 Pos

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
