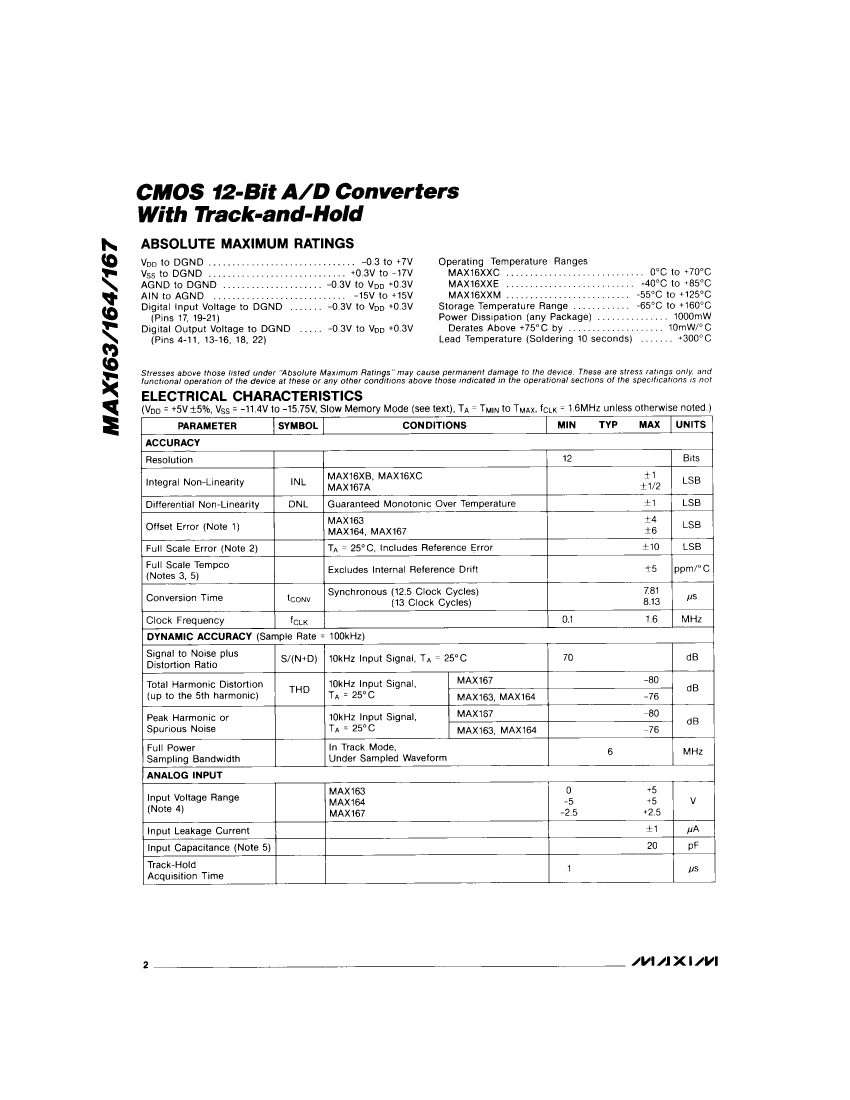

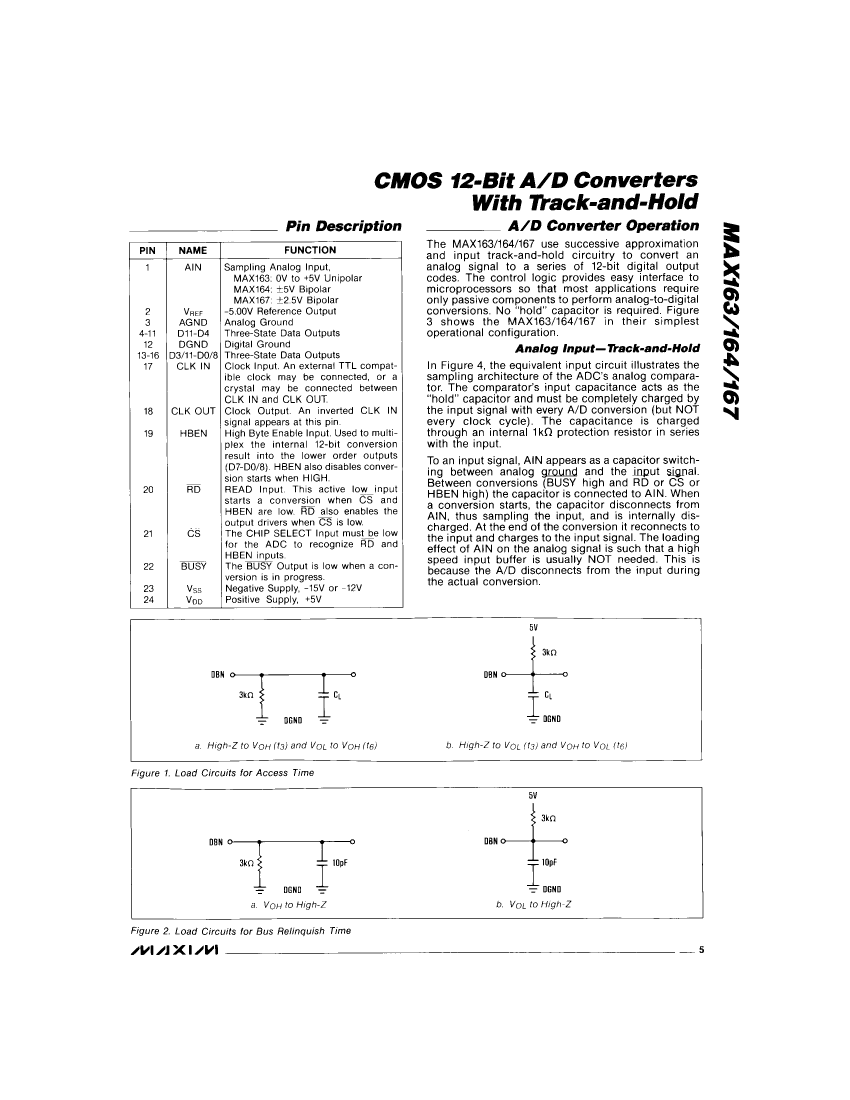

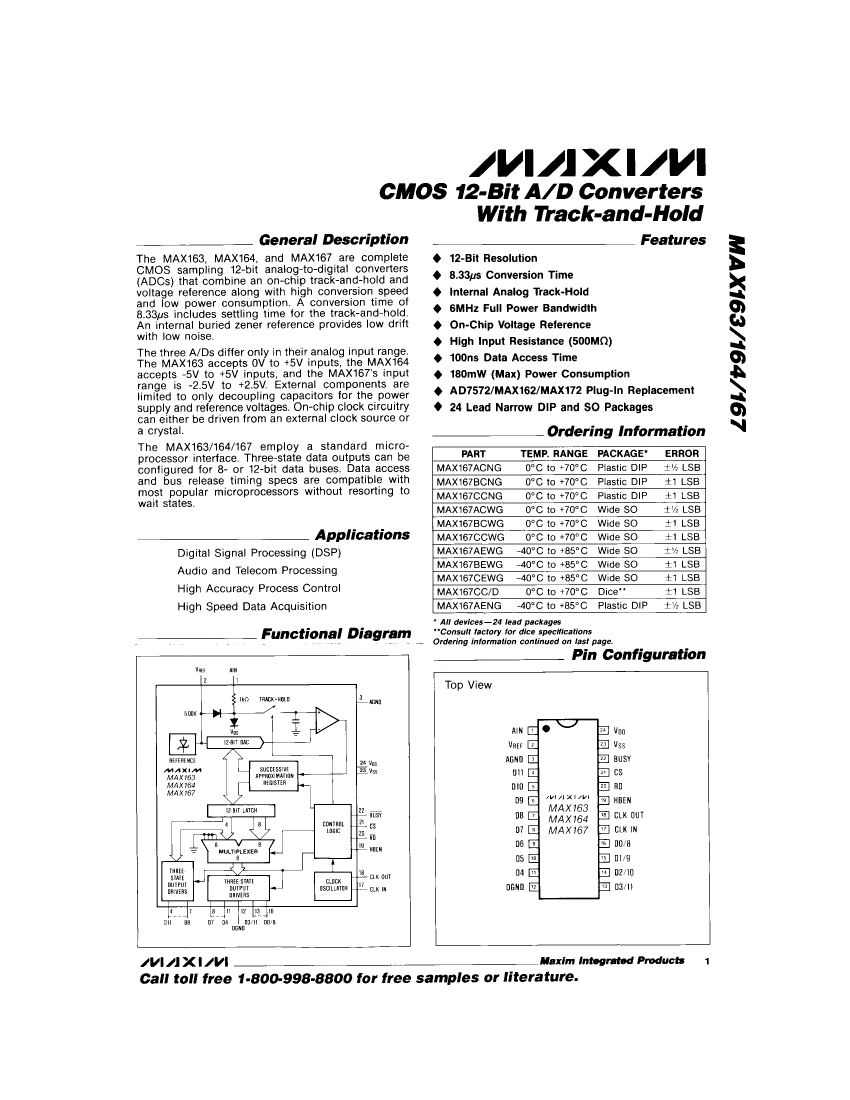

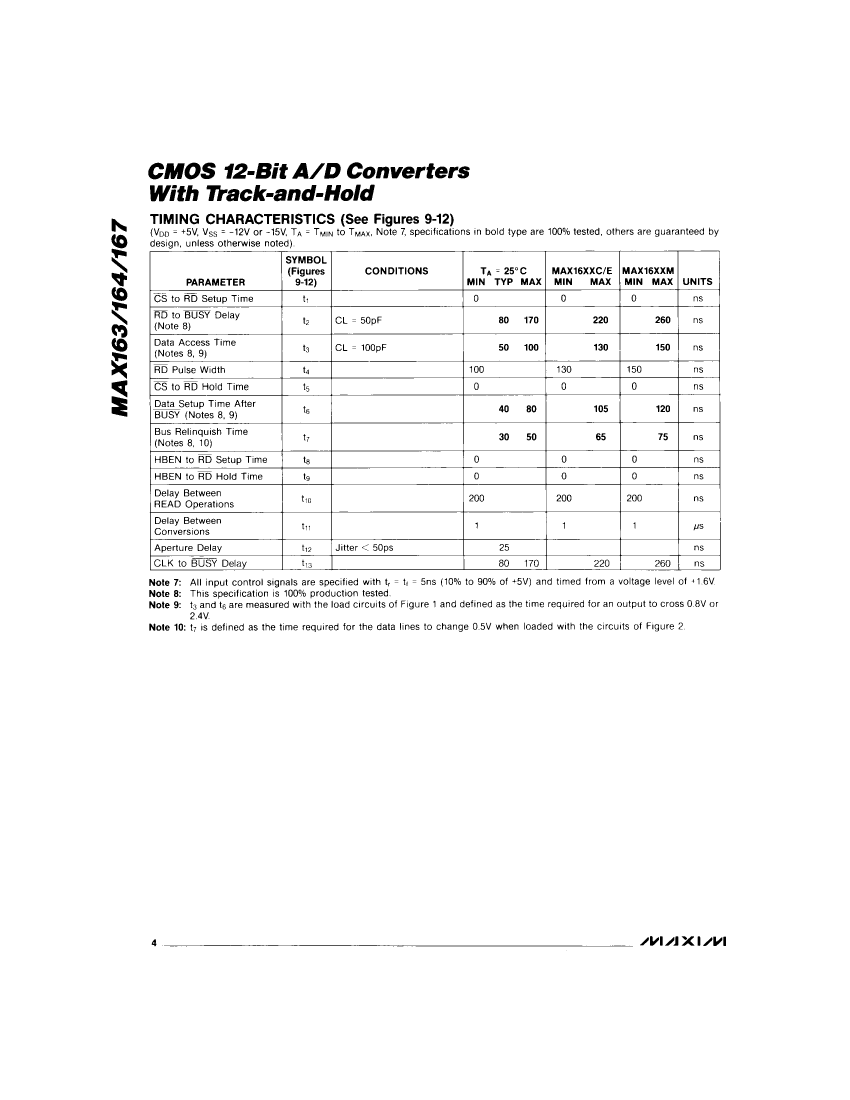

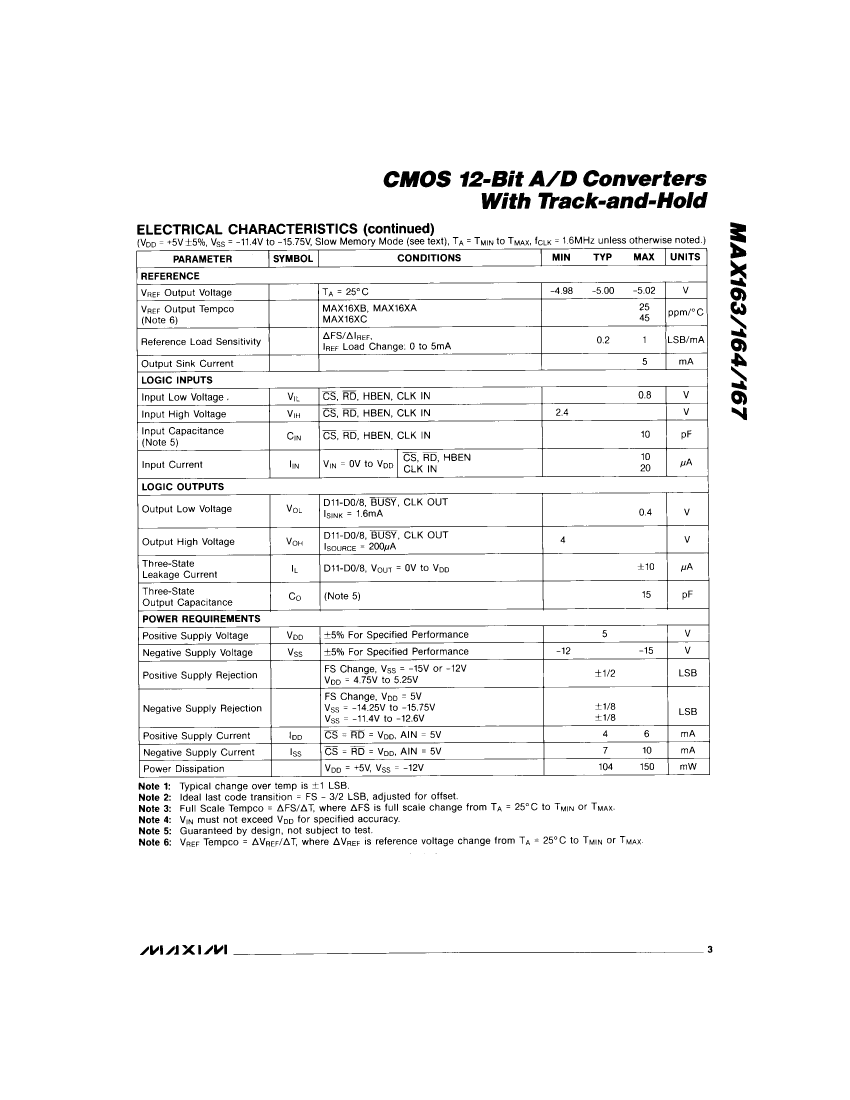

Preview

MAX163-MAX167: Description12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDIP24; Categorysemiconductor logic; File Size563KB，14 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

MAX163-MAX167 Overview

12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDIP24

MAX163-MAX167 Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 Cel
Minimum operating temperature	0.0 Cel
Rated supply voltage	5 V
Maximum conversion time	8.13 uS
Maximum linear error	0.0240 %
Maximum limit analog input voltage	5 V
Minimum limit analog input voltage	0.0 V
Processing package description	PLASTIC, DIP-24
state	ACTIVE
Craftsmanship	CMOS
packaging shape	RECTANGULAR
Package Size	IN-LINE
Terminal form	THROUGH-HOLE
Terminal spacing	2.54 mm
terminal coating	TIN LEAD
Terminal location	DUAL
Packaging Materials	PLASTIC/EPOXY
Temperature level	COMMERCIAL
Output format	PARALLEL, 8 BITS
Type of converter	SUCCESSIVE APPROXIMATION
Number of digits	12
Output bit encoding	BINARY, OFFSET BINARY
Sample and hold and track and hold	TRACK

Preview

Download Datasheet

View All

MAX163-MAX167 Related Products

	MAX163-MAX167	MAX167CWEG	MAX167AENG	MAX167ACWG	MAX164CC/D	MAX164BCWG	MAX163CC/D	MAX163
Description	12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDIP24	12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDIP24	12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDIP24	12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDIP24	12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDIP24	12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDIP24	12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDIP24	12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDIP24
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24	24	24
Maximum operating temperature	70 Cel	70 Cel	85 °C	70 °C	70 Cel	70 °C	70 Cel	70 Cel
Minimum operating temperature	0.0 Cel	0.0 Cel	-40 °C	-	0.0 Cel	-	0.0 Cel	0.0 Cel
Maximum conversion time	8.13 uS	8.13 uS	8.13 µs	8.13 µs	8.13 uS	8.13 µs	8.13 uS	8.13 uS
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Temperature level	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Output format	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS
Number of digits	12	12	12	12	12	12	12	12
Rated supply voltage	5 V	5 V	-	-	5 V	-	5 V	5 V
Maximum linear error	0.0240 %	0.0240 %	-	-	0.0240 %	-	0.0240 %	0.0240 %
Maximum limit analog input voltage	5 V	5 V	-	-	5 V	-	5 V	5 V
Minimum limit analog input voltage	0.0 V	0.0 V	-	-	0.0 V	-	0.0 V	0.0 V
Processing package description	PLASTIC, DIP-24	PLASTIC, DIP-24	-	-	PLASTIC, DIP-24	-	PLASTIC, DIP-24	PLASTIC, DIP-24
state	ACTIVE	ACTIVE	-	-	ACTIVE	-	ACTIVE	ACTIVE
Craftsmanship	CMOS	CMOS	-	-	CMOS	-	CMOS	CMOS
packaging shape	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package Size	IN-LINE	IN-LINE	-	-	IN-LINE	-	IN-LINE	IN-LINE
Terminal spacing	2.54 mm	2.54 mm	-	-	2.54 mm	-	2.54 mm	2.54 mm
terminal coating	TIN LEAD	TIN LEAD	-	-	TIN LEAD	-	TIN LEAD	TIN LEAD
Packaging Materials	PLASTIC/EPOXY	PLASTIC/EPOXY	-	-	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
Type of converter	SUCCESSIVE APPROXIMATION	SUCCESSIVE APPROXIMATION	-	-	SUCCESSIVE APPROXIMATION	-	SUCCESSIVE APPROXIMATION	SUCCESSIVE APPROXIMATION
Output bit encoding	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	-	-	BINARY, OFFSET BINARY	-	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY
Sample and hold and track and hold	TRACK	TRACK	-	-	TRACK	-	TRACK	TRACK
