242A12680X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 242A12680X

242A12680X: DescriptionD Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size140KB，2 Pages; ManufacturerCONEC; Websitehttp://www.conec.com

Download Datasheet Parametric View All

242A12680X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	242A12680X	-	-	View	Buy Now

242A12680X Overview

D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

242A12680X Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.509 inch
subject depth	0.764 inch
body length	2.103 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	424VDC V
Filter function	YES
maximum insertion force	3.336 N
Insulation resistance	100000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	242A1
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	2.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	STEEL
Terminal length	0.13 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	25
Evacuation force-minimum value	2.224 N

Preview

Download Datasheet

View All

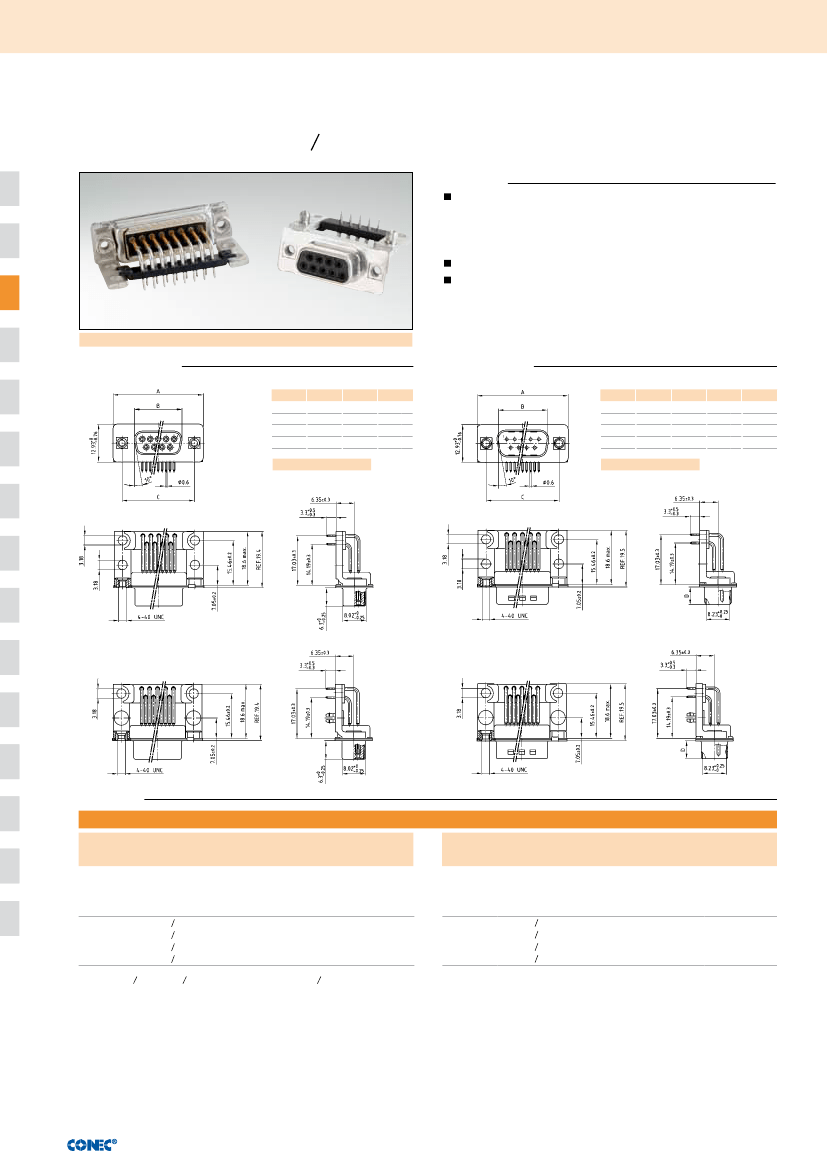

Filt e r D- S UB Co n nec to rs

C-Filter D-SUB Standard

Solder pin – Angled – .590“ 14.19 mm – Precision machined contacts – Metal bracket

Description

Mounting styles:

- with mounting bracket and 4-40 UNC threaded insert

- with mounting bracket, PCB clip and

4-40 UNC threaded insert

Quality class 3 (also available in quality class 1)

Shell: Steel tin plated (brass tin plated on request)

RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.: E202784

Socket connector

No. of pos.

Plug connector

-0.76

31.19

39.52

53.42

69.70

-0.25

16.46

24.79

38.50

54.96

25.00

33.30

47.04

63.50

+ 0.12

- 0.13

+ 0.15

- 0.10

± 0.13

No. of pos.

-0.76

31.19

39.52

53.42

69.70

+0.25

16.79

25.12

38.84

55.30

25.00

33.30

47.04

63.50

+ 0.12

- 0.13

+ 0.15

- 0.10

± 0.13

-0.3

6.12

5.99

PCB layout: Kat1kGIA

PCB layout: Kat1kGJA

Mounting style: Threaded insert

Mounting style:

PCB clip, threaded insert

Mounting style:

PCB clip, threaded insert

Order data

Capacitance 180 pF

Socket connector

No. of pos. Mounting style 4-40 UNC

Threaded insert

PCB clip Threaded insert

Plug connector

Part Number

242 A 17260

242 A 17270

242 A 17280

242 A 17290

242 A 19290

242 A 19300

242 A 19310

242 A 19320

No. of pos. Mounting style 4-40 UNC

Threaded insert

PCB clip Threaded insert

Part Number

241 A 19880

241 A 19890

241 A 19900

241 A 19910

241 A 17700

241 A 17710

241 A 17720

241 A 17730

PCB clip .122” 3.1 ± .004” 0.10 mm hole diameter and .063” 1.6 mm circuit board thickness
