MLX90609
Angular Rate Sensor (Standard version)
Standard Features and Benefits
High resolution and dynamic range
Both digital (SPI) and analog outputs
Low acceleration and angular rate cross
sensitivity
Low zero rate output drift
Cost effective and compact solution
High-performance MEMS sensor in mono
crystalline Si yielding a superior long term
behavior reliability and dynamic range
Programmable bandwidth
Factory set full scale range
On chip EEPROM calibration
Small footprint (SMD CLCC32) with horizontal
mounting
Operating temperature range: -40° to 85°
C
C
Application
Navigation (dead reckoning)
Vehicle stability
Robots
The MLX90609 has various build in features to support automotive and high volume applications
(built-in on demand and non disruptive continuous self test, serial number in EEPROM…). These
types of applications needs close cooperation between the customer and Melexis. Please contact
Melexis in case you have such an application.
Ordering Information
Part No.
Temperature Code
Package Code
MLX90609EEA-N2
E (-40° to 85°
C
C)
EA (CLCC32)
MLX90609EEA-E2
E (-40° to 85°
C
C)
EA (CLCC32)
MLX90609EEA-R2
E (-40° to 85°
C
C)
EA (CLCC32)
Note: Other Full Scale Ranges can be provided. Please contact Melexis.
Option code
N2
E2
R2
Full Scale Range
±75 °
/s
±150 °
/s
±300 °
/s

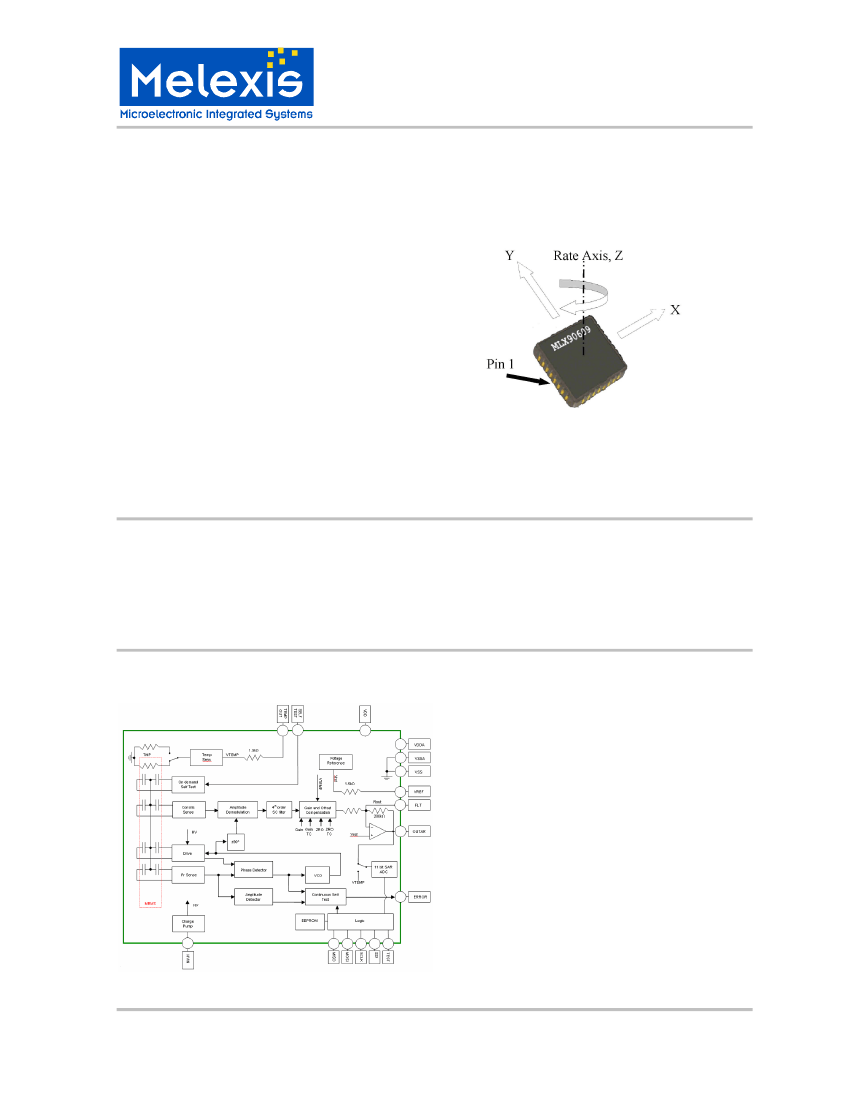

Functional Diagram
General Description
The MLX90609 Angular Rate Sensor is a full
gyroscopic system. A single SMD package
contains a high performance silicon micro
machined sensor with signal conditioning
circuitry. It operates from 5V supply and is
designed
for
demanding
automotive
applications.
The MLX90609 delivers two output signals
proportional to the angular rate perpendicular
to the assembly surface. One of the output
signals is in an analog voltage format (the
output is 2.5V at zero angular rate and the full
scale angular rate produces an output of 4.5V
or 0.5V depending on direction of rotation)
and the other one is in digital SPI format.
390109060901
Rev 007
Page 1 of 22
Data Sheet
January/08
MLX90609
Angular Rate Sensor (Standard version)
Table of Contents
1. Maximum Ratings ............................................................................................................ 3
2. Pin Definitions and Descriptions ...................................................................................... 4
3. MLX90609 General Electrical Specifications ................................................................... 5
4. MLX90609 Sensor Specific Specifications....................................................................... 6
5. Detailed Description......................................................................................................... 8
5.1 The Working Principle ................................................................................................. 8
5.2 Communication with the MLX90609 through the SPI.................................................. 9
5.3 Usage of the ADC ..................................................................................................... 12
5.3.1 ADC Instructions and Answers ........................................................................... 13
•
The Refusal Answer...................................................................................... 13
•
Command of the Status Reading (STATR) ................................................... 13
•
Command of the ADC Control (ADCC) ......................................................... 13
•
Command of the ADC Reading (ADCR) ....................................................... 13
5.3.2 Reading the Digital Angular Rate or Temperature (suggested procedure) ......... 14
6. Applications Examples................................................................................................... 15
7. Standard Information Regarding Manufacturability of Melexis Products with Different
Soldering Processes .......................................................................................................... 18
8. ESD Precautions............................................................................................................ 18
9. Package Information ...................................................................................................... 19
10. Glossary of Terms........................................................................................................ 20
11. Disclaimer .................................................................................................................... 22
390109060901
Rev 007
Page 2 of 22
Data Sheet
January/08
MLX90609
Angular Rate Sensor (Standard version)
1. Maximum Ratings
MLX90609 operates without failure, for 6500 hours with a certain temperature profile in the
40°C to +85ºC range.
-
The MLX90609 meets the following maximum ratings over the entire operating temperature range
and supply voltage range unless otherwise indicated. The current polarity is positive if the current
flows into a terminal. All voltages are referenced to VSS.
Parameter.
Supply Voltage, VDD
Supply Voltage, VDD
Output pins (OUTAR, OUTTEMP, all digital IO’s)
current limit, shorted to VDD or VSS pin
Operating Temperature Range, T
AMBIENT
Operating Temperature Range, T
JUNCTION
Storage Temperature Range
Package Thermal Resistance
Latch-up withstand
Acceleration shock survival
-150
-40
-40
-55
-0.5
4.75
Min
7
5.25
25
85
110
125
100
150
±1500
Max
V
V
mA
°C
°C
°C
°C/W
mA
g
CDF - AEC - Q100-004;
VDD= 5.75V
Shock 0.5ms, 3 axis
Output not shorted
Units
Comments
No latch-up or damage.
Rise time (10 to 90%):
tr
≥
0.5 s.
Operating within specifications
VDD = 0 to 7V
guaranteed by characterization
Table 1. Absolute maximum ratings
Exceeding the absolute maximum ratings may cause permanent damage. Exposure to absolute-
maximum-rated conditions for extended periods may affect device reliability.
390109060901
Rev 007
Page 3 of 22
Data Sheet
January/08
MLX90609
Angular Rate Sensor (Standard version)
2. Pin Definitions and Descriptions

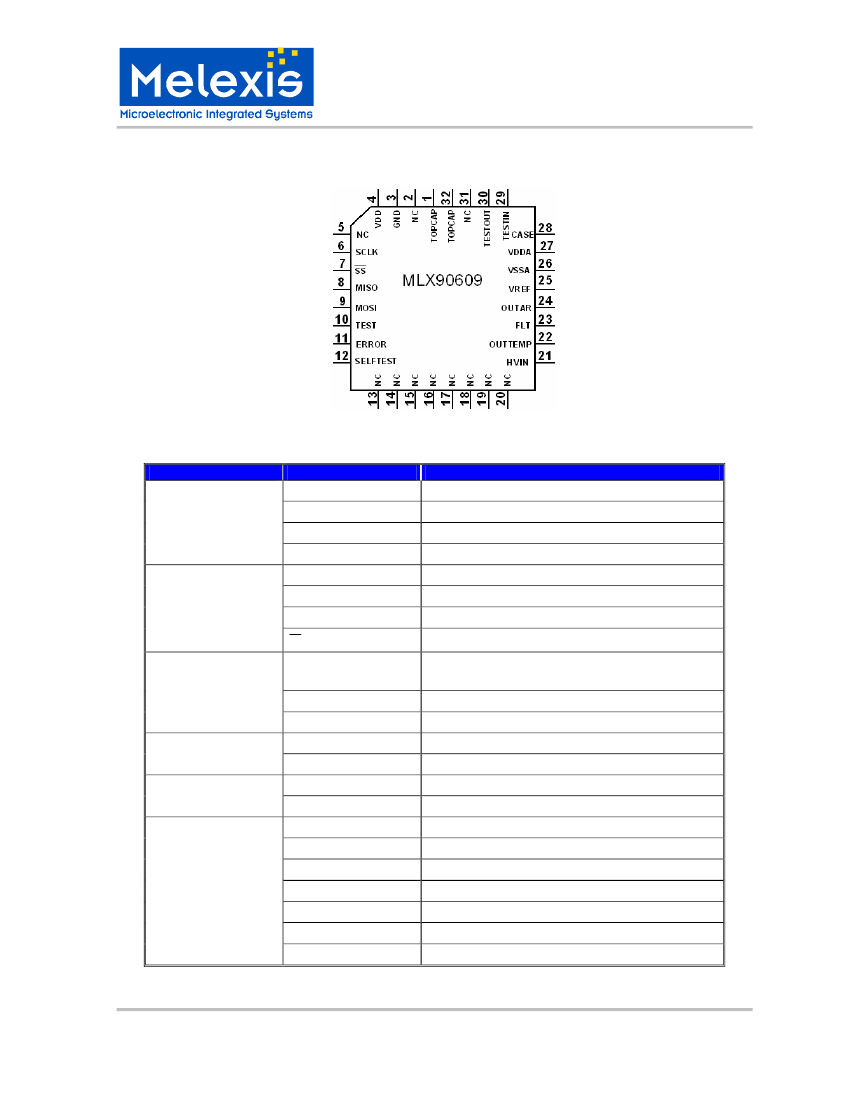

Figure 2-1. MLX90609 pin-out
Group
VSS
Power Supply Pins
VDD
VDDA
VSSA
SCLK
Serial Communication Pins
MISO
MOSI
SS
Pin Name
Digital ground 0V
Digital 5V
Analog Supply 5V
Function
Analog ground, 0V, externally tied to digital ground
Clock for serial data transfer, In, digital
Master In, Slave Out
Master Out, Slave In
Slave/Chip select (active low)
Test-mode control pin (internal pull-down,
In application tight to ground for EMC reasons)
In application tight to ground for EMC reasons
Do not connect
User on request self test input (for automotive applications)
Continuous self test output (for automotive applications)
Analog angular rate output
Analog output of the temperature sensing module
2.5V Output reference voltage
High voltage filter capacitor
External capacitor for bandwidth setting
Tie to VSSA
Tie to VSSA
Tie to VSSA
External capacitor for bandwidth setting
Table 2. MLX90609 Pin description
TEST
Factory Test Pins
TESTIN
TESTOUT
User Diagnostic Pins
Output Pins
SELFTEST
ERROR
OUTAR
OUTTEMP
VREF
HVIN
FLT
General purpose pins
TOPCAP
CASE
NC
FLT
390109060901
Rev 007
Page 4 of 22
Data Sheet
January/08
MLX90609
Angular Rate Sensor (Standard version)
3. MLX90609 General Electrical Specifications
DC Operating Parameters TA = -40° to 85° VDD = 4.75V to 5.25V.
C
C,
Parameter.
Supply Voltage
Supply Current
Output capacitive load to VDD or VSS
Output resistive load
Output, max
Output, min
Voltage Reference load current
Note 3
Logic Input, Low Voltage
Logic Input, High Voltage
Clock Input, Low Voltage
Clock Input, High Voltage
Clock Input, Hysteresis Voltage
Logic Output, Low Voltage
Logic Output, High Voltage
Input high current with pull-up
Input low current with pull-up
Input high current with pull-down
Input low current with pull-down
Tri-State Output Leakage current
Symbol
VDD
IDD
No output load
Analog output
Analog output
0
200k
4.5
0.5
-10
0
0.7 x VDD
0
2.8
1.1
0
2.4
-10
-10
200
-10
-10
0.4
VDD
10
-200
10
10
10
10
0.3 x VDD
VDD
0.8
VDD
Test Conditions
Min
4.75
16
Typ
Max
5.25
20
100
∞
Units
V
mA
pF
Ohm
V
V
µA
V
V
V
V
V
V
V
µA
µA
µA
µA
µA
U
OUT
,Ω max
U
OUT
,Ω min
I
REF
V
IL
V
IH
V
ILC
V
IHC
V
HC
V
OL
V
OH
I
IH_UP
I
IL_UP
I
IH_DOWN
I
IL_DOWN
I
OZ
Analog output
Analog output
Analog output
SS
, MOSI
SS
, MOSI
SCLK
SCLK
SCLK
MISO, ERROR, I
O
< 8 mA
MISO, ERROR, I
O
< 8 mA
SS
, SCLK, V
IN
= VDD
SS
, SCLK, V
IN
= VSS
MOSI, V
IN
= VDD
MOSI, V
IN
= VSS
MISO
Table 3. DC Electrical Characteristics
390109060901
Rev 007
Page 5 of 22
Data Sheet
January/08
