MTH-50 / MTV-50
Two-Way Power Dividers,
1 - 100 MHz and 40 - 400 MHz
Features
•
•
•
•
•
Ideal for High Density Packaging
High Isolation: 30 dB Min.
VSWR: 1.3:1 Max.
Impedance: 50 Ohms Nominal
Maximum Power Rating or Input Power: 1 Watt
Max.
•
Internal Load Dissipation: 0.05 Watts Max.
•
MIL-STD-883 Screening Available
Rev. V3

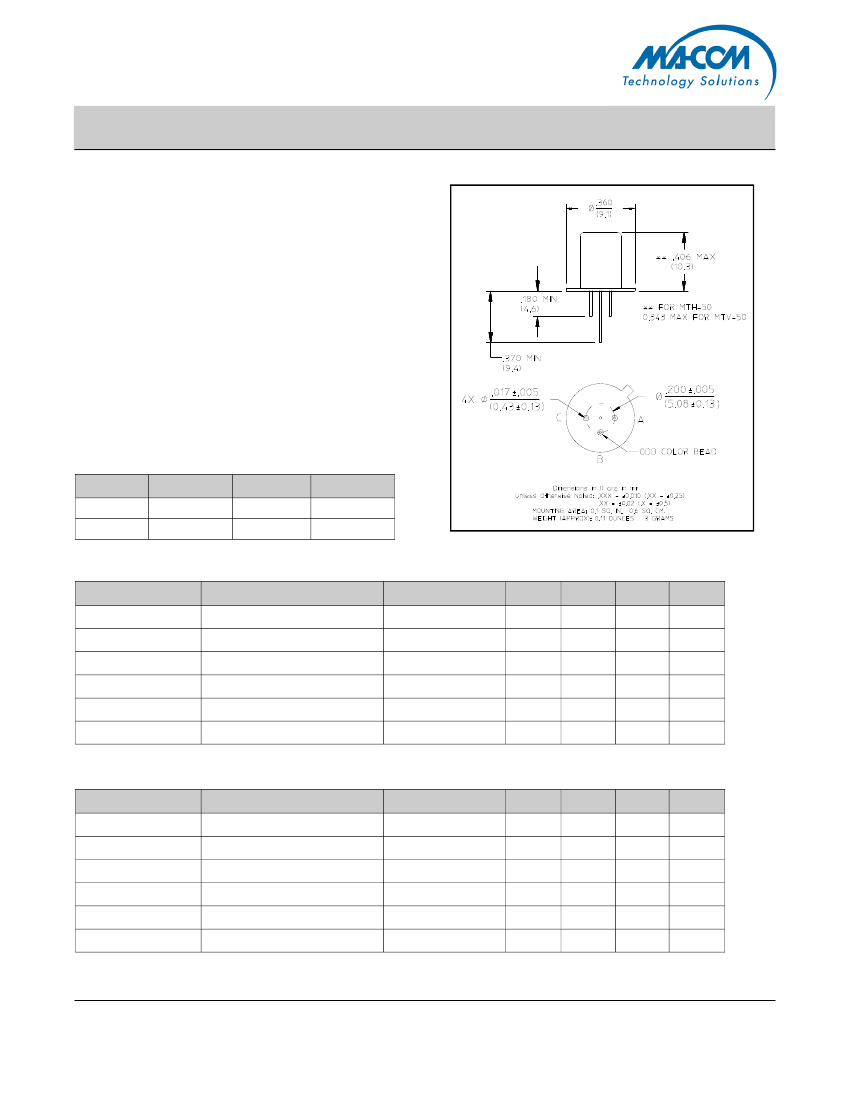

TO-5-1
Description
A Power Divider is ideally a lossless reciprocal
device which can also perform vector summation of
two or more signals and thus is sometimes called a
power combiner or summer.
Pin Configuration
Pin No.
A
B
Function
Out
In
Pin No.
C
Function
Out
MTH-50 Electrical Specifications
1
: T
A
= -55°C to +85°C
Parameter
Frequency
Insertion Loss
Isolation
Amplitude Balance
Phase Balance
VSWR
Test Conditions
—
Less Coupling
—
—
—
—
Frequency
1 - 100
1 - 100 MHz
1 - 100 MHz
1 - 100 MHz
1 - 100 MHz
1 - 100 MHz
Units
MHz
dB
dB
dB
°
Ratio
Min
—
—
30
—
—
—
Typ
—
—
—
—
—
—
Max
—
0.5
—
0.1
1.0
1.3:1
MTV-50 Electrical Specifications
1
: T
A
= -55°C to +85°C
Parameter
Frequency
Insertion Loss
Isolation
Amplitude Balance
Phase Balance
VSWR
Test Conditions
—
Less Coupling
—
—
—
—
Frequency
40 - 400 MHz
40 - 400 MHz
40 - 400 MHz
40 - 400 MHz
40 - 400 MHz
40 - 400 MHz
Units
MHz
dB
dB
dB
°
Ratio
Min
—
—
30
—
—
—
Typ
—
—
—
—
—
—
Max
—
0.6
—
0.2
2.0
1.3:1
1. All specification apply with 50 ohm source and load impedance.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MTH-50 / MTV-50
Two-Way Power Dividers,
1 - 100 MHz and 40 - 400 MHz

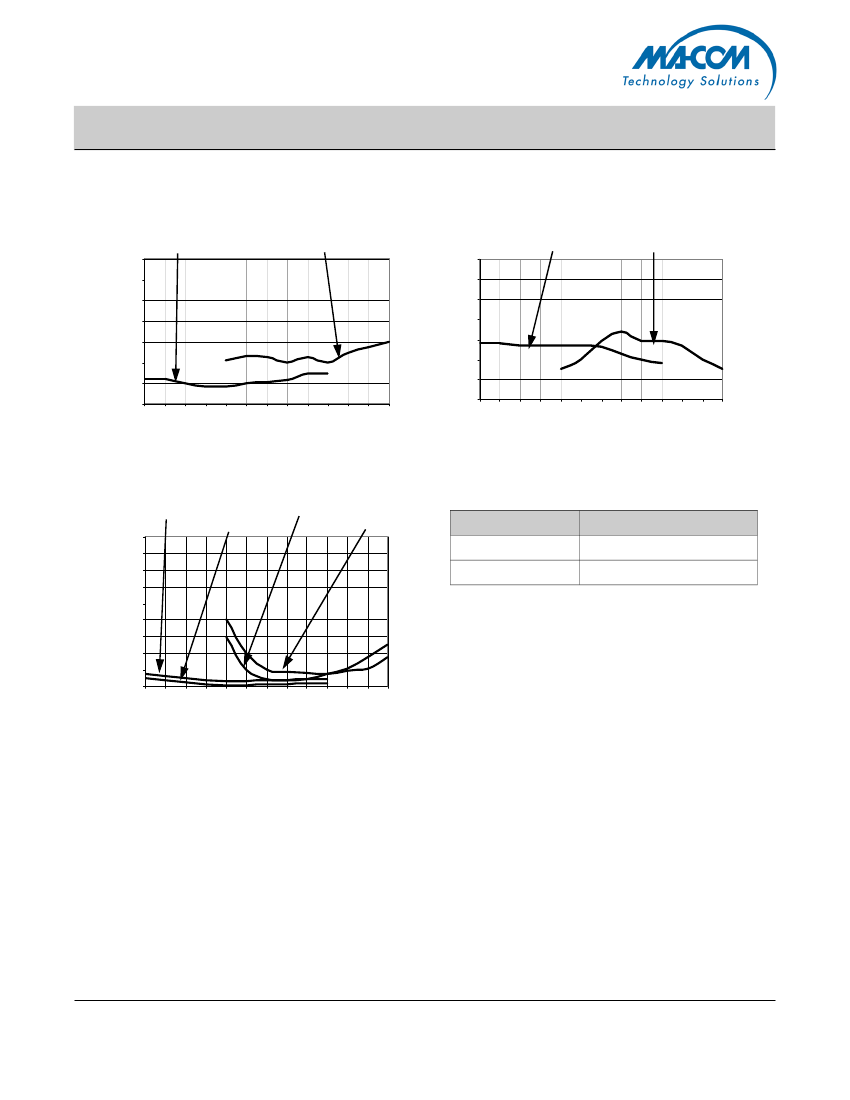

Typical Performance Curves
Insertion Loss - Ports 2 - 3, 2 - 1
M T H- 50
1.4
M T V - 50
Rev. V3
Isolation - Ports 1 - 3
M T H- 50
80
70
M T V - 50
Insertion Loss (dB)
1.2
Isolation (dB)
1.0
0.8
0.6
0.4
0.2
0.0
0.5
1
2
5
10
20
50
100 200 300 400 500 600
60
50
40
30
20
10
0.5
1
2
5
10
20
50 100 200 300 400 500 600
F reque nc y ( M H z)
F requency (M H z)
VSWR
M T H- 50 I np ut
M T H- 50 O ut p ut
2.8
2.6
2.4
2.2
M T V - 50 Inp ut
M T V - 50 O ut p ut
Ordering Information
Part Number
MTH-50 PIN
MTV-50 PIN
Package
TO-5-1
TO-5-1
VSWR
2
1.8
1.6
1.4
1.2
1
0.5
1
2
5
10
20
50
100 200 300 400 500 600
F re que nc y ( M H z)
2
