LLU2D471MELZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> LLU2D471MELZ

LLU2D471MELZ: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 470uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size63KB，3 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

LLU2D471MELZ Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 470uF, Through Hole Mount, RADIAL LEADED

LLU2D471MELZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	470 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
leakage current	0.91 mA
Manufacturer's serial number	LU
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	200 V
ripple current	1900 mA
surface mount	NO
Delta tangent	0.15
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

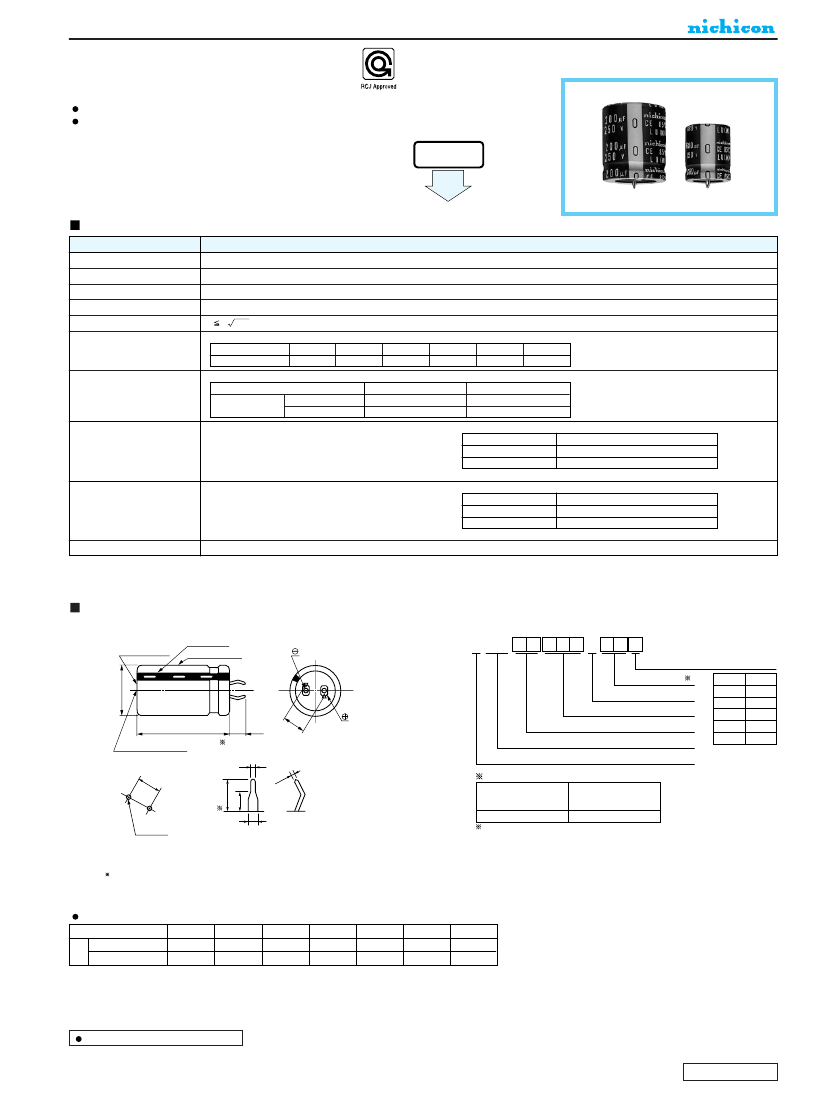

ALUMINUM ELECTROLYTIC CAPACITORS

Snap-in Terminal Type, Standard

series

Approved by Reliability Center for Electronic

Component, Japan-Certification No. RCJ-03-25D

Withstanding 3000 hours application of ripple current at 85°C.

Higher production efficiency due to 4.0mm long terminal.

Smaller

Specifications

Item

Performance Characteristics

Category Temperaturer Renge

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

tan

–

40 ~ +85°C (160 ~ 250V),

–

25 ~ +85°C (400 ~ 450V)

160 ~ 450V

56 ~ 2700µF

±20% at 120Hz, 20°C

3 CV

(µA) (After 5 minutes' application of rated voltage)

Rated voltage (V)

tan

(MAX.)

[C : Rated Capacitance (µF) V : Voltage(V)]

Measurement frequency :120Hz, Temperature : 20°C

400

0.15

450

0.20

160

0.15

180

0.15

200

0.15

250

0.15

Measurement frequency : 120Hz

Stability at Low Temperature

Rated voltage(V)

Impedance ratio

ZT/Z20 (MAX.)

Z—25°C/ Z+20°C

Z—40°C/ Z+20°C

160 ~ 250

400 ~ 450

—

Endurance

After an application of DC voltage (in the range of rated

DC voltage even after over-lapping the specified ripple

current) for 3000 hours at 85°C, capacitors meet the

characteristic requirements listed at right.

Capacitance change

tan

Leakage current

Within ± 20% of initial value

200% or less of initial specified value

Initial specified value or less

Shelf Life

After leaving capacitors under no load at 85°C

for 1000 hours, they meet the requirements listed at right.

Capacitance change

tan

Leakage current

Within ±15% of initial value

150% or less of initial specified value

Initial specified value or less

Marking

Printed with white color letter on black sleeve.

Drawing

Bottom plate

(code HL only)

Polarity bar

Sleeve (P.E.T.)

Type numbering system ( Example : 400V 270

9 10 11 12

L L U 2 G 2 7 1 ME L B

Case dia.code

Configuration

Capacitance tolerane(±20%)

Rated Capacitance(270µF)

L±

Rated voltage(400V)

Series name

Pressure relief vent

4.0±0.5

0.8

+0.2

-0.1

4.0±0.5

0.1

0.8

Code

φD

+1MAX.

Type

1 Configuration

Pb free lead finishing

Pb free PET sleeve

Without bottom plate

Sn-Pb lead finishing

PVC sleeve contain Pb

With bottom plate

0.1

2.5

2-2φ

0.1

1.5

+0.2

-0.1

Please contact to us if other configurations are required.

(PC board hole dimensions)

(Terminal dimensions)

The other terminal is also available upon request.

Please refer to page 197 for schematic of dimensions.

Frequency coefficient of rated ripple current

Frequency (Hz)

160~ 250V

400~ 450V

0.81

0.77

0.85

0.82

120

1.00

300

1.17

1.16

1.32

1.30

10k

1.45

1.41

50k~

1.50

1.43

Coeff.

Minimum order quantity : 50pcs.

Dimension table in next page.

CAT.8100S
