TA3-2W3-V-T/R datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> TA3-2W3-V-T/R

Preview

TA3-2W3-V-T/R: DescriptionKeypad Switch, 0.0015A, 5VDC, Solder Terminal, Surface Mount-right Angle; CategoryMechanical and electronic products switch; File Size1MB，1 Pages; ManufacturerAPEM

Download Datasheet Parametric View All

TA3-2W3-V-T/R Overview

Keypad Switch, 0.0015A, 5VDC, Solder Terminal, Surface Mount-right Angle

TA3-2W3-V-T/R Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator length	0.11 inch
Actuator type	PUSHBUTTON
body width	6.1722 mm
body height	4.3688 mm
Body length or diameter	6.2992 mm
Maximum contact current (DC)	0.0015 A
Contact (DC) maximum rated R load	0.0015A@5VDC
Maximum contact voltage (DC)	5 V
Electrical life	200000 Cycle(s)
Manufacturer's serial number	TA3
Installation features	SURFACE MOUNT-RIGHT ANGLE
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
surface mount	NO
Switch type	KEYPAD SWITCH
Termination type	SOLDER

Preview

Download Datasheet

View All

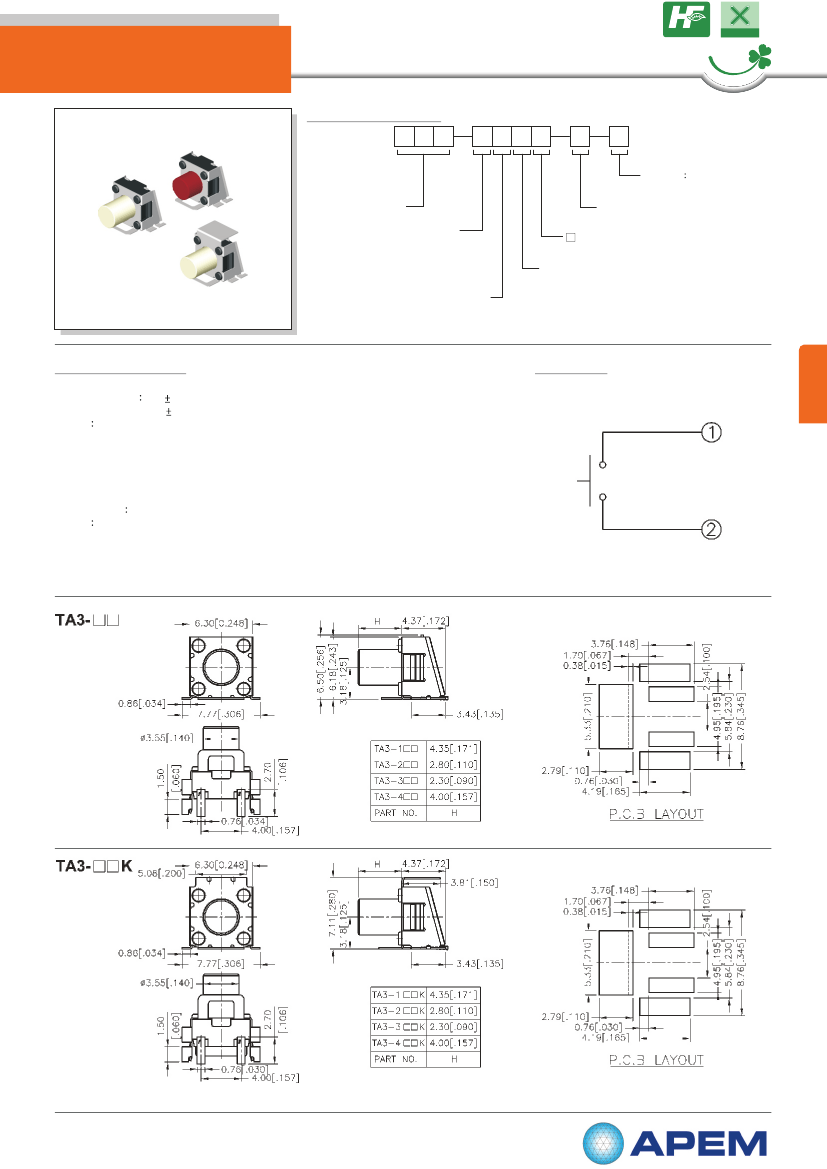

TA3 SERIES

6x6 Side Push Type

With Supporting Terminal & Tab Available

HOW TO ORDER

T

A

3

T/R

Halogen Free

LEAD FREE

Pb

RoHS

Compliant

Package

T/R=Tape & Reel

Right Angle SMT Type

Height:

1=4.35mm

2=2.80mm

3=2.30mm

4=4.00mm

Color Of Stem:

W=White

R=Red

V=RoHS & Lead Free Solderable

Q=Halogen Free

=Without Tab

K=Tab for auto-dipping

Operating Force:

2=185gf

3=260gf

SPECIFICATION

MECHANICAL

Operation Force 260 50gf,Red(R)

185 50gf, White(W)

Stroke 0.15mm Min

ENVIRONMENTAL

o

Operation Temperature Range : -25C to +70C

o

Storage Temperature Range : -30C to +80C

Sealed IP57

ELECTRICAL

Electrical Life 200,000 cycles

Rating 1.5mA, 5VDC

PACKAGE

TA3-1W2, 2W2, 1R3, 2R3: 600 pcs/reel

TA3-1W2K, 2W2K: 550 pcs/reel

TA3-1R3K, 2R3K: 550 pcs/reel

CIRCUIT

TACT SWITCH

www.dip.com.tw
