MMS-134-02-LM-SV datasheet, PDF

Datasheet> All Categories > The connector> The connector> MMS-134-02-LM-SV

MMS-134-02-LM-SV: DescriptionBoard Connector, 34 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size243KB，4 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

MMS-134-02-LM-SV Overview

Board Connector, 34 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

MMS-134-02-LM-SV Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
body width	0.079 inch
subject depth	0.177 inch
body length	2.708 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	MATTE TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
maximum insertion force	1.0286 N
Insulator color	BLACK
JESD-609 code	e3
Manufacturer's serial number	MMS-1
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	3.3528 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3.9 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	3.9878 mm
Termination type	SURFACE MOUNT
Total number of contacts	34
Evacuation force-minimum value	.6116 N

MMS-134-02-LM-SV Preview

REVISION CC

.0787 2.000 REF

DO NOT

SCALE FROM

THIS PRINT

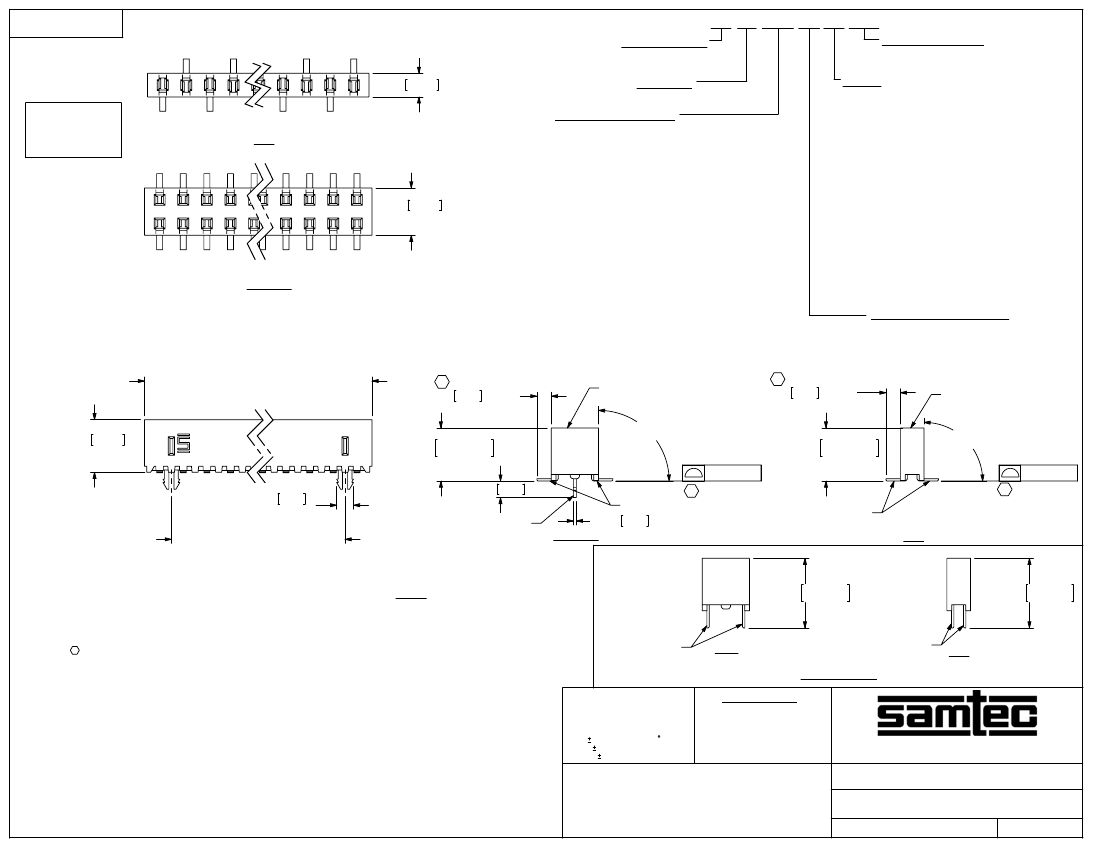

MMS-1XX-02-XXX-XX-XX-XXX

No OF POSITIONS

-02 THRU -40

(PER ROW)

LEAD STYLE

-02: SURFACE MOUNT

PLATING SPECIFICATION

-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN TAIL

-L: 10µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN TAIL

-F: 3µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN TAIL

-T: MATTE TIN OVER ENTIRE CONTACT

-LTL: 10µ" SELECTIVE GOLD IN CONTACT AREA,

TIN LEAD (90/10 ±5%) TAIL

-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN TAIL

-LM: 10µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN TAIL

-FM: 3µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN TAIL

-TM: MATTE TIN OVER ENTIRE CONTACT

-H: 30µ" GOLD IN CONTACT AREA,

3µ" GOLD ON TAIL

POLARIZING OPTION

-XXX INDICATES POSITION No

(USE PK-07-N)

OPTION

-LC: LOCKING CLIP

(NOT AVAILABLE ON -SV)

(USE LC-06-TM, SEE FIG 1,

FIG 2 & 3, SHT 2 & NOTES 6 & 7)

-P: PICK & PLACE PAD

(ONLY AVAILABLE ON -SV & -DV, 4 POS MIN)

(-SV: USE PPP-09; -DV: USE PPP-03;

SEE FIG 5, SHT 2)

-M: METAL PICK & PLACE PAD

(ONLY AVAILABLE ON -DV)

(USE LMP-03, SEE FIG 7, SHT 3)

-A: MOLDED ALIGNMENT PIN

(AVAILABLE ON -DV ONLY)

(USE MMS-XX-D-VXX, SEE FIG 4, SHT 2)

-K: POLYIMIDE FILM PAD

(AVAILABLE ONLY ON -SV, 3 POS MIN &

-DV, 4 POS MIN)

(USE K-500-300, SEE FIG 6, SHT 3)

-TR: TAPE & REEL PACKAGING

(SEE FIG 8, SHT 3)

ENTRY/ROW SPECIFICATION

-SH: SINGLE ROW, HORIZONTAL ENTRY

-DH: DOUBLE ROW, HORIZONTAL ENTRY

-SV: SINGLE ROW, VERTICAL (TOP) ENTRY

-DV: DOUBLE ROW, VERTICAL (TOP) ENTRY

MMS-40-S

-SV

.1574 3.998

REF

-DV-LC

(No. OF POS x .0787[2.000]) + .022[0.56]

- .015

(TOL ACCUM)(SEE NOTES 6 & 9)

+.005

.048 1.22 (TYP)

MMS-40-D

+7°

.048 1.22 (TYP)

.1750 4.445

REF

+.004

.1770

- .002

(SEE NOTE 8)

+0.102

4.496

- 0.051

90°

- 0°

.006[0.15]

C-63-22-XXX

LC-06-X

+.004

.1770

- .002

(SEE NOTE 8)

+0.102

4.496

- 0.051

90°

- 0°

.006[0.15]

+7°

.056 1.42

REF (TYP)

(No OF POS - 2) x .07874[2.0000])

.055 1.40

-DV-LC

.010 0.25 REF

C-63-22-XXX

-SV

MMS-140-02-XXX-XV-LC SHOWN

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. MAXIMUM ALLOWABLE SWAY: 2° IN EITHER DIRECTION

3. MAXIMUM BURR ALLOWANCE: .003[0.08]

4. MAXIMUM CUT FLASH: .020[0.51].

5. MINIMUM RETENTION FORCE: SINGLE ROW: .5 LB, DOUBLE ROW: 1 LB

6. CUT BODIES FROM MMS-40-D OR MMS-40-S FOR ALL STYLES EXCEPT -LC.

FOR -LC, USE POSITIONALIZED BODIES. 3 POSITION -DV-LC PARTS WILL HAVE 1 LOCKING CLIP.

7. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE -LC OPTION IS

NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC RECOMMENDS MANUAL

PLACEMENT FOR ALL ASSEMBLIES WITH THE -LC OPTION.

8. THIS DIMENSION TO BE MEASURED AT BEND.

9. FOR -SV LEAD STYLE, EVEN POSITON CUTS LOSE 2 POSITIONS PER CUT; ODD

POSITION CUTS LOSE 1 POSITION PER CUT.

10. LEAD STYLE -02-SH, POSITIONS 2 THRU 4 TO BE PACKAGED IN BOXES. ALL OTHER ROW

SPECIFICATIONS SHOULD BE TUBED ACCORDING TO TABLE 2, REGARDLESS OF POSITION.

F:\DWG\MISC\MKTG\MMS-1XX-02-XXX-XX-XX-XXX-MKT.SLDDRW

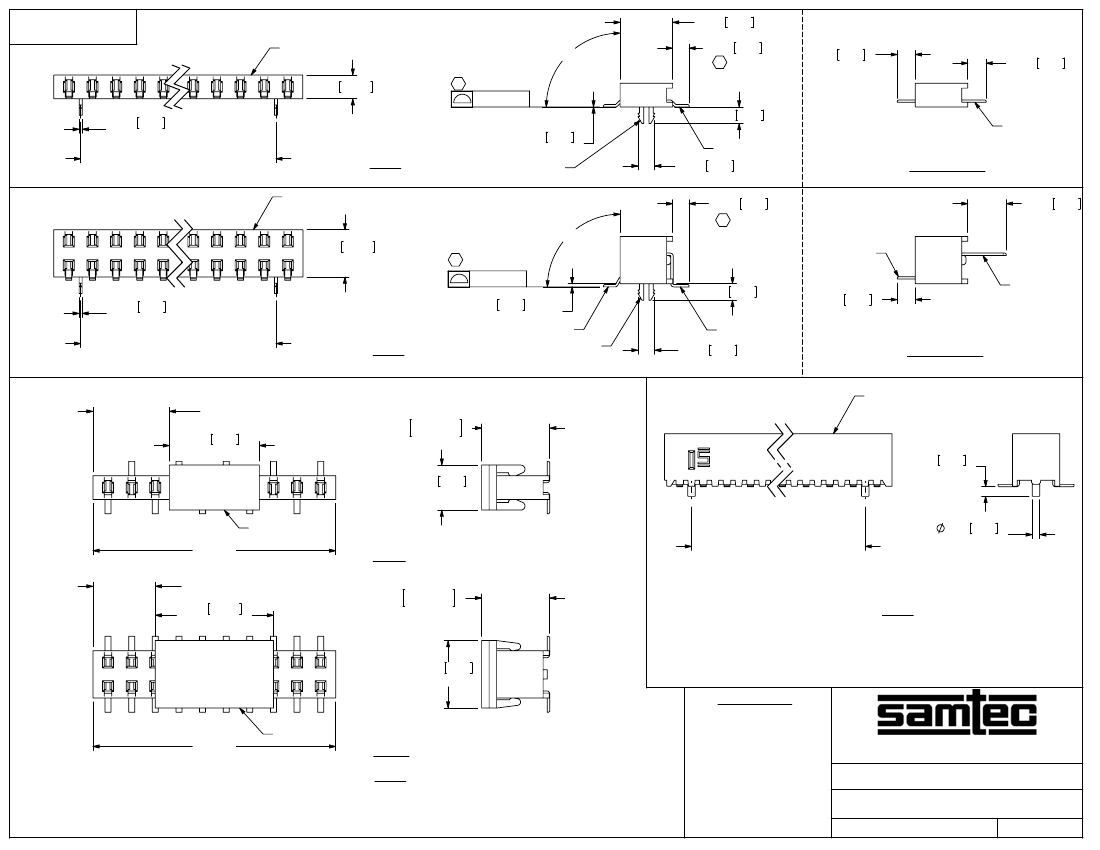

FIG 1

.232

- .000

5.89

+.005

+0.13

0.00

.232

- .000

5.89

+.005

+0.13

0.00

C-63-22-XXX

-DV

C-63-22-XXX

-SV

IN-PROCESS

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 3:1

INSULATOR: VECTRA E130i, COLOR: BLACK

CONTACT: PHOS BRONZE

2mm SURFACE MOUNT BOX CONNECTOR STRIP ASM

MMS-1XX-02-XXX-XX-XX-XXX

SHEET

BY:

BRATCHER 04/01/1994

REVISION CC

MMS-40-S-LC

.0787 2.000 REF

.010 0.25

REF (TYP)

(No OF POS - 2) x .07874[2.0000])

.006[0.15]

90°±3°

.175 4.45 REF

.055 1.40 (TYP)

.060 1.52

.061 1.55

.055 1.40

FLUSH TO .005 0.13

BELOW BODY

LC-06-X

C-63-06-XXX

.056 1.42 REF

.055 1.40 (TYP)

.1574 3.998

REF

90°±5°

.006[0.15]

FLUSH TO .007 0.18 MAX

BELOW BODY

C-63-07-XXX

MMS-140-02-XXX-DH-LC SHOWN

.055 1.40

C-63-08-XXX

.056 1.42 REF

C-63-07-XXX

C-63-06-XXX

MMS-140-02-XXX-SH-LC SHOWN

MMS-40-D-LC

FIG 2

IN-PROCESS

.128 3.25

.010 0.25

REF (TYP)

(No OF POS - 2) x .07874[2.0000])

.060 1.52

C-63-08-XXX

FIG 3

LC-06-X

IN-PROCESS

MMS-40-D-V40

"L" = (No OF POSITIONS x .07874[2.0000]) + .022[0.56]

(("L"/2) - .150[3.81])±.020[0.51]

.300 7.62

REF

.227

- .004

5.77

- 0.102

+.006

+0.152

.150 3.81

REF

PPP-09

"L" REF

(("L"/2) - .197[5.00])±.020[0.51]

.394 10.01

REF

.032 0.81

REF

-SV-P

.227

- .004

5.77

- 0.102

+.006

+0.152

(No OF POS - 2) x .07874[2.0000])

.025 0.64

REF

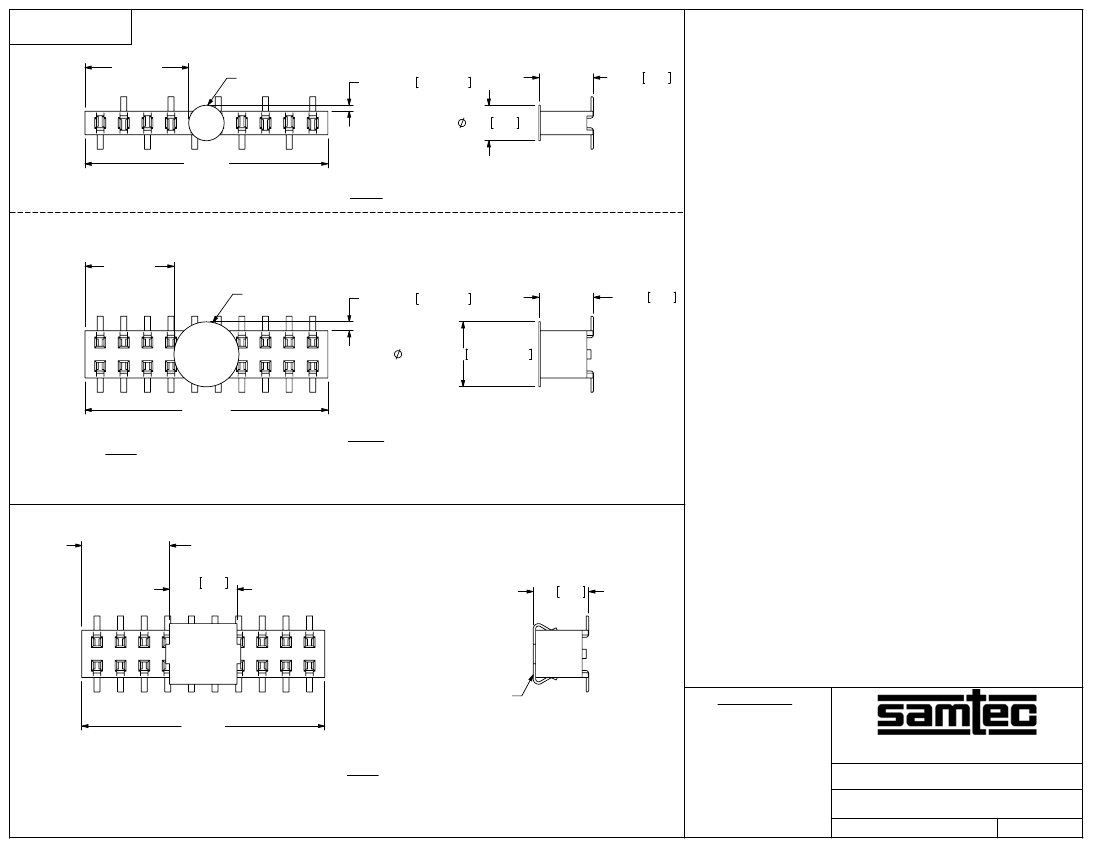

-A: MOLDED ALIGNMENT PIN

ONLY AVAILABLE ON -DV

MMS-140-02-XXX-DV-A SHOWN

SAME AS FIG 1, EXCEPT AS SHOWN

.225 5.72

REF

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

FIG 4

"L" REF

PPP-03

-DV-P

FIG 5

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

-P: PICK & PLACE PAD

ONLY AVAILABLE ON -SV & -DV

MMS-140-02-XXX-XV-P SHOWN

SAME AS FIG 1, EXCEPT AS SHOWN

F:\DWG\MISC\MKTG\MMS-1XX-02-XXX-XX-XX-XXX-MKT.SLDDRW

DO NOT SCALE DRAWING

SHEET SCALE: 3:1

2mm SURFACE MOUNT BOX CONNECTOR STRIP ASM

MMS-1XX-02-XXX-XX-XX-XXX

SHEET

BY:

BRATCHER 04/01/1994

REVISION CC

"S"±.020

K-500-300

"R" = USED MEASURED DIMENSION

"S" = ("R" - .118[3.00]) / 2

*DIM WILL BE .187[4.75] IF POLARIZATION KEY IS UNDER PAD.

.019±.010 0.49±0.25

.118 3.00

"R" REF

*.182 4.62

-SV-K

"M" = USED MEASURED DIMENSION

"P" = ("M" - .2165[5.50]) / 2

*DIM WILL BE .187[4.75] IF POLARIZATION KEY IS UNDER PAD.

"P"±.020

K-500-300

.030±.010 0.75±0.25

*.182 4.62

.2165±.0050 5.499±0.127

"M" REF

-K: POLYIMIDE FILM PAD

ONLY AVAILABLE ON -SV & -DV

MMS-140-02-XXX-XV-K SHOWN

SAME AS FIG 1, EXCEPT AS SHOWN

"L" = (No OF POSITIONS x .07874[2.0000]) + .022[0.56]

(("L"/2) - .1125[2.858])±.020[0.51]

.225 5.72

REF

FIG 6

-DV-K

.185 4.70

LMP-03

"L" REF

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

-M: METAL PICK & PLACE PAD

ONLY AVAILABLE ON -DV

MMS-140-02-XXX-DV-M SHOWN

SAME AS FIG 1, EXCEPT AS SHOWN

F:\DWG\MISC\MKTG\MMS-1XX-02-XXX-XX-XX-XXX-MKT.SLDDRW

FIG 7

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DO NOT SCALE DRAWING

SHEET SCALE: 3:1

2mm SURFACE MOUNT BOX CONNECTOR STRIP ASM

DWG. NO.

MMS-1XX-02-XXX-XX-XX-XXX

SHEET

BY:

BRATCHER 04/01/1994

REVISION CC

CONTACT ENTRY SIDE

FOR ASSEMBLY

MATING SIDE

OF CONNECTOR

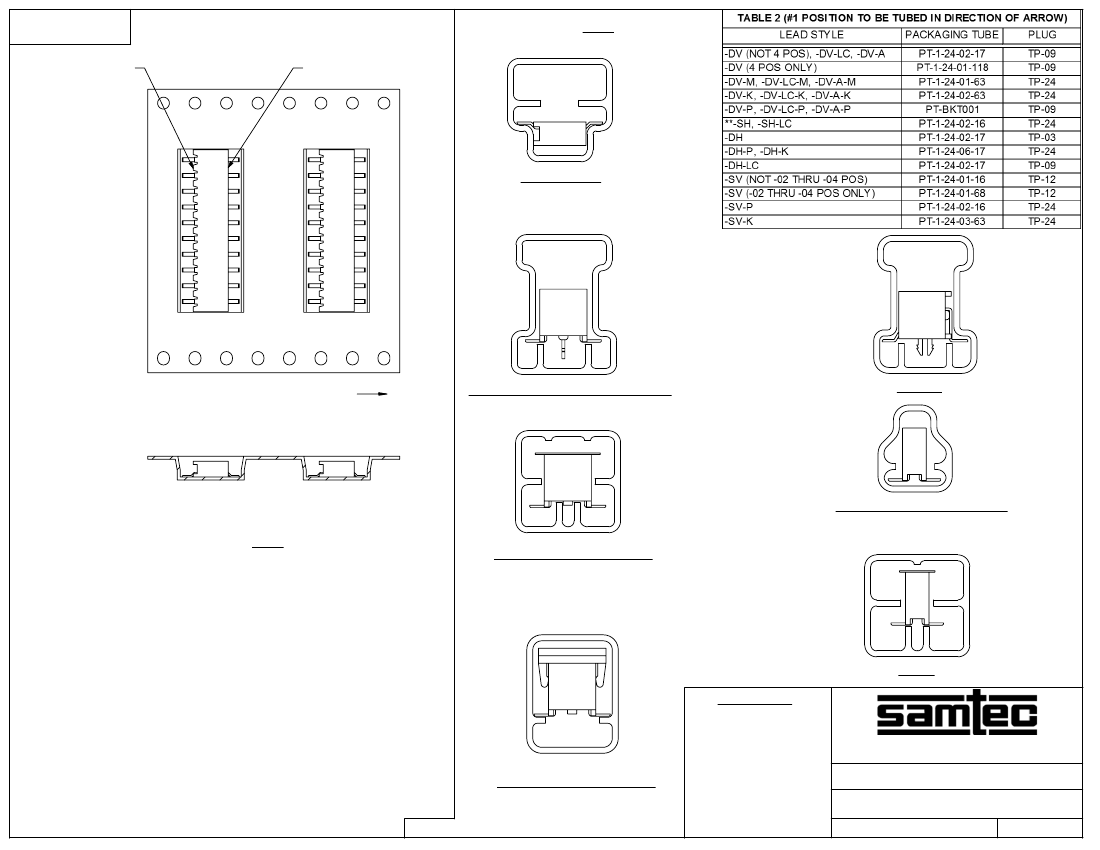

TUBE PACKAGING OPTIONS

FIG 9

**-SH STYLE SHOWN

**-SH, -SH-LC

**SEE NOTE 10

USER DIRECTION OF UN-REELING

POCKET NOT DETAILED

-DV (NOT 4 POS), -DV-LC, -DV-A

-DV-LC STYLE SHOWN

-DH-LC

-SV (NOT -02 THRU -04 POS)

-TR: TAPE & REEL PACKAGING

MMS-110-02-XXX-SH SHOWN FOR ORIENTATION OF -SH & -DH STYLES

(MMS-103-02-X-LC, POS 1 TO FACE ROUND HOLES)

FIG 8

-DV-K, -DV-LC-K, -DV-A-K

-DV-K STYLE SHOWN

-SV -K

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

-DV-P, -DV-LC-P, -DV-A-P

-DV-P STYLE SHOWN

DO NOT SCALE DRAWING

SHEET SCALE: 3:1

2mm SURFACE MOUNT BOX CONNECTOR STRIP ASM

DWG. NO.

F:\DWG\MISC\MKTG\MMS-1XX-02-XXX-XX-XX-XXX-MKT.SLDDRW

BY:

BRATCHER

MMS-1XX-02-XXX-XX-XX-XXX

04/01/1994

SHEET

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Electric curtain circuit b Household appliance circuit

243-channel digital proportional remote control transmitter circuit

Three-phase bridge thyristor rectifier circuit

Light-controlled street light circuit composed of bidirectional thyristors

Leakage alarm voltage regulator

Polyphonic music + voice reporting + colorful backlight + color screen animation circuit 2

Look at the brother's hard work in translating, Tefa ADC-DAC Application Design Guide (Chinese): Seeing that you have worked so hard to translate, I have published the ADC-DAC Application Design Handbook in Chinese. You don't need to translate it any more. [[i] This post was last edited by leang5...; leang521 Analogue and Mixed Signal

Introduction to the basic concepts of the Internet of Things - Sharing: Some basic introductions to the Internet of Things. Here is an excerpt to see if you need to download it:[hide][/hide]The data volume of RFID tags usually ranges from a few bytes to several thousand b...; kenji RF/Wirelessly

MXCHIP Core1081 Data Summary——Documentation and Software: [i=s]This post was last edited by qq849682862 on 2014-11-4 08:21[/i] After running the module demo last night, I was confused by the information of the core board - Core1081. I personally feel a littl...; qq849682862 RF/Wirelessly

Reversing radar: Reversing radar is a parking safety auxiliary device for cars. It can inform the driver of the surrounding obstacles by sound or more intuitive display, eliminating the trouble caused by the driver lo...; frozenviolet Automotive Electronics

Complete set of information for the intelligent tracking car (schematic diagram and program): Complete set of information for the intelligent tracking car (schematic diagram and program)...; linda_xia Analog electronics

Canaan-K510 kit version compilation and flashing: In the previous article (https://bbs.eeworld.com.cn/thread-1217987-1-1.html), the environment was not successfully built due to download problems. In this week's experiment, I found an agent, download...; tobot Domestic Chip Exchange

Shortcut: A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components
