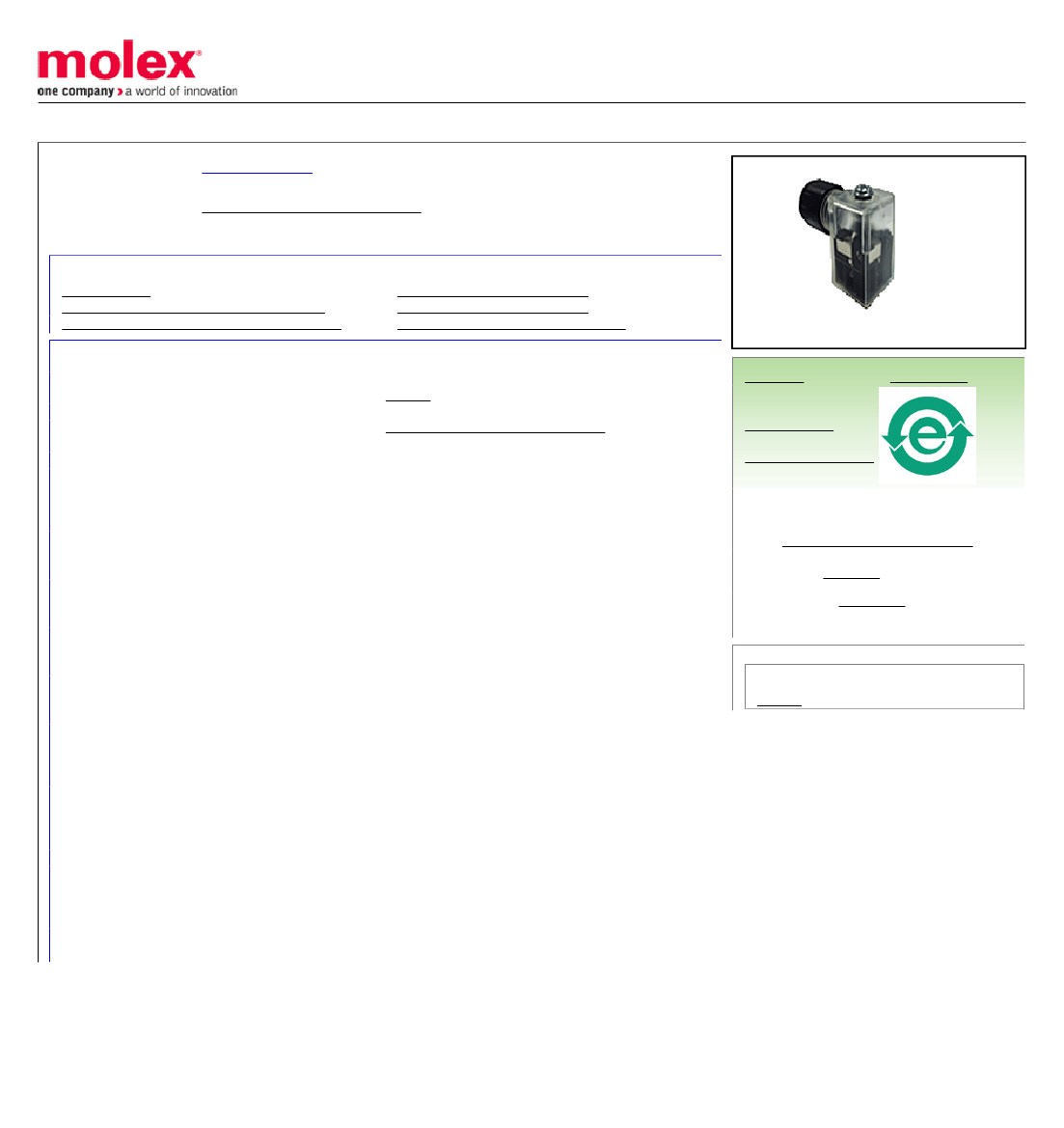

SD-121211-001: DescriptionmPm DIN Valve Connector, Type C Micro with Circuit C4, 24V AC/DC; File Size35KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

SD-121211-001 Overview

mPm DIN Valve Connector, Type C Micro with Circuit C4, 24V AC/DC

Preview

Download Datasheet

View All

This document was generated on 05/01/2013

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

121211-0042

Active

Brad® mPm® DIN Valve Connectors

mPm® DIN Valve Connector, Type C Micro with Circuit C4, 24V AC/DC, Amber LED, 2

Pole Plus Ground Terminal No Tails, Transparent, Nitrile Gasket with IP67 Screw

Documents:

Drawing (PDF)

Product Specification PS-121201-001 (PDF)

Packaging Specification PK-121201-001 (PDF)

Test Summary STR-1251 (PDF)

Test Summary STR-1299 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

General

Product Family

Series

IP Rating

Overview

Product Name

Type

UPC

Field Attachable / Accessories

121211

IP67

Brad® mPm® DIN Valve Connectors

mPm®

Field Attachable Connector

884982530942

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

China RoHS

Physical

Cable Diameter

Coupling Type

Diagnostics / LEDs

Diagnostics Port

Gender

Keyway

Material - Connector Body

Material - Contact

Material - Coupling Nut

Material - Plating Mating

Net Weight

Orientation

Poles

Temperature Range - Operating

Wire Size AWG

N/A

External Thread

Yes

N/A

None

Polyamide

Brass

N/A

Silver

15.103/g

90° Angle

-25°C to +75°C

N/A

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

121211Series

Electrical

Current - Maximum per Contact

Voltage - Maximum

16A

24V AC/DC

Material Info

Old Part Number

S29200TC4H0T

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Test Summary

PK-121201-001

PS-121201-001

SD-121211-001

STR-1251, STR-1299

This document was generated on 05/01/2013

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

SD-121211-001 Related Products

	SD-121211-001	121211-0042	PK-121201-001	PS-121201-001	STR-1299	STR-1251
Description	mPm DIN Valve Connector, Type C Micro with Circuit C4, 24V AC/DC	mPm DIN Valve Connector, Type C Micro with Circuit C4, 24V AC/DC	mPm DIN Valve Connector, Type C Micro with Circuit C4, 24V AC/DC	mPm DIN Valve Connector, Type C Micro with Circuit C4, 24V AC/DC	mPm DIN Valve Connector, Type C Micro with Circuit C4, 24V AC/DC	mPm DIN Valve Connector, Type C Micro with Circuit C4, 24V AC/DC
