SIWC1355-471: Description1 ELEMENT, 470 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components; File Size93KB，1 Pages; ManufacturerDELTA; Websitehttp://www.deltaww.com/

Download Datasheet View All

SIWC1355-471 Overview

1 ELEMENT, 470 uH, GENERAL PURPOSE INDUCTOR, SMD

Preview

Download Datasheet

View All

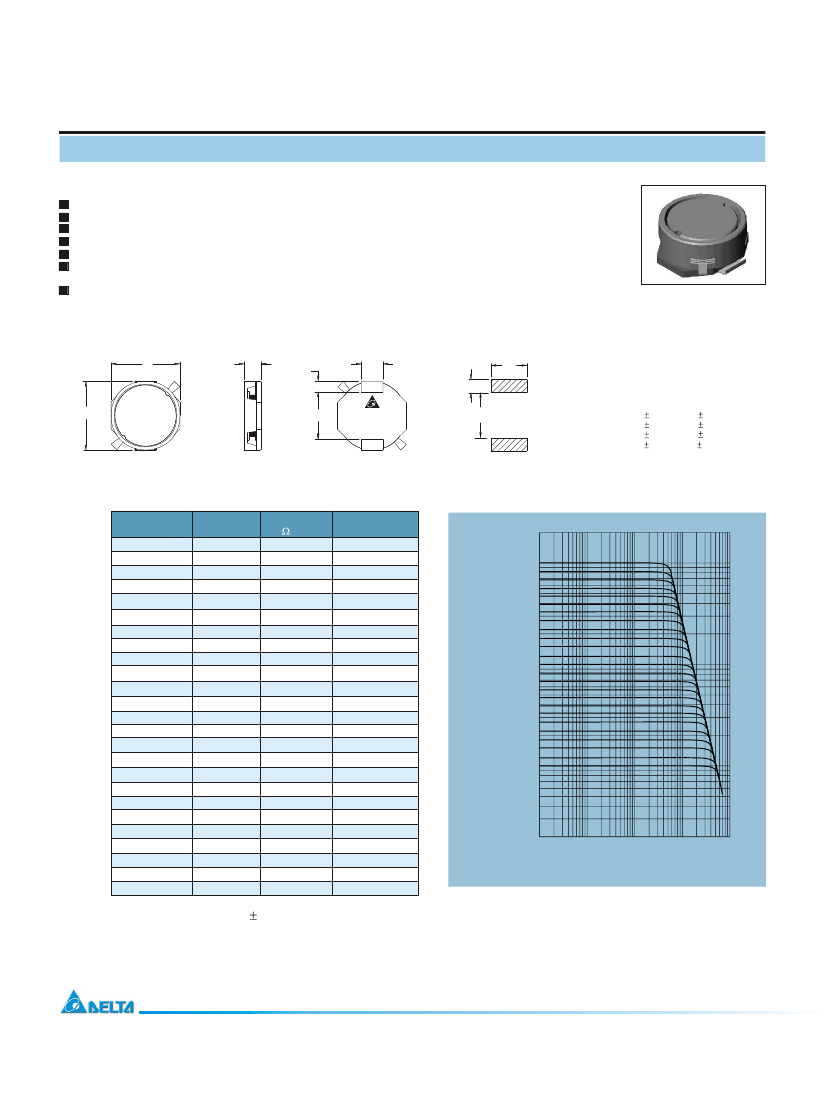

SMT Power Inductor

SIWC1355 Type

Features

RoHS compliant.

Low profile (5.8mm max. height) SMD type.

Magnetically shielded, suitable for high density mounting.

High energy storage and low DCR.

Provided with embossed carrier tape packing.

Idel for power source circuits, DC-DC converter,

DC-AC inverters inductor application.

In addition to the standard versions shown here,

customized inductors are available to meet your exact requirements.

Mechanical Dimension:

RECOMMENDED PAD PA

TTERNS

Electrical Characteristics:

PART NO.

SIWC1355 - 100

SIWC1355 - 120

SIWC1355 - 150

SIWC1355 - 180

SIWC1355 - 220

SIWC1355 - 270

SIWC1355 - 330

SIWC1355 - 390

SIWC1355 - 470

SIWC1355 - 560

SIWC1355 - 680

SIWC1355 - 820

SIWC1355 - 101

SIWC1355 - 121

SIWC1355 - 151

SIWC1355 - 181

SIWC1355 - 221

SIWC1355 - 271

SIWC1355 - 331

SIWC1355 - 391

SIWC1355 - 471

SIWC1355 - 561

SIWC1355 - 681

SIWC1355 - 821

SIWC1355 - 102

C: 1KHz, 1V

DCR

( )MAX

0.027

0.028

0.037

0.039

0.045

0.057

0.069

0.082

0.090

0.100

0.120

0.134

0.189

0.209

0.273

0.308

0.384

0.470

0.586

0.669

0.803

1.026

1.166

1.419

1.617

(uH)

100

120

150

180

220

270

330

390

470

560

680

820

1000

1.70

1.50

1.40

1.20

1.10

1.00

0.93

0.84

0.79

0.67

0.59

0.55

0.53

0.48

0.44

0.36

0.33

INDUCTANCE (uH)

1. Tolerance of inductance : 20%.

2. Irated is the DC current which cause the inductance drop less than 20% of its nominal inductance without current

and the surface temperature of the part increase less than 45

3. Operating temperature: -20

C to 105

C (including self-temperature rise).

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG)

252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.

3.0

7.6

5.0

UNIT:mm/inch

A = 13.0 / 0.512 Max.

B = 13.0 / 0.512 Max.

C = 5.5 0.3 / 0.217 0.012

D = 4.0 0.1 / 0.157 0.004

E = 2.0 0.1 / 0.079 0.004

F = 8.6 0.1 / 0.339 0.004

Irated

(Adc)

3.60

3.40

3.00

2.80

2.50

2.20

2.10

1.90

1000.00

100.00

10.00

102

821

681

561

471

391

331

271

221

181

151

121

101

820

680

560

470

390

330

270

220

180

150

120

100

0.00

0.01

0.10

CURRENT (A)

1.00

10.00

TEL: 886-3-3591968; FAX: 886-3-3591991

http://www.deltaww.com
