SM5520JW-75.0M-T500 datasheet, PDF

Datasheet> All Categories > SM5520JW-75.0M-T500

Preview

SM5520JW-75.0M-T500: DescriptionSM55J Series 2.5 V CMOS Clock Oscillators; File Size869KB，8 Pages; ManufacturerPletronics, Inc.; Websitehttp://www.pletronics.com/

Download Datasheet View All

SM5520JW-75.0M-T500 Overview

SM55J Series 2.5 V CMOS Clock Oscillators

Preview

Download Datasheet

View All

SM55J Series 2.5 V

CMOS Clock Oscillators

March 2013

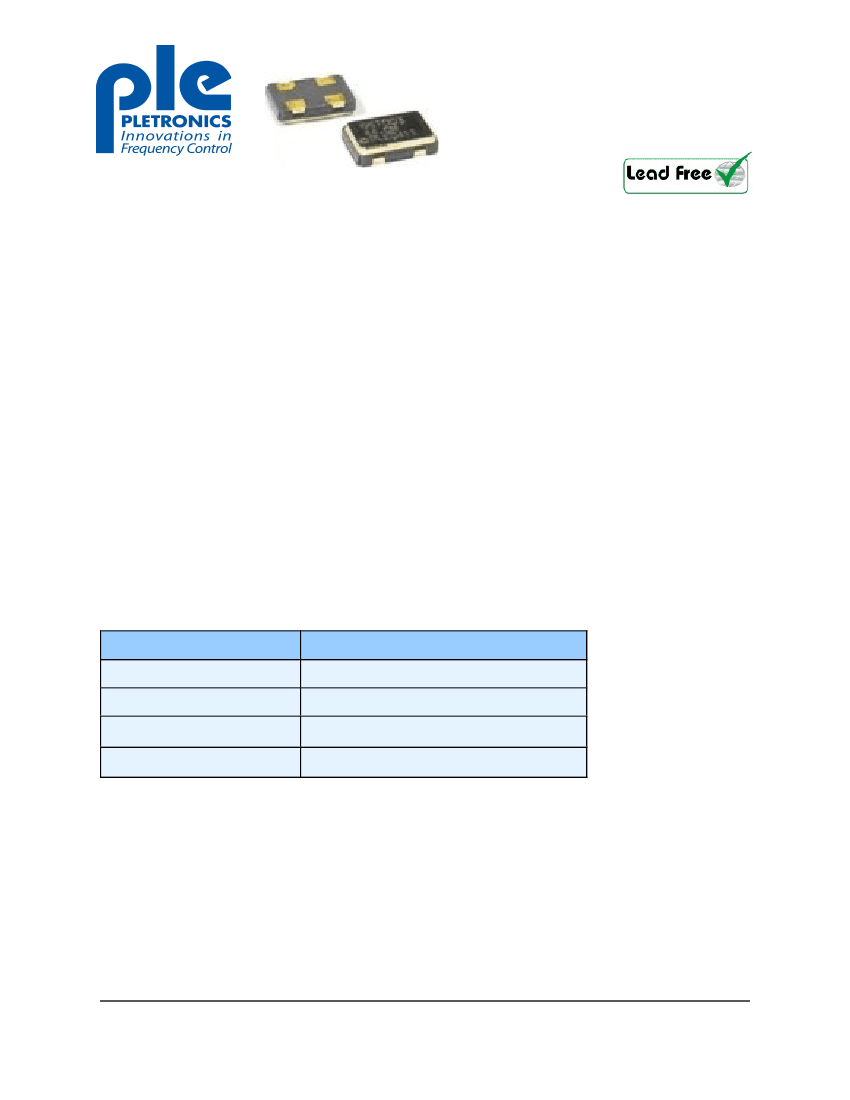

• Pletronics’ SM55J Series is a quartz crystal

controlled precision square wave generator with a

CMOS output.

• The package is designed for high density surface

m ount designs.

• This is a low cost m ass produced oscillator.

• Tape and Reel or cut tape packaging is available.

40 to 170 MHz

3.2 x 5 m m LCC Ceram ic Package

Enable/Disable Function

Disable function includes low standby power

m ode

• 3

Overtone Crystals used

• Low Jitter

•

PRELIMINARY

Pletronics Inc. certifies this device is in accordance with the

RoHS 6/6 (2011/65/EC) and WEEE (2002/96/EC) directives.

Pletronics Inc. guarantees the device does not contain the following:

Cadm ium , Hexavalent Chrom ium , Lead, Mercury, PBB’s, PBDE’s

W eight of the Device: 0.064 gram s

Moisture Sensitivity Level: 1 As defined in J-STD-020C

Second Level Interconnect code: e4

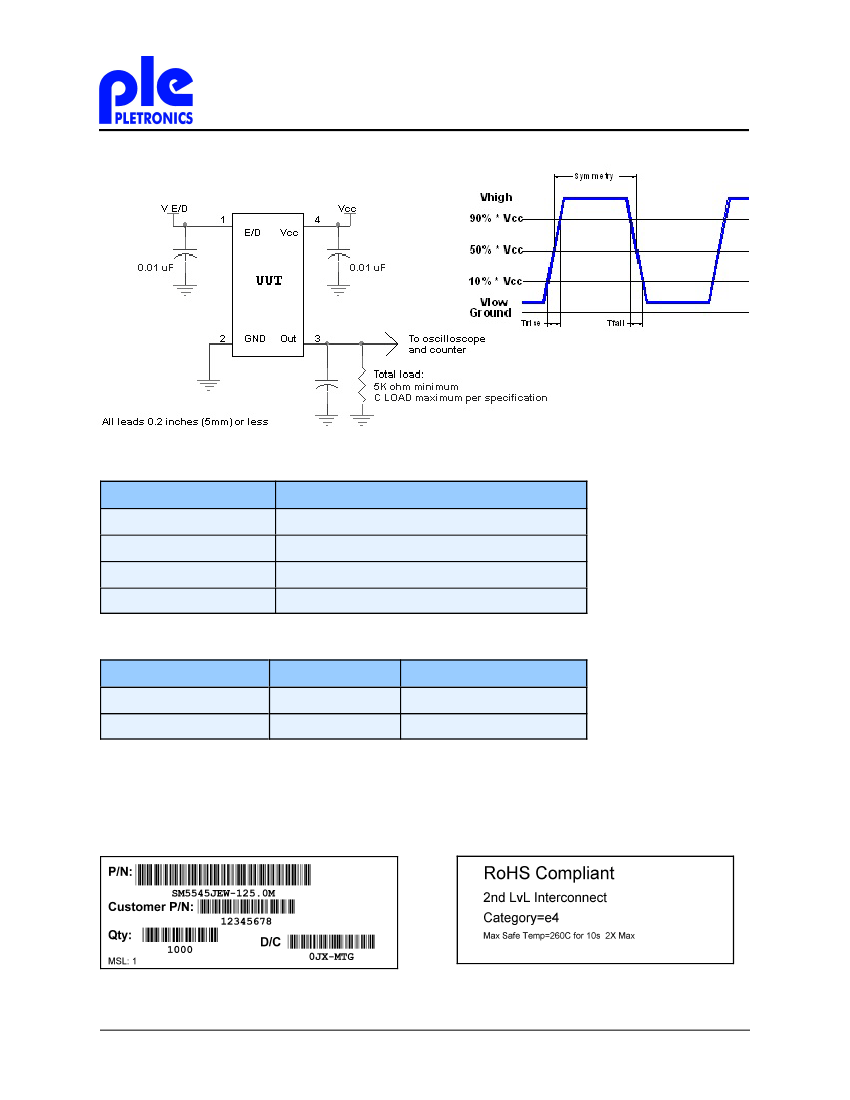

Absolute Maximum Ratings:

Parameter

Supply Voltage

Input Voltage

Output Voltage

Output Current

Unit

-0.3V to +4.0V

-0.3V to V

+ 0.3V

-0.3V to V

+ 0.3V

+20 m A to -20 m A

Thermal Characteristics

The m axim um die or junction tem perature is 125

The therm al resistance junction to board is 30 to 50

C/W att depending on the solder pads, ground plane

and construction of the PCB.

P roduct inform ation is current as of publication date. T he product conform s

Inc.

to specifications per the term s of the P letronics standard warranty. Production

processsing does not necessarily include testing of all param eters.
