0603HS-221EJFS: DescriptionGeneral Purpose Inductor, 0.22uH, 5%, 1 Element, Ferrite-Core, SMD, CHIP, 0705; CategoryPassive components inductor; File Size281KB，4 Pages; ManufacturerDelta Electronics

Download Datasheet Parametric Compare View All

0603HS-221EJFS Overview

General Purpose Inductor, 0.22uH, 5%, 1 Element, Ferrite-Core, SMD, CHIP, 0705

0603HS-221EJFS Parametric

Parameter Name	Attribute value
package instruction	CHIP, 0705
Reach Compliance Code	compliant
ECCN code	EAR99
core material	FERRITE
DC Resistance	0.15 Ω
Nominal inductance(L)	0.22 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	0603HS
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	10
Maximum rated current	0.95 A
self resonant frequency	800 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	7.96 MHz
Tolerance	5%

0603HS-221EJFS Preview

1. Part Description

1.1Part Numbering (Example)

( Ex. )

0603

HS -

101

E J

F

S

SIZE

0402 1.0 * 0.5 mm

0603 1.6 * 0.8 mm

PACK

S=EIA RS481

CLEAR TAPE & REEL

TERMINAL TYPE/MATERIAL

INDUCTANCE TOLERANCE

PRODUCT ID

INDUCTANCE

T = Terminal,

F =Ferrite

Core (Substrate)

G =±2%, H =±3% ,J =±5% , K =±10%

B =±0.1n H , C =±0.2n H , S =±0.3n H

D =±0.5n H

SHAPE

- FIRST 2 DIGITS ARE SIGNIFICANT

- 3 DIGIT IS MULTIPLIER

101=100 nH , 102=1000 nH .

E = FLAT TOP

WIRE-WOUND CHIP INDUCTOR – FERRITE/OPEN TYPE

0603HS (1608) Series (0.047 ~ 10.0uH)

Part

Number

0603HS-470E_FS

0603HS-720E_FS

0603HS-101E_FS

0603HS-121E_FS

0603HS-151E_FS

0603HS-181E_FS

0603HS-221E_FS

0603HS-271E_FS

0603HS-331E_FS

0603HS-391E_FS

0603HS-471E_FS

0603HS-561E_FS

0603HS-681E_FS

0603HS-821E_FS

0603HS-102E_FS

0603HS-122E_FS

0603HS-152E_FS

0603HS-182E_FS

0603HS-222E_FS

0603HS-272E_FS

0603HS-332E_FS

0603HS-392E_FS

0603HS-472E_FS

0603HS-562E_FS

0603HS-682E_FS

0603HS-782E_FS

0603HS-822E_FS

0603HS-103E_FS

Inductance

uH

0.047@ 7.96MHz

0.072@ 7.96MHz

0.10 @ 7.96MHz

0.12@ 7.96MHz

0.15@ 7.96MHz

0.18@ 7.96MHz

0.22@ 7.96MHz

0.27@ 7.96MHz

0.33@ 7.96MHz

0.39@ 7.96MHz

0.47@ 7.96MHz

0.56@ 7.96MHz

0.68@ 7.96MHz

0.82@ 7.96MHz

1.00@ 7.96MHz

1.20@ 7.96MHz

1.50@ 7.96MHz

1.80@ 7.96MHz

2.20@ 7.96MHz

2.70@7.96MHz

3.30@ 7.96MHz

3.90@ 7.96MHz

4.70@ 7.96MHz

5.60@ 7.96MHz

6.80@ 7.96MHz

7.80@ 7.96MHz

8.20@ 7.96MHz

10.0 @ 2.52MHz

Percent

Tolerance

10,5

Q Min

10@ 7.96MHz

10@ 2.52MHz

SRF Min RDC Max

MHz

Ohms

1500

1400

1150

1100

1050

950

800

775

725

620

540

525

460

410

190

160

100

80

68

55

42

40

34

32

31

28

26

25

0.075

0.12

0.13

0.15

0.20

0.35

0.39

0.43

0.47

0.52

0.69

0.81

0.87

0.96

1.10

1.20

1.40

1.50

2.10

2.60

3.10

3.90

4.40

4.80

Rated Current

mA(MAX)

1400

1300

950

710

620

600

570

550

470

400

370

350

320

300

280

260

240

200

195

190

180

Working Temperature Range : -40 ° ~ 85 °

C

WIRE-WOUND CHIP INDUCTOR – FERRITE/OPEN TYPE

0603HS Series Shape & Dimension

Shape & Dimension

B

F

C

H

I

A

G

Layout

F

E

Terminal

D

Terminal wraparound

A

Max.

Inch

mm

0.071

1.80

B

Max

0.048

1.20

C

Max

D

Ref.

F

0.013

G

0.034

H

0.040

1.02

I

J

Pad

I

0.025

0.64

J

0.025

0.64

E

0.030

0.95

0.041

1.05

0.012

0.30

0.33

0.86

Parts/Reel: 7” 4,000 PCS / 2000PCS

Tape Width: 8mm

WIRE-WOUND CHIP INDUCTOR – FERRITE/OPEN TYPE

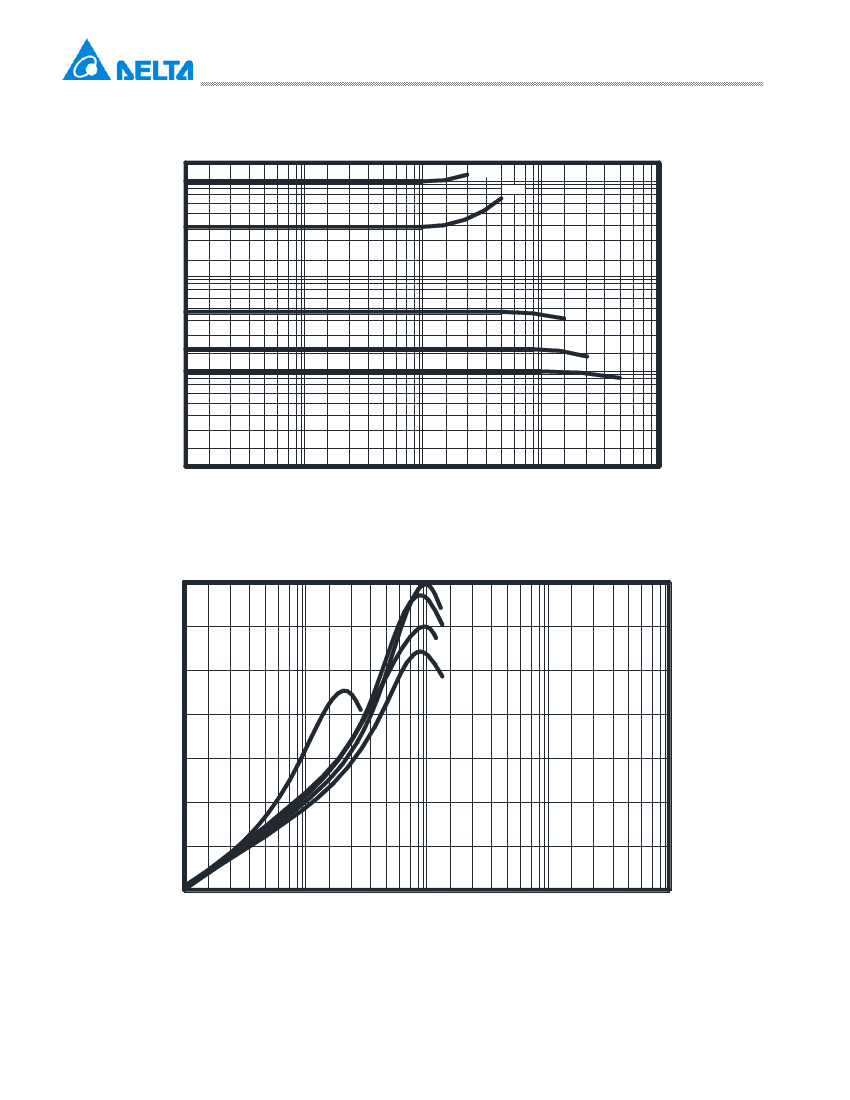

0603HS Series Typical Electrical Characteristics

TYPICAL L vs FREQUENCY

103

392

20

10

Inductance(uH)

1

471

221

101

0.1

0.01

0.1

1

10

100

1000

Frequency(MHz)

TYPICAL Q vs FREQUENCY

20

101

15

471

392

103

10

221

Q

5

0

0.1

1

10

100

1000

Frequency(MHz)

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

0603HS-221EJFS Related Products

	0603HS-221EJFS	0603HS-272EJFS	0603HS-332EKFS	0603HS-332EJFS	0603HS-272EKFS	0603HS-221EKFS
Description	General Purpose Inductor, 0.22uH, 5%, 1 Element, Ferrite-Core, SMD, CHIP, 0705	General Purpose Inductor, 2.7uH, 5%, 1 Element, Ferrite-Core, SMD, CHIP, 0705	General Purpose Inductor, 3.3uH, 10%, 1 Element, Ferrite-Core, SMD, CHIP, 0705	General Purpose Inductor, 3.3uH, 5%, 1 Element, Ferrite-Core, SMD, CHIP, 0705	General Purpose Inductor, 2.7uH, 10%, 1 Element, Ferrite-Core, SMD, CHIP, 0705	General Purpose Inductor, 0.22uH, 10%, 1 Element, Ferrite-Core, SMD, CHIP, 0705
package instruction	CHIP, 0705	CHIP, 0705	CHIP, 0705	CHIP, 0705	CHIP, 0705	CHIP, 0705
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
core material	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE
DC Resistance	0.15 Ω	1.4 Ω	1.5 Ω	1.5 Ω	1.4 Ω	0.15 Ω
Nominal inductance(L)	0.22 µH	2.7 µH	3.3 µH	3.3 µH	2.7 µH	0.22 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	0603HS	0603HS	0603HS	0603HS	0603HS	0603HS
Number of functions	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Minimum quality factor (at nominal inductance)	10	10	10	10	10	10
Maximum rated current	0.95 A	0.3 A	0.28 A	0.28 A	0.3 A	0.95 A
self resonant frequency	800 MHz	55 MHz	42 MHz	42 MHz	55 MHz	800 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO
surface mount	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	7.96 MHz	7.96 MHz	7.96 MHz	7.96 MHz	7.96 MHz	7.96 MHz
Tolerance	5%	5%	10%	5%	10%	10%
Maker	-	Delta Electronics	Delta Electronics	Delta Electronics	Delta Electronics	-
