350LSU3900MNB64X119 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> 350LSU3900MNB64X119

Preview

350LSU3900MNB64X119: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 350V, 20% +Tol, 20% -Tol, 3900uF, Chassis Mount, CAN, ROHS COMPLIANT; CategoryPassive components capacitor; File Size566KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/

Download Datasheet Parametric Compare View All

350LSU3900MNB64X119 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	350LSU3900MNB64X119	-	-	View	Buy Now

350LSU3900MNB64X119 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 350V, 20% +Tol, 20% -Tol, 3900uF, Chassis Mount, CAN, ROHS COMPLIANT

350LSU3900MNB64X119 Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	3900 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
leakage current	3.505 mA
Manufacturer's serial number	LSU
Installation features	CHASSIS MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	350 V
ripple current	12900 mA
surface mount	NO
Delta tangent	0.25
Terminal shape	BINDING POST

Preview

Download Datasheet

View All

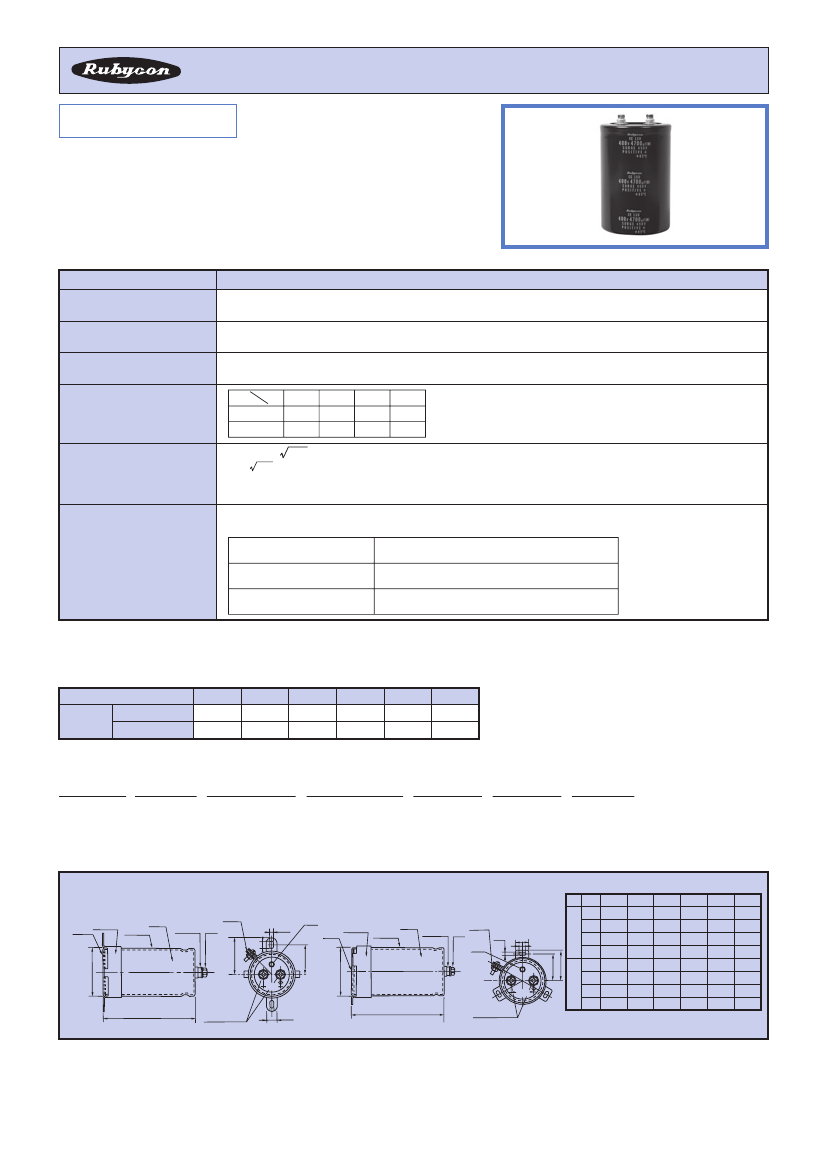

大型铝电解电容器

LARGE CAN TYPE ALUMINUM ELECTROLYTIC CAPACITORS

LSU

系列

LSU

SERIES

螺栓端子型85℃

5000小时品

85℃ 5000 hours, Screw Terminal Type

◆特　长／FEATURES

• 85℃、5000小时品。

Load Life : 85℃ 5000 hours.

• RoHS指令对应品。

RoHS compliance.

◆规格表／

SPECIFICATIONS

项　目

Items

特　　　性

Characteristics

工 ½ 温度范围

Category Temperature Range

－25½＋85℃

350½500V.DC

±20%

(20℃，120Hz)

WV

额定电压范围

Rated Voltage Range

静电容量允许差

Capacitance Tolerance

损失角正切值

(tan

δ

)

Dissipation Factor(MAX)

φ

D

51

0.20

0.25

64

0.25

0.30

77

0.25

0.30

90

0.25

0.30

350½450

500

20℃,

(

120Hz

)

小于I＝3

CV

和5mA中的较小值

(½加额定电压5分钟后)

漏

电

流

I

＝3

CV or 5mA whichever is smaller. (After 5 minutes application of rated voltage)

Leakage Current(MAX)

I

＝漏电流

(µA)

Leakage Current

C＝额定静电容量 (µF)

Rated Capacitance

V＝额定电压 (V)

Rated Voltage

在85℃环境中，不超过额定电压的范围内叠加额定纹波电流，连续加½½5000小时后，满足以下各项要求。

After applying rated voltage with rated ripple current for 5000 hours at 85

℃

, the capacitors shall meet the following requirements.

耐

Endurance

久

性

静电容量变化率

Capacitance Change

损失角正切值

Dissipation Factor

漏

电

流

Leakage Current

初期值的±20%以内

Within

±20%

of the initial value.

规格值的200%以下

Not more than 200% of the specified value.

规格值以下

Not more than the specified value.

◆纹波电流补正系数／

MULTIPLIER FOR RIPPLE CURRENT

频率系数

Frequency Coefficient

60

120

频率

(Hz)

Frequency

1.00

系　数

350½450WV 0.80

Coefficient

500WV

0.80

1.00

300

1.17

1.15

500

1.23

1.20

1k

1.30

1.25

10k≤

1.40

1.30

◆产品型号½系／

PART NUMBER

□□□

额定电压

Rated Voltage

LSU

系列名称

Series

□□□□□

额定静电容量

Rated Capacitance

M

静电容量允许差

Capacitance Tolerance

□□□

副记号

Option

□□

固定带记号

Clamp Code

D×L

铝壳尺寸

Case Size

◆电容器尺寸图／

Dimensions in mm (not to scale)

〈I

type〉

Plate

Mounting

Clamp

Case

Sleeve

Screw

Terminal Bolt

W3

W4

W2±2

W1±2

Plate

Sleeve

W3

W5

W4

W1±2

W2±2

Vent

D± 2

F–1

L±3

F–1

W5

M5 P=0.8Bolt

L±3

M5 P=0.8Bolt

Y type

I type

Clamp

Bolt

〈Y

type〉

Vent

Mounting

Clamp

Case Screw

Bolt

Terminal Bolt

φ

D

51

64

77

90

51

64

77

90

W1

34.0

40.0

47.0

54.0

32.5

38.0

44.5

50.8

W2

40.0

45.0

53.0

60.0

37.5

43.0

49.0

56.0

W3

3.5

4.5

W4

6.0

7.0

6.0

8.0

7.0

8.0

W5

12

14

12

14

16

(mm)

F

21.8

28.2

31.4

21.8

28.2

31.4

350LSU3900MNB64X119 Related Products

	350LSU3900MNB64X119	350LSU8200MNB77X151	350LSU2700MNB51X138	400LSU6800MNB77X151	450LSU4700MNB77X121	450LSU4700MTI77X121	450LSU4700MTY77X121
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 350V, 20% +Tol, 20% -Tol, 3900uF, Chassis Mount, CAN, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 350V, 20% +Tol, 20% -Tol, 8200uF, Chassis Mount, CAN, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 350V, 20% +Tol, 20% -Tol, 2700uF, Chassis Mount, CAN, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 400V, 20% +Tol, 20% -Tol, 6800uF, Chassis Mount, CAN, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 20% +Tol, 20% -Tol, 4700uF, Chassis Mount, CAN, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 20% +Tol, 20% -Tol, 4700uF, Chassis Mount, CAN, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 20% +Tol, 20% -Tol, 4700uF, Chassis Mount, CAN, ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	-	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99
capacitance	3900 µF	8200 µF	2700 µF	6800 µF	-	4700 µF	4700 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	-	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	-	ALUMINUM (WET)	ALUMINUM (WET)
leakage current	3.505 mA	5.08233 mA	2.91634 mA	4.94773 mA	-	-	-
Manufacturer's serial number	LSU	LSU	LSU	LSU	-	LSU	LSU
Installation features	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	-	CHASSIS MOUNT	CHASSIS MOUNT
negative tolerance	20%	20%	20%	20%	-	20%	20%
Number of terminals	2	2	2	2	-	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	-	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-	-25 °C	-25 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	-	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	-	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	-	20%	20%
Rated (DC) voltage (URdc)	350 V	350 V	350 V	400 V	-	450 V	450 V
ripple current	12900 mA	21800 mA	9800 mA	19200 mA	-	18100 mA	18100 mA
surface mount	NO	NO	NO	NO	-	NO	NO
Delta tangent	0.25	0.25	0.2	0.25	-	0.25	0.25
Terminal shape	BINDING POST	BINDING POST	BINDING POST	BINDING POST	-	BINDING POST	BINDING POST
