SMAC25-100K-RC: DescriptionSurface Mount Air Core Inductors; CategoryPassive components inductor; File Size602KB，1 Pages; ManufacturerALLIED [Allied Electronics]; Environmental Compliance

Download Datasheet Parametric View All

SMAC25-100K-RC Overview

Surface Mount Air Core Inductors

SMAC25-100K-RC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	1915
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	1915
core material	AIR
DC Resistance	0.0123 Ω
Nominal inductance(L)	0.1 µH
Inductor Applications	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	100
Maximum rated current	1.7 A
self resonant frequency	1200 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	FLAT
Test frequency	150 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

RoHS

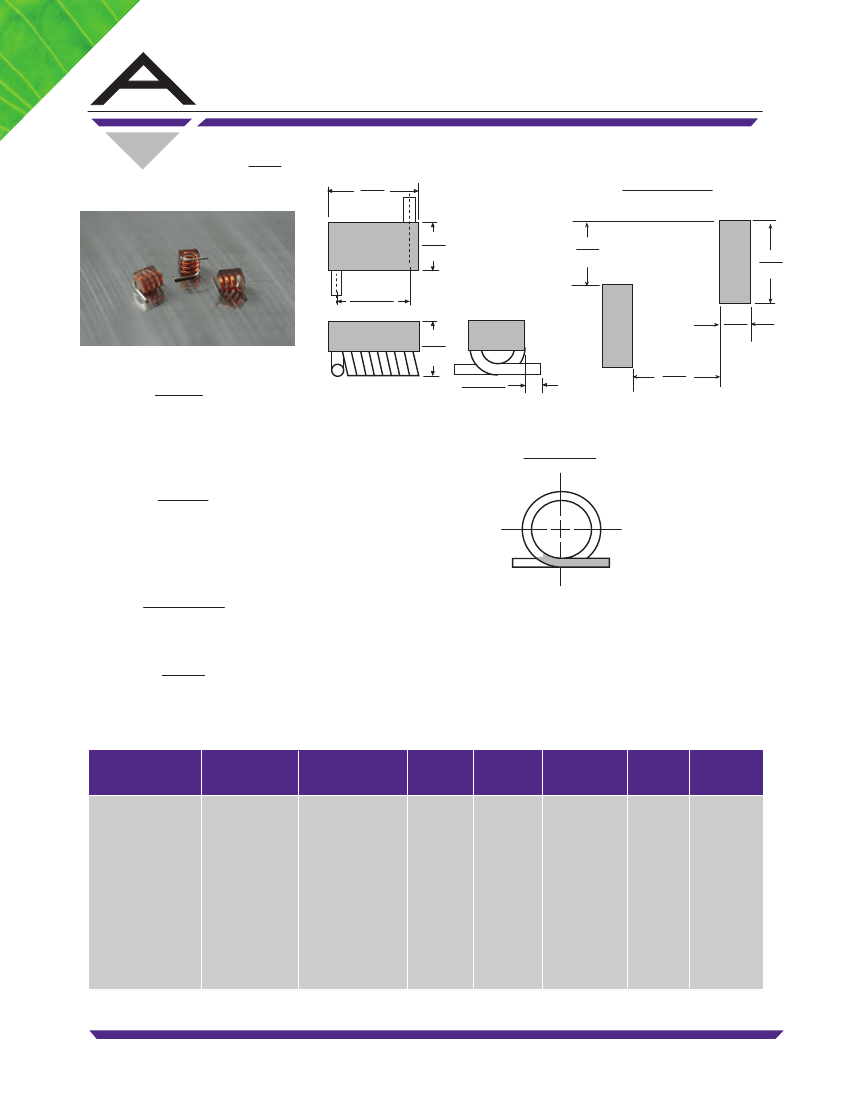

Surface Mount Air Core Inductors

Dimensions:

Inches

(mm)

SMAC25

Nominal Footprint

0.190

(4.83)

0.15

(3.81)

0.103

(2.62)

0.203

(5.16)

0.17±0.015

(4.32±0.39)

0.165

(4.20)

0.06±0.015

(1.53±0.39)

0.058

(1.48)

Features

•

Excellent for high Q applications

High SRF’s for high frequency applications

High current capability

Flat top cap for pick and place assembly

Electrical

Impedance range:

22nH to 120nH

Tolerance:

Available in 2%, 5% & 10%

Test Frequency:

150Mhz

Operating Temp:

-40ºC to +125ºC

Peak Solder Temp:

260+0/-10ºC, 5 sec. max.

Test Equipment

(L/Q):

HP4291B with HP16193

(SRF):

HP8753E

Physical

Packaging:

1000 pieces per 13” reel

Marking:

None

0.112

(2.85)

Tinned Length

90°

Max.

0°

Min.

Allied

Part

Number

SMAC25-22( )-RC

SMAC25-27( )-RC

SMAC25-33( )-RC

SMAC25-39( )-RC

SMAC25-47( )-RC

SMAC25-56( )-RC

SMAC25-68( )-RC

SMAC25-82( )-RC

SMAC25-100( )-RC

SMAC25-120( )-RC

Inductance

(nh)

22

27

33

39

47

56

68

82

100

120

Q

Min.

100

Q

Typ.

135

130

135

125

120

115

125

Test

Freq.

(MHz)

150

SRF

Min.

(GHz)

3.2

2.7

2.5

2.1

1.5

1.3

1.2

1.1

DCR

Max.

(mΩ)

4.2

4.0

4.8

4.4

5.6

6.2

8.2

9.4

12.3

17.3

IDC

A

(Max.)

3.0

3.5

3.0

2.5

1.7

1.5

To complete part number insert tolerance designator: G=±2%, J=±5%, K=±10%

All specifications subject to change without notice.

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

REVISED 03/16/10

www.alliedcomponents.com
