COAXIAL CONNECTORS
SMB S e r i e s
■
FREQUENCY RANGE TO 3GHz
■
PUSH-ON COUPLING
SMB
Series

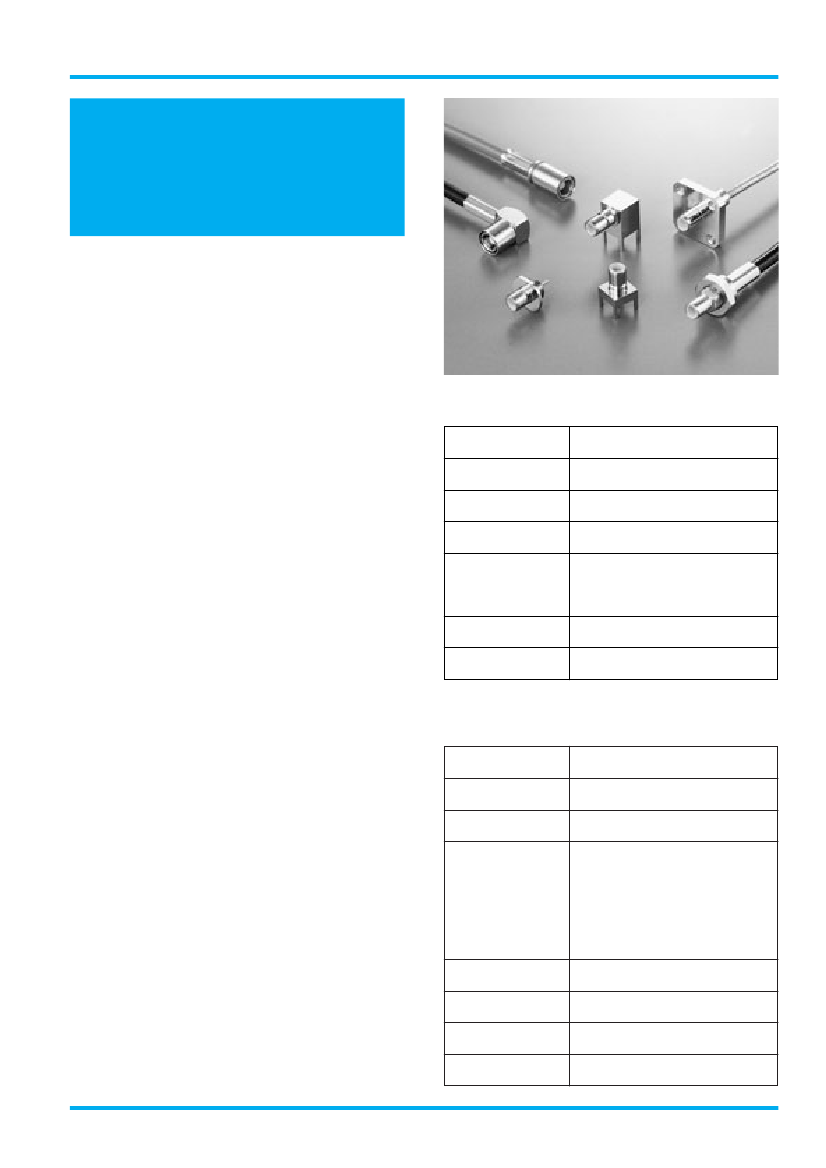

SMB series coaxial connectors are small size, push-on coupling type,
basis of the general purpose standards
（IEC60169-10）
.
For panel to cable or board to cable application, achieving high
frequency signal transmission and high density packaging inside
equipment. Applicable frequencies : from DC up to 3GHz.
High performance with a VSWR
（voltage
standing wave ratio） 1.2
of
or less
（Straight
plug）
.
●Lightweight,
compact in size and rugged construction.
●A
high degree of reliability provides stable electric continuity and
high frequency performance.
●Reliable
and stable interconnection.
●Applications
: Automobile Telephone, Communications Equipment,
Measuring Instruments
■SPECIFICATIONS
Characteristic Impedance
Frequency Range
D. W. Voltage
Insulation Resistance
50Ω
DC to 3GHz
AC500Vr.m.s.
（1minute）
500 megohms min. DC250V）
（
SMBS001D00 : 500 megohms min. DC500V）
（
Center Contacts : 5 milliohms max.
SMBS001D00 : 8 milliohms max.
Outer Contacts : 2.5 milliohms max.
SMBS001D00 : 12 milliohms max.
1.2 max. DC to 3GHz）
（
1.5D-V, 1.5D-W, UT85
Contact Resistance
V. S. W. R.
Applicable Cables
■MATERIALS/FINISHES
Description
Contacts
Insulator
Materials/Finishes
Copper Alloy/Gold Plated over Nickel
PTFE or SPS
Shell
In addition to independent cable application type, we also harness
products which satisfy your specification are available. Refer to
pages 109 to 111 for details.
Copper Alloy/Nickel Plated
SMBH003DB2, SMBK003DB2,
SMBA003DB2 :
Copper Alloy/Gold Plated over Nickel
SMBS001D00 :
Zinc Alloy/Nickel Plated over Copper
Ferrule
■Guide
to Operation Manuals
When using any of these products, please confirm the following
operation manuals.
・For
1.5D-V and 1.5D-W cables : JAHL-2237-1
・For
0.085 inch
Semi-flexible cables
: JAHL-2237-2
Copper Alloy/Nickel Plated
Copper Alloy/Nickel Plated
Copper Alloy/Nickel Plated
Copper Alloy/Nickel Plated
Hexagon Nut
C-ring
Sleeve
19
COAXIAL CONNECTORS
SMB S e r i e s

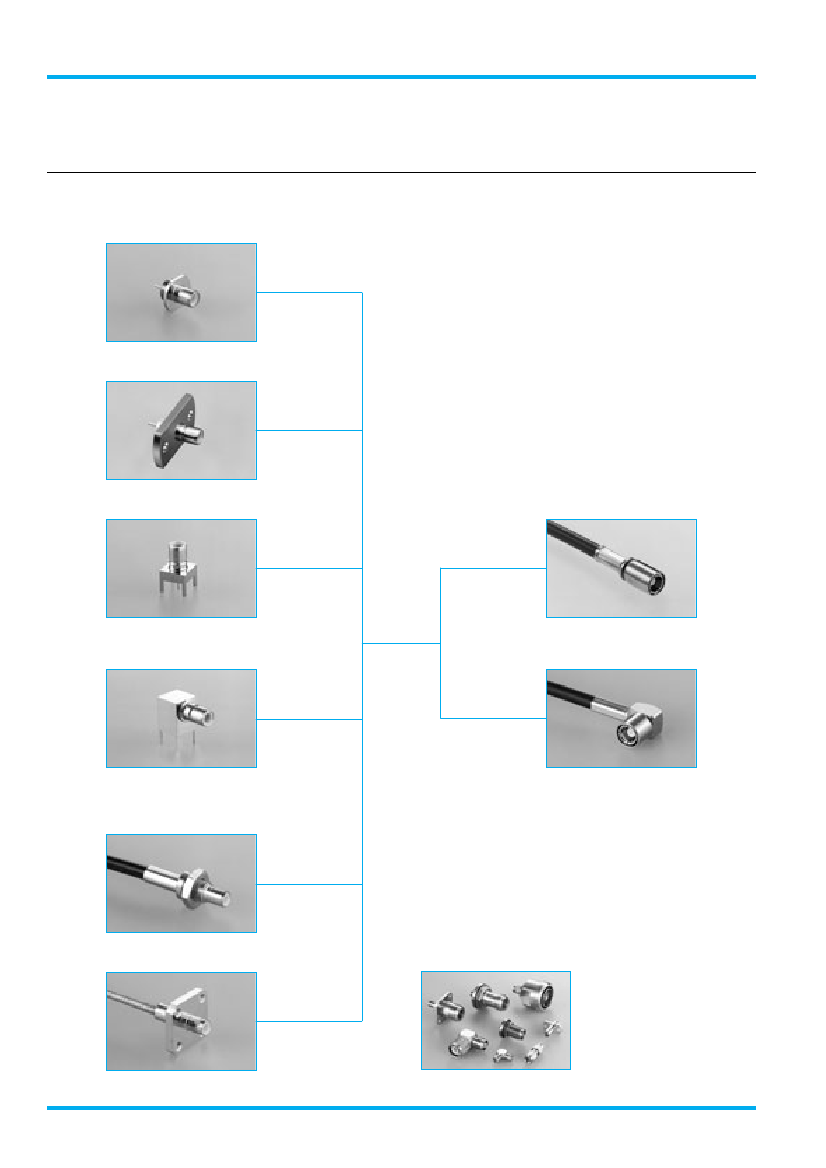

■TYPES
AND COMBINATIONS

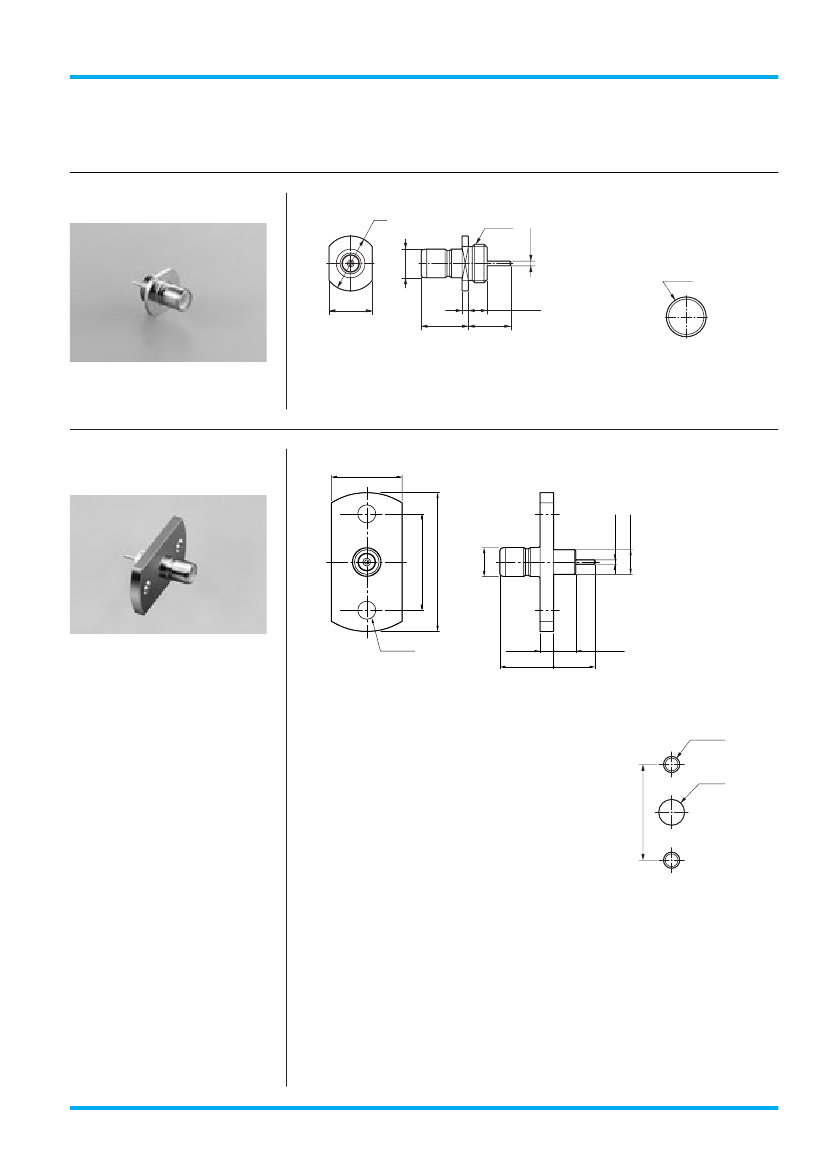

Receptacle
●Bulkhead・Straight
P/N：SMBV001D00
●Panel Mount・Straight
P/N：2 Hole Mount・SMBT001D00
Plug

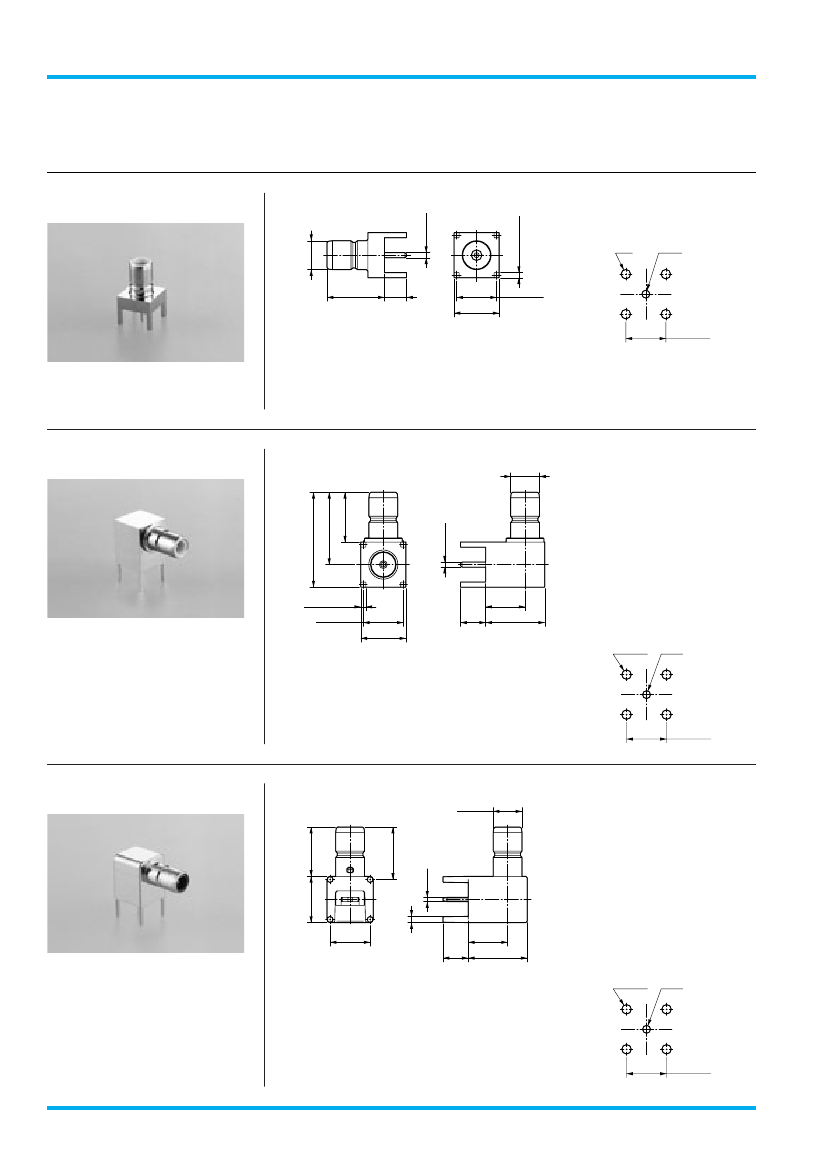

●Through-hole Solder・Straight
P/N：SMBR001D00
●Straight
P/N：SMBA00※D＊
＊
●Through-hole Solder・Right-angle
P/N：Machined Type・SMBS002D00
P/N：Die-cast
Type・SMBS001D00
●Right-angle
P/N：SMBB00※D＊
＊
Jack
●Bulkhead・Straight
P/N：SMBK00※D＊
＊
●Panel Mount・Straight
P/N：4 Hole Mount・SMBH00※D＊
＊
Adapter
Various adapters are available.
See pages 93 to 107.
