Products / SMD Type
Functional Polymer Aluminum Solid Electrolytic Capacitors
SS
&
SA
&
SB
series

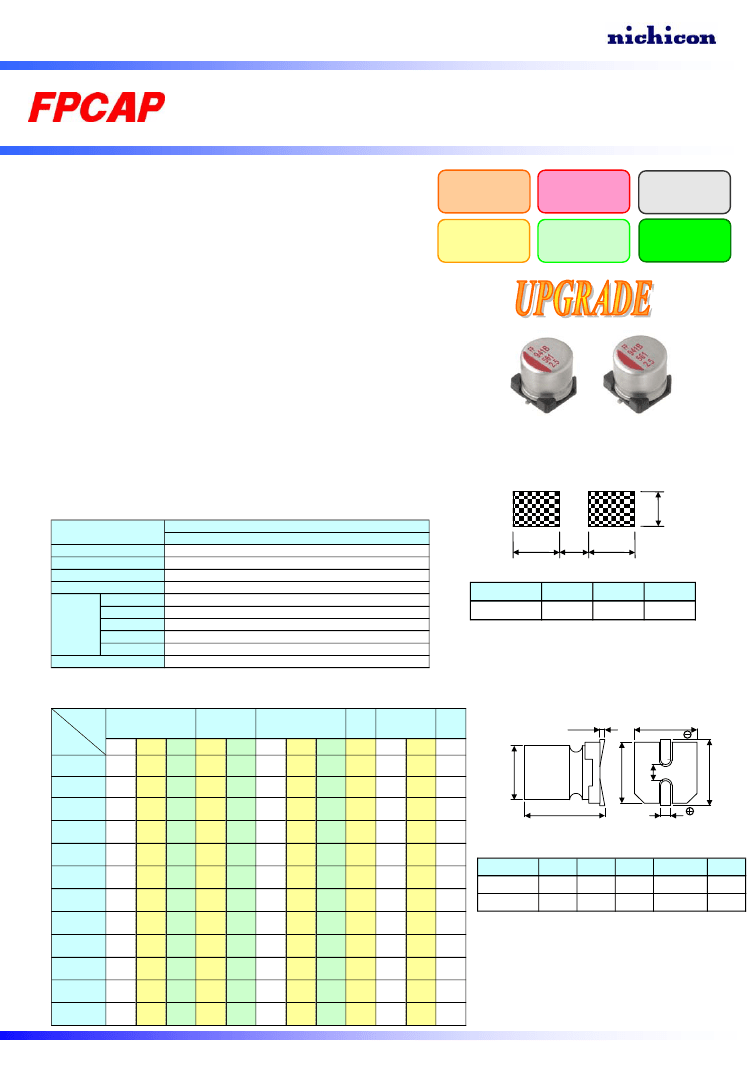

Features
By using Functional Polymer cathode, Frequency & Temp.
characteristics are greatly improved.
Low ESR at a high frequency range.
High ripple current capability.
Long life and high reliability.
Large
Capacitance
SMD
Low ESR
Lead-free
φ6.3
RoHS
Compliance
Applications
Switching Power Supply and DC/DC Converter.
Back up Power Supplies of CPU(VRM etc.)
Miniature high Power Supply.
Environmental Correspondence
Any environmental hazardous substances are not used.
The lead free of terminal plating (Sn 100%)
Recommended land pattern
c
b
φ
D
6.3
Specifications
Items
Operating temp. range
Rated voltage range
Capacitance range
Capacitance tolerance
Test condition
Capacitance
Endurance Leakage current
ESR
tan
δ
Failure Rate
Characteristic
SS, SA, SB
-55 to +105°C
2.5 to 25V·
DC
10 to 560μF
±20% (M)
105°C, rated voltage 2000Hrs.
Within ±20% of initial value before test
Not to exceed the initial specified value
Not to exceed 150% of initial specified value
Not to exceed 150% of initial specified value
0.5% / 1000Hrs. Max (60%CL)
a
a
2.1
b
[Unit: mm]
b
3.5
c
1.6
Size (ESR) List
R.V. (S.V.)
[V]
[φD×L (mΩ)]
4.0
(4.6)
6.3
(7.2)
SB
SS
SA
SB
10
(11.5)
SA
16
(18.4)
SS
SA
25
(28.7)
SS
6.3x5.7
(60)
6.3x5.7
(60)
6.3x5.7
(40)
6.3x5.7
(30)
6.3x5.7
(25)
6.3x5.7
(18)
6.3x5.7 6.3x5.7 6.3x5.7
(25)
(15)
(12)
6.3x5.7
(14)
6.3x5.7 6.3x7.7
(24)
(24)
Dimensions
0.2 Max
φD ±
0.5
W
±
0.2
C
±
0.2
H
±
0.2
L
±
0.3
2.5
(2.8)
SS
SA
SB
SA
Cap. [μF]
10
22
27
47
100
120
220
270
330
390
470
560
P
R
[Unit: mm]
φ
D×L
6.3×5.7
6.3×7.7
W
6.5
6.5
H
6.5
6.5
C
7.2
7.2
R
0.5 to 0.9
0.5 to 0.9
P
2.1
2.1
6.3x5.7
(14)
6.3x5.7 6.3x5.7 6.3x5.7 6.3x5.7
(14)
(11)
(25)
(14)
6.3x5.7 6.3x5.7 6.3x5.7
(14)
(10)
(14)
6.3x5.7
(13)
6.3x5.7 6.3x5.7 6.3x5.7
(25)
(13)
(10)
34
NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.
Part number & Specifications
Rated
Voltage
(V)
Rated
Capacitance
(μF, 120Hz)
NICHICON
Part Number
FPCAP
Leakage
Current*
(μA, 2 min)
tanδ
(120Hz)
ESR
(mΩ, 100kHz)
Rated Ripple
Current
(mA, r.m.s.)
Case Size
φ
D×L(mm)
330
390
390
2.5
470
560
560
560
330
4.0
330
390
100
220
220
6.3
220
270
330
330
10
16
120
100
100
10
25
22
27
47
RSA0E331MCN1GS
RSA0E391MCN1GS
RSB0E391MCN1GS
RSA0E471MCN1GS
RSS0E561MCN1GS
RSA0E561MCN1GS
RSB0E561MCN1GS
RSA0G331MCN1GS
RSB0G331MCN1GS
RSA0G391MCN1GS
RSS0J101MCN1GS
RSS0J221MCN1GS
RSA0J221MCN1GS
RSB0J221MCN1GS
RSA0J271MCN1GS
RSS0J331MCN1GS
RSA0J331MCN1GS
RSA1A121MCN1GS
RSS1C101MCN1GS
RSA1C101MCN1GS
RSS1E100MCN1GS
RSS1E220MCN1GS
RSS1E270MCN1GS
RSS1E470MCN1GS
FP-2R5ME331M-SAR
FP-2R5ME391M-SAR
FP-2R5ME391M-SBR
FP-2R5ME471M-SAR
FP-2R5ME561M-SSR
FP-2R5ME561M-SAR
FP-2R5ME561M-SBR
FP-4R0ME331M-SAR
FP-4R0ME331M-SBR
FP-4R0ME391M-SAR
FP-6R3ME101M-SSR
FP-6R3ME221M-SSR
FP-6R3ME221M-SAR
FP-6R3ME221M-SBR
FP-6R3ME271M-SAR
FP-6R3ME331M-SSR
FP-6R3ME331M-SAR
FP-010ME121M-SAR
FP-016ME101M-SSR
FP-016ME101M-SAR
FP-025ME100M-SSR
FP-025ME220M-SSR
FP-025ME270M-SSR
FP-025ME470M-SSR
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
100
110
135
235
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
14
14
10
13
25
13
10
14
11
14
25
25
15
12
14
25
14
18
24
24
60
60
40
30
3160
3160
3650
3600
2500
3600
3800
3160
3700
3160
2500
2500
3100
3500
3160
2500
3160
2900
2490
2700
1700
1700
2100
2800
6.3 × 5.7
6.3 × 5.7
6.3 × 5.7
6.3 × 5.7
6.3 × 5.7
6.3 × 5.7
6.3 × 5.7
6.3 × 5.7
6.3 × 5.7
6.3 × 5.7
6.3 × 5.7
6.3 × 5.7
6.3 × 5.7
6.3 × 5.7
6.3 × 5.7
6.3 × 5.7
6.3 × 5.7
6.3 × 5.7
6.3 × 5.7
6.3 × 7.7
6.3 × 5.7
6.3 × 5.7
6.3 × 5.7
6.3 × 5.7
* In case of some doubt about measured values, measure after applying rated voltage for 120 minutes at 105°C.

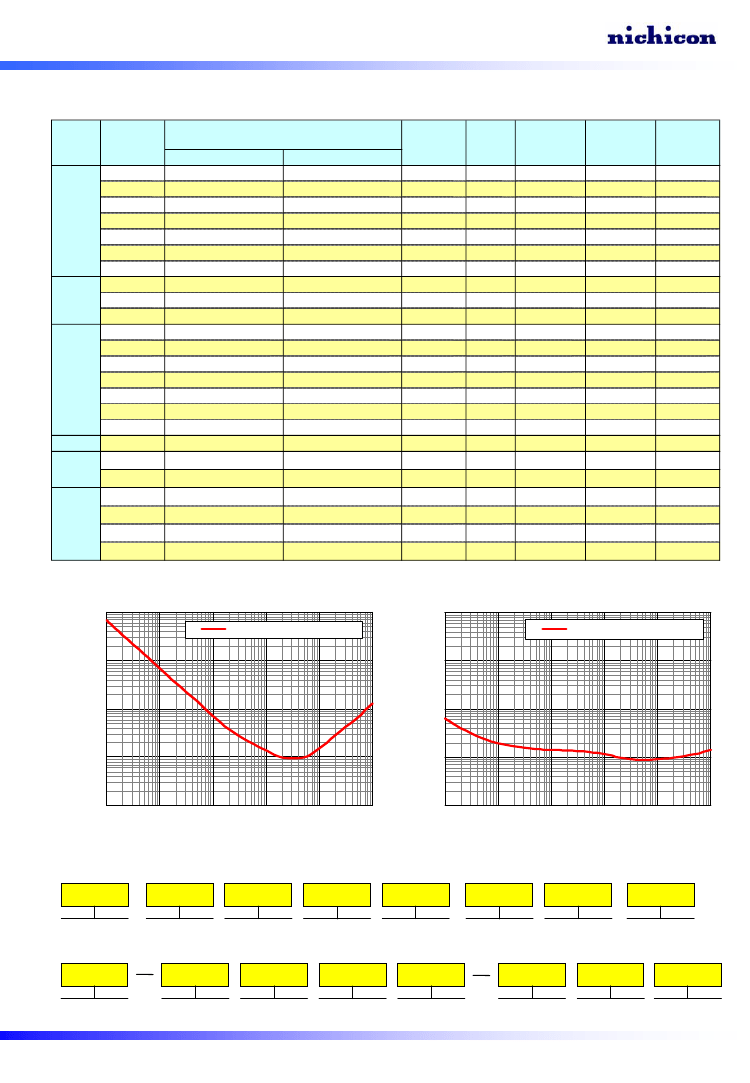

Frequency Characteristics
10000
6.3V 220μF (SA series)
10000
6.3V 220μF (SA series)
1000
Impedance (mΩ)
1000
ESR (mΩ)
100
100
10
10
1
0.1
1
10
100
1000
10000
1
0.1
1
10
100
1000
10000
Frequency (kHz)
Frequency (kHz)
Part Number
(EX) 6.3V, 220μF, SA series
Nichicon P/N
R
Type
SA
Series name
0J
Voltage
221
Rated
Capacitance
M
Capacitance
Tolerance
CN
1
GS
Taping
code
Rated
Configuration Control code
FPCAP P/N
FP
Commodity
Mark
6R3
ME
221
Rated
Capacitance
M
Capacitance
Tolerance
SA
Series name
R
Taping
code
Control code
Rated Voltage Classification
