SS-39200-019 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> SS-39200-019

SS-39200-019: Description8 CONTACT(S), MALE, TELECOM AND DATACOM CONNECTOR, IDC, PLUG; CategoryThe connector; File Size400KB，2 Pages; ManufacturerBel; Websitehttp://www.belfuse.com

Download Datasheet Parametric Compare View All

SS-39200-019 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SS-39200-019	-	-	View	Buy Now

SS-39200-019 Overview

8 CONTACT(S), MALE, TELECOM AND DATACOM CONNECTOR, IDC, PLUG

SS-39200-019 Parametric

Parameter Name	Attribute value
Total number of contacts	8
Processing package description	ROHS COMPLIANT
state	ACTIVE
Options	GENERAL PURPOSE
Shell style	PLUG
Manufacturer Series	SS-39200-019
Contact surface matching	GOLD (50)
Contact coated terminals	NOT SPECIFIED
Connection Type	TELECOM AND DATACOM CONNECTOR
Connector male and female	MALE
Installation type	CABLE
Shell material	POLYCARBONATE
Terminal type	IDC
UL flammability code	94V-0

Preview

Download Datasheet

View All

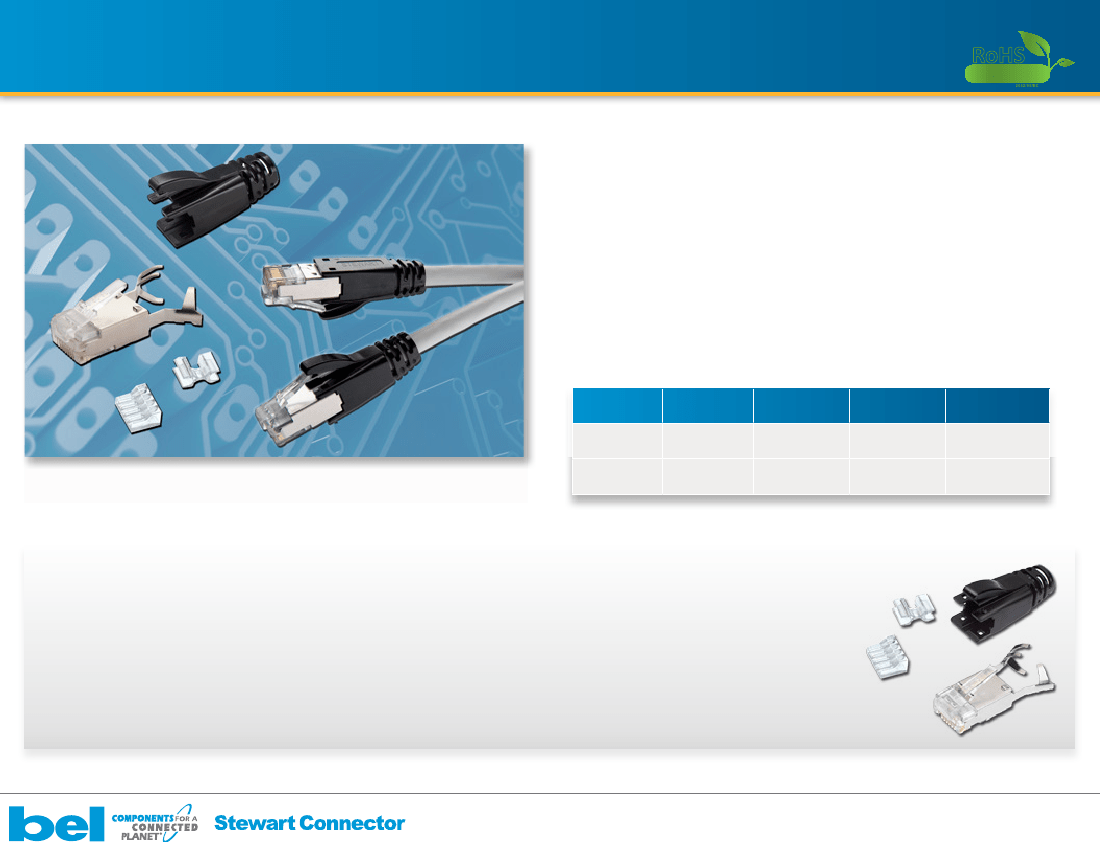

CAT6a Large Diameter Modular Plugs

Features & Benefits

•

RoHS

Compliant

Field installable plug for cable conductors up to 0.048” and overall diameters

up to .295”

Suitable for CAT6a and CAT6 applications delivering 10G Base-T and Gigabit

Ethernet

Low profile design allows for use in high density switches and routers

Anti-snag boot prevents plug tab damage during installation

Packaging available for both field installation and factory terminations

Can be used to terminate both shielded and unshielded cabling

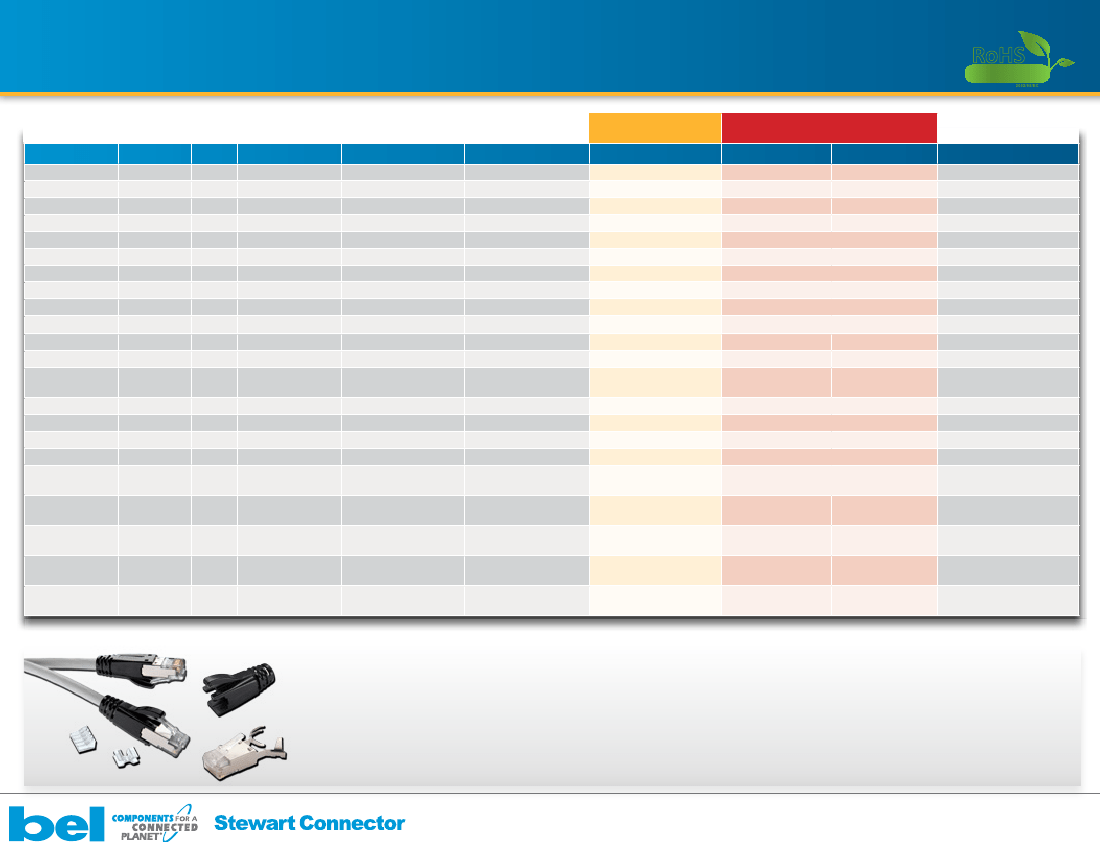

Conductor

Diameter

.042"-.048"

[1.07 - 1.22]

.042"-.048"

[1.07 - 1.22]

Cable

Diameter

.270"-.295"

[6.86 - 7.49]

.270"-.295"

[6.86 - 7.49]

Part Number

SS-39200-027

Loadbar and wire aligner system provide for consistent assembly and stable electrical

performance.

SS-39200-030

Performance

CAT6a

Packaging

Individually

Bagged

Bulk

Bel Stewart Connector’s new modular plug

is designed to terminate directly to CAT6a and CAT6 large diameter

solid conductor cabling. Typical modular plugs are designed for use on patch cable assemblies and therefore are designed to

terminate to stranded conductors of wire sizes from AWG 24 through AWG 28. However, in many direct connect, or consolidation

point applications where link lengths exceed 10 Meters, a horizontal cable type is specified. Horizontal cable is normally made

with solid conductor copper wire in the diameter range of AWG 23 through AWG 24. This larger copper size translates into larger

conductor diameters which make terminating to a traditional modular plug problematic. Bel Stewart’s unique loadbar and contact

design accommodates this large diameter cabling in the form factor of a standard RJ45 plug. To learn more visit www.belstewart.com.

11118 Susquehanna Trail South Glen Rock, PA 17327 Tel: 717.235.7512 Fax: 717.235.4675

Document number US/LIT-CAT6a Large Diav04.13 @2013 Bel connector Inc.

Specification Subject To Change
