SS12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SS12

SS12: Description1 A, 20 V, SILICON, SIGNAL DIODE, DO-214AC; CategoryDiscrete semiconductor diode; File Size92KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

SS12 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SS12	-	-	View	Buy Now

SS12 Overview

1 A, 20 V, SILICON, SIGNAL DIODE, DO-214AC

SS12 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Vishay
Reach Compliance Code	unknow
Configuration	SINGLE
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.5 V
Maximum non-repetitive peak forward current	40 A
Number of components	1
Maximum operating temperature	125 °C
Maximum output current	1 A
Maximum repetitive peak reverse voltage	20 V
surface mount	YES
technology	SCHOTTKY

Preview

Download Datasheet

View All

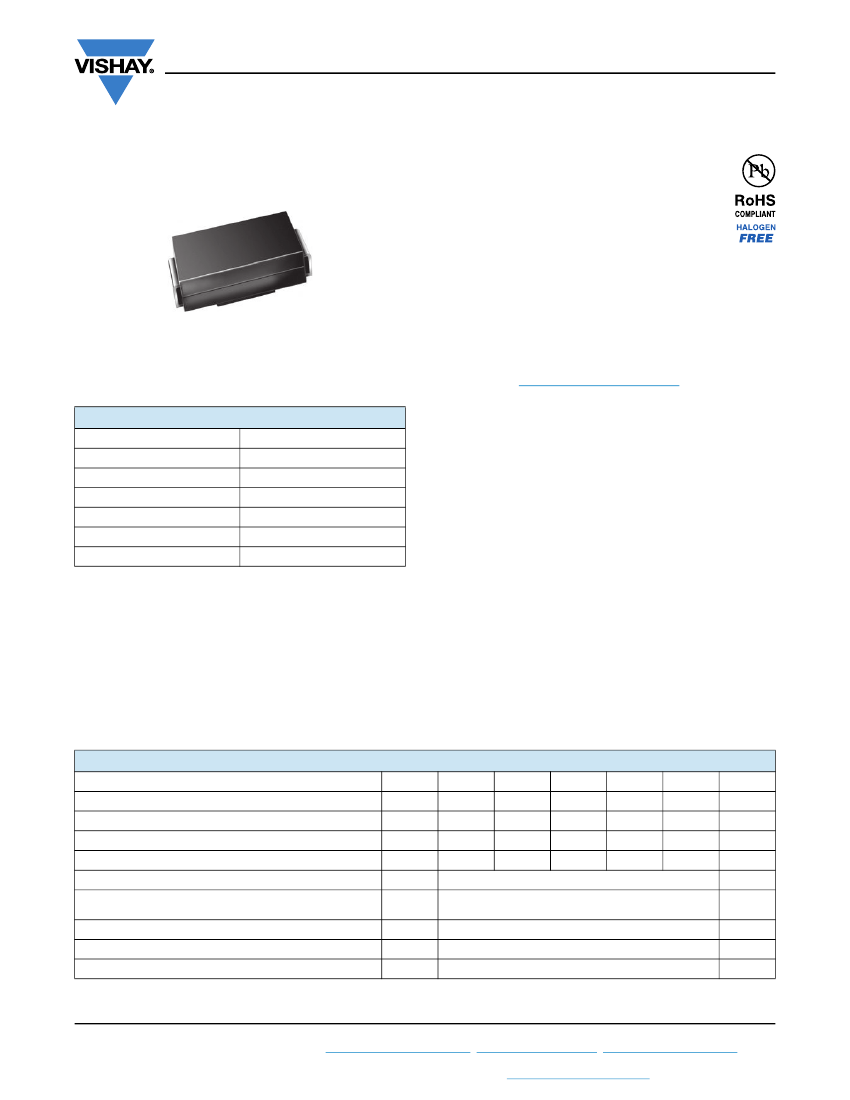

SS12, SS13, SS14, SS15, SS16

www.vishay.com

Vishay General Semiconductor

Surface Mount Schottky Barrier Rectifier

FEATURES

• Low profile package

• Ideal for automated placement

• Guardring for overvoltage protection

• Low power losses, high efficiency

Available

• Low forward voltage drop

• High surge capability

• Meets MSL level 1, per J-STD-020, LF maximum peak

of 260 °C

SMA

(DO-214AC)

• AEC-Q101 qualified available

- Automotive ordering code: base P/NHE3 or P/NHM3

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

max.

Package

Circuit configuration

1.0 A

20 V, 30 V, 40 V, 50 V, 60 V

40 A

0.50 V, 0.75 V

150 °C

SMA (DO-214AC)

Single

TYPICAL APPLICATIONS

For use in low voltage, high frequency inverters,

freewheeling, DC/DC converters, and polarity protection

applications.

MECHANICAL DATA

Case:

SMA (DO-214AC)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS-compliant, commercial grade

Base P/N-M3 - halogen-free, RoHS-compliant, commercial

grade

Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified

Base P/NHM3_X - halogen-free, RoHS-compliant, and

AEC-Q101 qualified

(“_X” denotes revision code e.g. A, B, .....)

Terminals:

matte tin plated leads, solderable per

J-STD-002 and JESD 22-B102

E3, M3, HE3, and HM3 suffix meets JESD 201 class 2

whisker test

Polarity:

color band denotes the cathode end

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Device marking code

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward rectified current at T

(fig. 1)

Peak forward surge current 8.3 ms single half sine-wave

superimposed on rated load

Voltage rate of change (rated V

)

Operating junction temperature range

Storage temperature range

RRM

RMS

F(AV)

FSM

dV/dt

STG

SYMBOL

SS12

SS13

SS14

1.0

10 000

-65 to +150

SS15

SS16

UNIT

V/μs

°C

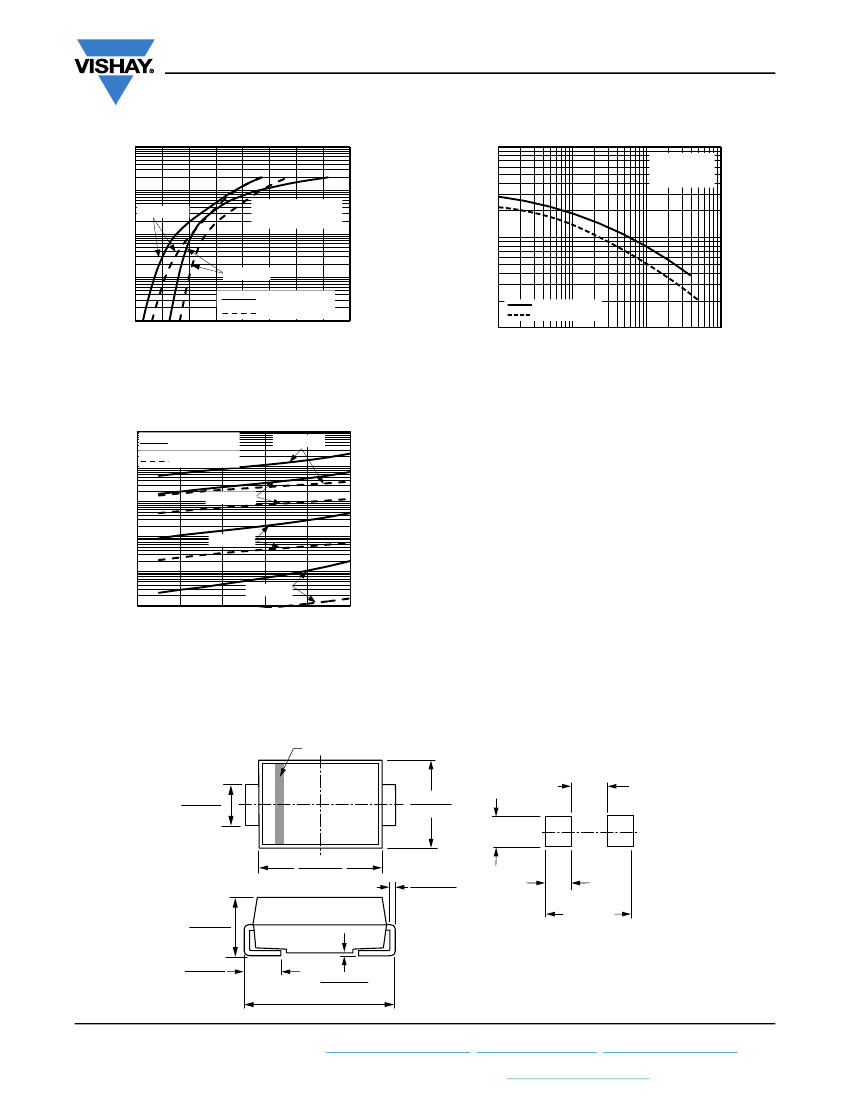

Revision: 21-Jul-17

Document Number: 88746

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer



ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of

typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding

statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a

particular product with the properties described in the product specification is suitable for use in a particular application.

Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over

time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.

Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for

such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document

or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Revision: 08-Feb-17

Document Number: 91000

SS12 Related Products

	SS12	SS13	SS15	SS16	SS12HE3/5AT
Description	1 A, 20 V, SILICON, SIGNAL DIODE, DO-214AC	SIGNAL DIODE	1 A, 50 V, SILICON, SIGNAL DIODE, DO-214AC	SIGNAL DIODE	DIODE SCHOTTKY 20V 1A DO214AC
Maker	Vishay	Vishay	Vishay	Vishay	Vishay
Reach Compliance Code	unknow	unknow	unknow	unknow	not_compliant
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Number of components	1	1	1	1	1
Maximum output current	1 A	1 A	1 A	1 A	1 A
Maximum repetitive peak reverse voltage	20 V	30 V	50 V	60 V	20 V
surface mount	YES	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Is it Rohs certified?	incompatible	incompatible	-	incompatible	conform to
Maximum forward voltage (VF)	0.5 V	-	0.75 V	0.75 V	-
Maximum non-repetitive peak forward current	40 A	-	40 A	40 A	-
Maximum operating temperature	125 °C	-	150 °C	150 °C	125 °C
