SPECIFICATION FOR APPROVAL
REF :
20090505-A
PROD.
NAME
PAGE: 1
ABC'S DWG NO.
ABC'S ITEM NO.
SS1260□□□□L□-□□□
SHIELDED SMD
POWER INDUCTOR

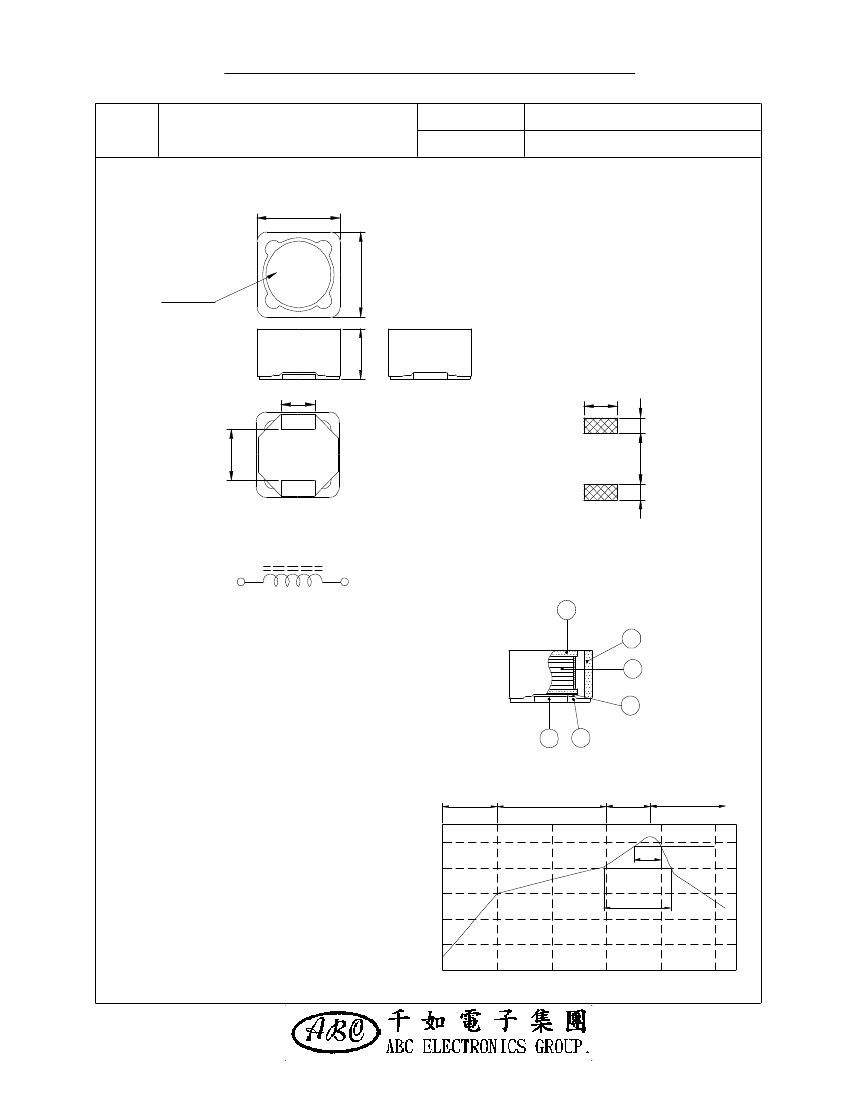

Ⅰ﹒CONFIGURATION
& DIMENSIONS：
A
A :
B :
C :
B
D :
E :
F :
G :
H :
D
C
12.5
±0.3
12.5
±0.3
6.0
±0.5
5.0
±0.3
7.0 typ.
6.8 ref.
5.4 ref.
2.9 ref.
G
H
E
m/m
m/m
m/m
m/m
m/m
m/m
m/m
m/m
Marking
100
Ⅱ﹒SCHEMATIC
DIAGRAM：
(PCB Pattern)
a
Ⅲ﹒MATERIALS：
a﹒Core：Ferrite DR core
b﹒Core：Ferrite RI core
c﹒Wire
：Enamelled
copper wire
（class
F）
d﹒Adhesive：Epoxy resin
e﹒Base：LCP
f﹒Terminal：Cu/Ni/Sn
g﹒Remark：Products comply with RoHS'
requirements
f
Peak Temp：260℃ max.
Max time above 230℃
：50sec
max.
Max time above 200℃
：70sec
max.
Temperature
Rising Area
+4.0
℃
/ sec max.
Preheat Area
150 ~ 200
℃
/ 60 ~ 120sec
Reflow Area Forced Cooling Area
+2.0 ~ 4.0
℃
-(1.0 ~ 5.0)
℃
/ sec max.
/ sec max.
Peak Temperature:
260℃
50sec max.
230℃
b
c
d
e
250
Ⅳ﹒GENERAL
SPECIFICATION：
a﹒Temp. rise
：40℃
typ.
b﹒Storage temp.：-40℃ ----+125℃
c﹒Operating temp.：-40℃----+125℃
（Temp.
rise included）
d﹒Resisance to solder heat：260℃ . 10 secs.
AR-001A
Temperature (
℃
)
200
150
70sec max.
100
50
0
50
H
100
150
Time ( seconds )
200
F
250
SPECIFICATION FOR APPROVAL
REF :
20090505-A
PROD.
NAME
PAGE: 2
ABC'S DWG NO.
ABC'S ITEM NO.
SS1260□□□□L□-□□□
SHIELDED SMD
POWER INDUCTOR
Ⅴ﹒ELECTRICAL
CHARACTERISTICS
：
DWG No.
SS12601R0YL□ -□□□
SS12601R2YL□ -□□□
SS12601R5YL□ -□□□
SS12602R2YL□ -□□□
SS12602R4YL□ -□□□
SS12603R3YL□ -□□□
SS12603R5YL□ -□□□
SS12604R7YL□ -□□□
SS12605R6YL□ -□□□
SS12606R1YL□ -□□□
SS12606R8YL□ -□□□
SS12607R6YL□ -□□□
SS12608R2YL□ -□□□
SS1260100ML□ -□□□
SS1260120ML□ -□□□
SS1260150ML□ -□□□
SS1260180ML□ -□□□
SS1260220ML□ -□□□
SS1260270ML□ -□□□
SS1260330ML□ -□□□
SS1260390ML□ -□□□
SS1260470ML□ -□□□
SS1260560ML□ -□□□
SS1260680ML□ -□□□
SS1260820ML□ -□□□
SS1260101ML□ -□□□
SS1260121KL□ -□□□
SS1260151KL□ -□□□
SS1260181KL□ -□□□
SS1260221KL□ -□□□
SS1260271KL□ -□□□
SS1260331KL□ -□□□
SS1260391KL□ -□□□
SS1260471KL□ -□□□
SS1260561KL□ -□□□
SS1260681KL□ -□□□
SS1260821KL□ -□□□
SS1260102KL□ -□□□
Inductance
(
μH
)
1.0±30%
1.2±30%
1.5±30%
2.2±30%
2.4±30%
3.3±30%
3.5±30%
4.7±30%
5.6±30%
6.1±30%
6.8±30%
7.6±30%
8.2±30%
10.0±20%
12.0±20%
15.0±20%
18.0±20%
22.0±20%
27.0±20%
33.0±20%
39.0±20%
47.0±20%
56.0±20%
68.0±20%
82.0±20%
100.0±20%
120.0±10%
150.0±10%
180.0±10%
220.0±10%
270.0±10%
330.0±10%
390.0±10%
470.0±10%
560.0±10%
680.0±10%
820.0±10%
1000.0±10%
Q
ref.
26
18
24
22
18
20
22
19
19
21
20
16
18
32
27
25
28
29
26
27
22
22
24
22
25
26
26
20
26
22
20
22
20
18
22
18
20
30
Test Freq.
( MHZ )
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.252
SRF
( MHz )
typ.
100.00
91.10
86.00
70.00
63.80
40.00
37.60
36.70
33.00
29.80
28.20
27.90
24.00
21.00
19.40
17.60
15.50
13.40
12.70
9.97
10.40
7.63
7.92
7.43
6.85
6.07
5.50
5.00
4.50
4.20
3.60
3.20
2.80
2.60
2.40
2.20
2.00
1.80
RDC
( mΩ )
max.
7.8
8.0
9.5
10.5
11.5
12.0
13.0
15.5
16.2
17.0
18.0
19.0
19.5
20.0
23.0
27.0
36.0
43.0
45.0
60.0
70.0
86.0
100.0
110.0
145.0
180.0
210.0
260.0
320.0
380.0
450.0
580.0
700.0
820.0
1000.0
1150.0
1500.0
1700.0
Irms
(A)
9.40
9.20
8.80
8.20
7.80
7.60
7.50
6.80
6.70
6.60
6.30
6.00
5.70
5.50
5.20
5.00
4.20
4.00
3.60
3.00
2.80
2.60
2.30
2.10
1.95
1.70
1.65
1.55
1.40
1.38
1.30
1.15
1.08
0.95
0.88
0.80
0.73
0.68
Isat
(A)
10.00
9.80
9.00
8.50
8.00
7.80
7.60
7.00
6.90
6.80
6.50
6.20
5.80
5.50
5.00
4.60
3.90
3.70
3.30
2.80
2.70
2.50
2.20
2.10
1.90
1.70
1.65
1.55
1.40
1.30
1.20
1.10
1.00
0.90
0.80
0.75
0.63
0.60
1).
□：Packaging
information… A：Bulk B：Taping Reel
2)."-
":Reference code
3). L Test Freq.：100KHz / 0.1V ( 1R0Y~8R2Y )， 1KHz / 1V ( 100M~102K )
4). Irms Base on temp rise 40
℃
typ.
5). Isat Base on
△
L/L0A=25% typ.
□□□
AR-001A
SPECIFICATION FOR APPROVAL
REF :
20090505-A
PROD.
NAME
PAGE: 3
ABC'S DWG NO.
ABC'S ITEM NO.
SS1260□□□□L□-□□□
SHIELDED SMD
POWER INDUCTOR
10 3
7
5
3
2
Inductance（uH）
10 2
7
5
3
2
10 1
7
5
3
2
10 0
10 1
@ Inductance VS. DC Current Curve
101
470
220
100
2
3
5 7 10 2
2
3
5 7 10 3
2
3
5 7 10 4
DC Current (mA)
10 3
7
5
@ DC Current VS. Temp. Rise Curve
3
2
10 2
7
5
3
2
10 1
7
5
3
2
10 0
10 1
5 7 10 2
5 7 10 3
5 7 10 4
470M 220M
100M
101M
（℃）
2
3
2
3
2
3
DC Current (mA)
AR-001A
SPECIFICATION FOR APPROVAL
REF : 20090505-A
PROD.
NAME
PAGE: 4
ABC'S DWG NO.
ABC'S ITEM NO.
SS1260□□□□L□-□□□
SHIELDED SMD
POWER INDUCTOR

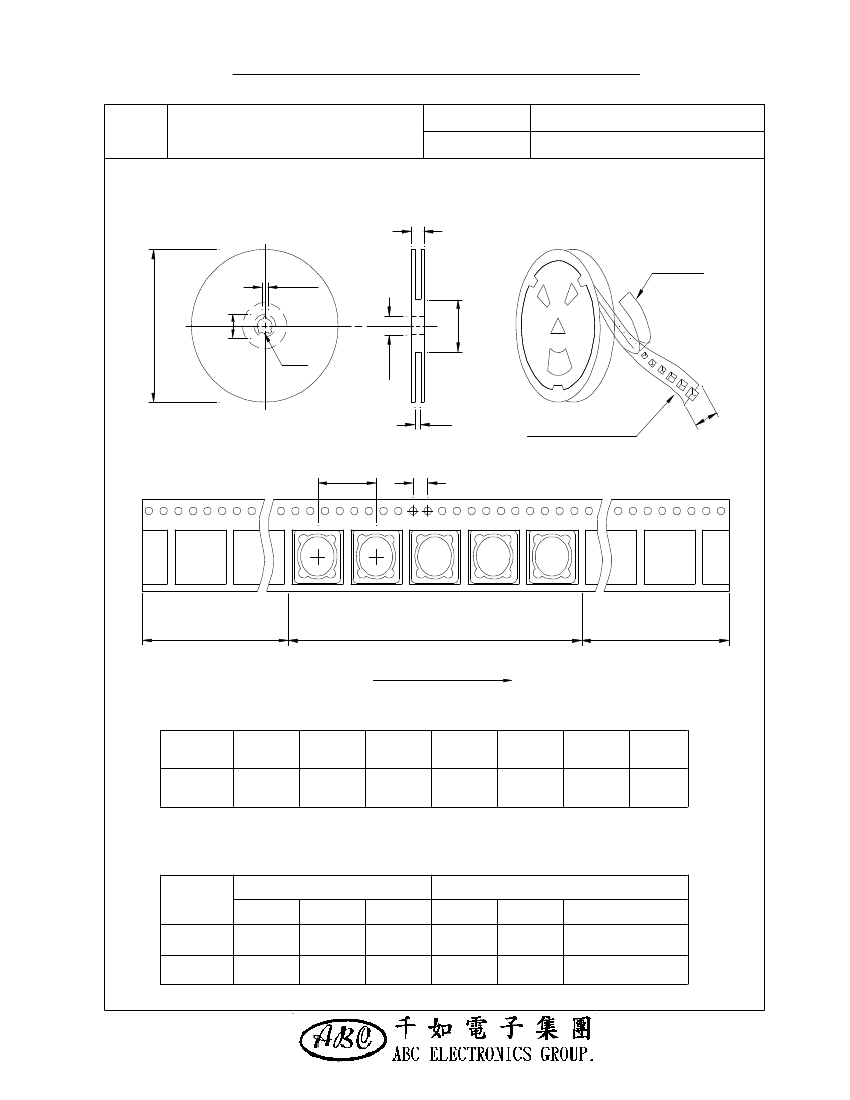

Ⅵ﹒PACKAGING
INFORMATION：
( 1 ) Configuration
T
Cover tape
2.0±0.5
A
∮
C
∮
C
N
B
G
D
Embossed carrier
※
Carrier tape width : D
P:16 m/m
End
4 m/m
Start
100
Leader
no component
200 m/m Min.
100
100
100
100
Trailer
no component
400 m/m Min.
Components
User direction of feed
( 2 ) Dimensions
Style
13 - 24
A
330
B
21±0.8
C
13
D
24
G
26
+0
N
50
-0
Unit:m/m
T
30.4
( 3 ) Q'TY & G.W. Per package
Inner : Reel
Series
SS1260
SS1260
Q'TY (pcs)
G.W. (gw)
Style
Q'TY (pcs)
Outer : Carton
G.W. (Kg)
Size (cm)
600
500
2,200
1,900
13 - 24
13 - 24
2,400
2,000
11.0
9.20
40 x 40 x 24
40 x 40 x 24
AR-001A
SPECIFICATION FOR APPROVAL
REF : 20090505-A
PROD.
NAME
PAGE: 5
ABC'S DWG NO.
ABC'S ITEM NO.
SS1260□□□□L□-□□□
SHIELDED SMD
POWER INDUCTOR
Ⅶ﹒DWGING
NUMBER EXPRESSION：
S
S
1
2
6
0
Reference code
Appendix code 2 : Package
Appendix code 1 : Classification
Tolerance code
Electrical code
Dimension code
Type code
Appendix code 1：Product Classification
L：Lead Free Standard products comply with RoHS' requirements
1 ~ 9：Lead Free Special products comply with RoHS' requirements
Appendix code 2：Package Information
Code
A
B
C
T.B.D.
T /R (Reel package)
T /R (Reel package)
Inner package
Inner package Q'TY
T.B.D.
600 pcs
500 pcs
Remark
AR-001A
